| Nominal diameter DN(mm) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 |
| L | 180 | 180 | 180 | 240 | 240 | 250 | 285 | 360 | 400 | 455 | 585 | 650 | 800 | 860 | 960 | 1075 | 1075 | 1230 | 1650 | 1750 |
| A | 262 | 262 | 262 | 280 | 280 | 284 | 292 | 330 | 340 | 350 | 392 | 442 | 472 | 532 | 582 | 682 | 682 | 762 | 832 | 932 |
| A1 | 130 | 130 | 130 | 139 | 139 | 141 | 145 | 164 | 169 | 174 | 195 | 220 | 235 | 265 | 290 | 350 | 350 | 390 | 420 | 470 |
| H | 212 | 212 | 212 | 265 | 265 | 310 | 350 | 460 | 520 | 570 | 695 | 780 | 905 | 1025 | 1080 | 1135 | 1135 | 1270 | 1460 | 1640 |
| H1 | 179 | 179 | 179 | 210 | 210 | 215 | 245 | 305 | 365 | 415 | 510 | 560 | 658 | 696 | 735 | 665 | 665 | 725 | 865 | 975 |
| F | 116 | 116 | 116 | 170 | 170 | 180 | 210 | 275 | 310 | 355 | 460 | 500 | 580 | 640 | 715 | 830 | 830 | 920 | 980 | 1050 |
| Parts Name | Material |
| Valve body | Dutile iron, stainless steel, Cast Seel |
| Valve seated seal | Rubber |
| Connection type | Flange |
| Application temperature | ≤80°C |
| Valve stem | Stainless steel |

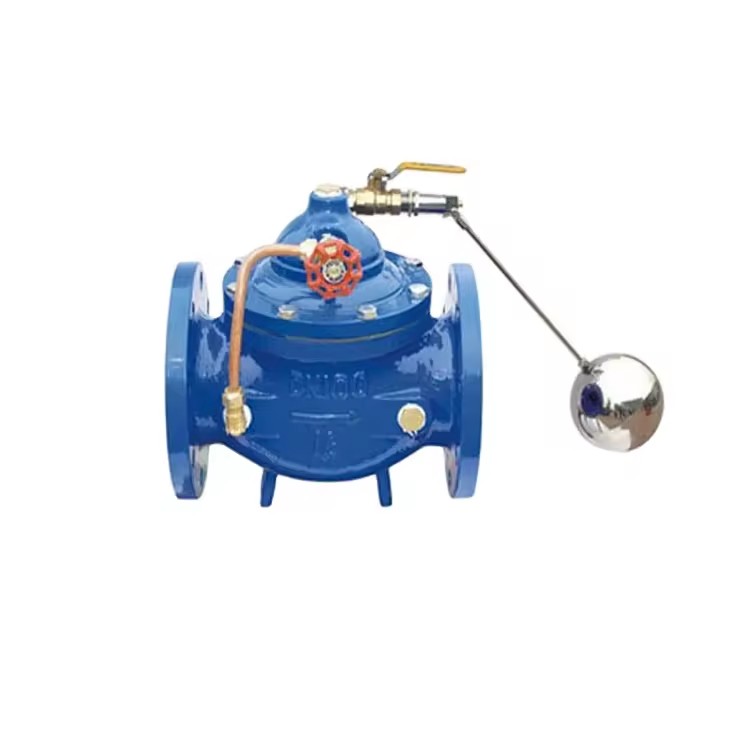

Feature of float valve

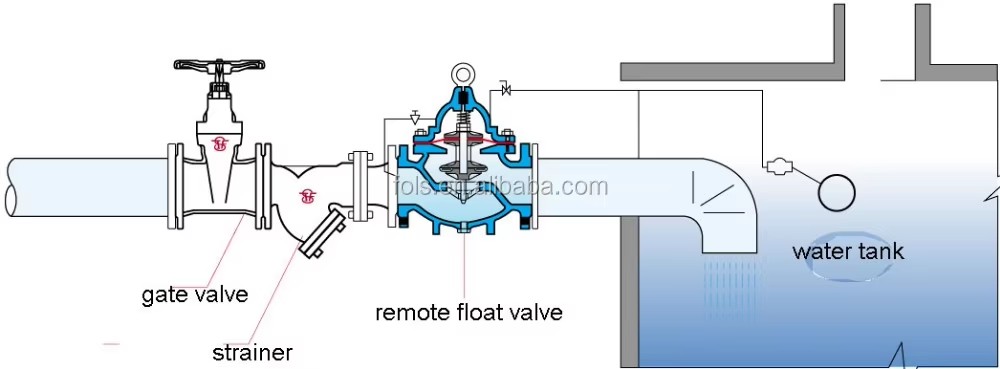

The float valve is consist of main valve, needly valve, float ball, the water tank float valve are designed to control
the water level of liquid. it open or shut the valve to control the water and prevent water from upstream, The float
valve is unacted no matter the preussre is high or low, with the characterized by water tight, smooth operation
easy maintenance.
We also make the electric actuator
electric valve actuator has the multi-funtion such as: ON/Off function, regulating functhion, (whatever you can adjust
the dis of butterfly valve), it depens on your technical request for butterfl y valve.ball valve, gater valve, globe valve
We have different kinds of butterfly valves, each adapted for different pressures and different usage. The zero offset
butterfly valve, double offset butterfly valve, the triple offset butterfly valve. also has different connect type: flange conn
ection butterfly valve, wafer-style butterfly valve, At last: Concentric butterfly valves, Doubly-eccentric butterfly valves(
double-offset butterfly valve) Triply-eccentric butterfly valves ( triple-offset butterfly valves), We waiting for your selectin.
Pindly noted: all this butterfly valves can assemble our electric actuators
Our valve actuators for difference sizes of ductile iron butterfly valve
pneumatic valve actuator, and in the research, development, production, sale and service of automatic
control system
Our main products the series of electric actuator are elaborately designed and ma nufactured by the
most advanced technology according to the practical situation. The series of electric actuator are
ch aracterized by driving device and transmission gear in one, small volume, light weight, good-looking
appearance, and remarkable performance. They have been widely used in various fields, such as paper
making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply
and industrial automation and so on.
Trade term: EXW FOB CIF etc.
Payment term: TT Western Union L/C etc.
Payment condition: Sample cost: 100% payment.
Order payment: 30% deposit, 70% before shipping
Delivery: By express, By Sea, By air.
Delivery time: Sample days: 5 working days
Order days: 15 days
