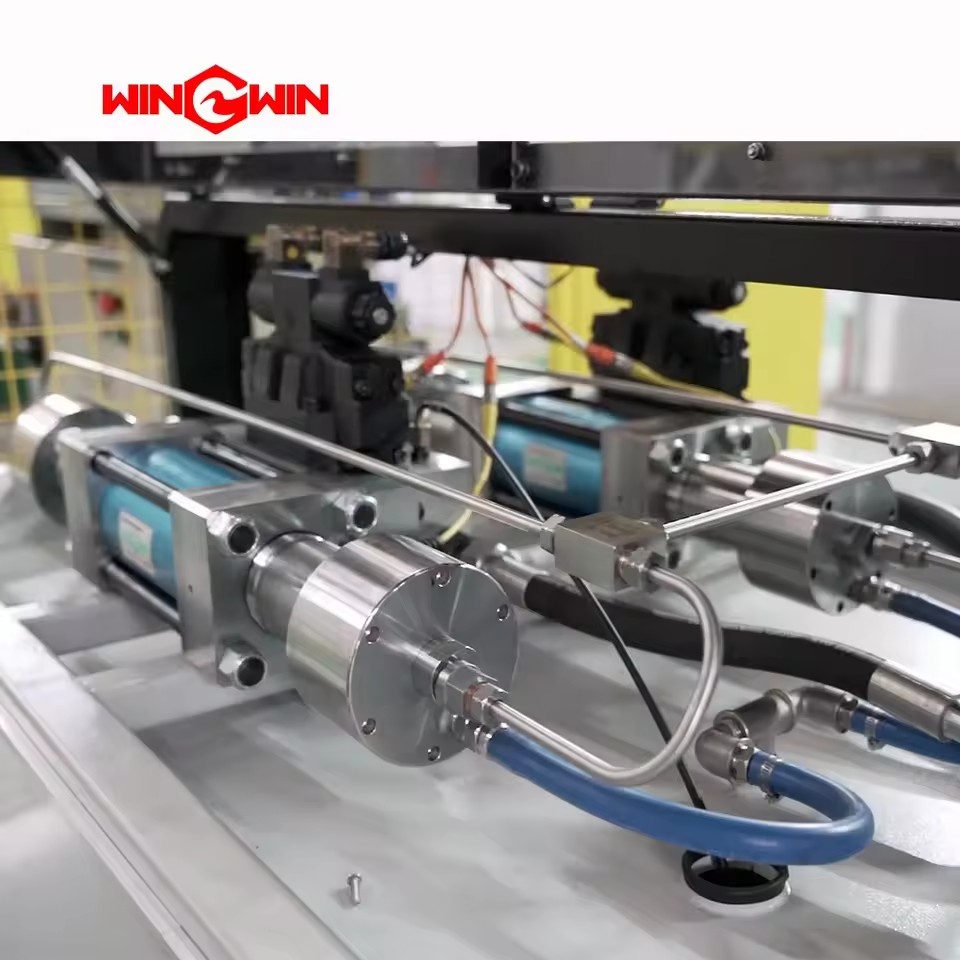

60JET Waterjet Pump Dual Intensifiers Pump Cutting Machine Water Jet Cutter Used for Automotive Interior Cutting

SL-VI100HP

Dual Intensifier

Suitable for multiple cutter heads

High system stability

Dual intensifier work at the same time

Continuous 24-hour operation

Description

Unit

Motor Power Rate

KW/HP

45/60

Max. Flow Rate

L/min

6.5

Pressure Enhancement Factor

20.21

Max. Reversing Rate

Times/min

60

Capacity of Attenuator

L

2

Inlet Water Pressure

psi

35-100

Inlet Water Filter

μ m abs

10

Voltage

V

380

Intensifier Quantity

Pieces

Oil Tank Volume

150

Temp. Control Method

Sensor

Reversing Control Method

Cooling Method

Cold-Heat Exchanger

Environment Temperature

5-40°C

Motor Drive Mode

Sevro/Standard Oil

Hydraulic Oil

Type 45 Hydraulic Oil

Orifice Quantity

piece

1-4

m

1.7

W

1.1

H

1.4

Products Description

00:00

00:41

Advantages

1. Double supercharger booster pump, please select ww60jet.

2. The core is international standard universal supercharger and imported supercharger parts.

3. The linkage design of double superchargers perfectly reflects the ultra-high pressure water

cutting performance.

4. Use automatic variable displacement pump to reduce power consumption and improve system efficiency

5. Double filtration system for oil inlet and return of oil pump to ensure the optimization of oil quality.

7. Automatic shutdown protection systems such as water shortage and overheating can ensure customers to work safely and

continuously.

Technical comparison

Related Products

Servo motor can cost. 7.6L/min large flow intensifier can drive 1-5 cutting heads at the same time.

Servo motor can cost.

Double intensifier structure can make the machine work alternatively to ensure production efficiency.

Double intensifier linkage structure can prolong the use time of

the intensifier

5.6L/min large flow

intensifier

can drive 1-4

cutting heads

at the same time.

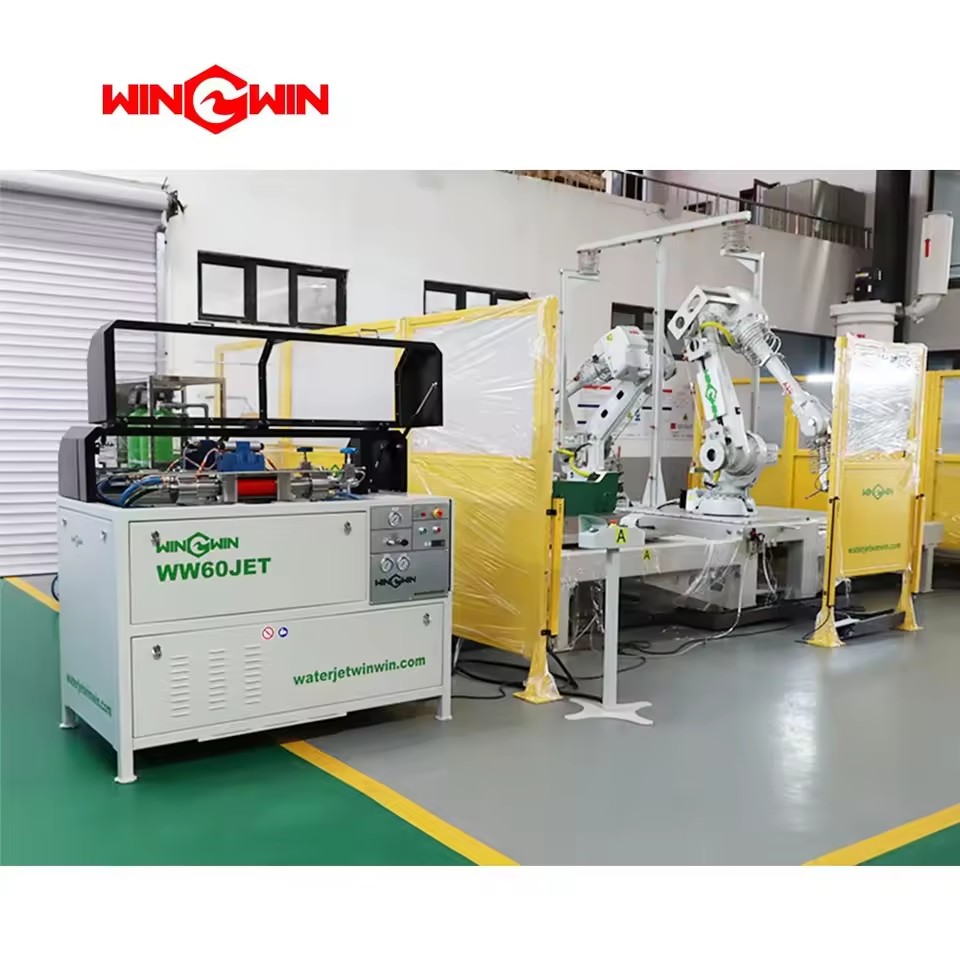

ABB robot

waterjet cutting station

Yaskawa robot

waterjet cuttingstation

Fanuc robot

Waterjet Parts Warehouse

00:12

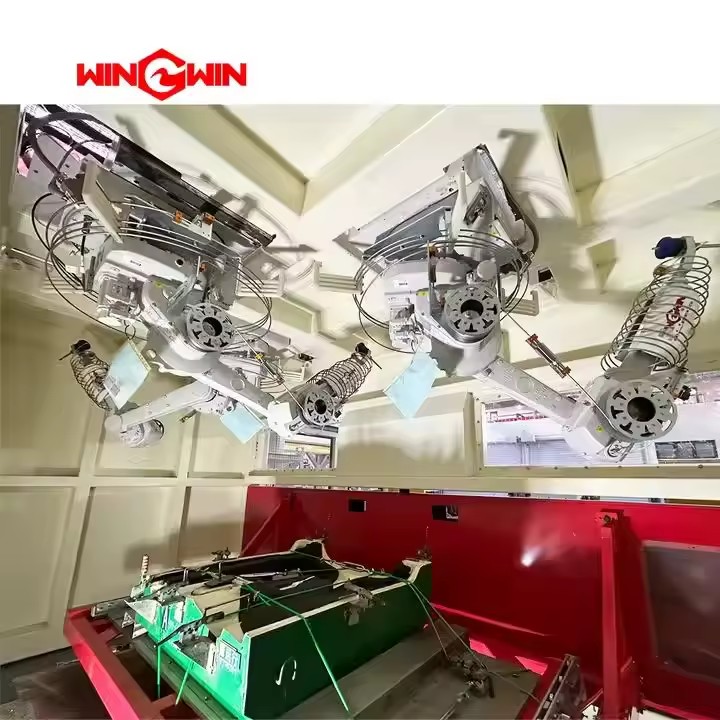

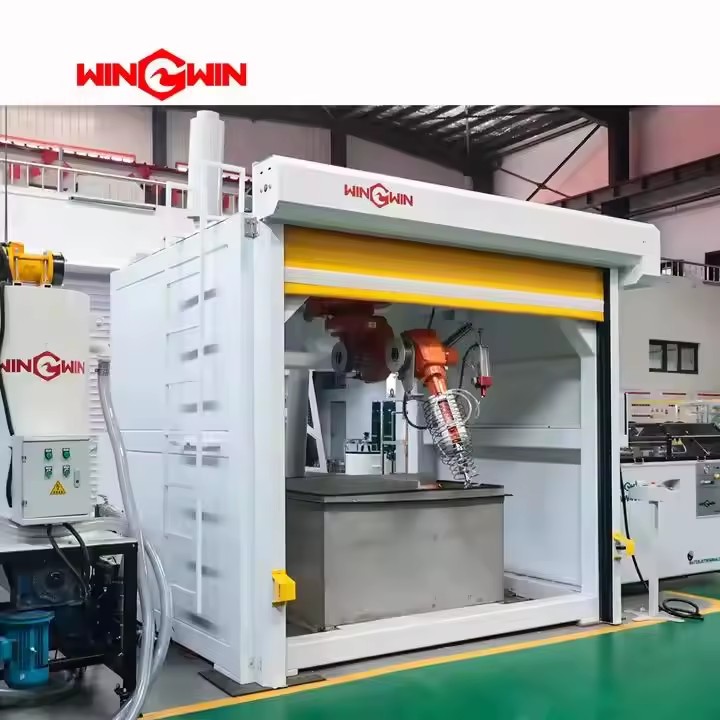

Robot Project

OPTIONAL MEZZANINE

Small footprint, high cutting efficiency

The elevated gantry structure can be equipped with up to 6 robotic arms

Helmet Cutting

Cutting Military Materials

With specialized cutting techniques and abrasive waterjets, we achieve smooth edges without deformation or burrs. Our waterjet cutting robot offers advanced precision control systems and cutting technology, ensuring precise and consistent cuts for helmet and military materials.

Aerospace engine cleaning

Aerospace engine cleaning With Waterjet

The use of ultra-high pressure water cleaning technology can effectively clean the attachments on the surface of materials and ensure that parts are not damaged.

By utilizing HP water technology, we can easily remove hard coatings on aircraft engines and IGT components.

Waterjet Cutting Machine

WW 4020 5 Axis Extra large waterjet cutting machine

company supports color customization, this equipment is 4020 AC 5 cutting table, full stainless steel protective structure,good protection, no rust, Extra large cutting platform,oil immersed structure, long service life of ball screw and linear guide,fully aluminum alloy cutting head, light weight.
