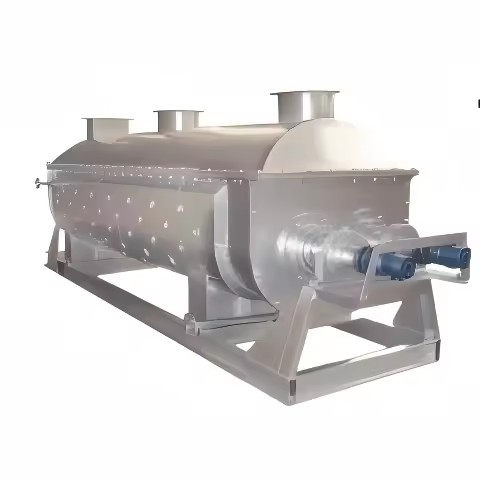

Automatic Rotary Eco-Friendly Cooling & Heating Hollow Blade Dryer for Linear Low Density Polyethylene

Product Importer Gallery 01 · e50b7667f9

Product Importer Gallery 02 · cc759d70c0

Product Importer Gallery 03 · c0cc856adf

Product Importer Gallery 04 · 04a229c5c9

Product Importer Gallery 05 · 2dcc82f047

Product video

Automatic Rotary Eco-Friendly Cooling & Heating Hollow Blade Dryer for Linear Low Density Polyethylene

Name: Automatic Rotary Eco-Friendly Cooling & Heating Hollow Blade Dryer for Linear Low Density Polyethylene
SKU: 8CR2-AVM9-BR75-01
Price: 10940.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 10,940.00 10940.0 USD $ 10,940.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Rotary Drying Equipment

Heating method

Gas Heating, Oil Heating, Steam Heating, Electric Heating, Heat Pump

Material

SUS304/ SUS316L/Carbon Steel

Power(w)

30KW

Application

Other, Food Processing, Chemicals Processing, Plastics Processing

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

TEPY	KJG-2.7	KJG-9	KJG-13	KJG-18	KJG-24	KJG-29	KJG-36	KJG-41
Heat transfer area(m²)	2.7	9	13	18	24	29	36	41
Effective volume(m³)	0.06	0.32	0.59	1.09	1.53	1.85	2.42	2.8
Revolution(r.p.m)	15-30	10-25	10-25	10-20	10-20	10-20	10-20	10-20
Power(KW)	2.2	3.8	5.5	7.5	11	11	15	15
A width of dryer body( mm )	306	584	762	940	1118	1118	1296	1296
B total width( mm )	736	841	1066	1320	1474	1474	1676	1676
C lengh of dryer body( mm )	1956	2820	3048	3328	3454	4114	4115	4724
D total length( mm )	2972	4876	5486	5918	6147	6808	6960	7570
E Distance bteween feeding and dischaeging( mm )	1752	2540	2768	3048	3150	3810	3810	4420
F height in center( mm )	380	380	534	610	762	762	915	915
G total height( mm )	762	838	1092	1270	1524	1524	1778	1778
N steam inlet	(2)3/4	(2)3/4	(2)1	(2)1	(2)1	(2)1	(2)1	(2)1
O water outlet	(2)3/4	(2)3/4	(2)1	(2)1	(2)1	(2)1	(2)1	(2)1

TEPY	KJG-48	KJG-52	KJG-62	KJG-68	KJG-73	KJG-81	KJG-87	KJG-95	KJG-110
Heat transfer area(m²)	48	52	62	68	73	81	87	95	110
Effective volume(m³)	3.54	3.96	4.79	5.21	5.78	6.43	7.39	8.07	9.46
Revolution(r.p.m)	10-20	10-20	10-20	10-20	5-15	5-15	5-15	5-15	5-10
Power(KW)	30	30	45	45	55	55	75	75	95
A width of dryer body( mm )	1474	1474	1651	1652	1828	1828	2032	2032	2210
B total width( mm )	1854	1854	2134	2134	2286	2286	2438	2438	2668
C lengh of dryer body( mm )	4724	5258	5410	5842	5461	6020	5537	6124	6122
D total length( mm )	7772	8306	8865	9296	9119	9678	9119	9704	9880
E Distance bteween feeding and dischaeging( mm )	4420	4954	4953	5384	5004	5562	5080	5664	5664
F height in center( mm )	1066	1066	1220	1220	1220	1220	1220	1220	1220
G total height( mm )	2032	2032	2362	2362	2464	2464	2566	2566	2668
N steam inlet	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)2	(2)2	(2)2
O water outlet	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)11/2	(2)2	(2)2	(2)2

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 19 fields

Type

Rotary Drying Equipment

Heating method

Gas Heating, Oil Heating, Steam Heating, Electric Heating, Heat Pump

Material

SUS304/ SUS316L/Carbon Steel

Power(w)

30KW

Application

Other, Food Processing, Chemicals Processing, Plastics Processing

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Key selling points

Automatic, Competitive Price, Multifunctional, High Safety Level, Eco-Friendly, Energy Saving

Warranty

4 Years

Machinery test report

Provided

Video outgoing-inspection

Provided

Operating System Language

English, Spanish, German, Japanese, Korean

Place of origin

China, Jiangsu

Weight (kg)

5000

Dimension(L*W*H)

4876*841*838MM(191.97*33.11*32.99in)

Range of speed(r.p.m)

10-20

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

KJG-52

Lead time

25 days

Minimum order

1 Units
