Custom OEM CNC Milling Fixture L Bracket Support Columns for Multi Axis Machining Workpiece Fixing Applications Steel Alloys

Product details

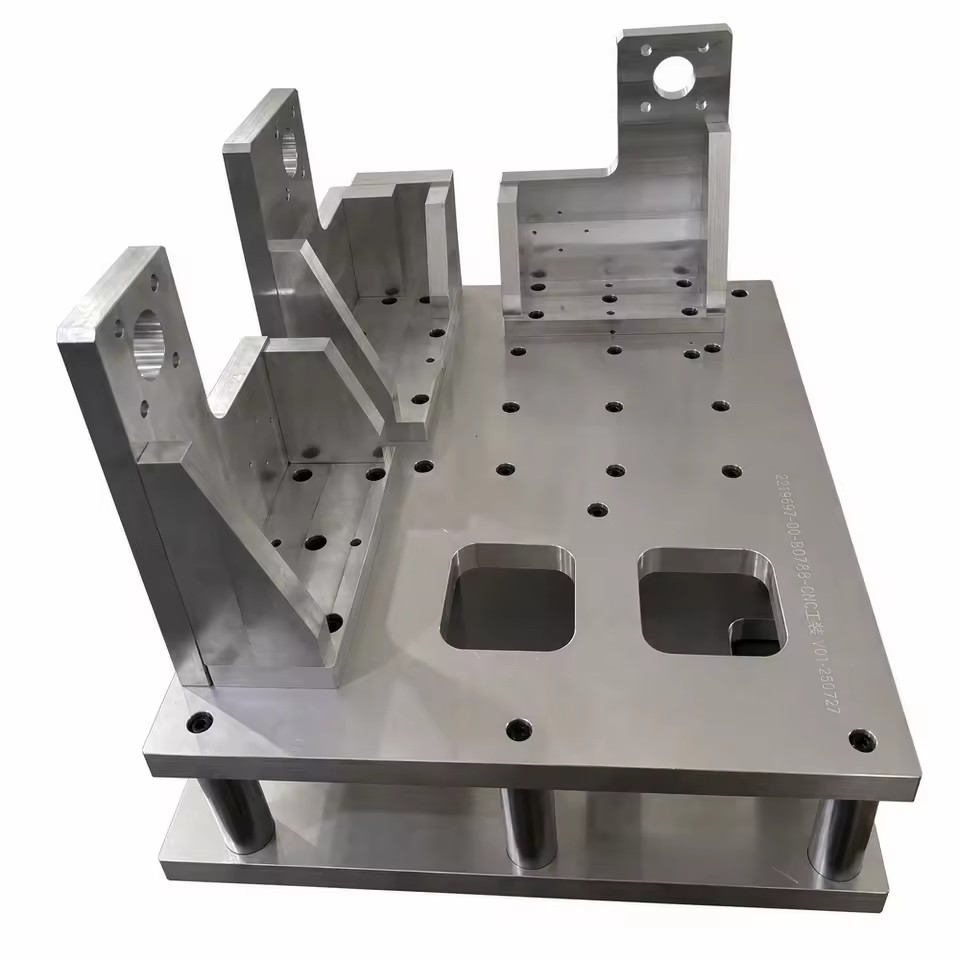

Core Product Advantage: The CNC machining fixture table is a precision workholding system designed for milling, drilling and multi axis machining centers. The machined top plate with grid of precision holes and rectangular cutouts allows quick workpiece mounting with standard clamps, while the rigid column supported structure with upright brackets delivers stable, repeatable positioning for batch production.

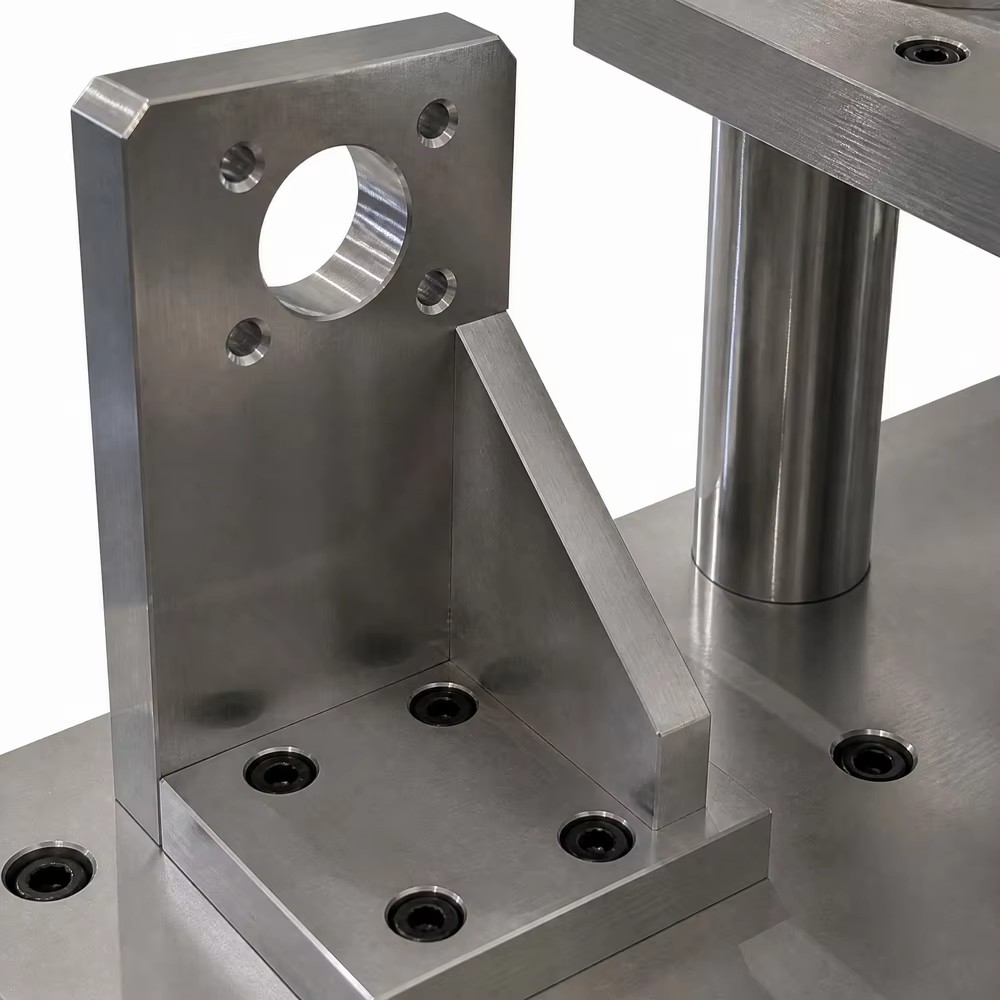

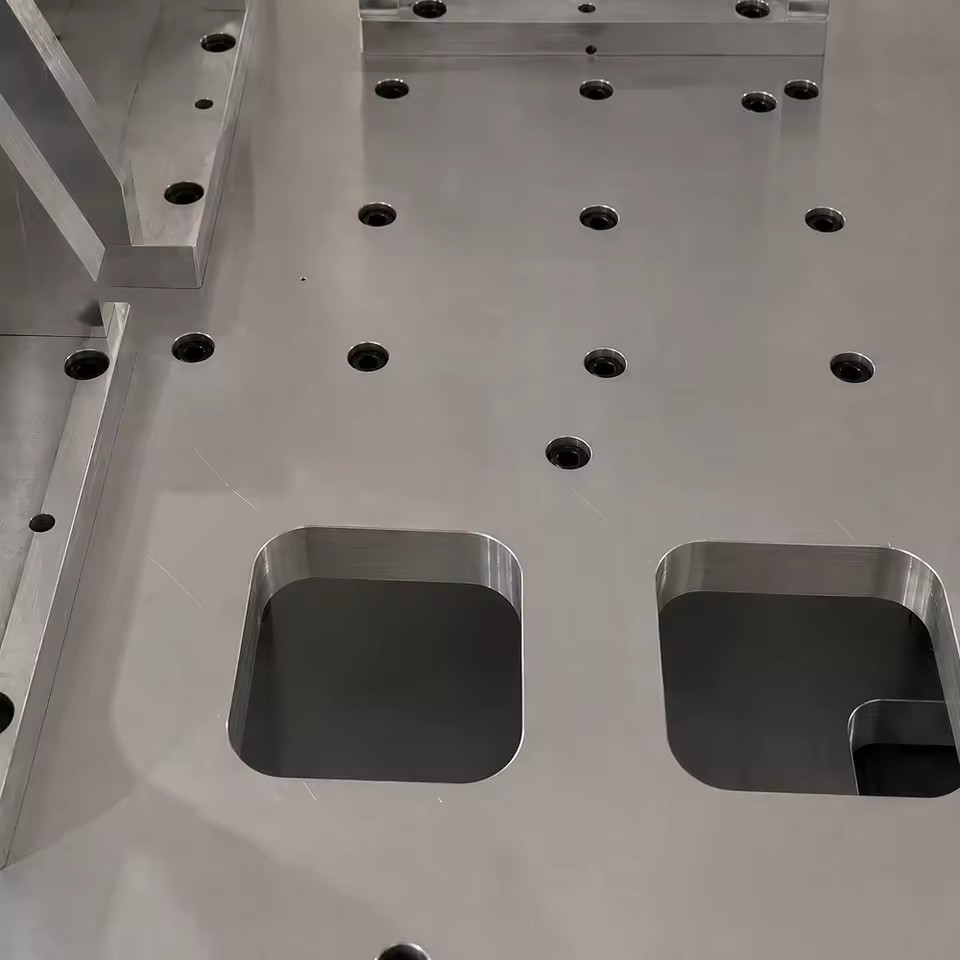

Practical Function Design: The dense pattern of tapped and dowel holes on the top plate gives flexible clamping positions for different workpiece sizes, and the two large cutouts provide access for machining and chip removal. The L shaped brackets with circular holes hold vertical workpieces securely, and the open column design keeps the fixture light while maintaining stiffness.

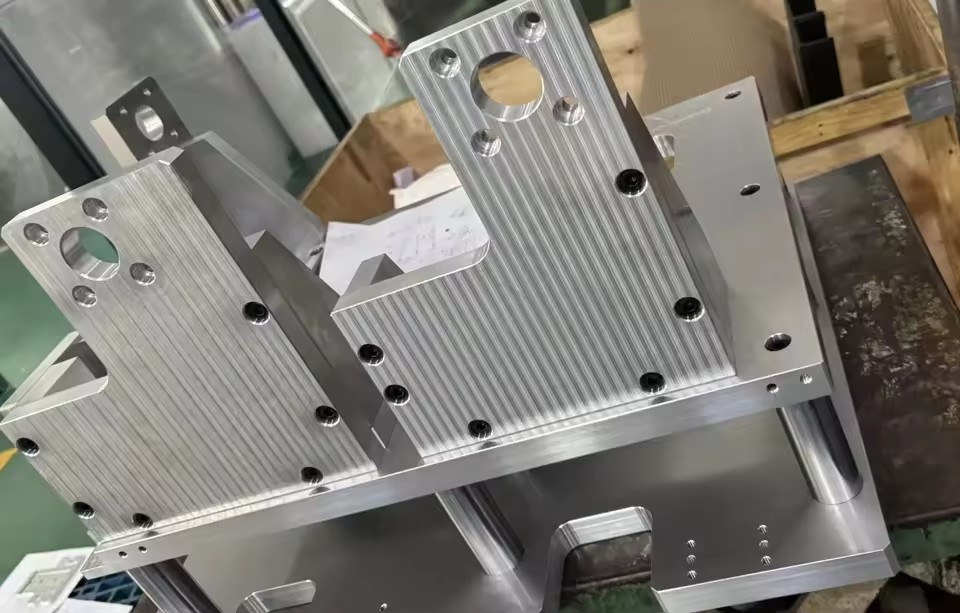

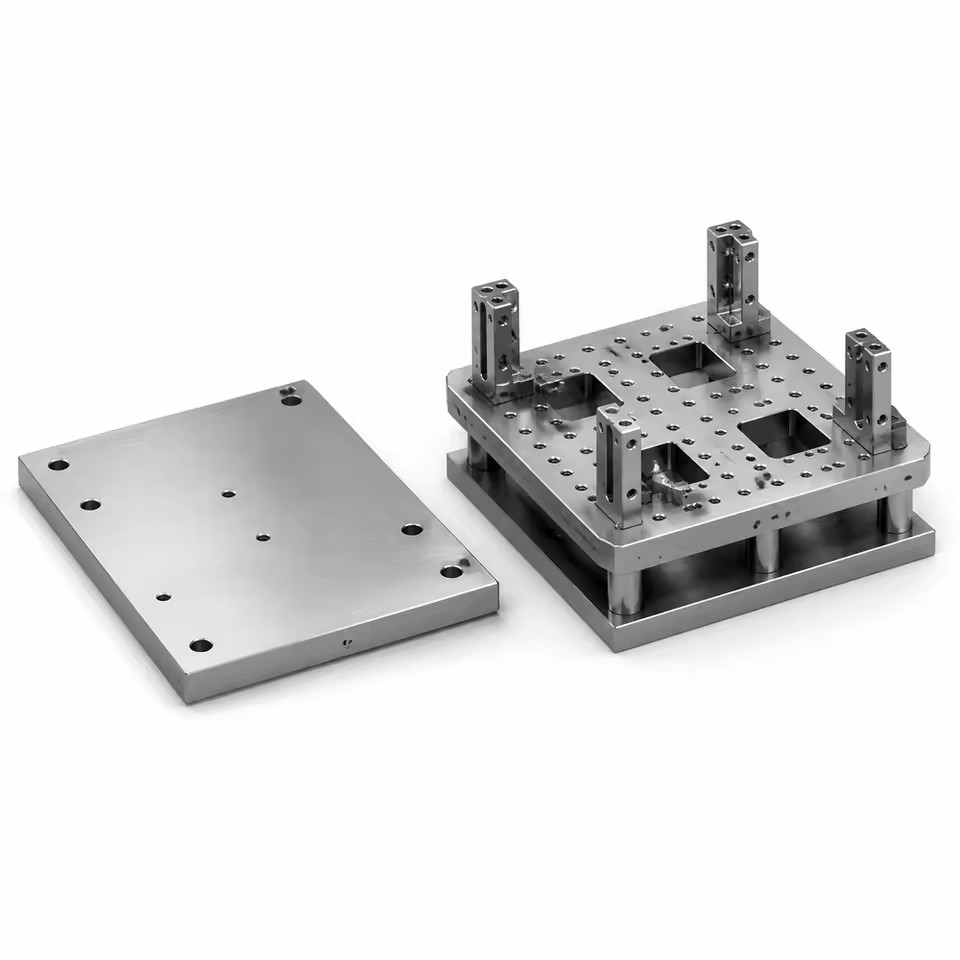

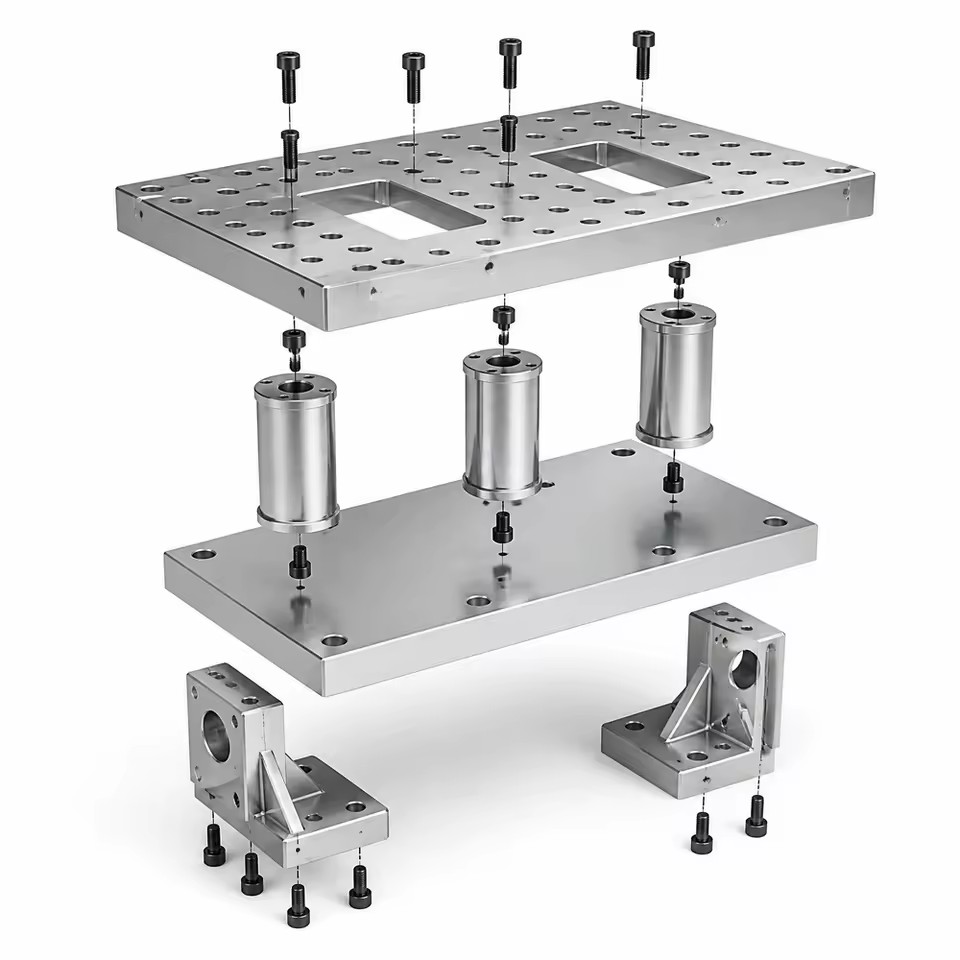

Material And Specification Details: The fixture is precision machined from metal plate with a clean brushed finish, combining a rectangular top plate with grid holes and cutouts, a matching base plate, three cylindrical support columns and upright L brackets with gussets. All holes are drilled and tapped to drawing tolerance. Material grade, overall size, hole pattern and bracket layout follow your drawing or sample before production.

Application Scenarios: Suitable for CNC milling and drilling centers, machining workstations, automotive parts processing, mold and die shops, aerospace components and general machine shop production. It serves machine shops, fixture manufacturers, equipment makers and OEM buyers who need custom workholding tooling for daily production.

Packaging And Supply Support: The fixture is packed in a wooden crate with foam cushioning to prevent damage in transit, and pallet shipping is available for export. OEM and ODM cover custom size, hole pattern, material and finish per your drawing. Sample orders are welcome, and MOQ, lead time and shipping terms are confirmed with our sales team before production.
