Efficient And Energy Saving Air Source

36-Trays Dryer for Fruit & Vegetable Food Processing Machinery for Efficient Drying

DRYTECH Fruit Drying machine Introduction

DRYTECH fruit drying machine use of heat pump evaporator absorbs heat from the outside air or recycling of exhaust gas residual heat in the process of drying.Through the work of compressor, the energy transport (transfer) to drying box, drying box of hot air after repeated cyclic heating, absorb the moisture in the material, its cooling humidification, through hot air platoon is wet or the process of condensation, water take the moisture out of the material, and finally realizes the continuous drying of materials

Why choose DRYTECH heat pump dehydrator?

Traditional drying equipment may have a large energy expenditure. DRYTECH heat pump dryer takes advantage of the reversed Carnot principle, With free air to absorb the heat from around and sending the heat to the materials which will be dried. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption. Its heating efficiency is higher than that of similar equipment. This dryer have many advantages such as energy saving, environmental protection, intelligent 24-hour operation, wide drying range and good effect. Drying materials are clean, and their appearance and taste can be improved for several grades.

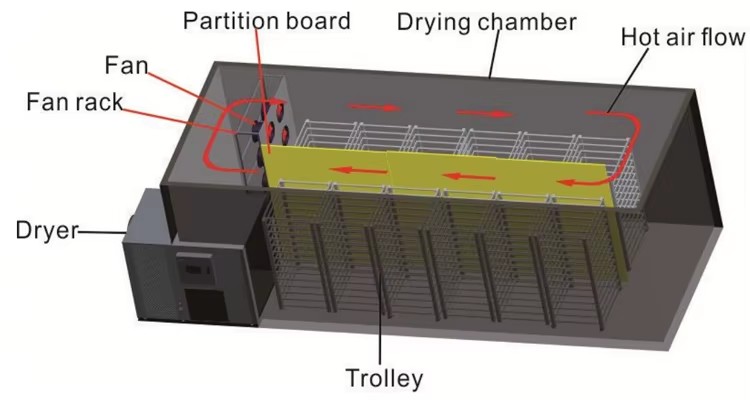

One Set Industrial Fruit Drier Machine Contains: 1, Heat pump drying host 2, Drying chamber 3, Fan frame with fan 4, Trolley with tray The drying chamber is used 100mm polyurethane insulation board, supporting 304 stainless steel trolleys and trays. (You can order full one set drying machine from us, also you can order only heat pump drying host and insulation board from us, the trolleys and trays you can order from other suppliers)

Specifications for DT100H Dryer + Drying Chamber

Main Features of DRYTECH Fruit Dryer Machine 1, Energy saving Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time 2, Uniform drying Horizontal Blowing 360℃, by using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly 3, It’s batch operation, so can adjust process condition anytime. Thus can change product from time to time 4, With low noise and steady operation, and the temperature can be controlled by PLC touch screen controller. 5, The temperature: 10-75°C, Max 75°C, similar nature drying 6, It has low electric consumption 7, Good drying quality. During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content

Customer

Pre-Sales Service 1, Inquiry and sonsulting support 2, Sample testing support 3, View

After-Sales Service 1, Technical support for your installation, operation and maintenance. 2, One year’s warranty, and you can pay for extended warranty 3, We supply the spare parts and technical support in & after the warranty time. 4, We supply the training course to your workers at

1

2, Can you ship the machine to my address? Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.

3, Where are you? Can we go and visit your factory? Yes, of course. We are in Guangzhou,. Welcome to

4, Do you have manual with the machine? Yes, of course. It is in English version.

5, Can you offer us the necessary paper to do the customs clearance? Yes, of course. We will send you the commercial invoice, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need
