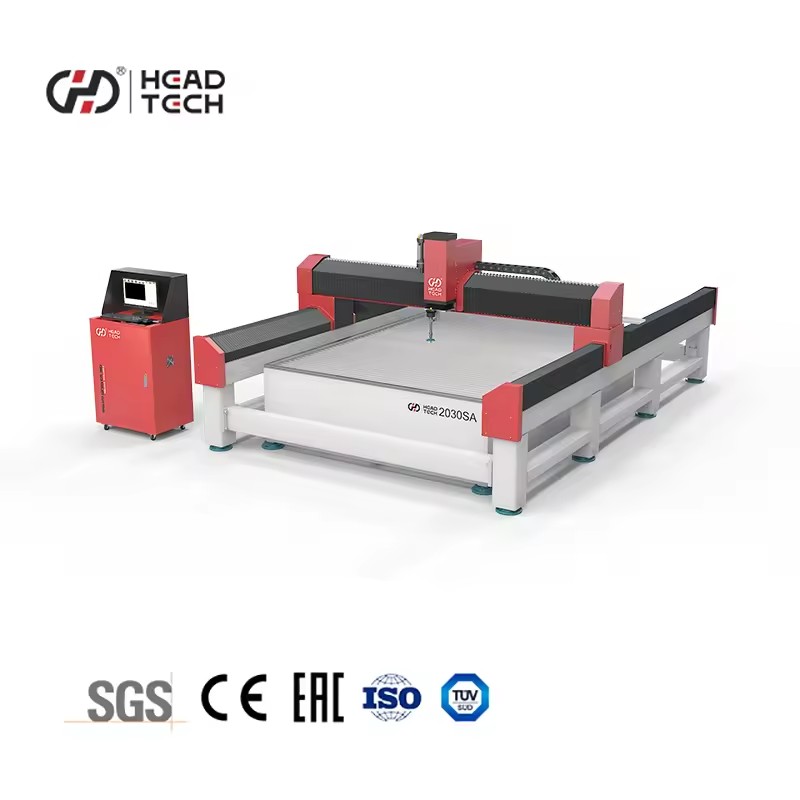

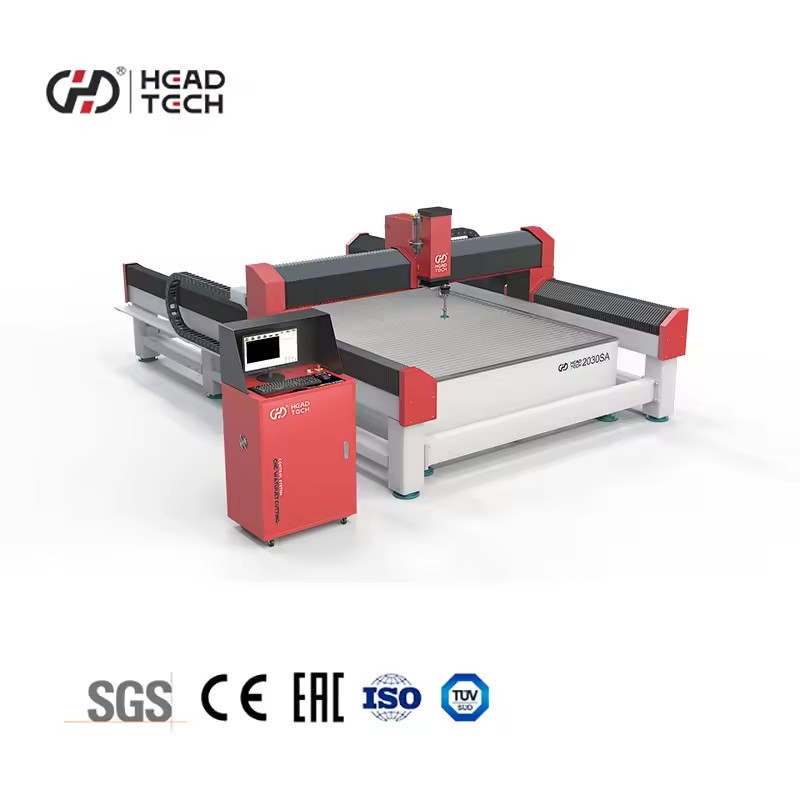

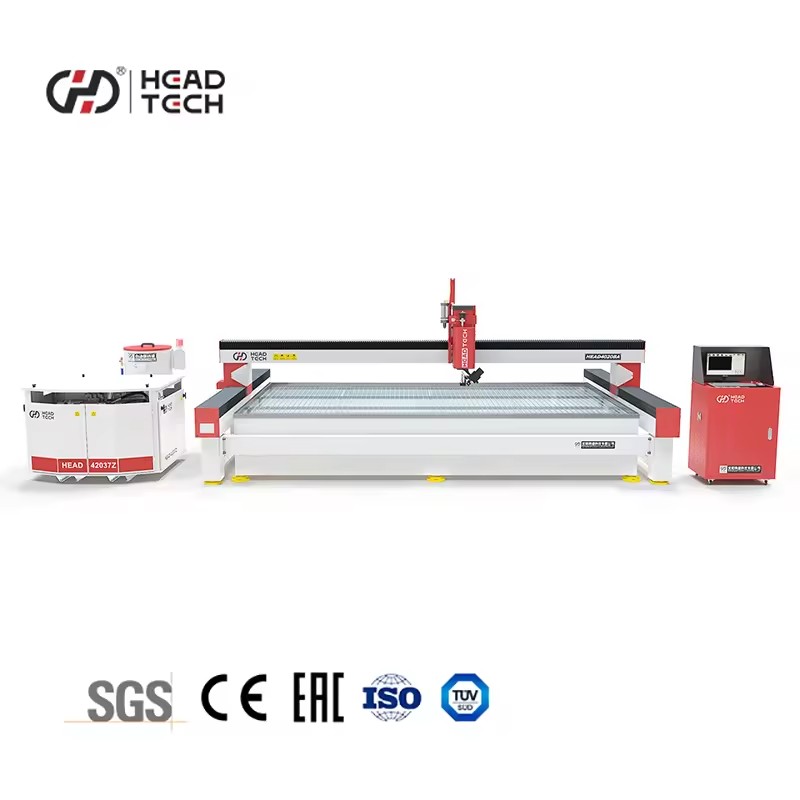

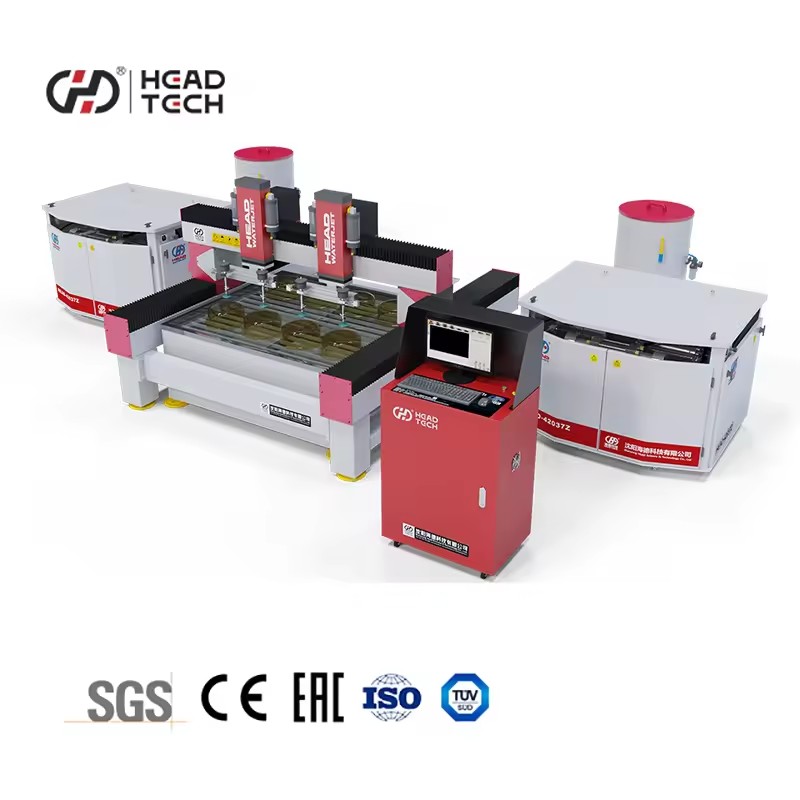

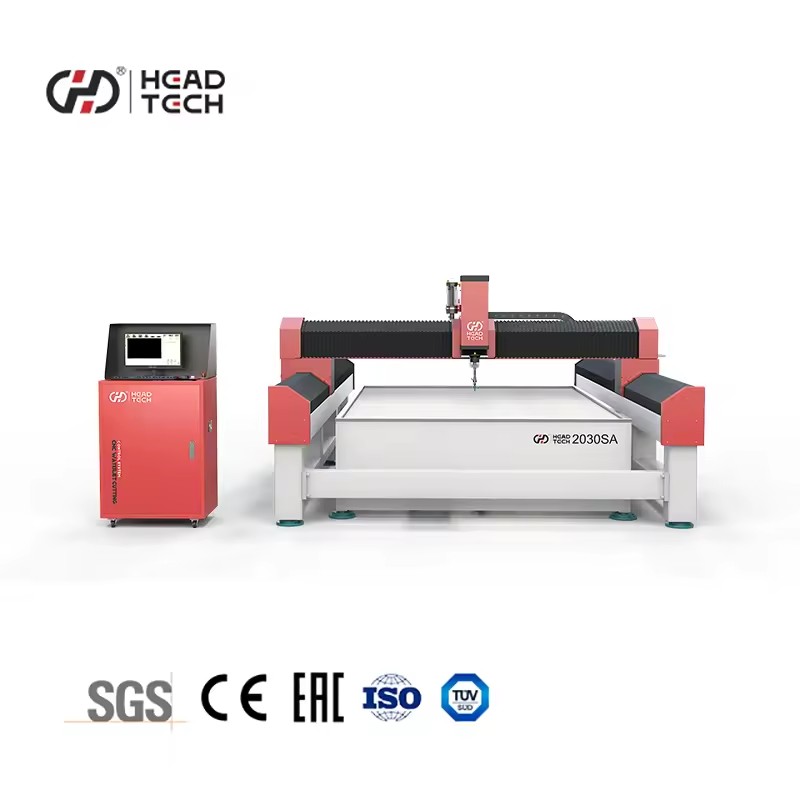

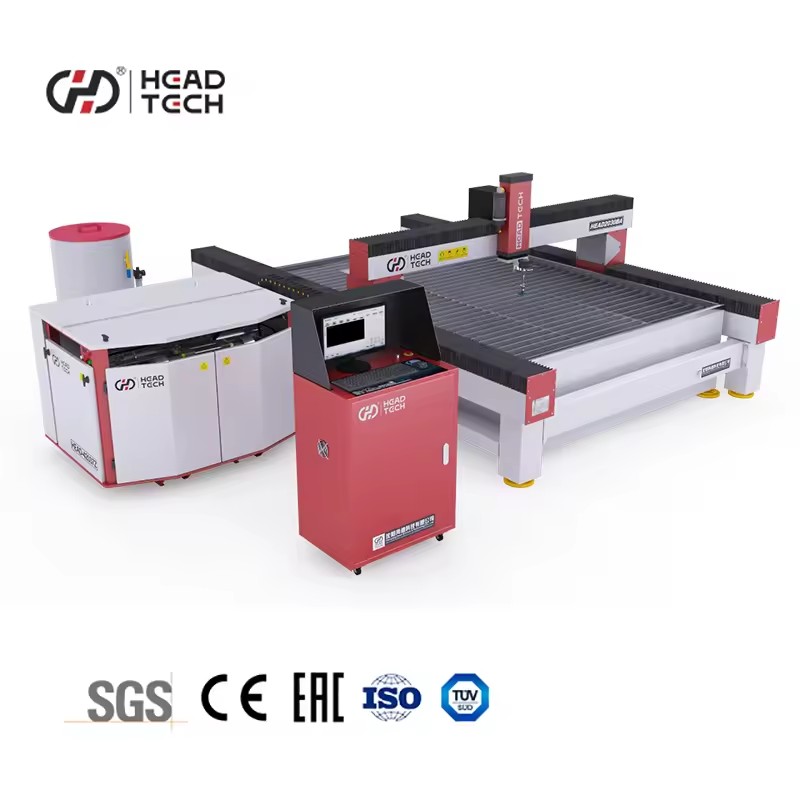

CNC Waterjet Cutters Ceramic Tiles Water Jet Cutting Machines Prices
model
HEAD2015BA
HEAD2030BA
HEAD2040BA
HEAD2060BA
HEAD3040BA
HEAD3060BA
X-axis stroke
2000mm
3000mm
Travel Y-axis
1500mm
4000mm
6000mm
Z-axis travel
150mm
transmission speed
6m/min
Control accuracy
+0.01mm
Cutting precision
+0.1mm
repeatability
+0.05mm
Related product
Recommended by seller
$55,000
set
$50,000
$35,000-55,000
$38,000-40,000
$45,000
$37,000
$49,000-54,000
$56,000-58,000
$65,000
Integrated CNC system, easy and convenient to operate, saving space Intelligent connected servo control system, high precision, fast speed, strong capability
Product descrption
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.
Ultra stable bed structure
Superior material selection compared to the industry, the main structure is made of square steel pipes, which are welded together and subjected to secondary stress relief annealing treatment. The bed is more stable and the cutting accuracy is higher. The surface is sandblasted and painted for a longer service life
Split type bed body
The inner and outer bed bodies are independently load-bearing, while the outer frame bed body only carries the dynamic load of the outer cover and crossbeam. The inner water tank bed body carries the weight of the worktable and cutting material load, completely avoiding the possibility of accuracy being affected by large loads and water tank deformation in design, and ensuring equipment accuracy for a long time.
Fourth generation aviation aluminum alloy crossbeam
Processing is carried out using T6 heat treatment technology, which has high strength and strong deformation resistance. Solution treatment improves the strength and plasticity of the crossbeam, optimizes weight reduction, and accelerates movement speed.
Intelligent Control 3D Cutting
It can achieve three-dimensional 3D cutting, with strong rigidity of the blade mechanism, made of aluminum alloy material, light weight, low load, and a cutting position deviation of less than 0.01mm under the reaction of 380Mpa high-pressure water, ensuring high cutting accuracy.
Wireless control controller
Optional wireless remote control handle eliminates the constraints of cables, providing a more flexible operating experience. Real
time display of travel values for more flexible control of equipment operation
Intelligent central control lubrication
Schematic diagram of the supply of lubricating grease when lubricating the screw and rack drive through the intelligent central control lubricator
Cutting Samples
Quality Control
Company Profile
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the
focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research
manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting
aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting
machine in Liaoning, with more than 15 years full experience and a professional sales team. water jet, so cutting is no
longer a problem!
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and
develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the
advantages of high technology.
Packing delivery
Service & FAQ
1. Maintenance free of charge for 12 months.
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls
kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send
professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD
drawing, common problems and solution, etc.
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm
aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm
stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
