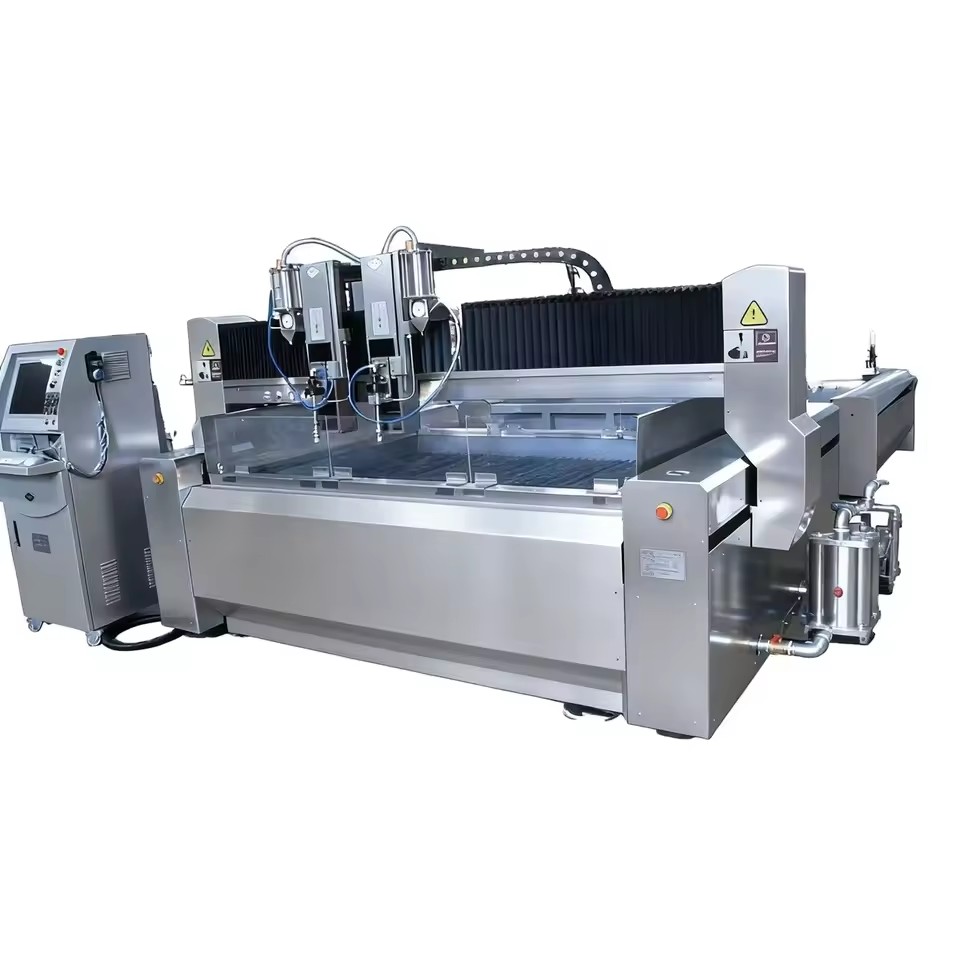

Water Jet Cutting Machine 3-Axis High-Accuracy 0.01mm 380V 40W Motor Tile Mosaic Furniture Manufacturing Pump 1-Year

Name: Water Jet Cutting Machine 3-Axis High-Accuracy 0.01mm 380V 40W Motor Tile Mosaic Furniture Manufacturing Pump 1-Year
SKU: 872Q-AEEG-HZ2W
Price: 33510.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 33,510.00 33510.0 USD $ 33,510.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380 V

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Water jet cutting machine

power-handling capability	50hp(30KW)
Maximum pressure range	420Mpa
Maximum cutting thickness	100mm
Maximum	3.7L/min
Maximum single nozzle diamete	0.33
Working voltage and power suppl	380V50Hz
Environmental operating temperature	lowest:40℉(5℃) highest:104℉(40℃)
Store at ambient temperature	lowest:36℉(2℃)
outline dimension, physical dimension, external dimensions	150014001500
Water supply information by weight	2460lbs（1120kg）
Minimum water supply flow	4gpm(15.1lpm)
Minimum water supply pressure	35PS0.24MPa
Reservoir capacity	1L
Tank capacity cooling system	30Gal.(114L)
Cooling water consumption	3gpm(11.4pm)
Minimum pressure of cooling wate	0.3MPa

QR-turbocharger control panel

1.Cutting system: (AB five-axis) 2.Main technical parameters
Number of control shafts	5 shafts	Axis A rotation Angle	±12°
B-axis rotation Angle	±12°	Angle control accuracy	±0.01

Factory real photos

Model	QR-ATLS2515
Overall dimensions	340022001900
Cutting range	2500*1500
Z-axis travel	100
Control accuracy	±0.1
Cutting accuracy	±0.1
Repeat positioning accuracy	±0.025
The maximum no-load moving speed of the machine tool	8000

Question: What factors affect the cutting speed? Answer: It mainly depends on the material properties (hardness/thickness), water jet pressure, abrasive type and particle size. Question: Which vulnerable parts need to be replaced regularly? Answer: High-pressure seals (300-500 hours), nozzles and mixing tubes (80-120 hours), water filter elements (15-30 days). Question: How much water and abrasive are consumed? Answer: Pure water cutting is 15 to 25 liters of water per hour. Abrasive cutting: 10 to 20 liters of water + 2 to 5 kilograms of abrasive per hour. Question: What are the requirements for the installation environment? Answer: Stable 380V power supply, clean water source + drainage outlet, 1-1.5 meters of space around the equipment, temperature 5-40℃. Question: Is the maintenance cost high? Answer: Medium. The average monthly cost of vulnerable parts is 300 to 800 yuan, electricity cost is 6,000 to 12,000 yuan, and annual maintenance cost is 1,000 to 3,000 yuan. Question: What is the maximum cutting thickness? Answer: Pure water cutting soft materials ≤50mm; Abrasive cutting: metal ≤150mm/stone ≤ 200mm at 420MPa and stone ≤300mm at 600MPa.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

32 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Voltage

380 V

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

3400*2200*1900

Key selling points

High-Accuracy

Rated power

40w

Place of origin

China, Guangdong

Weight (kg)

2000

Table travel (x) (mm)

2500

Table travel (y) (mm)

1500

Cutting accuracy(mm)

±0.01

Selling Units

Single item

Single package size

340X220X190 cm

Single gross weight

2000.0 kg

Model number

QR-ATLS2515

Effective cutting range (mm)

2500*1500

Lead time

32 days

Minimum order

1 Units
