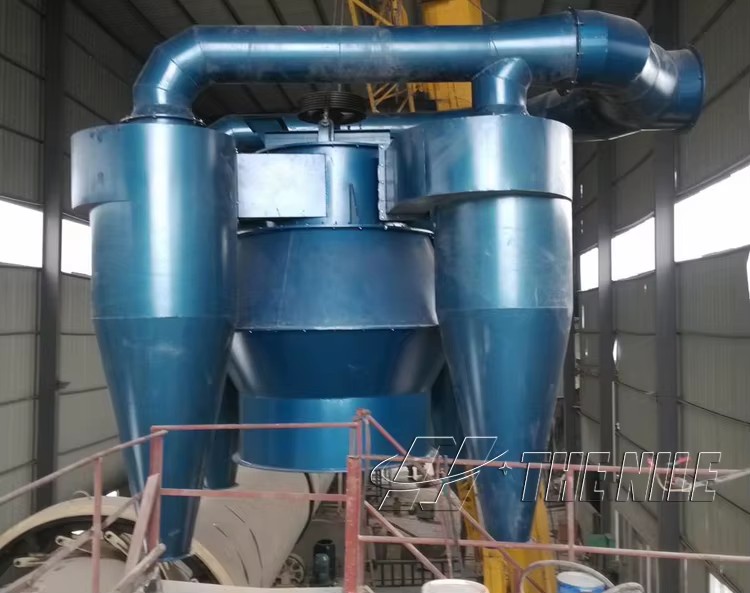

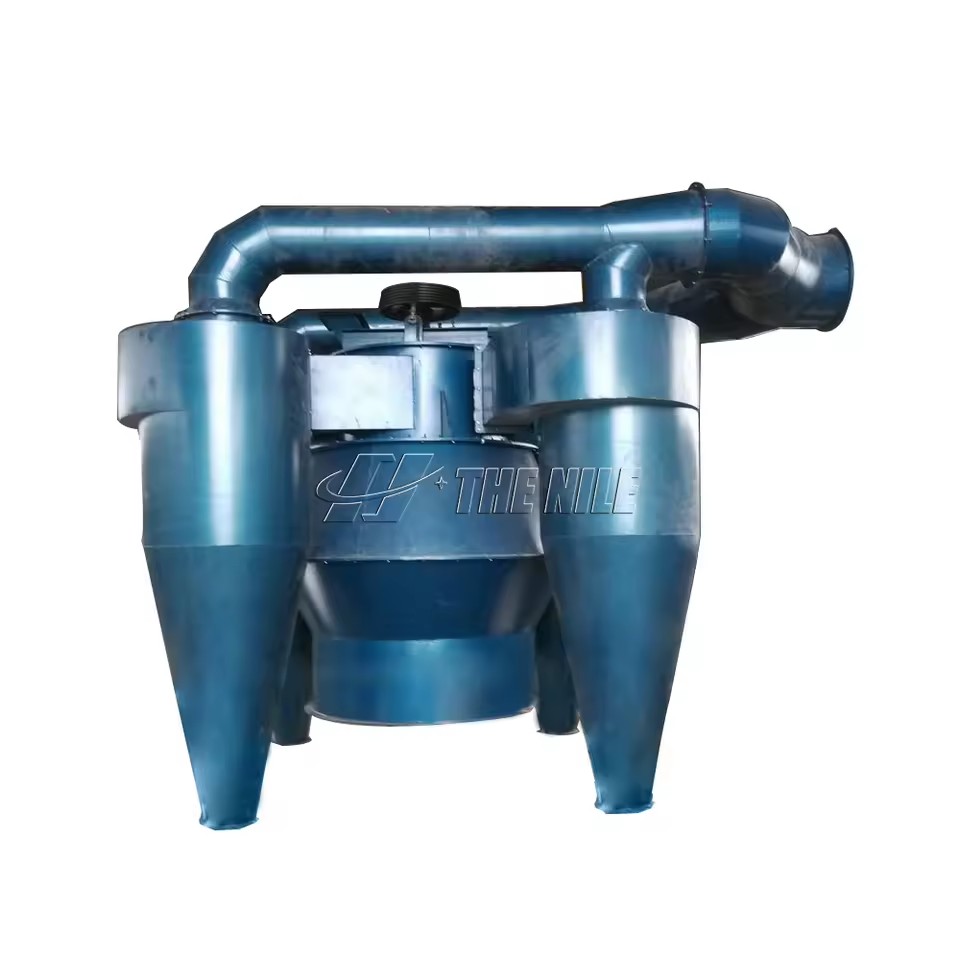

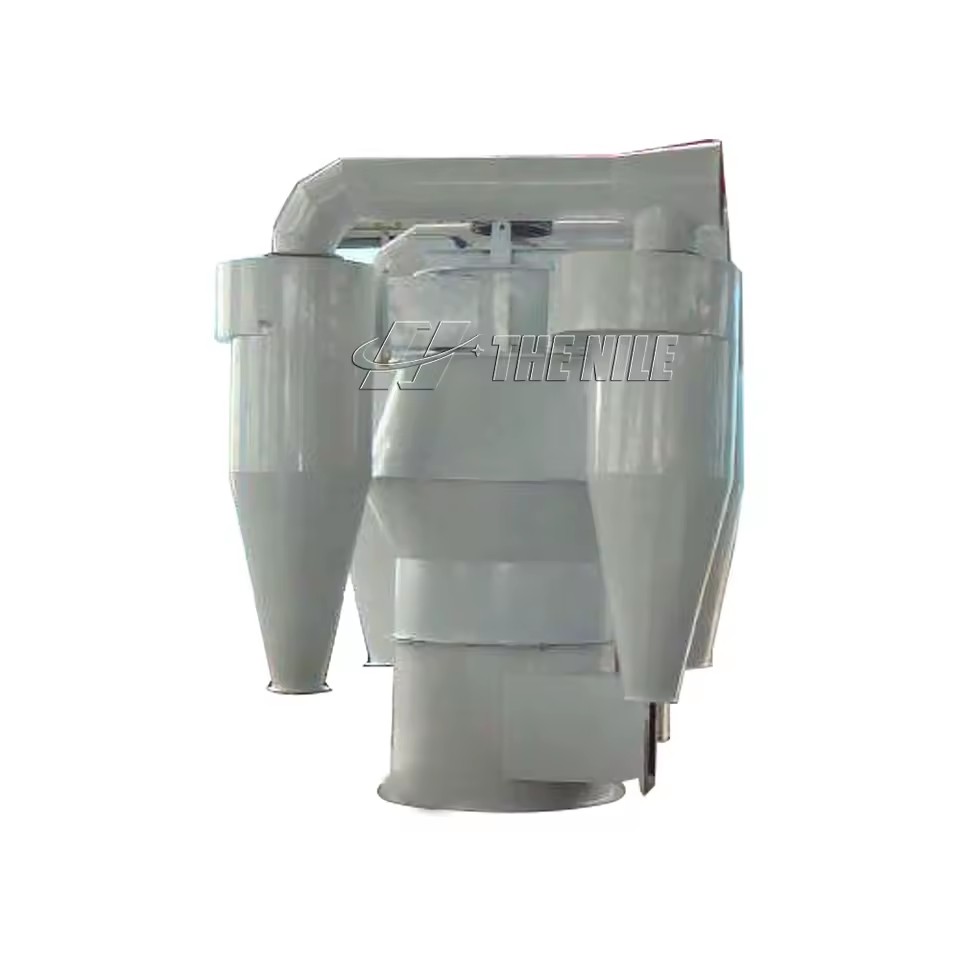

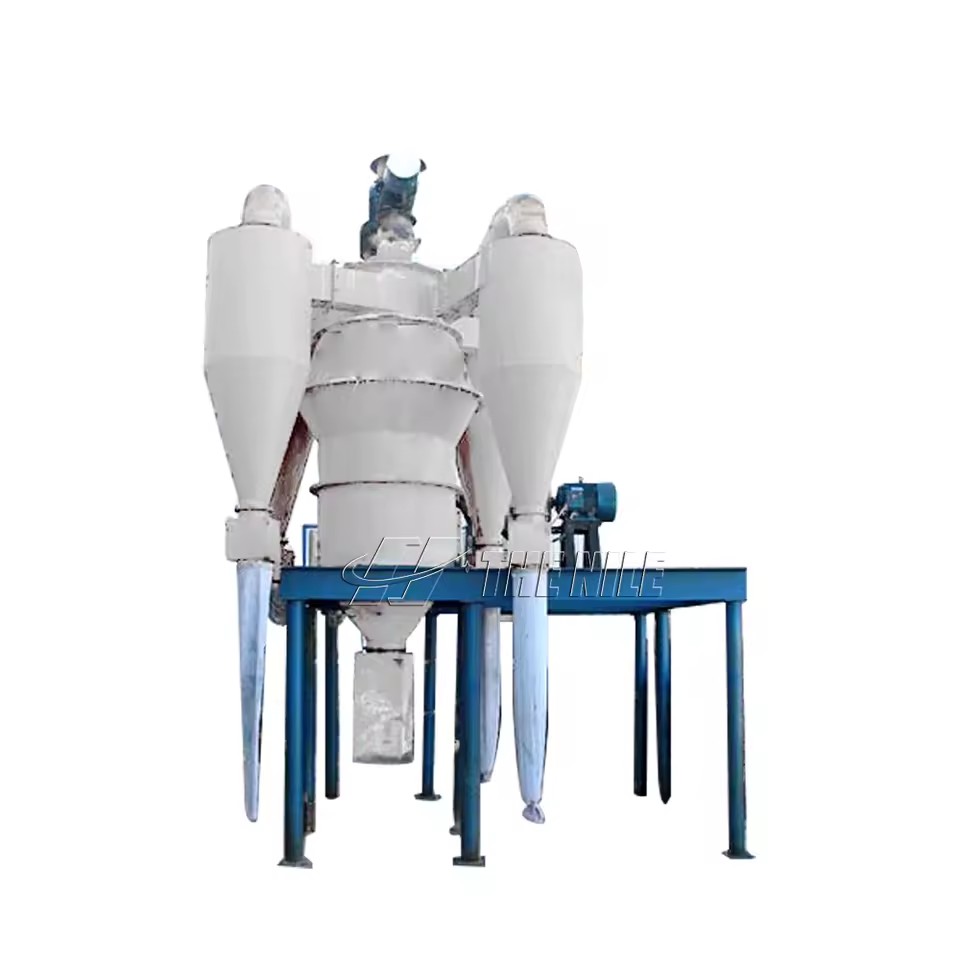

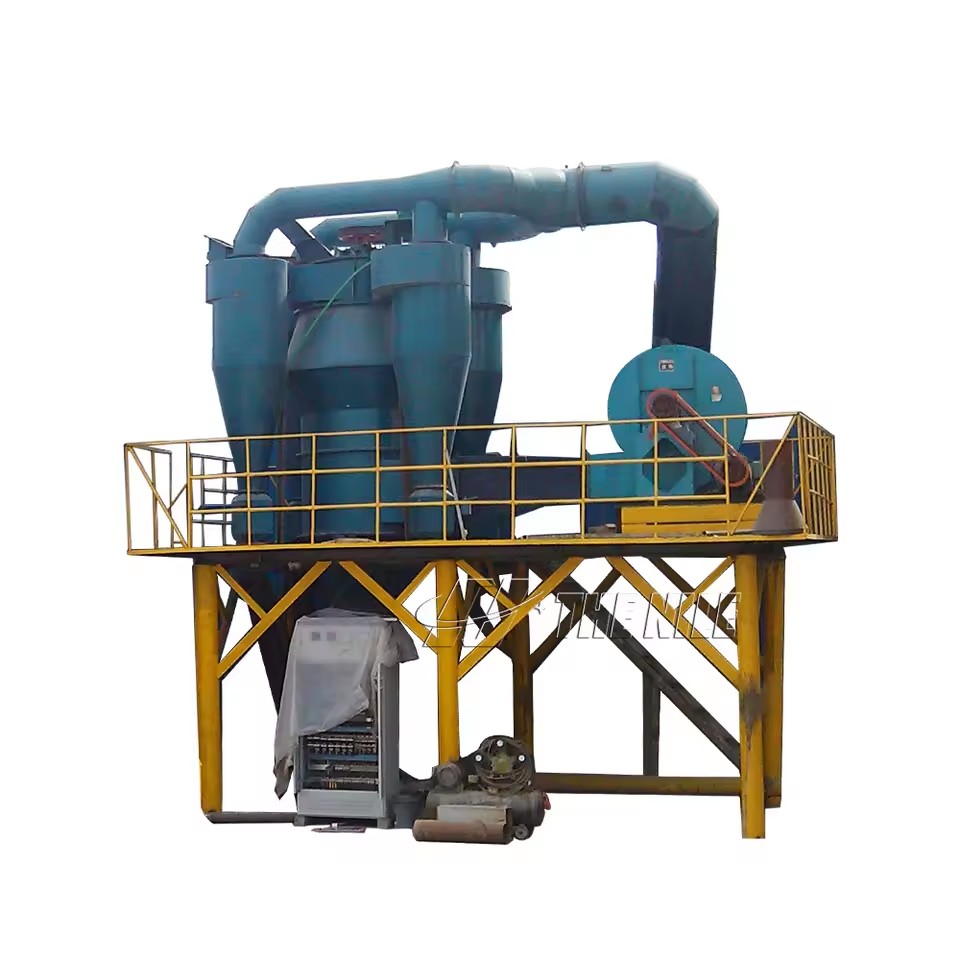

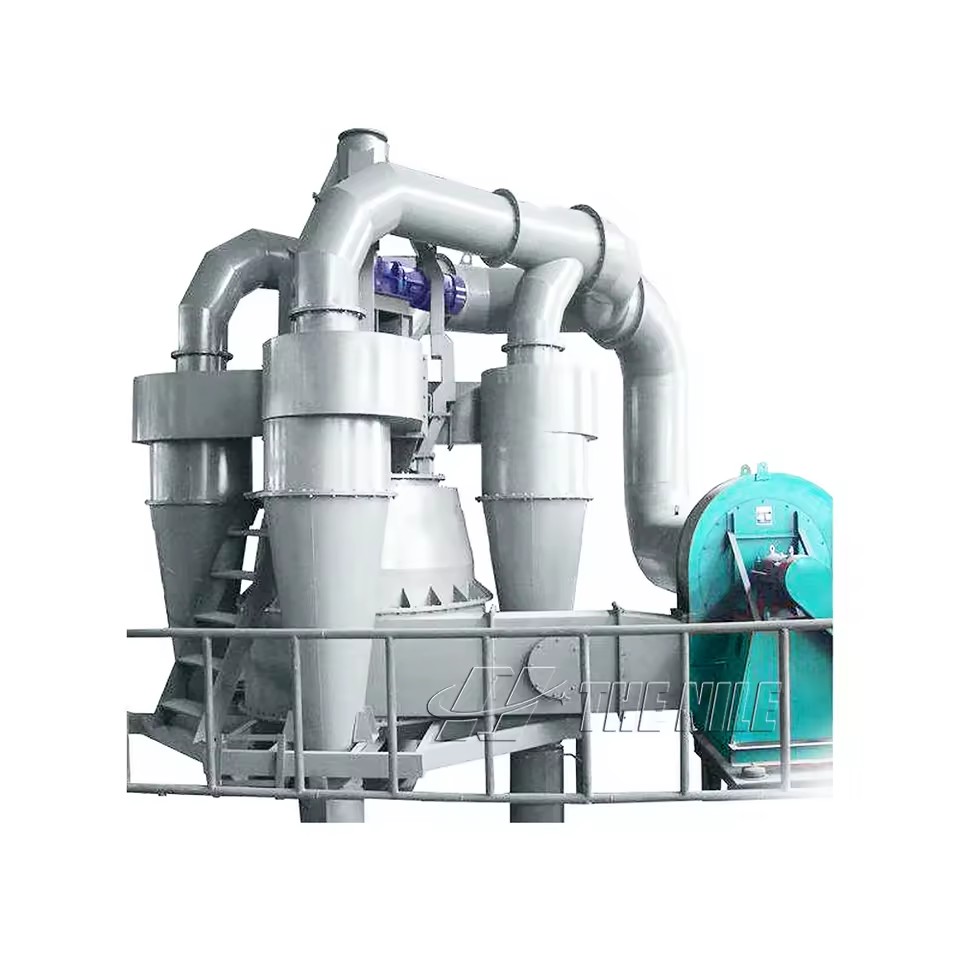

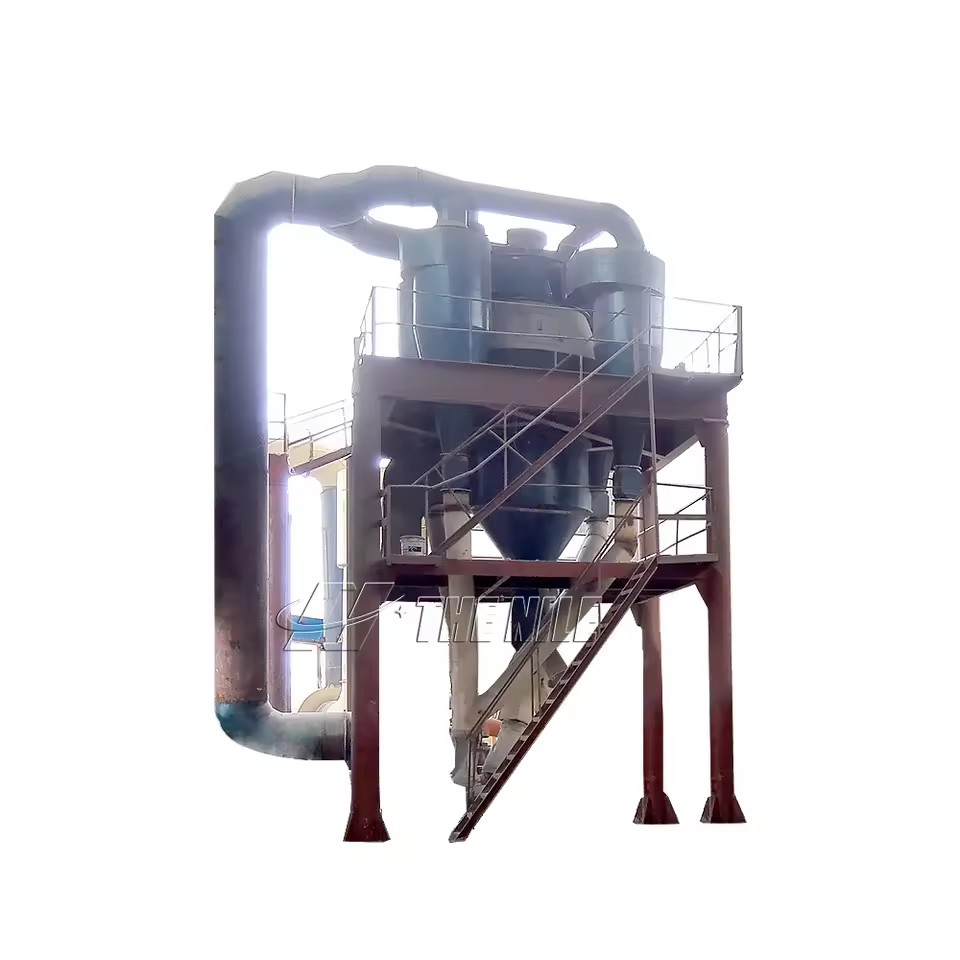

Mineral Separator/Powder Concentrator/Air Classifier With Cyclone
Powder Concentrator is widely used in the coal milling of the new dry cement

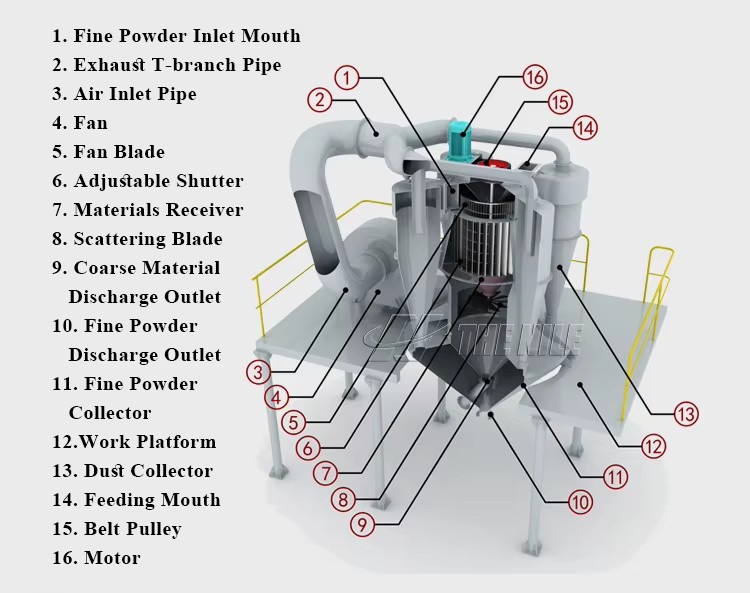

working principle

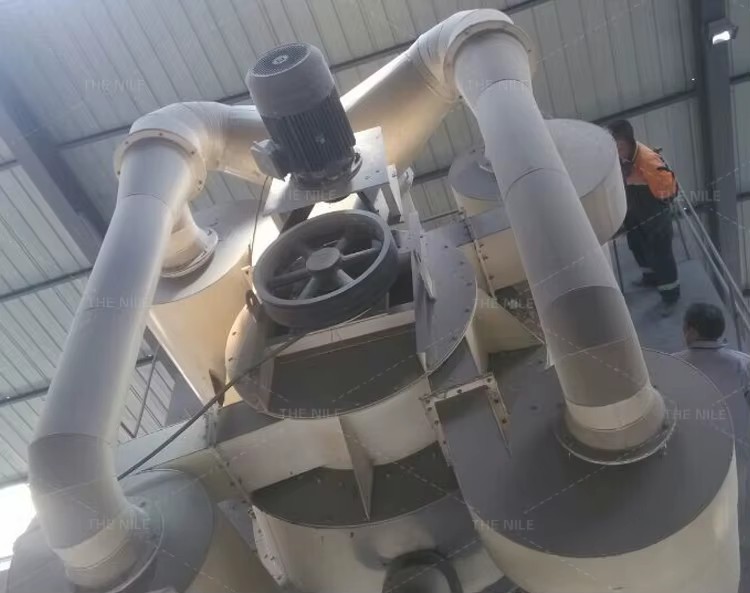

In th e working state,the speed regulation motor drives the vertical drive shaft to rotate through the transmission device,and the material enters the powder dressing chamber through the inlet at the top of the separator.Then the pipe between the upper and lower cones of the medium coarse powder collecting cone falls on the distributing plate,which rotates with the vertical drive shaft,and the material is uniformly scattered around the area under the action of the inertia centrifugal force.Under the action of high-speed airflow through the inlet of the dispersed material,the coarse particles in the material are dumped to the inner wall of the powder dressing chamber by the action of inertial centrifugal force.After the collision, the kinetic energy slid down the wall and fell into the coarse powder collecting cone. The rest of the particles were rolled up by the swirling updraft, passing through the action zone of the gale leaves, under the impact of the gale leaves.
Features of powder concentrator machine
novative design:With a new-style assembled design method,it is integrated with the advantages of the original centrifugal type, cyclone type,and double rotor type,which greatly lower energy consumption; 2.High efficient and low energy consumption:Materials are classified in several classifying areas,with unique distribution can make excellent powder-selection with a high efficiency of over 85%.And the electrical power consumption is 30% lower than the traditional powder selector cost; 3.Adjusting standard:This machine effectively improves the grain grade of the final product and enhances the cement quality to adjust to the national new cement standard; ndensation resistant:With available condensation resistant design,it can in the season with the southern's high moisture and northern's cold climates; 5.Advanced and durable:Multiple-section scale board can prolong the frame's service has a compact structure,including a fan,adjusting motor,lock air valve and so on.
| Model | Unit | Nx400 | Nx500 | Nx600 | Nx700 | Nx800 | Nx900 |
| Model of mill | m | 1.5 | 1.83 | 2.2 | 2.4 | 2.6 | 3.0 |
| Output | Materials | t/h | 14-20 | 19-28 | 28-35 | 33-46 | 52-65 | 75-95 |
| Cement | t/h | 12-16 | 16-22 | 20-26 | 26-35 | 43-54 | 68-76 |
| Fineness | Materials | % | 8-10 |
| Cement | % | 2-4 |
We can not only provide good quality sand making machine, but also provide the best service for our clients. The series of professional technology services will make you have an excellent product experience.
Pre-sale services
(1) The advice of model choice. (2) Design and manufacture machines according to customer's special requirements (3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
After-sale services
(1) Arrange technicians to go to the site to guide installation (2) If your machine is out of warranty period, you can go to 's overseas office to buy spare parts. (4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
