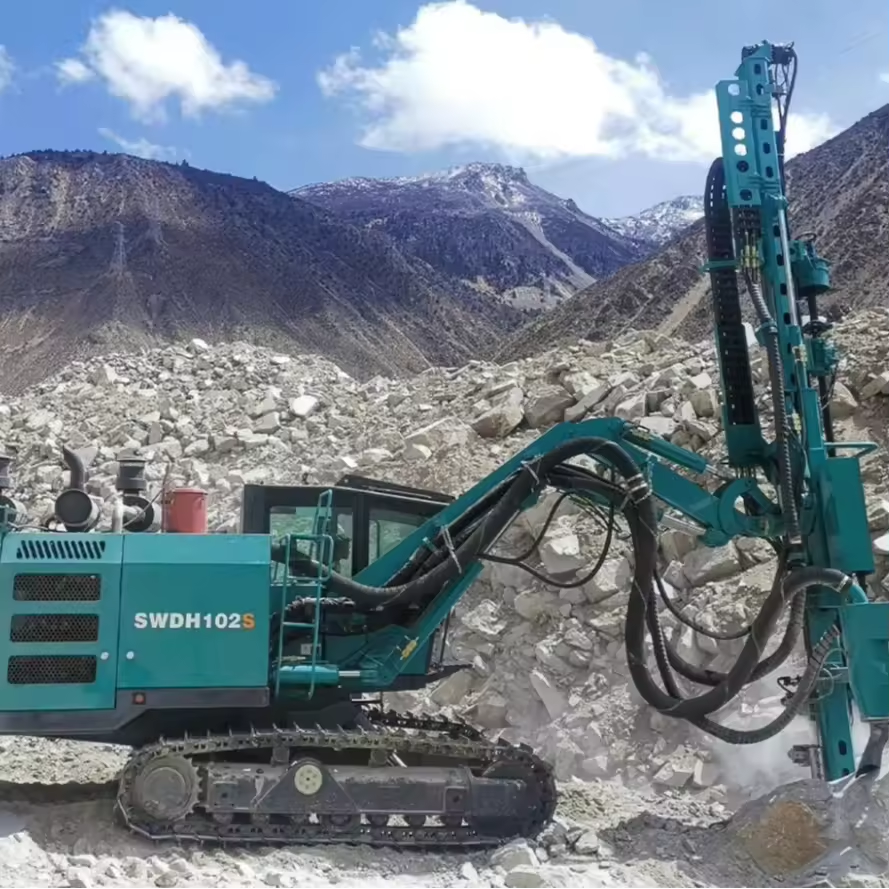

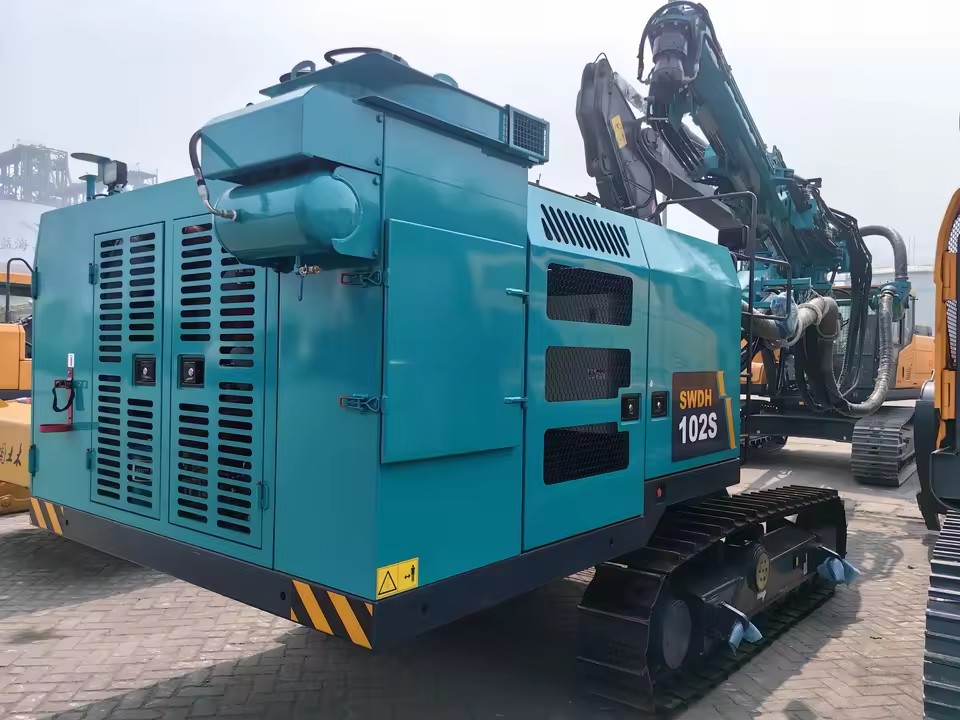

SWDH102S Rotary Drilling Rig with Hole Diameter: 76-115mm Rock Drilling Equipment Drilling Rig for Mining Projects

Available for enquiry 0.0 · 0 reviews
USD

$ 224,530.00 224530.0 USD $ 224,530.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
Max.24m
Drilling Diameter
115mm
Power Type
Diesel
Voltage
380 V
Product description
Technical parameters of top hammer drill rig
Main parametersSWDH89SSWDH102SSWDH115F
Working parameters
Hole Rangemm64-11576-12776-127
Drill Rod ModelT38,T45,T51T45,T51T38,T45,T51
Drill Rod Lengthmm366036603050
Economic Drilling Depthm242421
Hydraulic Rock Drifter
Impact powerkW141820
Rotation torqueNm70010001300
Rotation SpeedNm0-1800-1500-175
Diesel Engine
ModelC7.1C7.1QSB4.5
PowerkW/rpm168/2200168/220097/2200
Fuel tankL450450300
Air Compressor
Pressurebar810
F.A.Dm3/min810
Drill Arm
TypeFolding armFolding armSingle straight arm
Lifting angleo+70~-10+70~-1030~+45
Folding angleo65~16565~165
Swing angleo+20~-30+20~-30+30~-30
Advance Part
Advance lengthmm730073006700
Compensation strokemm120012001200
Forward angleo140140140
Flip angleo20~9020~9020~90
Max. advance ratem/s0.80.80.8
Max. PropulsionkN252525
Walking Ability
Max.Walking Speedkm/h4.24.24.2
Max. TractionkN10010080
Gradeabilityo25°25°25°
Track frame swing angleo7~+127~+1210~+10
Ground clearance of chassismm400400400
Dimensions
Weightkg150001500012000
Length*width*height (working)m92x2.6x8.692x2.6x8.66.68x2.42x7.98
Length*width*height (Transport)m11.2x2.6x3.511.2x2.6x3.58x2.42x3.4
Description images

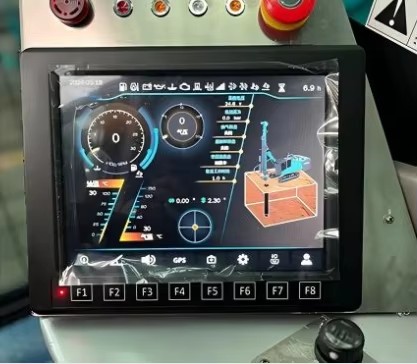

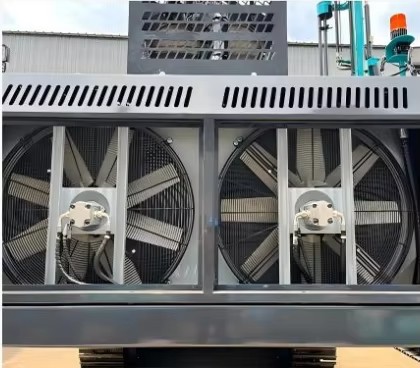

Product detail

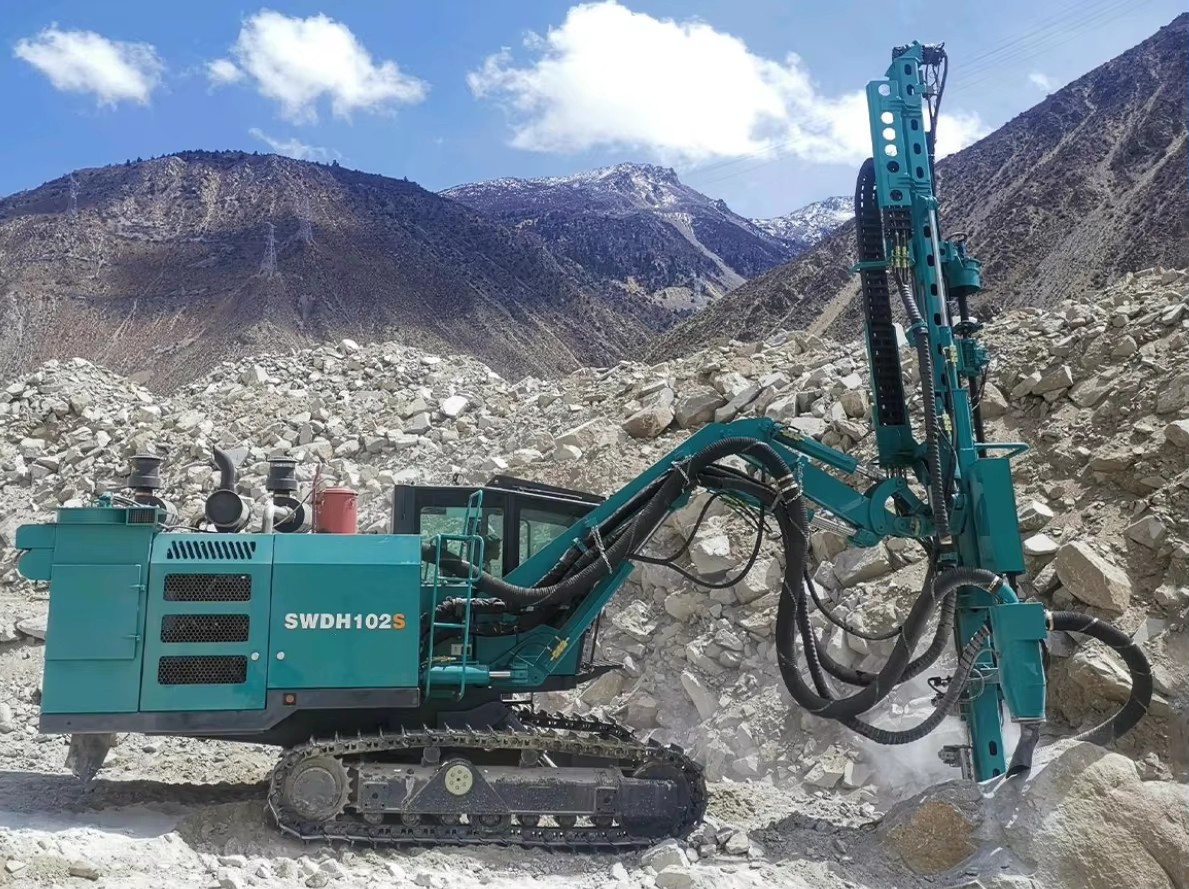

Product detail

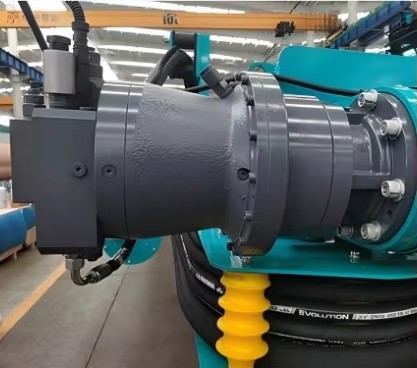

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    45 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
Max.24m
Drilling Diameter
115mm
Power Type
Diesel
Voltage
380 V
Core components
Bearing, PLC, Gear, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Energy Saving
Place of origin
China, Hunan
Weight
15000 kg
Dimension (L*W*H)
9200*2600 * 8600mm
Mobility
Good
Keyword
rotary drilling rig
Tube Length
3660mm
Maximum hole depth
24mm
Power Rating
179/2200kW/rpm
Max. feed force
30kN
Feed extension
1200 mm
Selling Units
Single item
Single package size
1120X260X350 cm
Single gross weight
15000.0 kg
Model number
SWDH102S
Power (W) (Product option)
179kw
Lead time
45 days
Minimum order
1 Units
