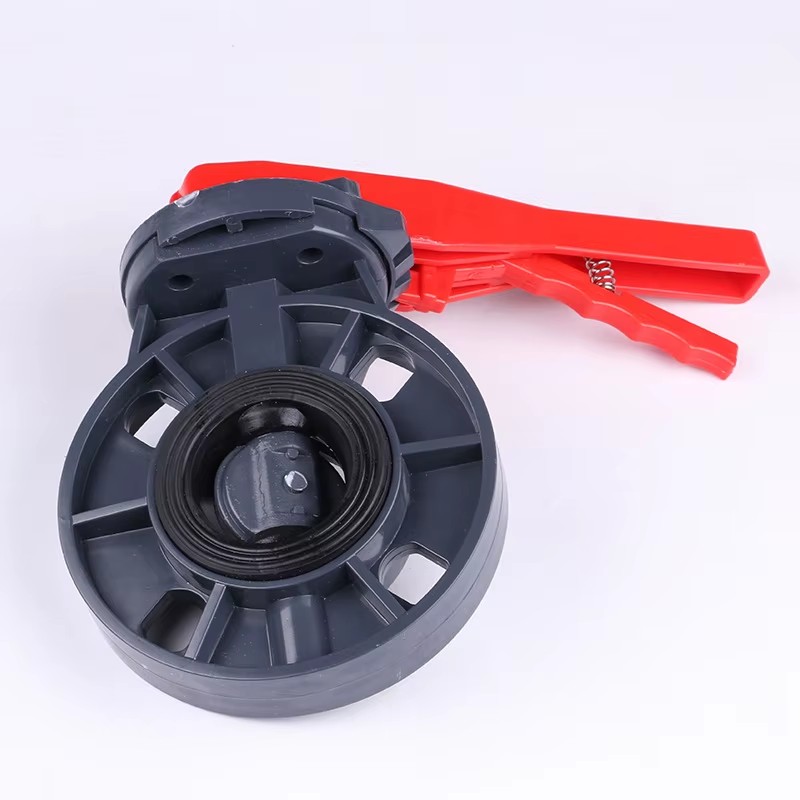

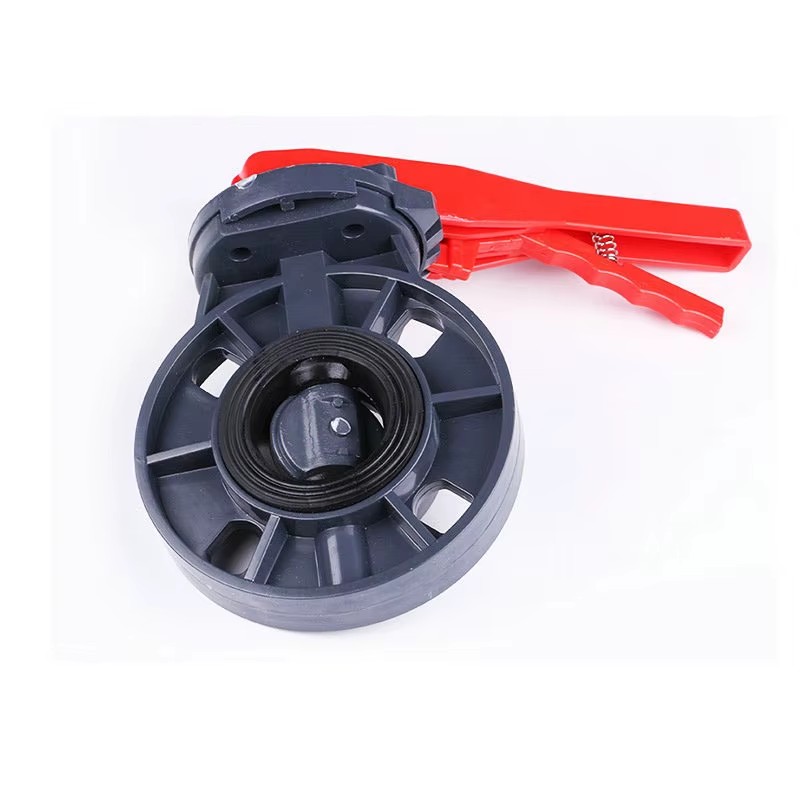

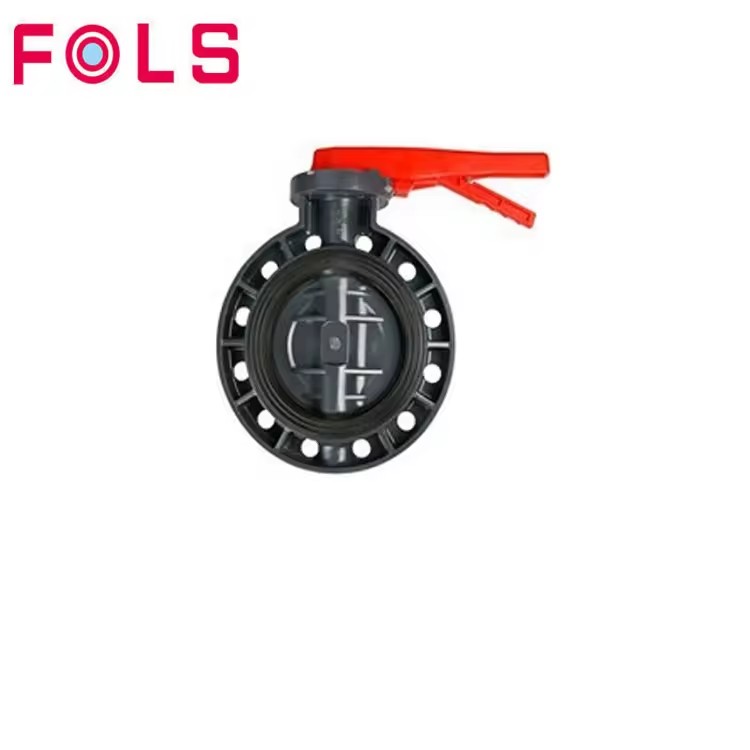

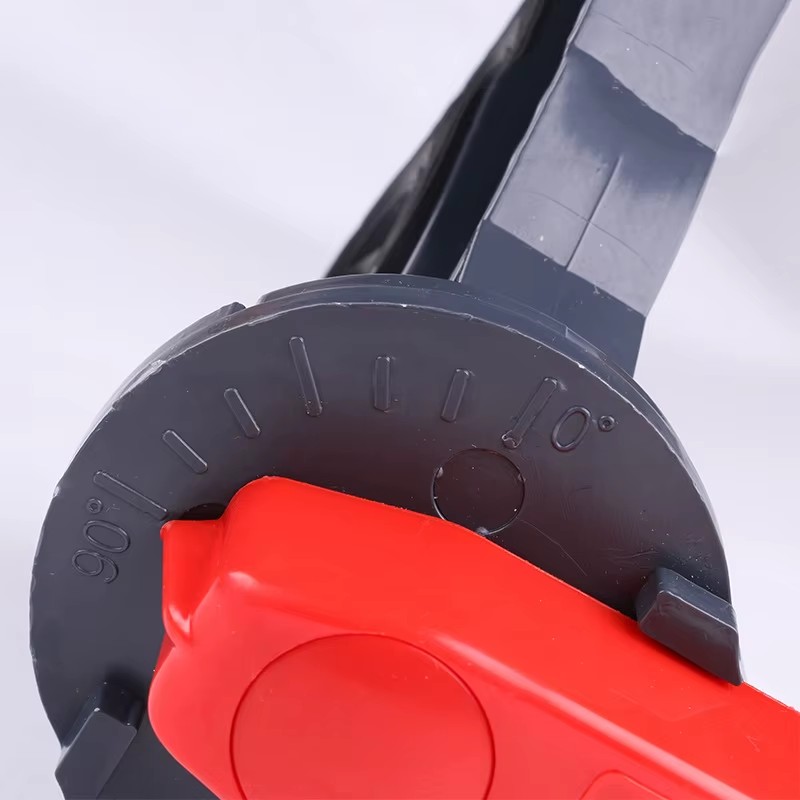

Flang wafer type PVC CPVC PVDF PP hand lever butterfly valve
Product Description
Feature of PVC CPVC PVDF PP hand lever butterfly valve
PVC CPVC PVDF PP hand lever butterfly valve with body light weight, corrosion resistance is strong, beautiful appearance, light weight, easy to install, wide scope of application, material health non-toxic, resistance to wear, easy to remove, maintenance is simple, applicable fluid: water, air, oil, corrosive chemical fluid, etc.
PVC CPVC PVDF PP hand lever butterfly valve, light weight, corrosion resistance which is used in many fields, such as general water and raw piping systems, drainage and sewage piping systems, salt water and sea water piping system, pH and chemical solution system and other industies. The quality is approved the majority of users.
Features
| 1. Operating temperature range: -40°C-+95°C. |
| 2. With excellent strength and toughness. |
| 3. With excellent chemical resistance capabilities. |
| 4. Retardant properties is the self-extinguishing. |
| 5. Low thermal conductivity, about 1/200 of the steel. |
| 6. The content of heavy ion in the medium up to the ultrapure water standards. |
| 7. Health indicators in line with national health standards |
| 8. Clean and smooth of the Tube wall, which can generate a smaller friction and adhesion when transferring fluid. |
| 9. Light weight, the equivalent of 1/5 of steel, 1/6 of Brass. |
| 10. Easy to install. |
| 11. Excellent anti-aging and UV resistance, so that there is a great extension of the normal useful life than other piping systems. |
Materials of major parts
| No. | Name | Material | Quantity |
| 01 | Valve body | PVC/CPVC/PP/PVDF | 1 |
| 03 | Disc | PP | 1 |
| 05 | Stem | SS 304 | 1 |
| 10 | Handle lever | ABS | 1 |
| 11 | Rotating wheel | PVC/CPVC/PP/PVDF | 1 |
| 12 | Switch grip | PVC/CPVC/PP/PVDF | 1 |
| 13 | Pull rod | PVC/CPVC/PP/PVDF | 1 |
| 16 | Pin | ABS | 2 |
| 18 | Marks & no | ABS | 1 |
| 19 | Bottom cover | PP | 1 |
| 25 | Spring | SS 304 | 1 |
| 31 | Bolt | SS 304 | 1 |
| 32 | Gasket | SS 304 | 1 |
| 41 | O-ring | EPDM/VITON | 4 |
| 47 | Sealing gasket | EPDM/VITON | 1 |

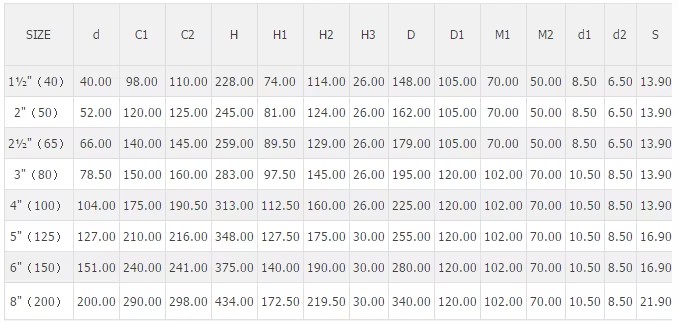

Main size
Technical parameters
| Nominal diameter DN(mm) | DN50-DN300 |
| End connection | Water |
| Body material | UPVC(-10°C-+70°C),CPVC(-40°C-+95°C) RPP(-14°C-+100°C),PVDF(-40°C-+140°C) |
| Spool material | UPVC(-10°C-+70°C),CPVC(-40°C-+95°C) RPP(-14°C-+100°C),PVDF(-40°C-+140°C) |
| Sealing material | PTFE,EPDM, NBR |
| Applicable medium | PVC chemical solvent compatible food industry |
