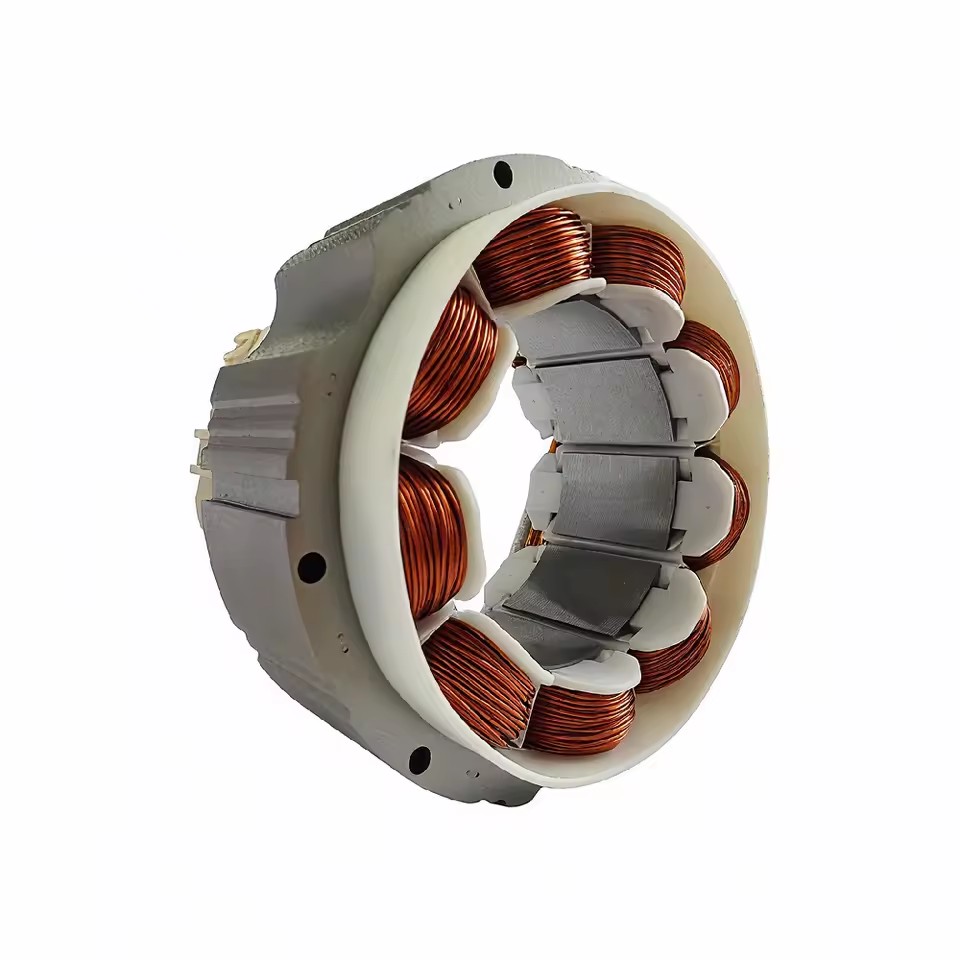

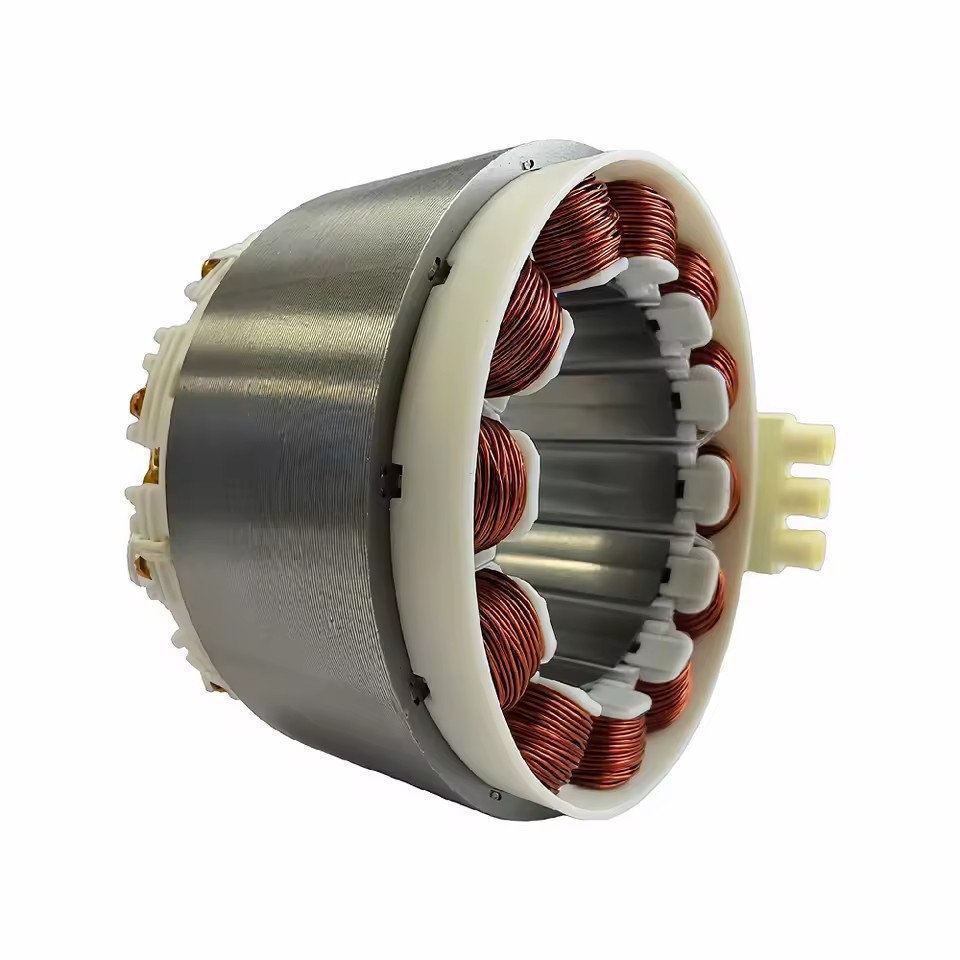

EC112-110V Motor Stator and Rotor for PMSM Motor or Pump Motor 1.8kW 91% Efficiency

Available for enquiry 0.0 · 0 reviews
USD

$ 30.00 30.0 USD $ 30.00

Not Available For Sale

Minimum order quantity: 100 Units

Key attributes

View all
For Shaft Size
customizable
Overall Length
customizable
Material
customizable
Warranty
2 Years
Model number (Specification)
EC112-110
Place of origin
China
Product description
ModelEC85-510EC85-320EC85-144EC85-120EC85-108EC85-60EC85-24
Rated Voltage510V320V144V120V96～144V48～72V24V
Rated Speed6000rpm6000rpm4000rpm3200rpm4000rpm3500rpm3800rpm
Rated Current6A7A10A13.5A13.5A26A32A
Stator Outer Diameter85mm85mm85mm85mm85mm85mm85mm
Rated Torque3.5Nm3.4Nm3.1Nm3.6Nm3.1Nm3.4Nm2Nm
Efficiency91%91%90%90%90%90%88%
Stator Stack Height60mm60mm50mm60mm50mm50mm50mm
Rated Power2.2kw2.1kw1.3kw1.2kw1.3kw1.24kw0.8kw
Insulation ClassEEEEEEE
ModelEC100-600EC100-540EC100-320EC100-300EC100-288EC100-144
Rated Voltage600V540V320V300V288V144V
Rated Speed6000rpm4000rpm6000rpm7000rpm6000rpm6000rpm
Rated Current9A7A14A13.5A14.5A31A
Stator Outer Diameter100mm100mm100mm100mm100mm100mm
Rated Torque7.5Nm4.5Nm7.5Nm5.5Nm5.9Nm7.5Nm
Efficiency91%90%90%90%90%90%
Stator Stack Height50mm38mm50mm38mm50mm50mm
Rated Power4.7kw1.9kw4.7kw4.0kw3.7kw4.7kw
Insulation ClassEEEEEE
ModelEC112-110EC112-450
Rated Voltage110V450V
Rated Speed5000rpm4000rpm
Rated Current16.5A9.3A
Stator Outer Diameter112mm112mm
Rated Torque3.5Nm4.3Nm
Efficiency91%91%
Stator Stack Height25mm38mm
Rated Power1.8kw1.8Kw
Insulation ClassEE
ModelEC125-580EC125-510EC125-380EC125-110
Rated Voltage580V510V380V110V
Rated Speed4500rpm3600rpm5000rpm3600rpm
Rated Current27A11A22A26A
Stator Outer Diameter125mm125mm125mm125mm
Rated Torque21Nm8.5Nm17Nm8Nm
Efficiency92%92%92%91%
Stator Stack Height100mm75mm85mm75mm
Rated Power4.7kw1.9kw4.7kw4.0kw
Insulation ClassEEEE
Description images

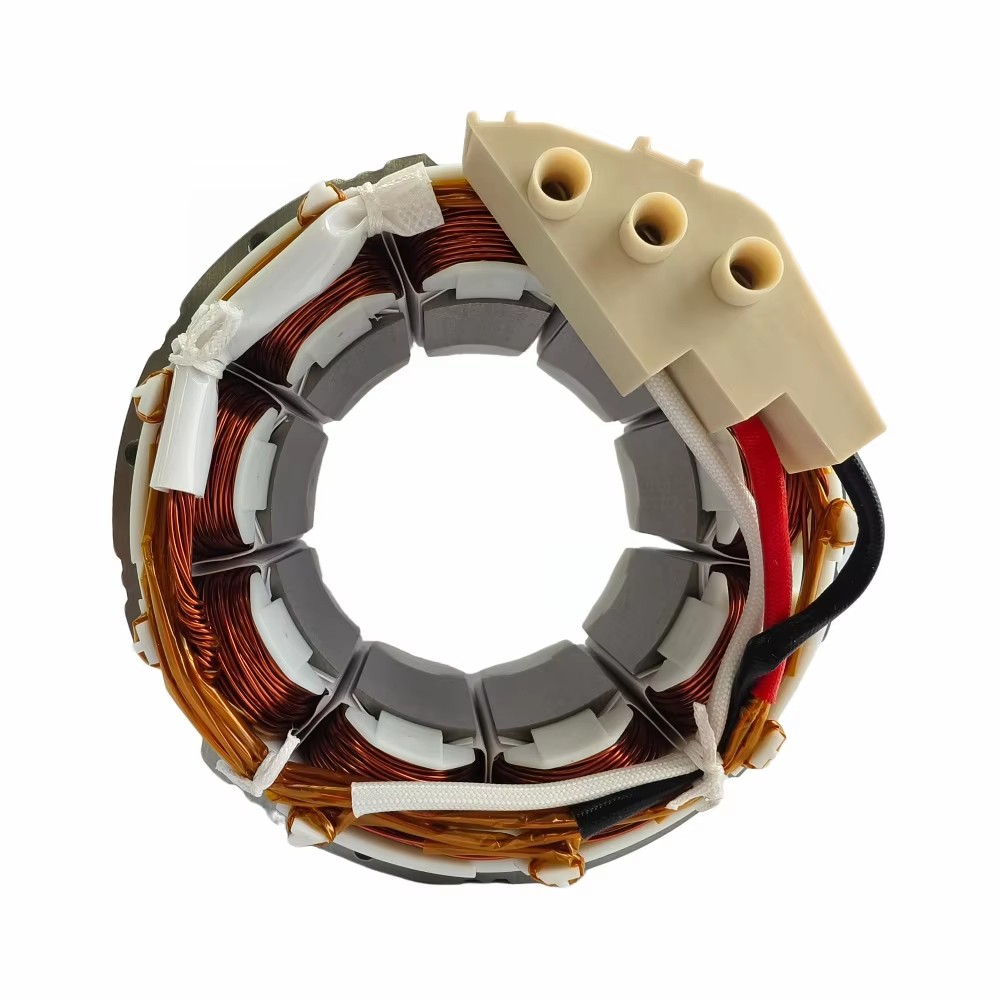

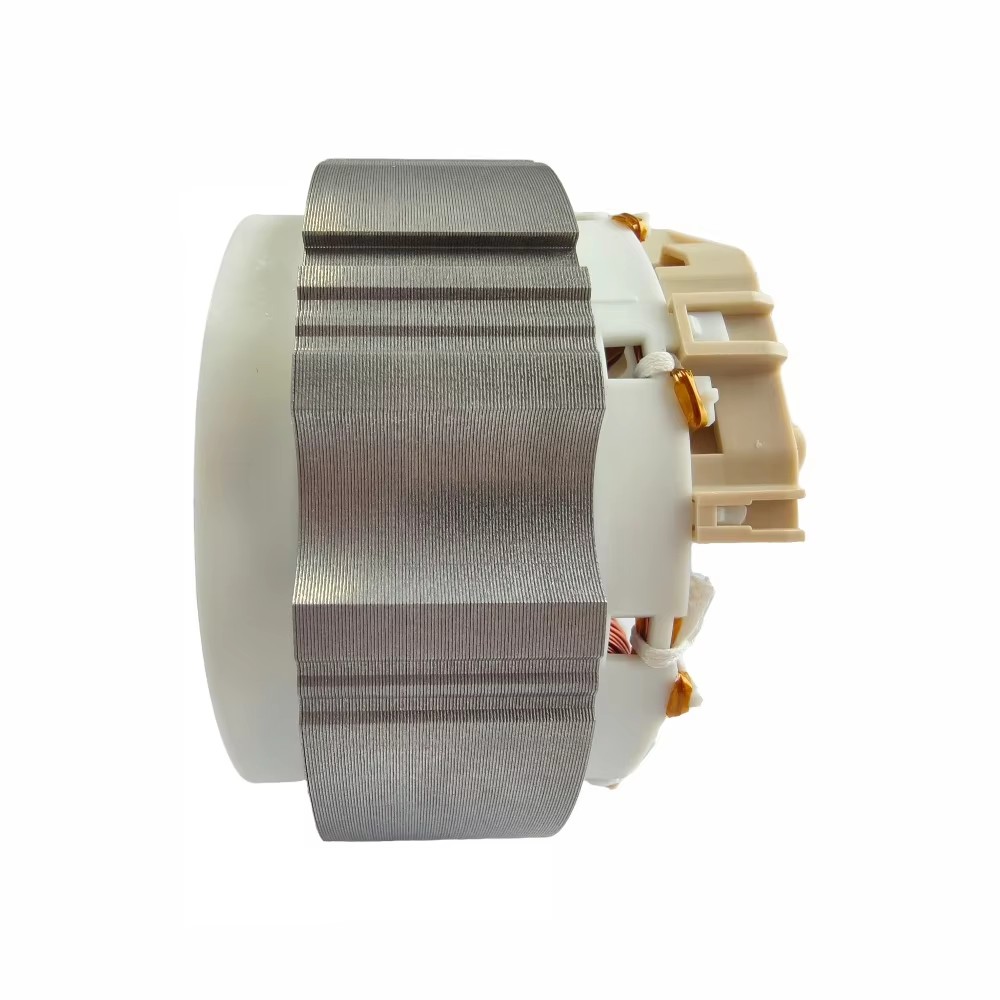

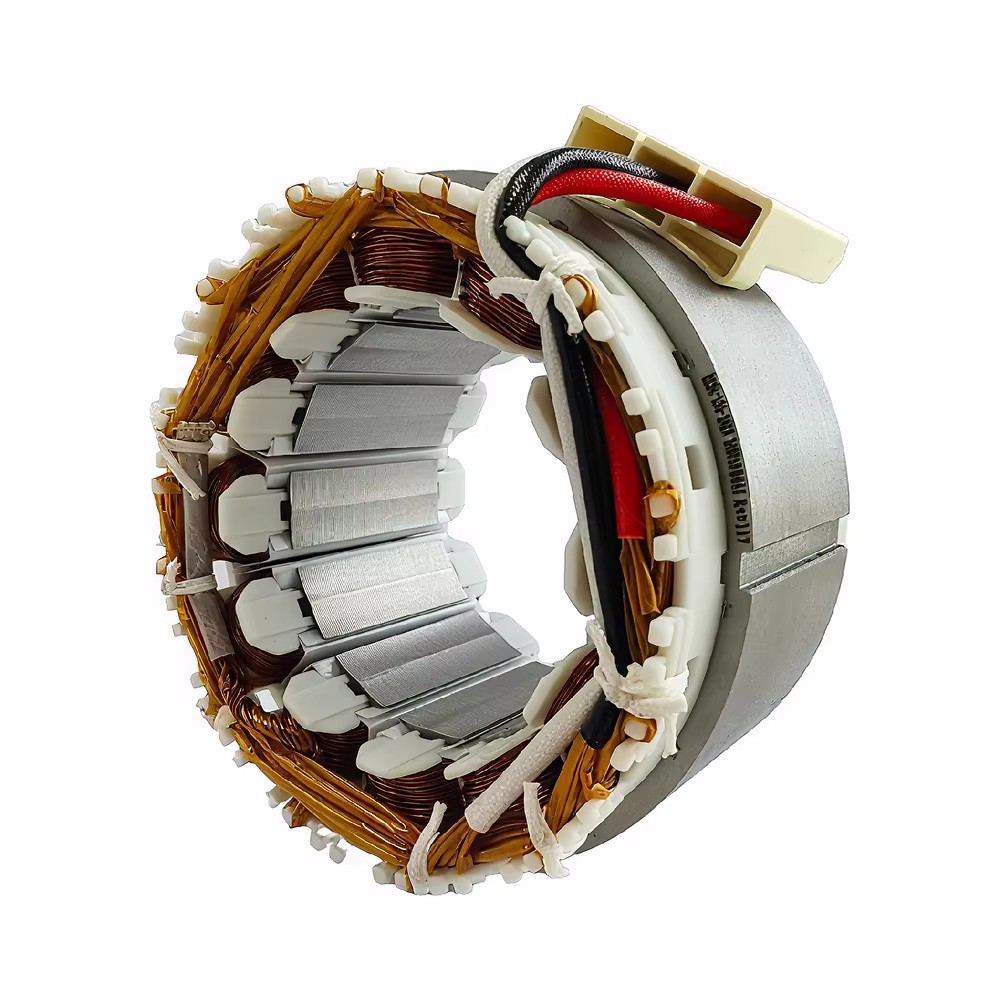

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 100 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
For Shaft Size
customizable
Overall Length
customizable
Material
customizable
Warranty
2 Years
Model number (Specification)
EC112-110
Place of origin
China
Specification (Specification)
EC112-110
Rated voltage
110V
Rated Rotational Speed
5000rpm
Rated current
16.5A
Stator Outer Diameter
112mm
Rated Torque
3.5Nm
Efficiency
91%
Stator Stack Height
25mm
Rated power
1.8kw
Insulation Class
E
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Type (Product option)
Stator
Lead time
30 days
Minimum order
100 Units
