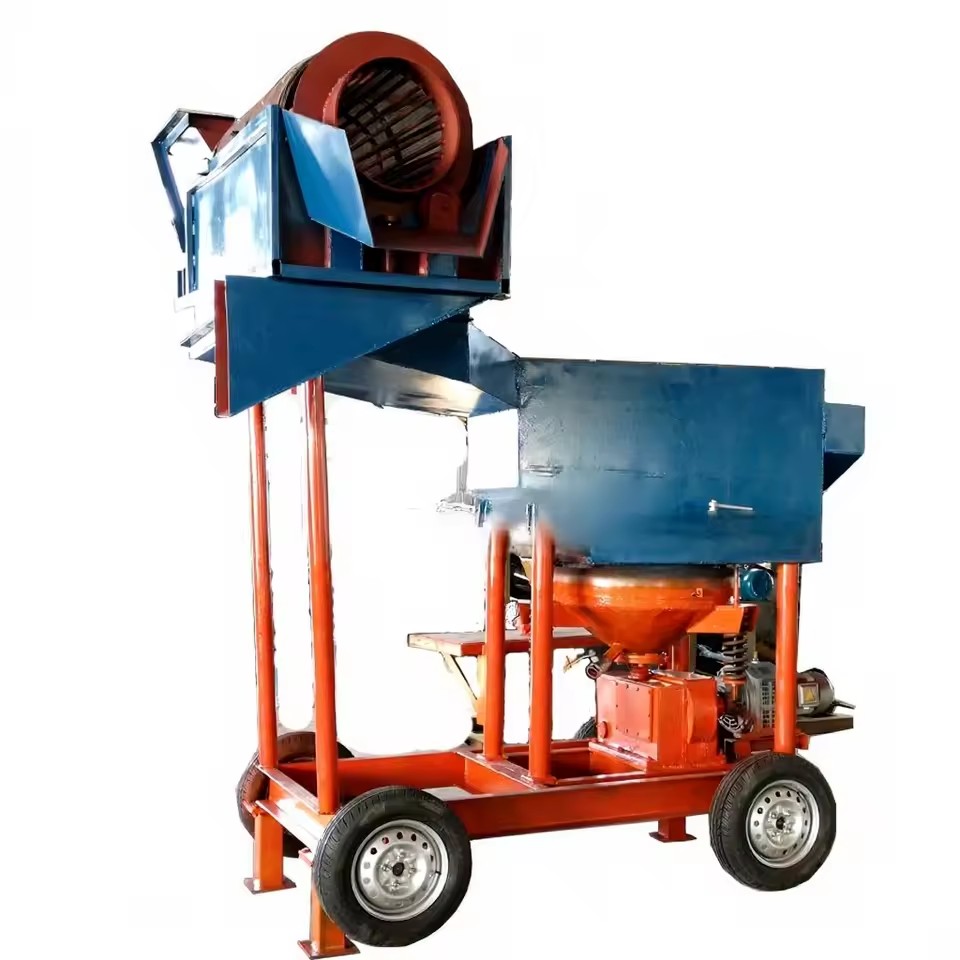

Gelin Brand Alluvial Gold Washing Plant Gravity Separator with Steel Construction and Long Service Life

Gelin modular portable type gold diamond washing machine provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

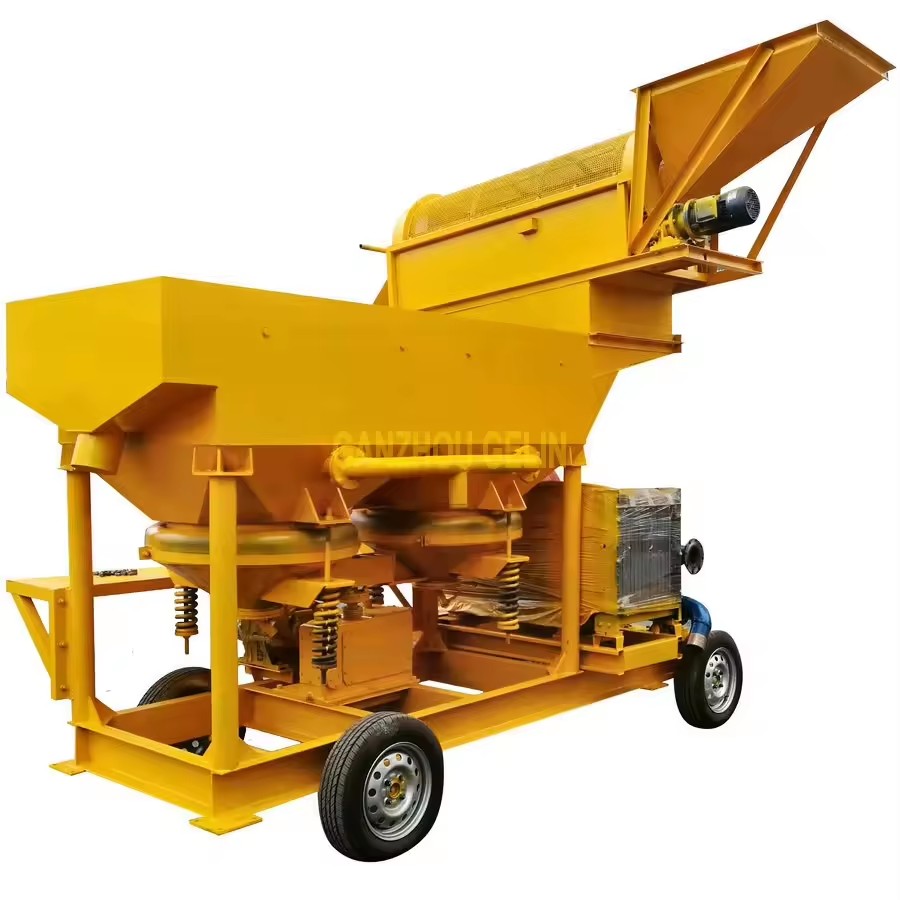

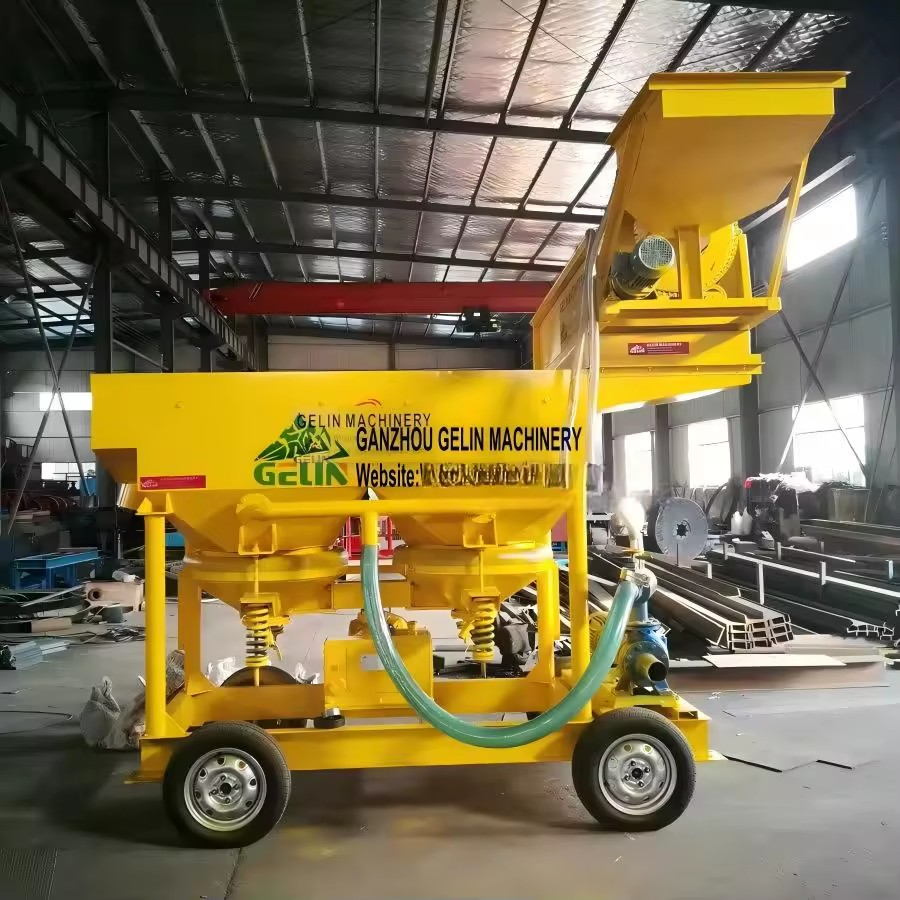

it’s all-in-one machine equipped with hopper+trommel screen+new saw-tooth wave jig machine+diesel engine+water pump+wheels.

Above 99% recovery ratio and large capacity,modular method makes easy to install quickly and save labor force.

Capacity and trommel size etc. are available to Customize!!

The VIDEO of machine as following link

Features

1.High recovery ratio above 95% with new generation saw-tooth wave technology. 2.Easy to adjust stroke and jig frequency and convenient to operate and manage with advanced frequency conversion speed control technology. 3.

Operation Instruction

1.Minerals feed to the hopper of the trommel by hand or excavator; 2.Minerals go to the trommel and washed by the high pressure water; 3.The big waste gravels will be flushed to end of the trommel by water pressure and gravity; 4.Mineral under the screen size will go to Jig machine for a gravity separation (Screen size can be customized and optional); 5.The Jig machine is new saw-tooth wave jig machine, which can separate the minerals based on different specific gravity; 6.Due to the big gravity of the gold/diamond, the gold/diamond concentrate will finally separated by Jig machine

Tips: Add 1 set of sluice box or small shaking table can be recommended for a clean concentrate for the tailing.

Application

* Alluvial gold/ diamond/gemstone * River sand gold/ diamond/gemstone * Gravel sand gold/ diamond/gemstone * Clay deposit gold/ diamond/gemstone * Placer gold,tungsten,tin,hematite and beach placer

Tip:Superior effect by working together with sluice box or shaking table for recovery

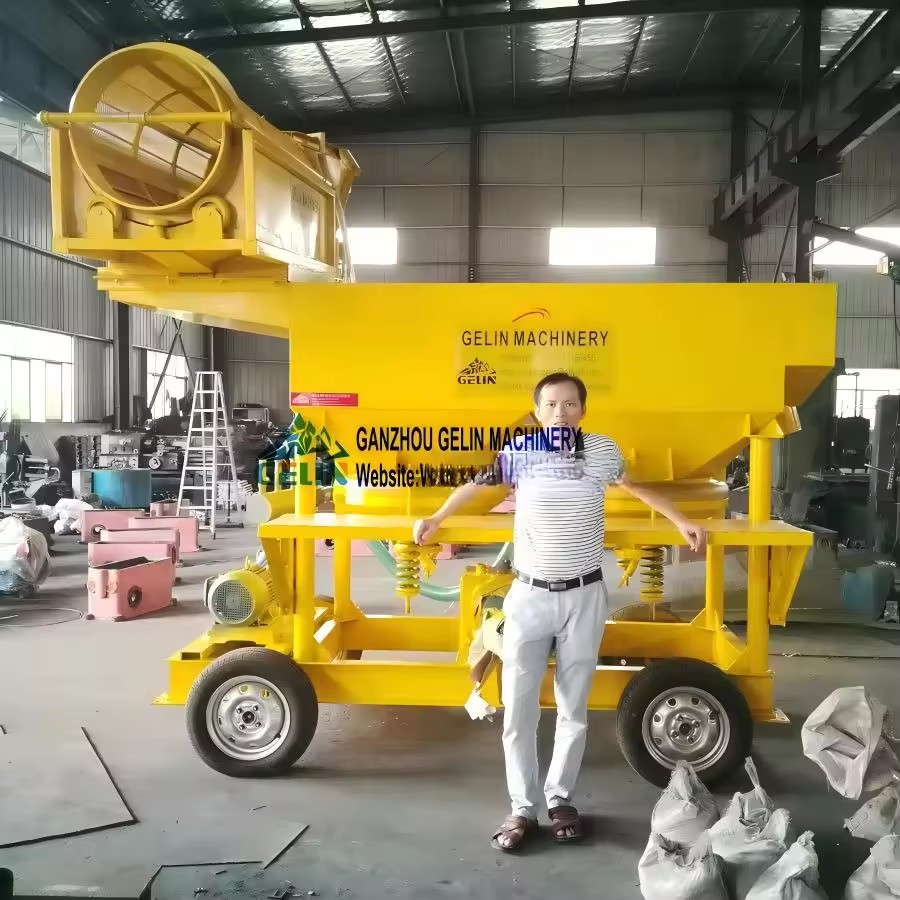

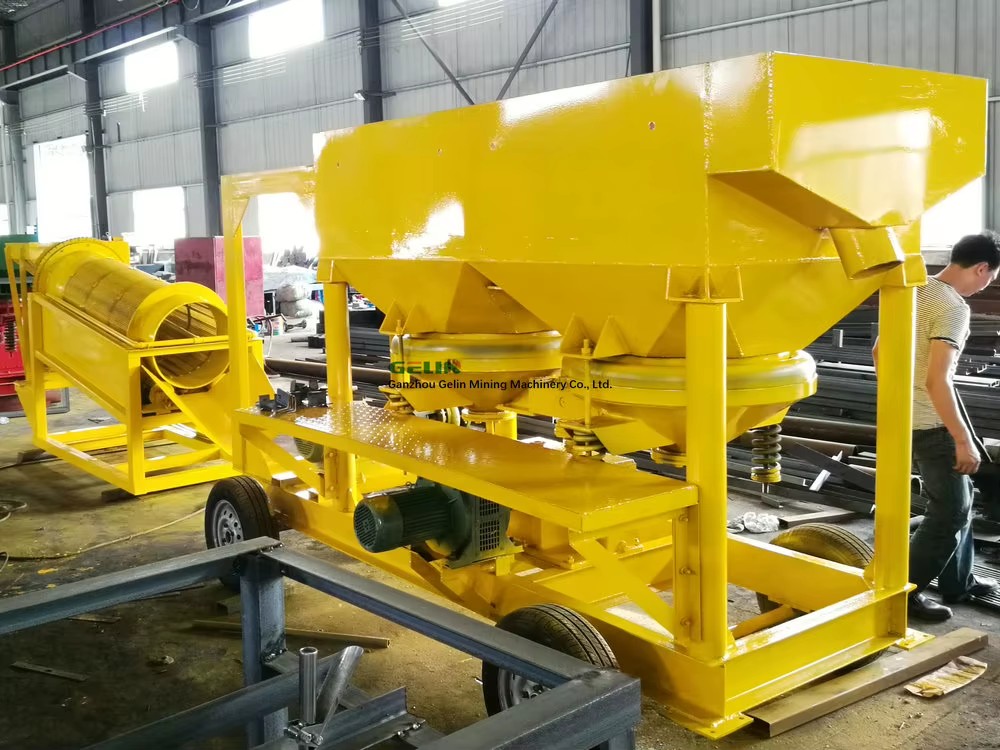

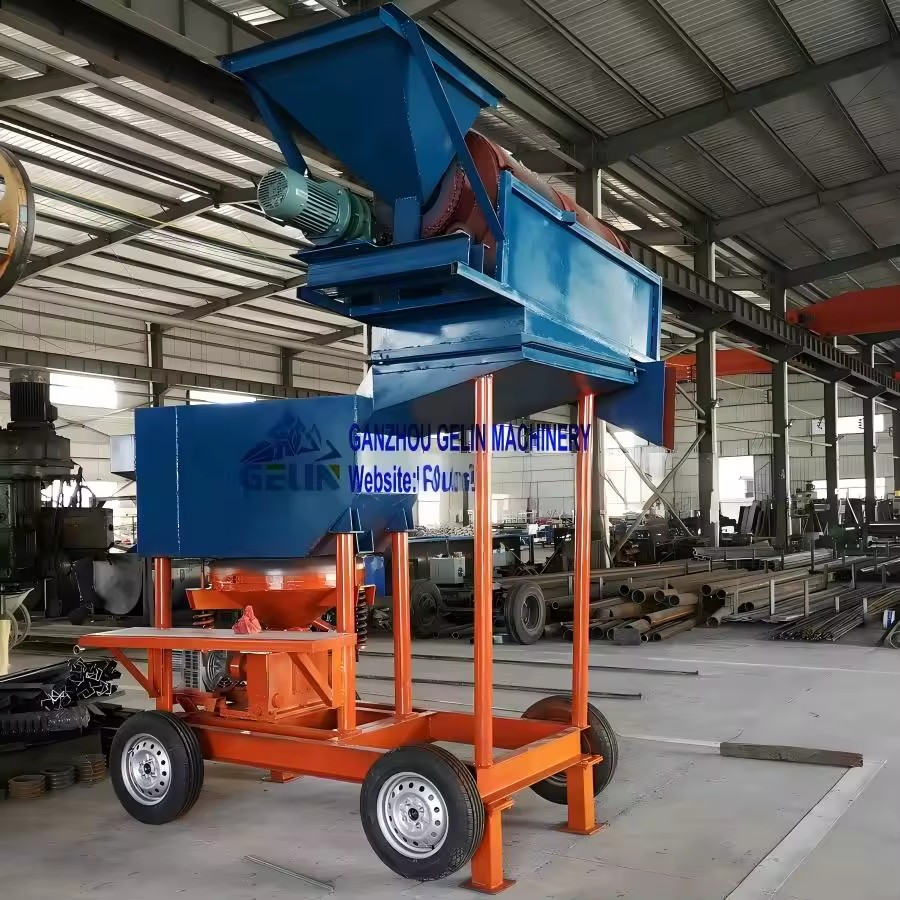

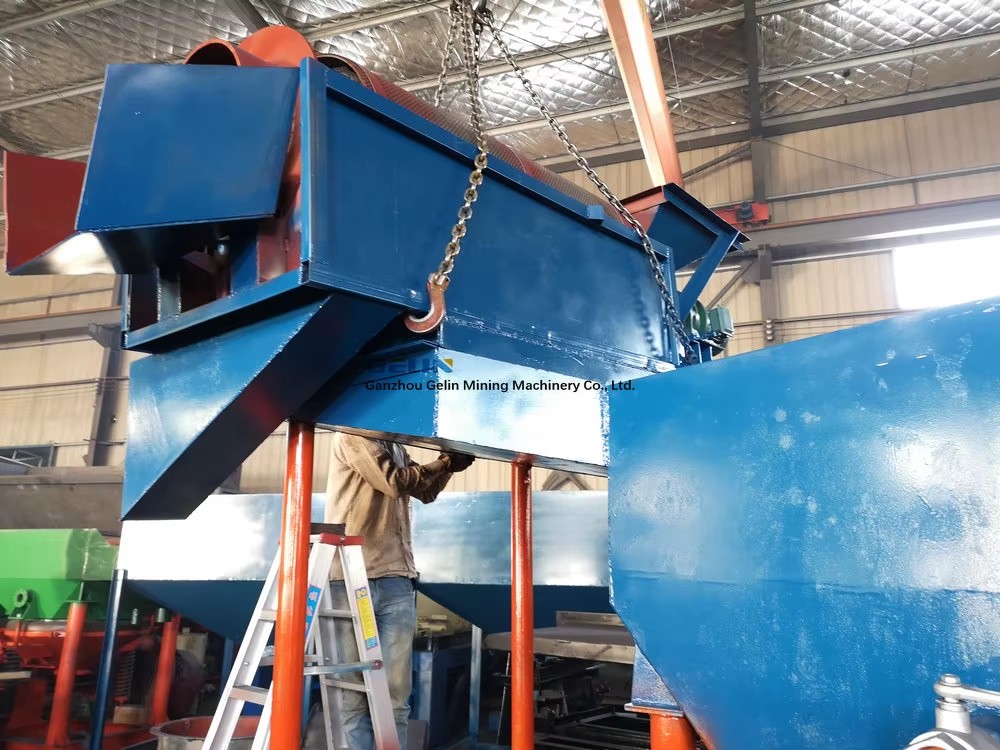

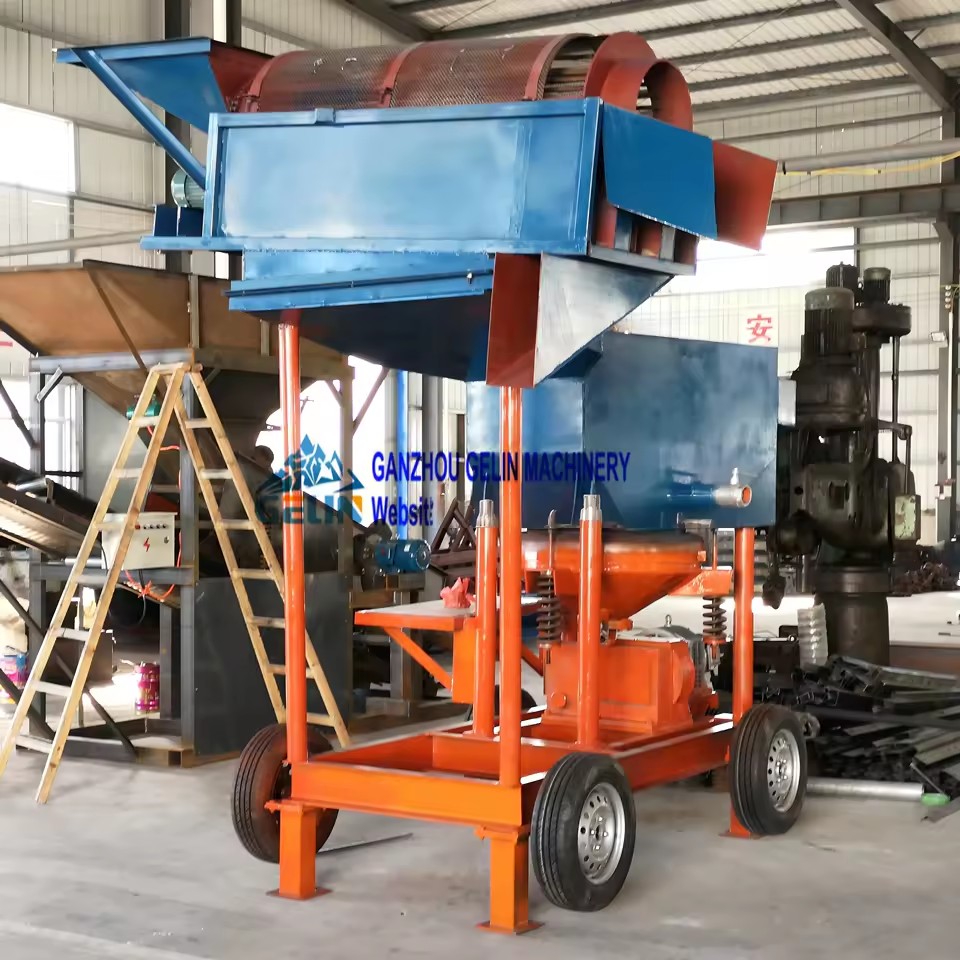

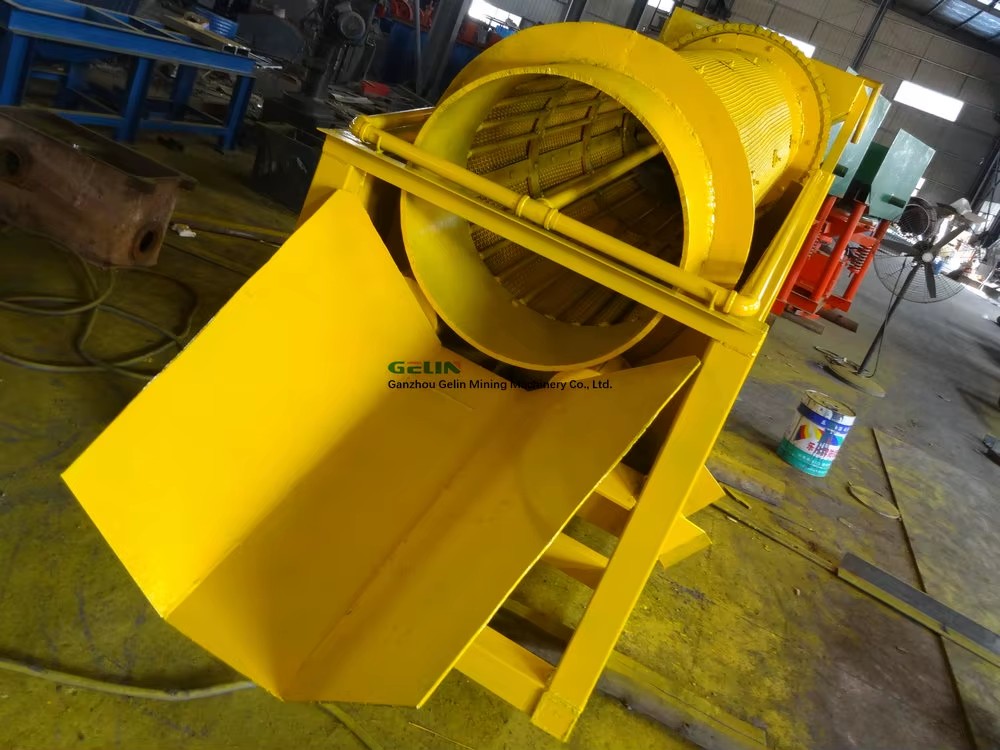

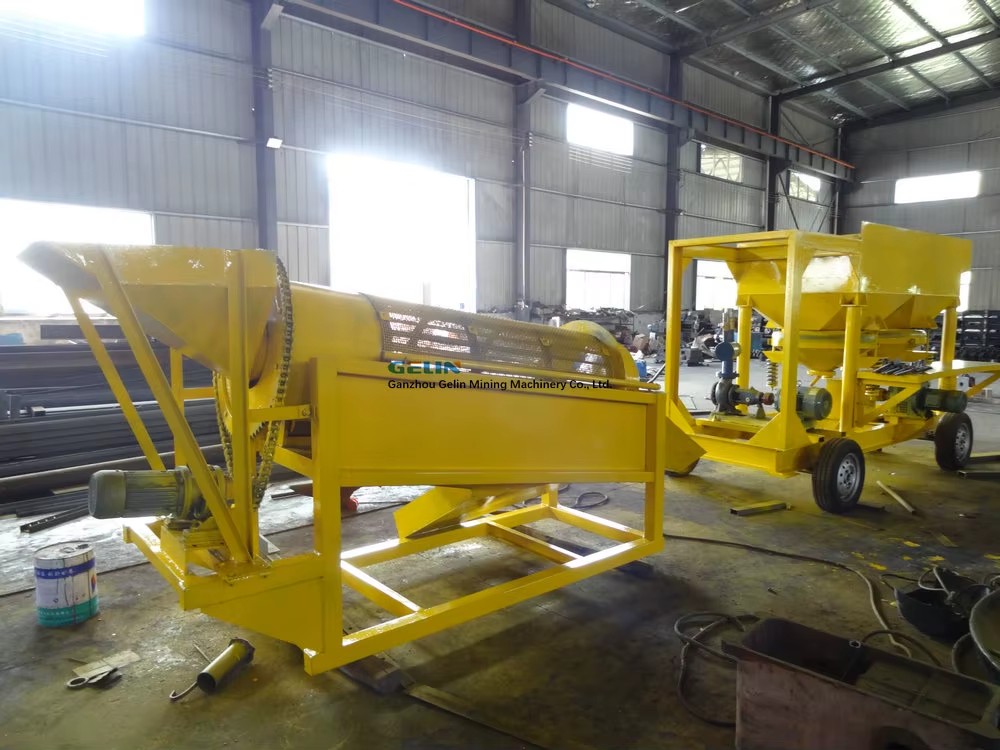

Machine produced

Modular installed gold diamond wash machine shipped out.

Machine produced

gold diamond wash machine shipped out.
