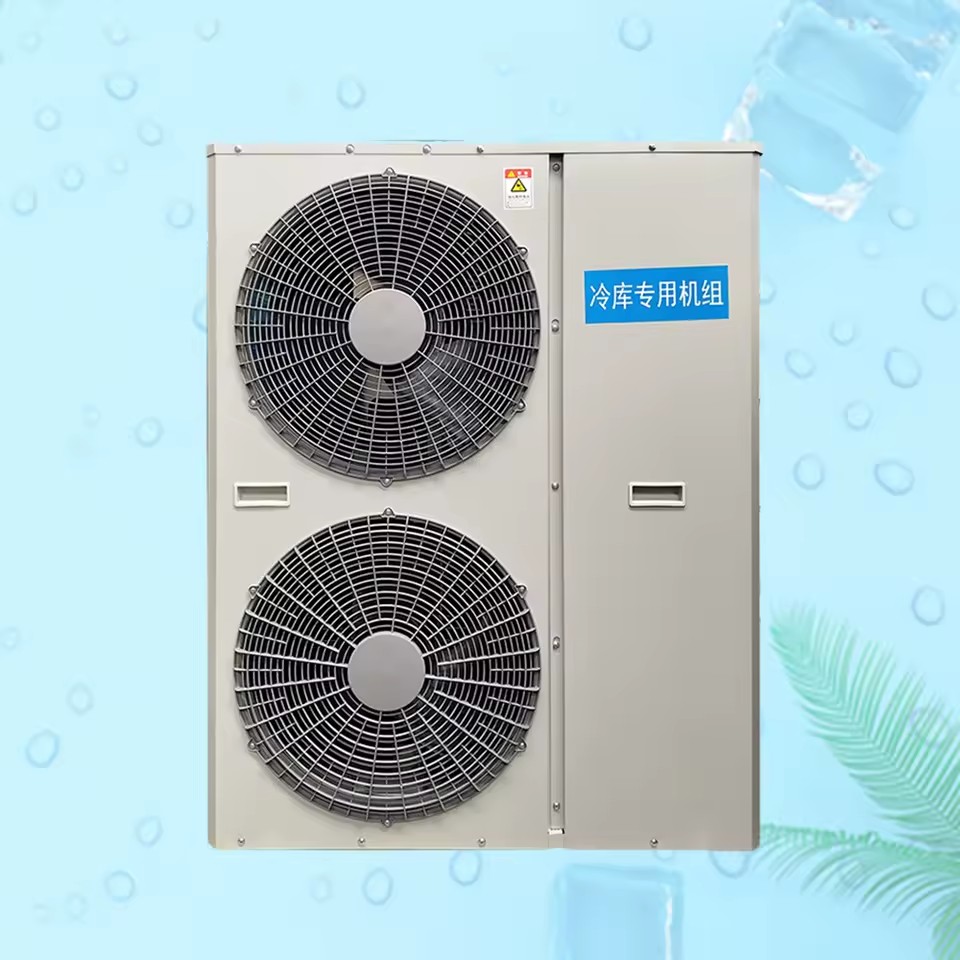

3HP 5PH 8PH Energy Saving Motor Cold Room Condenser Unit Inverter Commercial Refrigeration Evaporator Condenser for Cold Storage

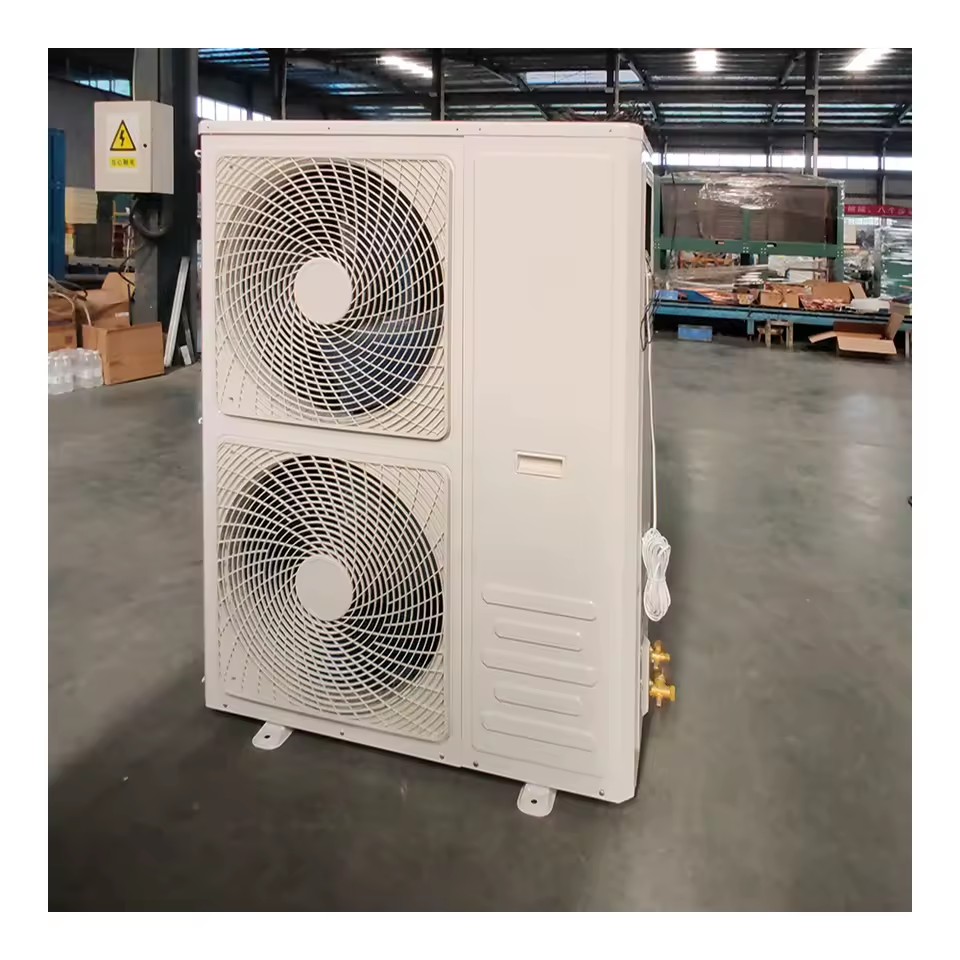

Product Importer Gallery 01 · 1ef5ee3780

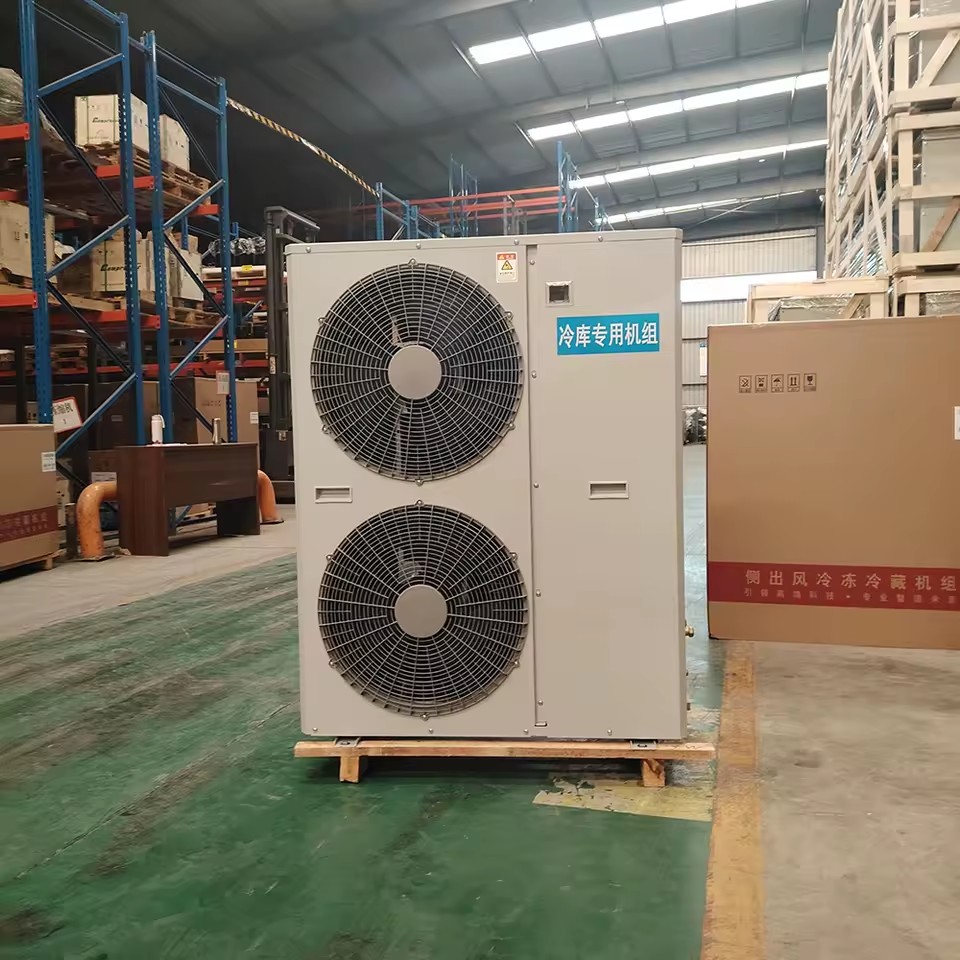

Product Importer Gallery 02 · 5d3ca0c09f

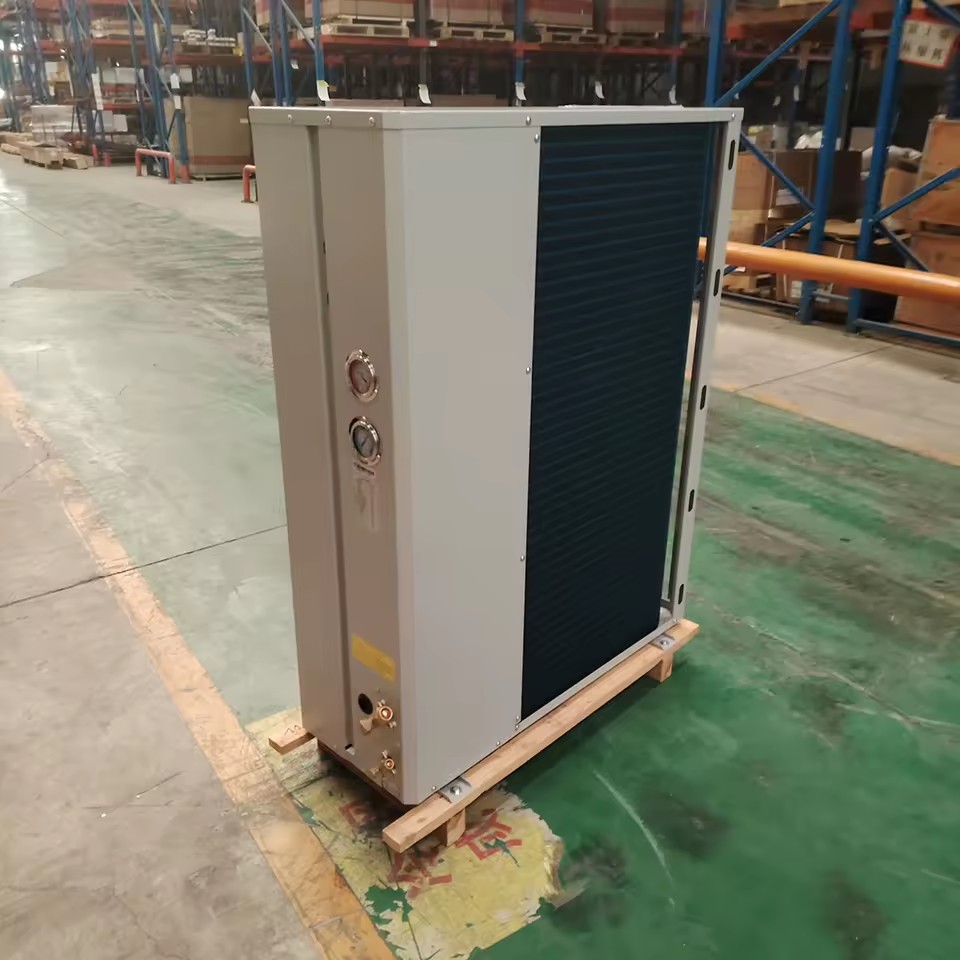

Product Importer Gallery 03 · 2a2af159b1

Product Importer Gallery 04 · 721637e2a7

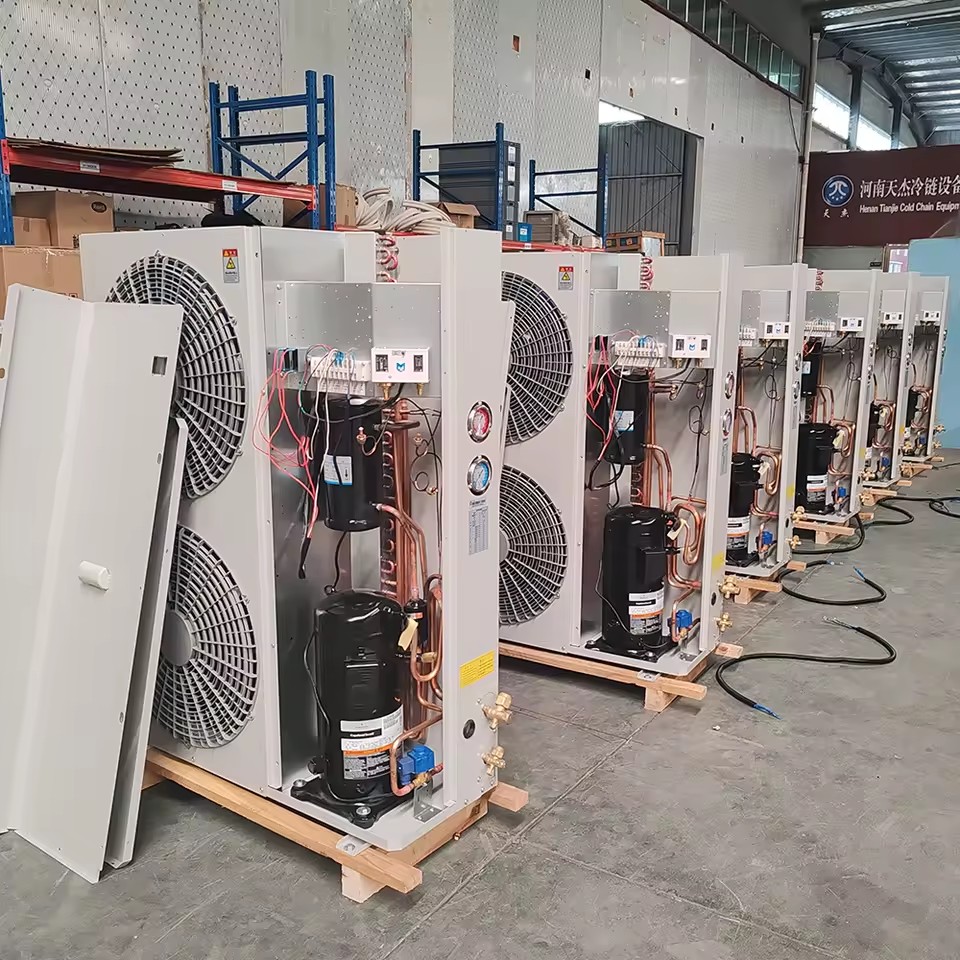

Product Importer Gallery 05 · 2282ed85ad

Product video

Certifications CE

3HP 5PH 8PH Energy Saving Motor Cold Room Condenser Unit Inverter Commercial Refrigeration Evaporator Condenser for Cold Storage

Name: 3HP 5PH 8PH Energy Saving Motor Cold Room Condenser Unit Inverter Commercial Refrigeration Evaporator Condenser for Cold Storage
SKU: 7FAR-2RER-8J4K
Price: 540.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 540.00 540.0 USD $ 540.00

Minimum order quantity: 1 Units

Key attributes

View all

Temperature

20-8c, 5~+10, 0~-20 °C, 35~0

Voltage

440~380v/220~230v/110v

Compressor Type

Scroll

Refrigerant

R22,R404A or others

Compressor brand

Bitzer/Emerson

Core components

Bearing, PLC, Motor, Pressure Vessel, Other

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean + Truck via Maersk · Approx. shipping fee: $ 136.00 for 1 piece · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

R22 MEDIUM/HIGH BACK PRESSURE 50Hz
MODEL	AOS-2HP	AOS-3HP	AOS-3HP	AOS-3.5HP	AOS-4HP	AOS-SHP	AOS-6HP	AOS-7HP
HORSE POWER	2HP	3HP	3HP	3.5HP	4HP	5HP	6HP	7HP
NOMINALCAPACITY	3200	5000	5000	6000	7000	8000	8800	9200
DISPLACEMENT	44	58.2	74	90.2	112.5	124.4	134.8
OUTLINE SIZE	700×320x560	955x365x800	955x365x1250
GROSS WEIGHT(kg)	82	92	92	93	93	125	127	130
(kg)	80	86	86	87	87	118	120	123
NET WEIGHT
PIPE(mm)	INφ 16 OUTφ 10	INφ19 OUTφ12
FANSIZE(mm)	1Ad.450mm	1Ad.450mm	2Ad.450mm
POWER SUPPLY	220-240V-50Hz	380V3-50Hz
REFRIGERANT	R22
OIL	SUNISO3GS SUNISO4GS
NOISE(dB)(at 1m)	56	57	57	57	58	62	63	64
REFRIGERANTCHARGE(kg)	2-2.5	2.5-3.5	2.5-3.5	2.5-3.5	3.4	5.5-6.5	6.7	6.5-7.5
REFRIGERATION VOLUME(m³)	25	40	40	45	50	70	80	90
REFERENCE	20-25	25-30	25-30	35	25-35	30-45	40-48	40-55
EVAPORATING(m²)

R404A MEDIUM/HIGH BACK PRESSURE 50Hz
MODEL	AOS-2HP	AOS-3HP	AOS-3HP	A0S-3.5P	A0S-4HP	AOS-5HP	A0S-6HP	A0S-7HP.
HORSE POWER	2HP	3HP	3HP	3.5HP	4HP	5H	6HP	7HP
NOMINAL	3200	5000	5000	6000	7000	8000	8800	9200
CAPACITY
DISPLACEMENT	44	58.2	74	90.2	112.5	124.4	134.8
OUTLINE SIZE	700×320×560	955x365x800	55x365x1250
(kg)	82	92	92	93	93	125	127	130
GROSS WEIGHT
(kg)	80	86	86	87	87	118	120	123
NET WEIGHT
PIPE(mm)	INφ16OUTφ 10	INφ19OUTφ12
FAN	1Ad.400mm	1Ad.450mm	2Ad.450ms
SIZE(mm)
POWER SUPPLY	220-240V-50Hz	380V3-50Hz
REFRIGERANT	R404A
OIL	RL-32H
NOISE(dB)(at 1m)	56	57	57	57	58	62	62	64
REFRIGERANTCHARGE(kg)	2-2.5	2.5-3.5	2.5-3.5	2.5-3.5	3.4	5.5-6.5	6.7	6.5-7.5
REFRIGERANT COOL VOLUME(m³)	25	40	40	45	50	70	80	90
EFFRENCE	20-25	25-30	25-30	35	25-35	30-45	40-48	40-55
EVAPORATING(m²)

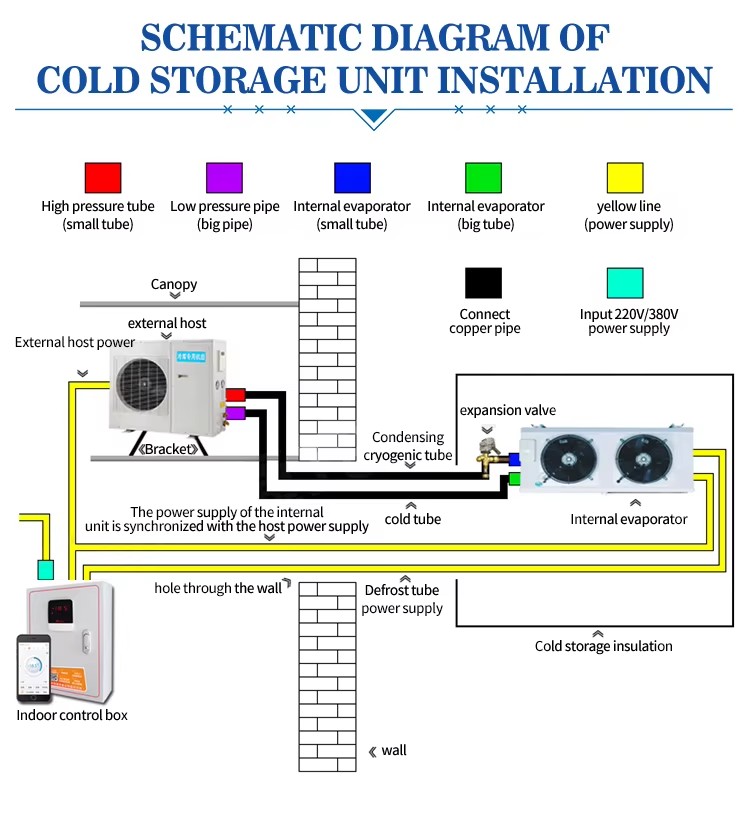

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean + Truck via Maersk · Approx. shipping fee: $ 136.00 for 1 piece · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Temperature

20-8c, 5~+10, 0~-20 °C, 35~0

Voltage

440~380v/220~230v/110v

Compressor Type

Scroll

Refrigerant

R22,R404A or others

Compressor brand

Bitzer/Emerson

Core components

Bearing, PLC, Motor, Pressure Vessel, Other

Warranty

2 Years

Key selling points

Automatic, Easy To Operate, High-Accuracy, Eco-Friendly, Energy Saving

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

Model number (Specification)

tj0803

Cooling type

Air Cooled

Application

Fresh-keeping, frozen food storage, quick-freezing

OEM Service

Yes

Packing

plywood case

Machinery test report

Provided

Certification

Selling Units

Single item

Single package size

100X100X100 cm

Single gross weight

40.0 kg

Power(W) (Product option)

14~30KWH/DAY

Lead time

35 days

Minimum order

1 Units
