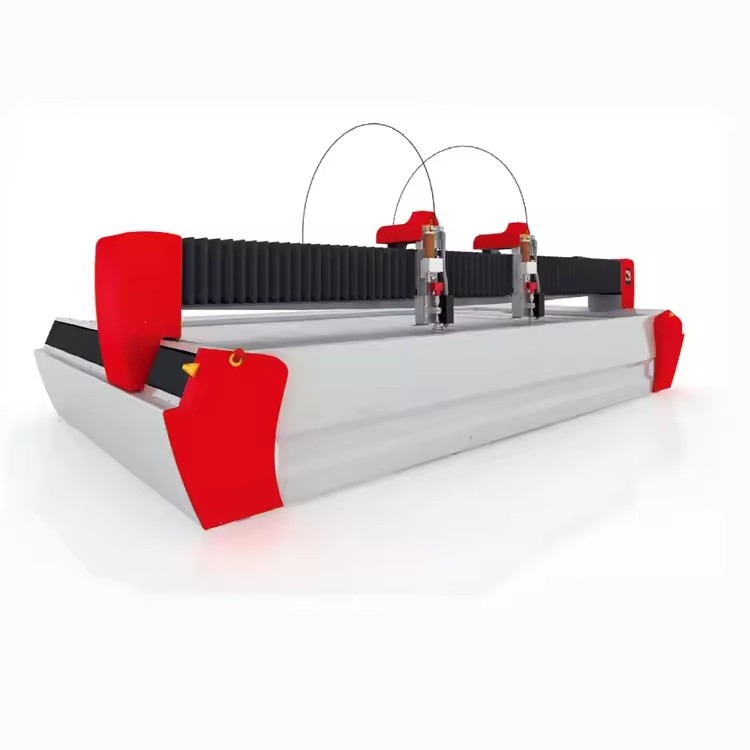

High Speed Multifunctional Universal Automatic CNC Water Jet Cutter Waterjet Punching Cutting Machine for Marble Metal

Highly Efficient Low Price Tornos Para Metal Metal Bench Lathe Machine for Sale

X Axis Cutting Stroke

3m

Y Axis Cutting Stroke

1.8m

Z axis Stroke

180mm

CNC Control

SEMYX

CAM Software

Included

Cutting Speed

0-15m/min

Free Speed

20m/min

Acceleration

1m/s2

Accuracy

0.08mm

Drivers

AC Servo Motors

Motion for X Axis

Ball Screw

Motion for Y Axis

Motion Part Protection

Bellow

Pump

50HP

Pump pressure

4000Bar

Z -axis

1

Water Treatment System

optional

Abrasive Tank Capacity

50 L

Abrasive Feeder

Automatic

Abrasive Removal

Layout

See the layout

Recommend Products

view more >>

Recommended by seller

$1,290-2,900

set

$348-820

$30,360-40,480

$10,970-28,720

$1,599-7,459

$16,000-18,660

$5,999-40,022

Products Description

Water jet cutting, ultra-high pressure water jet cutting machine is the ordinary water through an ultra-high pressure presser, the water pressure to

and then through the channel diameter of

0.3mm

water nozzle to produce a water jet about

3 times

the speed of sound, under the control of the computer can easily cut any graphics of soft materials, such as paper, sponge, fiber, etc., if adding sand to increase its cutting force, then several times It can cut any material

1. There is no thermal deformation during cutting, which avoids the physical and chemical changes of materials

2. It is widely used in cutting all kinds of materials and has the reputation of "universal cutting machine"; 3. The incision is smooth and smooth without burr, so it is not necessary to reprocess; 4. Controlled by numerical control system, high cutting accuracy

1. No cutting direction limitation, can complete all kinds of abnormal processing; 2. The lateral force produced by the water cutter on the workpiece is very small, which can reduce the setting time and save the cost of using the fixture; 3. The water jet machining will not produce thermal deformation, and no secondary processing is needed, which can save time and manufacturing cost; 4. Water jet cutting has the advantages of fast cutting speed, high efficiency and low processing cost.

Specification

Company Profile

Exhibition

Certifications

FAQ

1. How can I choose the most suitable machines?

A: Please tell me your specifications,we can choose the best model for you, or you can choose the exact model.

You can also send us the products drawing,we will choose the most suitable machines for you.

2. What is your payment terms?

A: 30% down-payment after contract,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?

A: Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province,226001. You are warmly welcomed to visit us.

4. What is your delivery time?

A:The delivery depends on different machines with different configurations. Please

5. Can you send the service engineer to our company?

We have engineers stationed in

and

. The after-sales service system is very perfect.
