Multi- head WaterJet Cutting Machine
characteristics Of Impurities
allow concentration(mg/L)
silicon
1.0
calcium
0.5
magnesium
ferrum
0.1
manganese
chloride
5.0
sulphate
25.0
nitrate
carbide
All dissolved solids
50
PH Level
6.8-7.5
conductivity
50μs/cm
（Bevel Cutting 0-±10°）
3 axis Waterjet Cutting Machine
Max5 axis
Water Jet Cutting Machine
（Bevel Cutting 0-±45°）
Product Description
Many kinds of compounds exist in the running water (such as calcium carbonate, carbonic acid). As the machine works, the temperature rise will generate some substance of the reaction of chemistry or physics-as we called it furring, which will reduce the life of the high pressure system and increase the cost. After many years' experience, we have developed the system that can solve the problem. We would like to recommend you this optional part if your supplied water is low quality. YC, a water jet cutting machine manufacturer, supplies high quality high pressure water jet cutting machine, CNC Water Jet Optional Parts and high pressure water cleaning machine for customers worldwide.
Quality requirement for water：
Since the high-pressure water cutting work after high pressure, orifice small particles of impurities in raw water cutting and scaling, corrosion ion has an impact on the working life of equipment and precision, therefore, must be treated to the raw water supply equipment. High-pressure water jet cutting water quality requirements for the job: deionized water. Basic requirements for high pressure water jet cutting system with water quality water is greater than 0.5μm impurities must be removed, because in addition to the general water contains a certain amount of fine solid particles, there are many minerals dissolved in water, such as calcium carbonate, manganese, iron and silica, etc., not only reduces the life of the nozzle, but also affect the cohesion of the jet, thereby reducing the cutting efficiency. So be sure to remove it. Specific requirements as follows
Related Products
Dynamic 5axis Waterjet Machine
Cut with drill
Waterjet Cutting Machine
Robotic
Waterjet
Optional Accessories
Auto sludge removal system
Remove the abrasive from the tank automatically, separate the abrasive and water.
Reduce the labor force,improve work
efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are
plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are
collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.

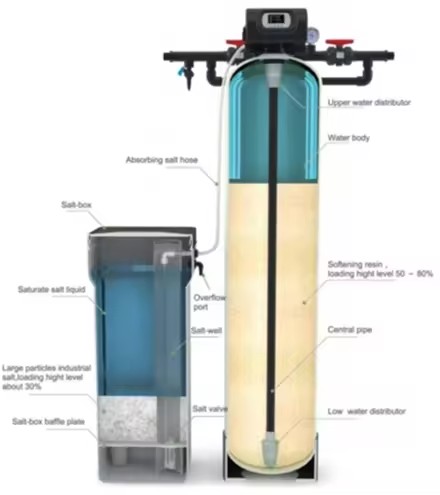

Water Soften System
Hydraulic Loading System
Cutting Head With Drilling
Packing&Delivery
Company Profile
00:00
Straight to do the most professional water jet cutting machine, for different customers in different industries we will provide a variety of solutions.
