Dry And Wet Mining Magnetic Separator Price For Magnetite Ore Separating, Magnetic Separator For Magnetite Sand

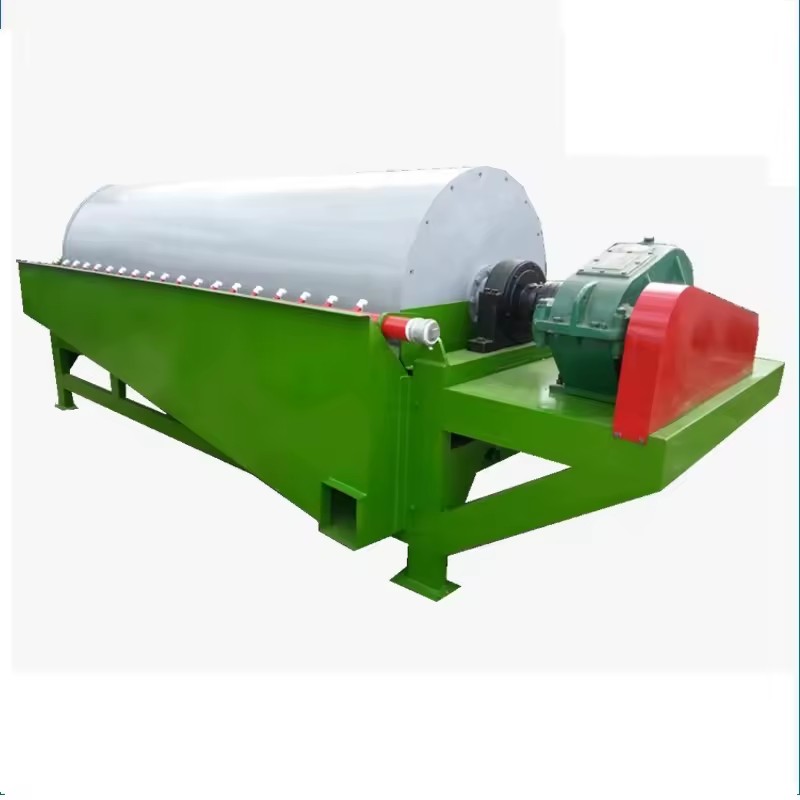

Introduction of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

CTB Series Wet Magnetic Separators consist of separator drum, magnetic system, separator tank, transmission device and overflow devices for feeding and discharging. They are widely applied in magnetically separating magnetite, de-watering and de-ironing for non-metallic ores. According to different working principles, they are classified into three Kinds: current style(S), counter-current style (N) and Semi-countercurrent style (B).

Application of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

Magnetic drum separator or the wet magnetic separator machine is used to remove the iron powder form the particle and powder materials and to recycle resources in the industries of wood, mine, ceramics, chemical and food. Magnetic drum separator can not only complete the wet magnetic separation of materials with the particle size smaller than 3mm such as magnetite, pyrrhotite, roasted ore and ilmenite etc, but also remove iron from the coal, non-metal and construction materials. So magnetic drum separator is the wet magnetic separator machine with the highest universality and the widest application range.

Features of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

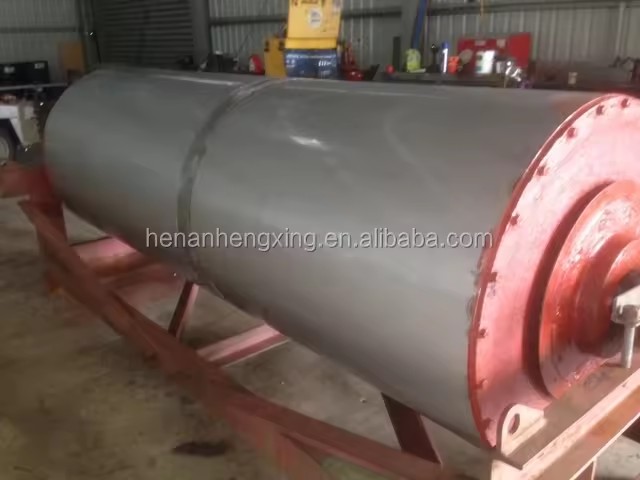

1. The magnet is made from rare-earth permanent magnetic material · NdFeB; Stainless steel separator drum is covered with rubber to achieve higher separation performance; the wearable ceramic drum is optional.

2. Magnetic system adjusting device can adjust magnetic angle to achieve good separation performance.

3. CT series wet magnetic separators can be used singly, multiply or parallelly.

4. They are suitable for rough or fine separating strong magnetic minerals smaller than 0.2mm.

Work principle of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

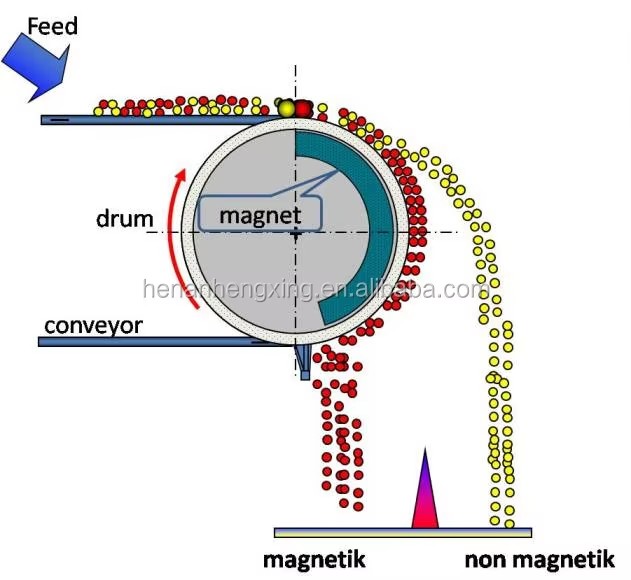

Magnetic separator separate the ore mainly by material magnetic. When the slurry is poured into the magnetic field covered area, strong magnetic minerals are adhered to the surface of the machine roller while the materials with weak magnetic or no magnetic are separated from the strong magnetic material. And the strong magnetic minerals are brought out of the magnetic field by the revolving roller. After the separation, the ore is divided into groups of magnetic substance and non-magnetic substance and the two groups are discharged respectively.

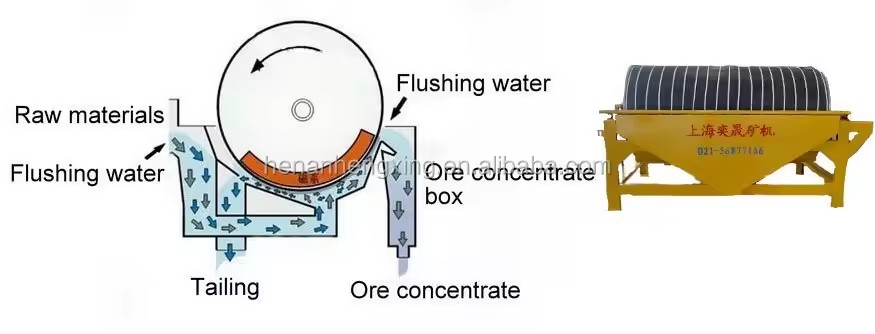

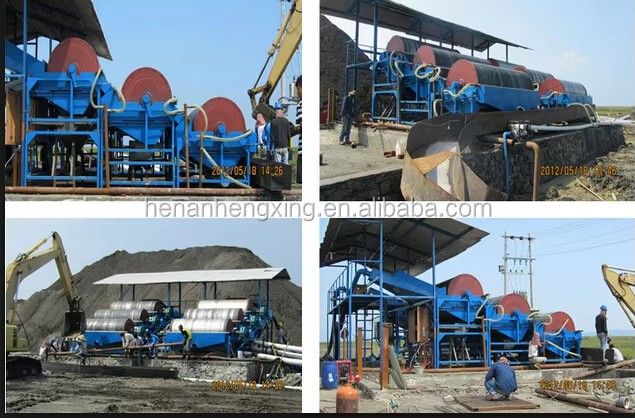

Working Method of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

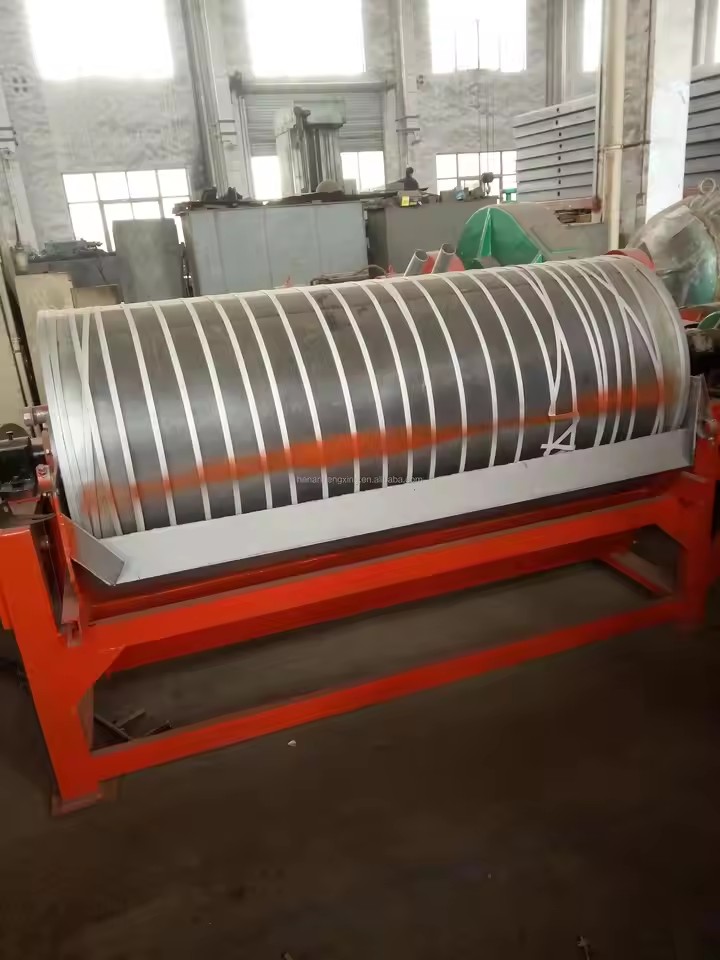

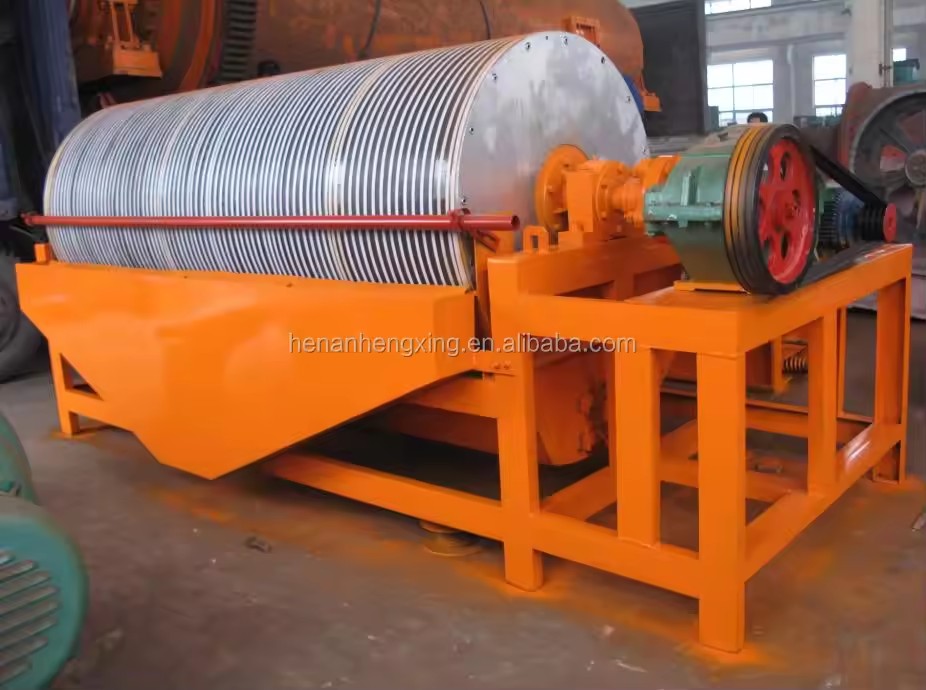

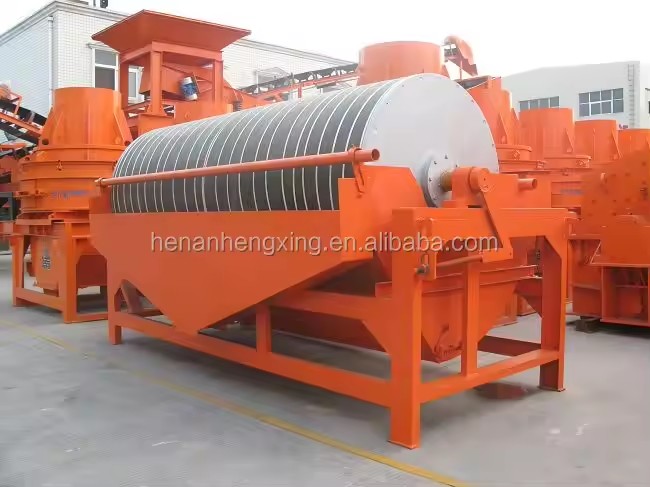

Factory Picture of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

Specifications of Fine Ore Drum Magnetic Separator, CTB Magnetic Separator

is a joint stock corporation integrating scientific research, manufacture, marketing and exporting with the main target at the large and medium sized series of heavy duty equipments for mining, ore selecting, wall materials, formed coal, metallurgy and ect. The company located at Zhengzhou National High-Tech Development Zone.

We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, Powder making Machines, Ore Dressing Machines, Briquette Machines and complete Cement Output Lines. Our products have been sold to areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.

Our Workshop and Building

Our Production Capacity

Our mission is providing our clients timely, rapidly, and efficiently services.

√ Rapid Reply

To the issue you propose, or the feedback, we are sure to make reply soon.

√ Providing Solution Design

According to the results of communication with you, we will provide a design solution for you speedly.

√ Inspection

If you have interests, welcome to visit

√ Order execution

Provide equipment layout draw, foundation draw and detailed equipment manauls. Timely report you the manufacturing schedule and related photos.

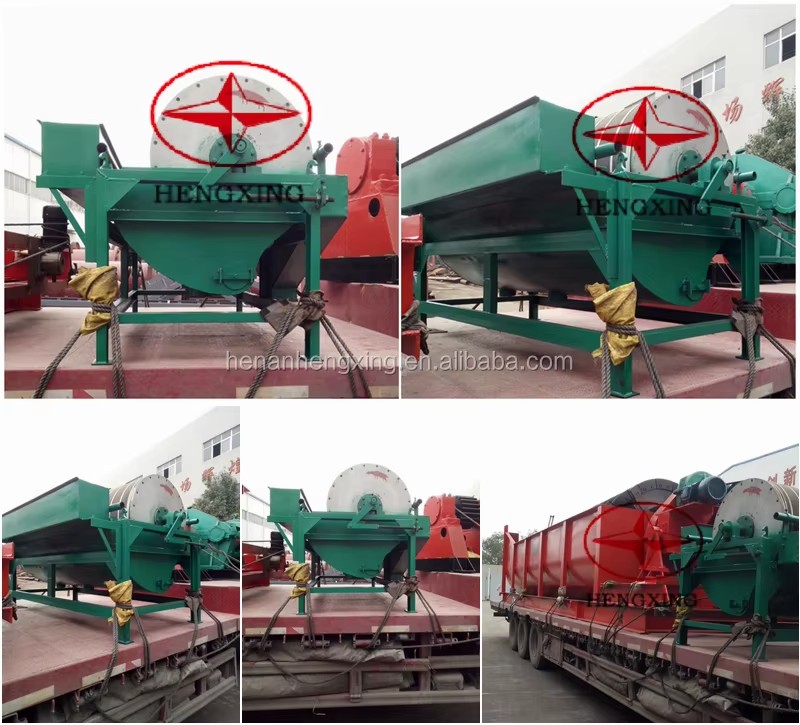

√ Delivery fast

We can arrange fast, safe shippment on time.

√ After-sales service

If you need, we will dispatch engineer to the site to guide installation, debugging and training operators. Installation and operation workers are offered if you need
