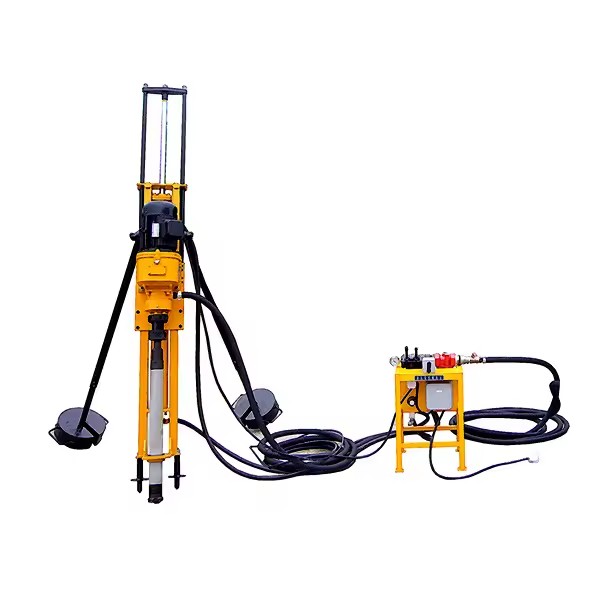

Factory Price Small 15m Mining Quarry Construction Man Portable air DTH Borehole Electric Mini Water Well Drilling Rig HQD70

Available for enquiry 0.0 · 0 reviews
USD

2,210.00 2210.0 USD 2,210.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Power Type
Electric
Voltage
Customized
Warranty
1 year quality guarantee
Place of origin
China, Shanghai
Product description

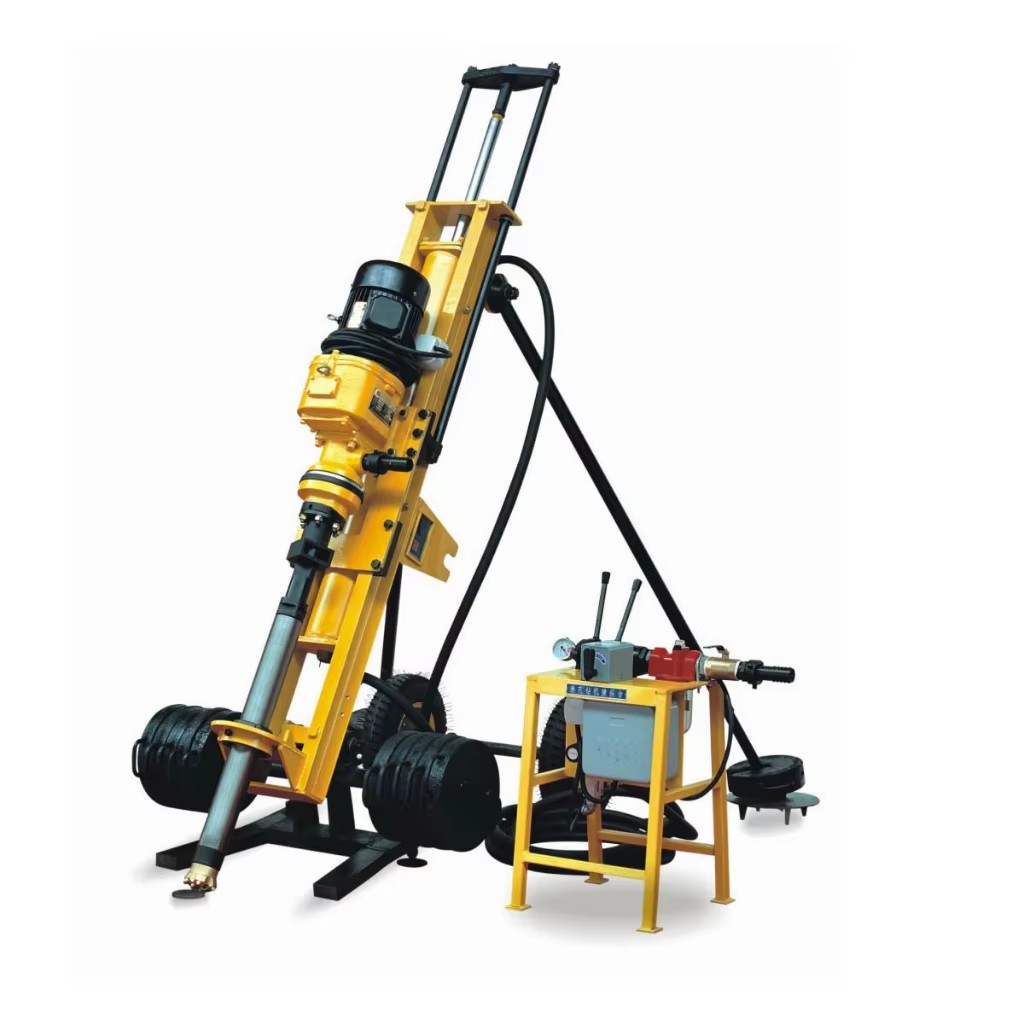

HQD70 Small DTH drilling rigs

HQD100A DTH drilling rigs

Diameter: 68~130mm Depth: ≥20m Air consumption: ≥7 m3/min Working Pressure: 0.5~0.7 Mpa

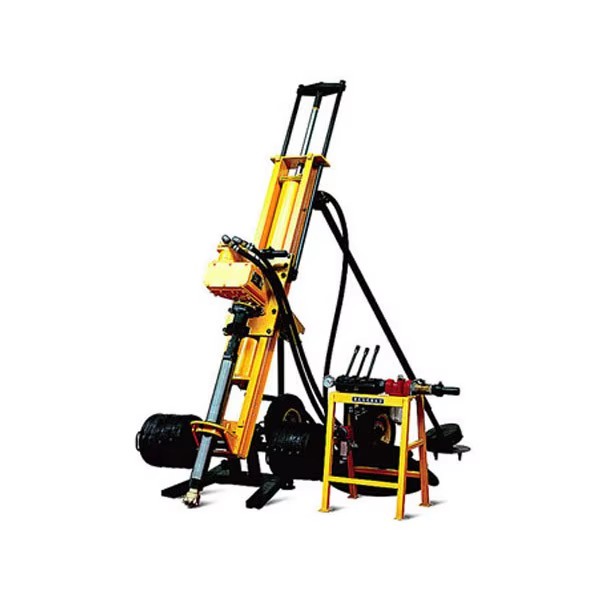

HQF110 Full Pneumatic DTH drilling rigs.

Diameter: 68~130mm Depth: ≥20m Air consumption: ≥12 m3/min Working Pressure: 0.5~0.7 Mpa

HQJ100A small hydraulic DTH drilling rigs with more than 20m depth Electric Engine in stock

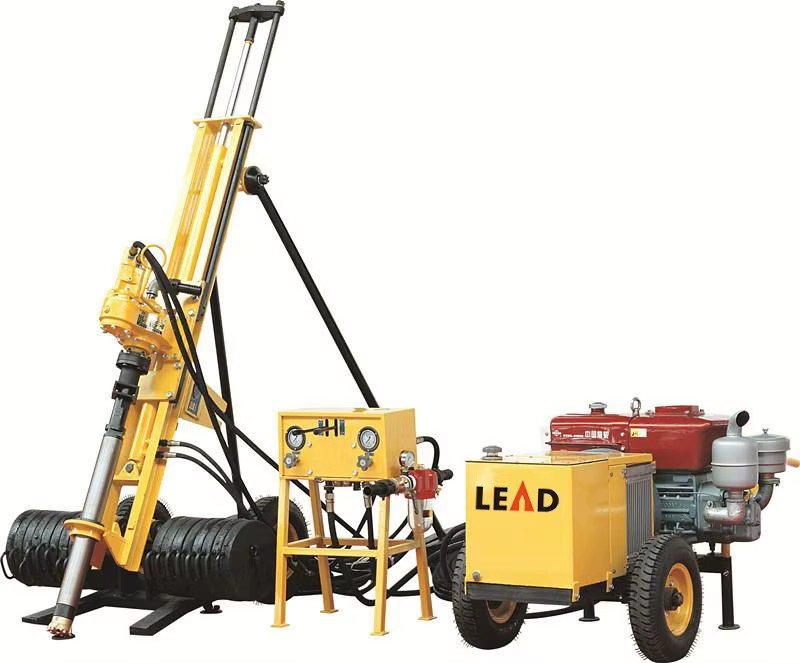

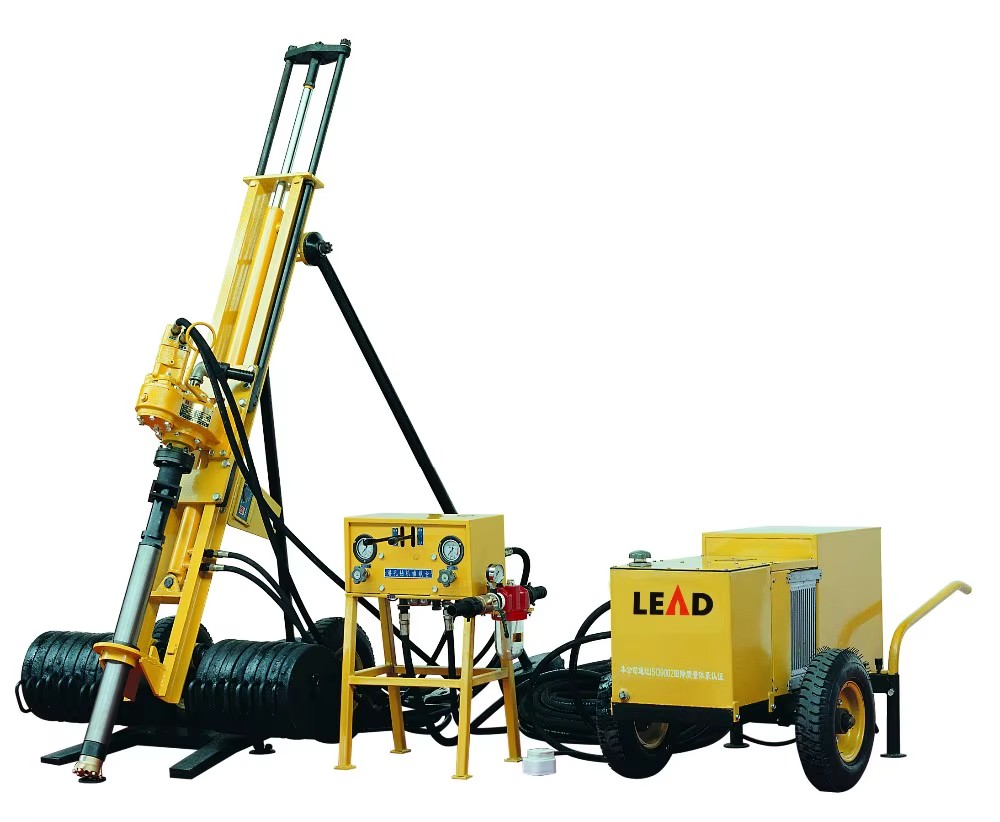

HQJ100A small hydraulic DTH drilling rigs with more than 20m depth Diesel Engine in stock

Model /ParametersHQD70HQD100AHQF110HQJ100A ElectricHQJ100A Diesel
Rock HardnessF=6~20F=6~20F=6~20F=6~20F=6~20
Borehole diamtermm50~8068~13068~13068~13068~130
Hole Depthm≥15≥20≥20≥20≥20
One time advancemm10001000100010001000
Swing Speedr/min9090110~1600~700~70
Air Cousumptionm3/min≥3.5≥7≥12≥7≥7
Working PressureMpa0.5~0.70.5~0.70.5~0.70.5~0.70.5~0.7
Cylinder Diametermm901401405050
Max Lifting forceN4200700070001500015000
Max. Advance forceN35005000500045004500
Whole weightKg175260260425521
PowerKW3447.512.1

We have several coopreated factory located in Zhejiang, Jiangsu and Shandong Province and we are always dedicate to supply you the most suitable and effecient air compressor, drilling rigs for you!

Experienced Engineers and workers

Our engineers and workers are all in the area for many years, to make sure of producing the high quality air compressor, drilling rigs.

* Enquiry and Consulting support of the suitale machine for you.

* Visiting

* Training support

After Sale Service

*.Operation instructions

* one year quality guarantee

* Spare parts supply

* Engineers are avaliable to serve overseas according your request

1. How long is your air compressor warranty? Answer: 1 years for the whole machine after leave the factory 2. Do you provide After- sales service parts? Answer: Of course, We could provide easy- consumable spares. 3.How long could your air compressor be used? Answer: Generally, more than 10 years. 4. How about your price? Answer: Based on high quality, Our price is very competitive in the world 5.How about your customer service? Answer: We are trying to do our best before the sales service and after-sales service.

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
Usage
Ore
Type
Rotary Drilling Rig
Power Type
Electric
Voltage
Customized
Warranty
1 year quality guarantee
Place of origin
China, Shanghai
Weight
175kgs
Dimension (L*W*H)
1000mm
After-sales Service Provided
Engineers available to service machinery overseas
Drilling Diameter
50-130mm
Drilling Depth
20-30m
Working Pressure(bar)
5-7 bar
Packaging Details

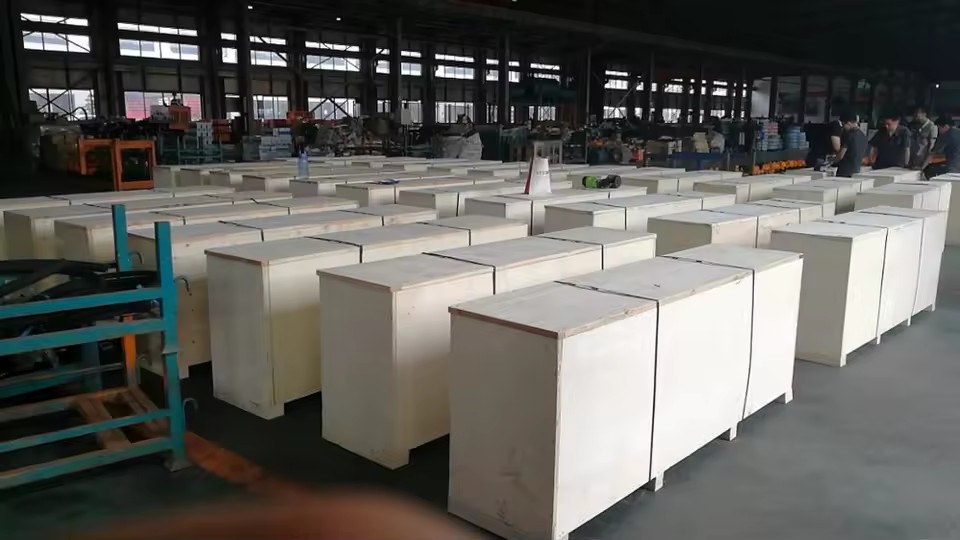

Wooden Box packing for Small 15m man portable DTH borehole electric drill rigs for mining quarry HQD70.
Port of dispatch
ShangHai
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
10 sets per Week
Model number
HQD70
Power (W) (Product option)
3-12KW
Lead time
15 days
Minimum order
1 Units
