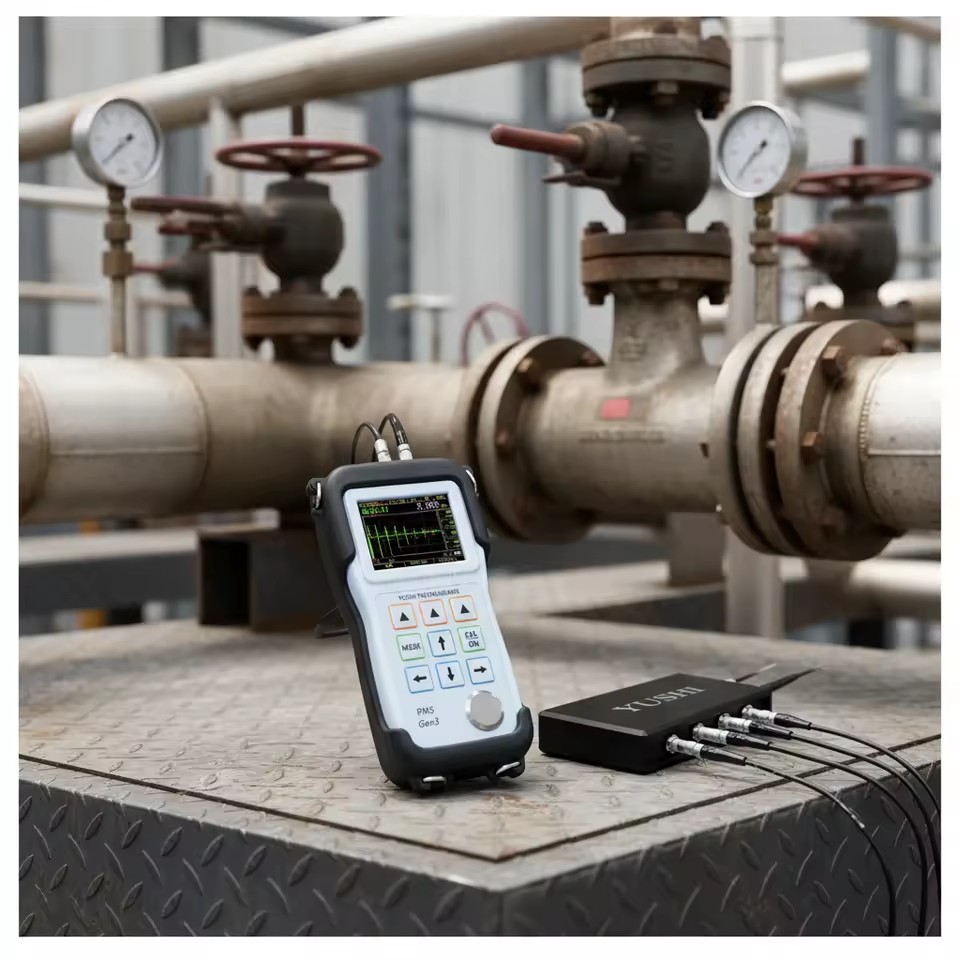

OEM Real-Time Communication UT Equipment YUSHI High Precision Ultrasonic Thickness Gauge with Real Time A Scan B Scan

Available for enquiry 0.0 · 0 reviews
USD

$ 5,140.00 5140.0 USD $ 5,140.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Ultrasonic Thickness Gauge, Multifunctional high-precision ultrasonic thickness gauge
Accuracy
0.001mm(0in)
Accuracy Class
High Accuracy
Material
ABS Plastic
Warranty
1 Year
Customized support
OEM
Product description

Highlights at a glance

  • Wide applications: YUSHI PM5 Gen3 thickness gauge, suitable for testing a wide range of materials and components in aerospace, precision manufacturing, specialty equipment, petrochemicals, and other fields. Include ultrasonic thickness testing for aircraft, auto, pressure vessels, oil pipelines, hull corrosion thickness measurement
  • Wide measuring range: 0.05 mm-10 m
  • IP67 waterproof Level: designed for harsh working conditions
  • High Resolution Measurement: Standard display resolution is 0.001mm, optional ultra- high resolution can reach 0.0001mm
  • Wide Velocity Range:310m/s~18699m/s
  • Measurement Units: millimeter, inch, micron and mils
  • PM5 Gen3 is compatible with the full range of single and dual crystal probes, including delay line probes, contact probes, protective membrane probes, pencil probes, and immersion probes.
  • Multifunctional Ultrasonic Measurement:High temperature measurement,Multi-layer measurement,Bluetooth option, and so on
  • Customization is supported
    • Frequently asked questions

    PM5 Gen3 is compatible with the full range of single and dual crystal probes, including delay line probes, contact probes, protective membrane probes, pencil probes, and immersion probes.

    Yes, YUSHI can provide Bluetooth options or real-time transmission functionality according to customer needs.

    YUSHI PM5 Gen3 thickness gauge, suitable for testing a wide range of materials and components in aerospace, precision manufacturing, specialty equipment, petrochemicals, and other fields. Include ultrasonic thickness testing for aircraft, auto, pressure vessels, oil pipelines, hull corrosion thickness measurement and so on

    YUSHI PM5 Gen3 thickness gauge can measure various kinds materials, include Plastics, Metals, Composites, Glass, Rubber, Ceramics,Fiberglass, Carbon Fiber and so on

    High Frequency and High Resolution Measurement Coating thickness measurement Internal Oxide Scale Measurement Double Layer Measurement Multi-layer Measurement Four Channel Measurement Bluetooth Option Dual Element Measurement High Temperature Measurement Large Distance Range Measurement High Speed Measurement Sound Velocity Measurement System Integration and Remote Control Measurement

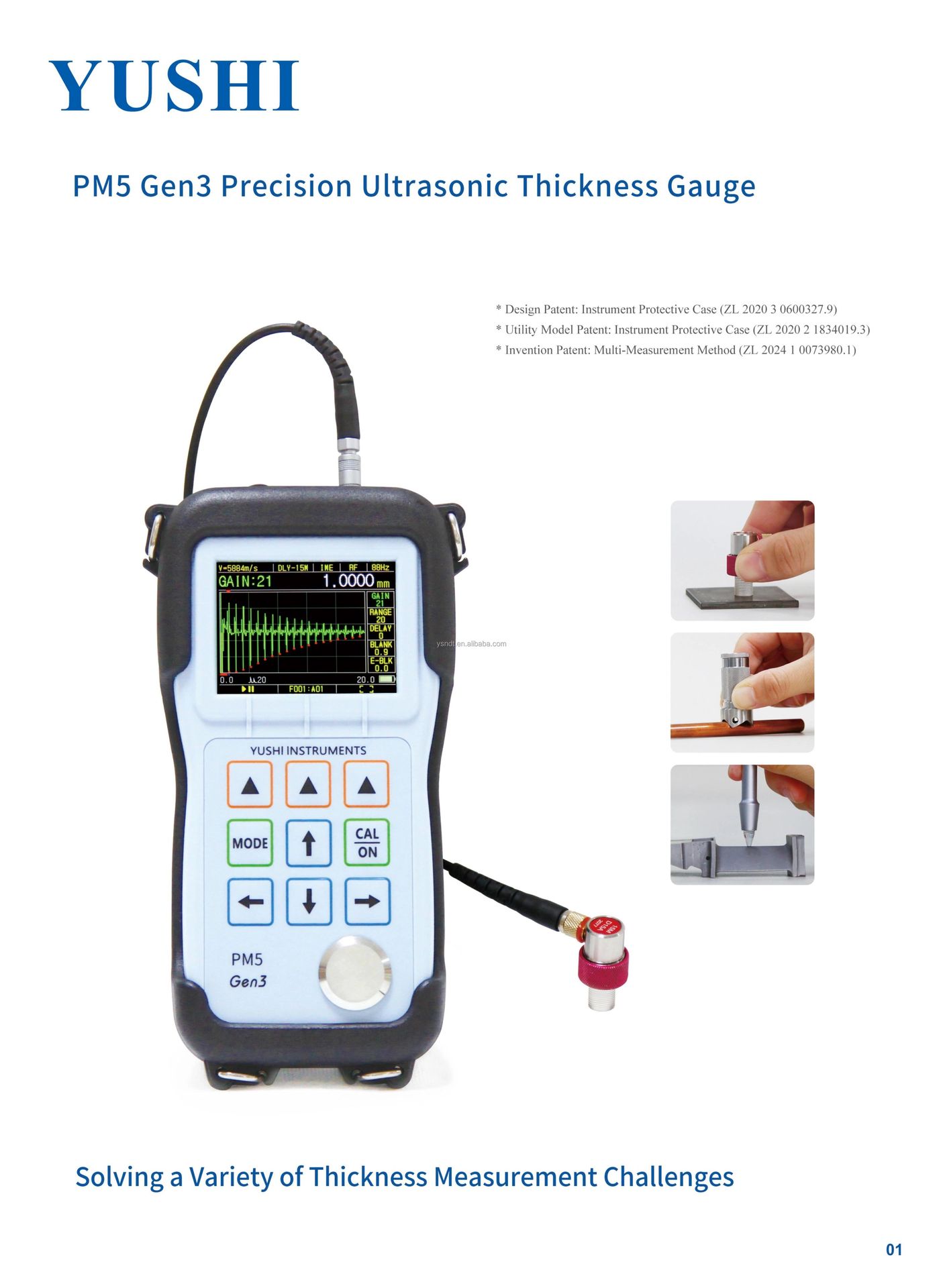

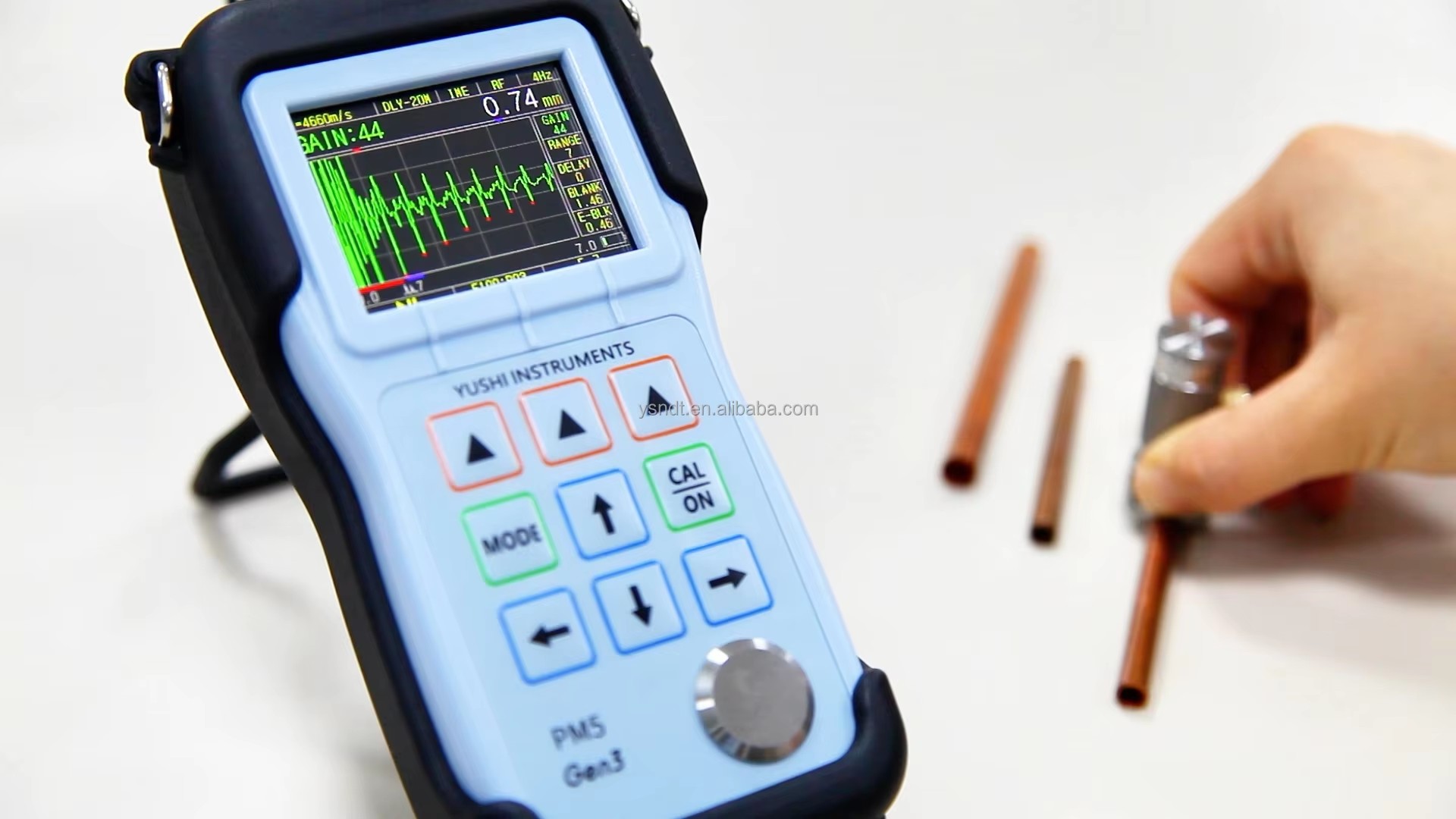

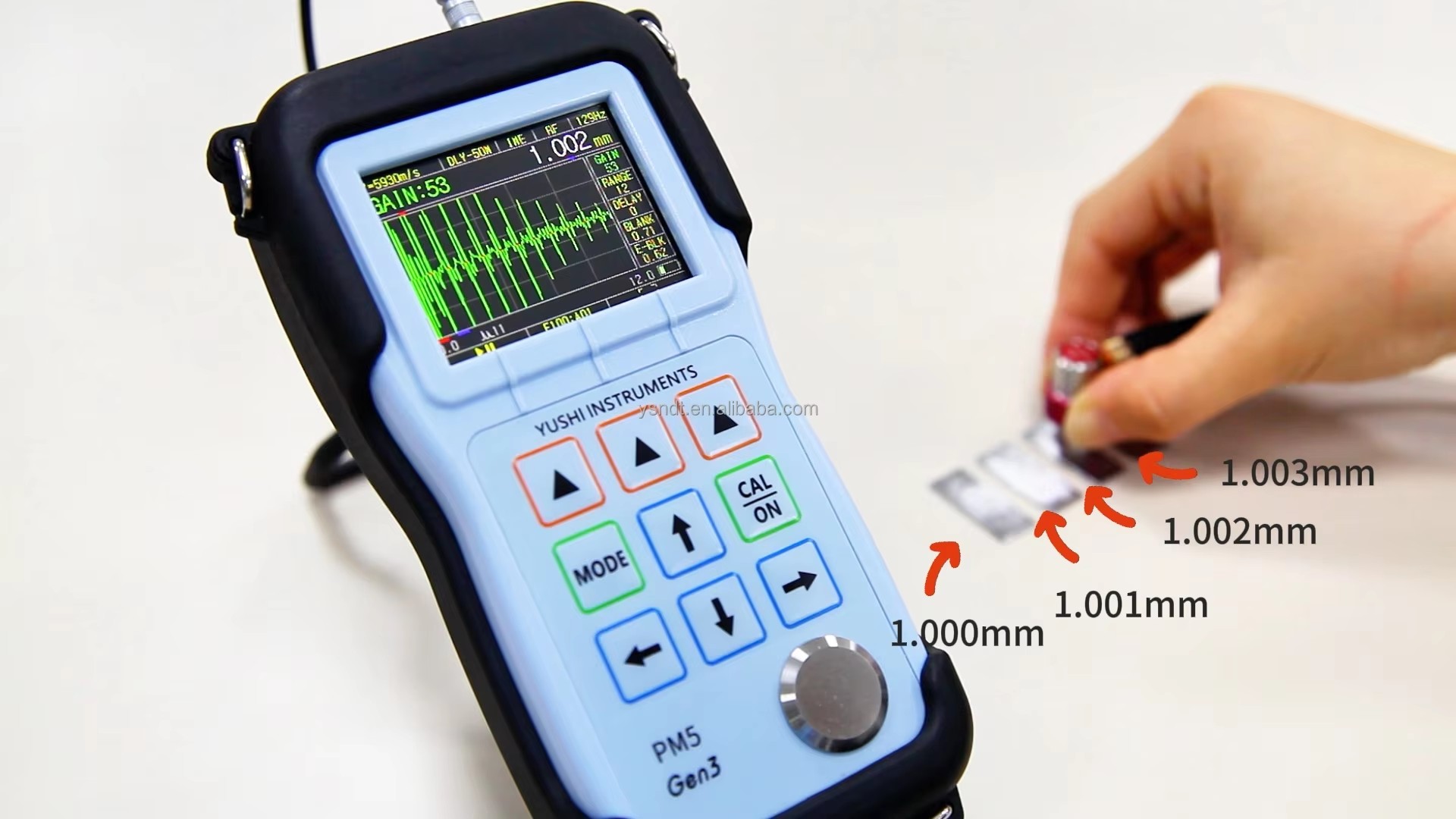

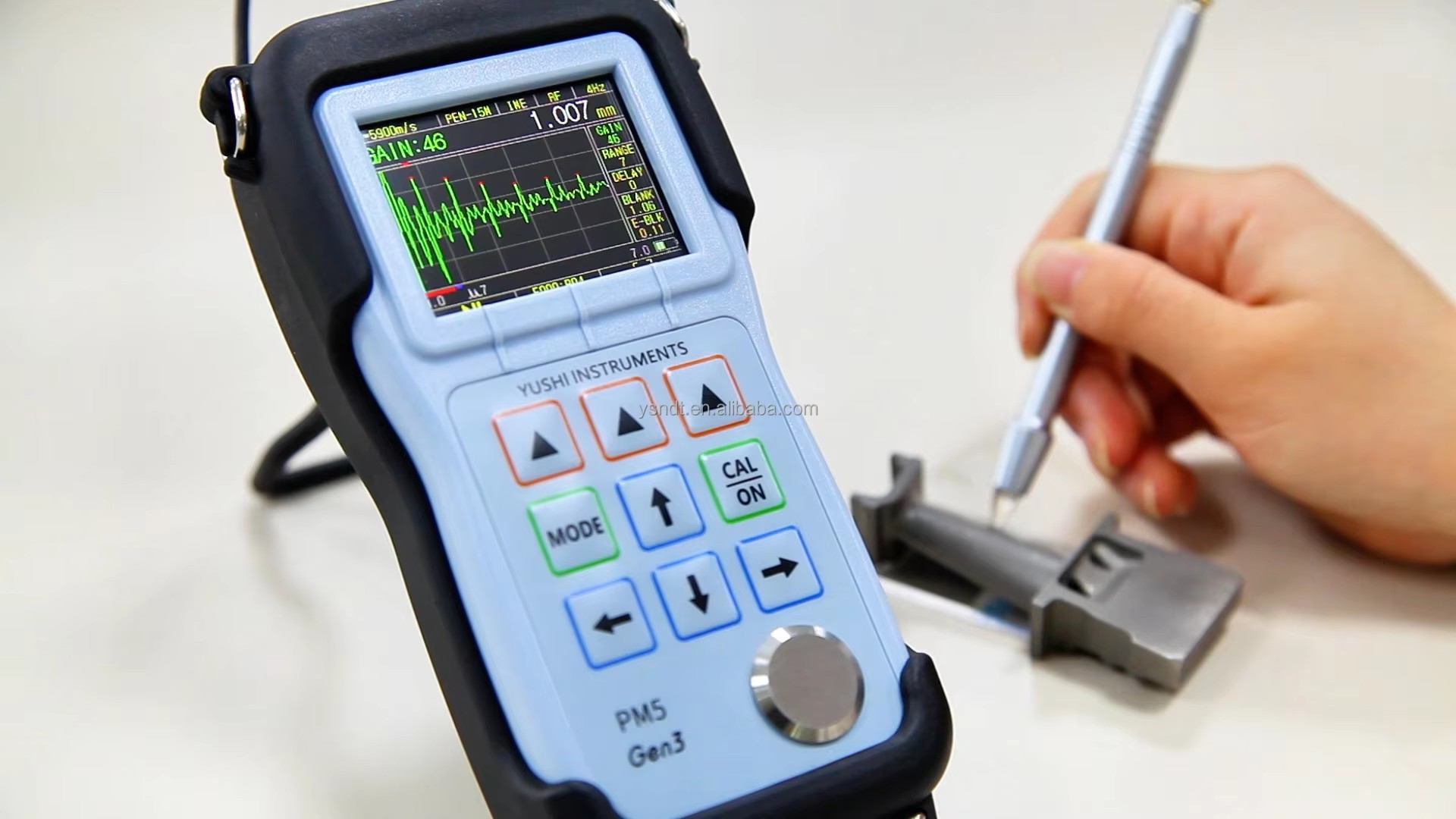

    Description images
    Product detail
    Product detail
    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      7 days

    • Step 3

      Packaging and dispatch

      Air + Express via FLY Logistics · Approx. shipping fee: $ 12.00 for 1 set · Transit time: Est. 8-9 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 19 fields
    Type
    Ultrasonic Thickness Gauge, Multifunctional high-precision ultrasonic thickness gauge
    Accuracy
    0.001mm(0in)
    Accuracy Class
    High Accuracy
    Material
    ABS Plastic
    Warranty
    1 Year
    Customized support
    OEM
    Place of origin
    China, Liaoning
    Model number (Specification)
    PM5 Gen3
    Application
    NDT Ultrasonic thickness measurement (UTM)
    Display
    Ultrasonic Thickness Gauge with Color B Scan Real Time A Scan
    Resolution
    0.001mm/0.00001 inch, 0.01mm/0.001 inch, 0.00001mm/0.000001inch
    Measurement Units
    mm/inch/um/mil
    Model
    PM5 Gen3 standard configuration
    Digital Frequency
    200MHz
    Operation Temperature
    10 °C- 50 °C
    Selling Units
    Single item
    Single package size
    33X23X16 cm
    Single gross weight
    2.5 kg
    Measuring Range (Product option)
    YUSHI PM5 Gen3 standard configuration
    Lead time
    7 days
    Minimum order
    1 Units
