Portable Water Cutter Machine Handheld Waterjet Cutting Machine

New Design Waterjet Cutting Machine for Metal Glass Ceramic Tile Rubber Foam Abrasive Cnc Waterjet Cutting Machine Price

Delivery Time

30days

Payment Term

T/T,30% in advance,70% before shipment(negotiable)

Packaging details

Normal packaging is container. We can also according to the special requirements of customers for packaging

port

Dalian

Validity

45 days from the date we offered validity

No Spark

The advanced pre-mixed technology of fully mixes abrasive and water before applying pressure. compared to the post-mixed method of the traditional water jet cutter which mixes abrasive in the part of the cutting head.

This technology eliminates the air mixed in, which can cause high-speed friction between abrasive and residue and generate sparks. This is currently the most advanced and safe technology for cutting dangerous goods.

Explosion-Proof Design

The entire machine and all electrical components adopt explosion-proof design, and have the explosion-proof certificate issued by the National Explosion-Proof Testing Center. It can be used for cutting operations in various high-risk environments, ensuring your safety.

Ultra-High Energy Efficiency

The unique mixing technology of solves the problems of uneven abrasive mixing and cavitation effect in traditional water jet cutting machine, greatly improving the energy efficiency conversion ratio. According to data collected by experimental center, we only need 50 MPa to achieve the cutting speed of 360 MPa for traditional water jet cutter, increasing the energy efficiency ratio by 7times，which is an epoch-making technical breakthrough.

Lower Pressure And More Safety

The advanced mixing technology of have ultra-high cutting speed and low pressure operation. Compared to the 360MPA operation pressure of the traditional water jet cutter，50MPA is far below the safety threshold of combustion and explosion caused by pressure impact of most dangerous goods. This further eliminates the risk of ignition and is safer.

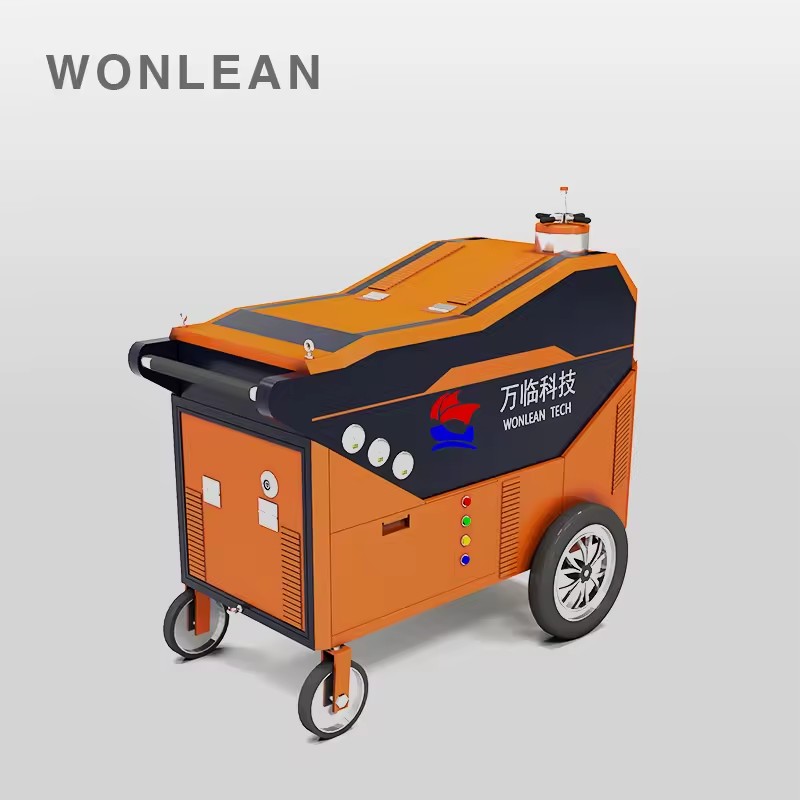

Lightweight Integrated Design

The compact integrated design reduces the volume and weight of portable water jet cutting machine by about 3 times, which can be easily loaded onto a pickup truck. With the large size bearing wheel, it can be easily moved by only one person, making construction, and the construction is very convenient.

Quick Assembly Of The Hose

Using high-quality, high-pressure-resistant flexible hoses that can be bent at will，compared to the hard pipes traditional water jet cutter of the hard pipe that are not easy to bend, the layout of high pressure hose is very convenient and more suitable for on-site construction environments. In combination with 's quick plug connector，it is extremely easy to connect the hose.

Multiple Security Protection

It has multiple protection systems, such as overload protection、overheat protection、and overpressure protection. When the machine is in an abnormal state, the protection system is automatically activated, eliminating all potential dangers and ensuring safety and peace forever.

ABOUT US

Packing and Delivery

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A: intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
