Product video

100m,150m,180m,200m

Available for enquiry 0.0 · 0 reviews
USD

$ 4,400.00 4400.0 USD $ 4,400.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well, core, soil test
Type
Rotary Drilling Rig
Drilling Depth
Max.200m
Drilling Diameter
75mm, 300 mm, 100 mm, 200 mm, 75-300mm, 50 mm, 60 mm
Power Type
Electric or diesel
Core components
Bearing, Pressure Vessel, Gear
Product description

1 Application and features

1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

1.5 The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.

1.6 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.

1.7 Handle concentration, easy operation.

1.8 It is compact, small in size, light in weight, strong in decomposition and easy to can be used in plains and mountains.

Drilling Rig
Drilling diameter(mm)75,91,110,130,150,300
Drilling depth (m)200,150,100,70,50,30
Drill pipe diameter (mm)42,50
Drilling angle(°)90~75
Equipment size(L * B * H)1730 * 860 * 1360 (mm)
Rig weight (except engine)600
Moving length350mm
Leave distance300mm

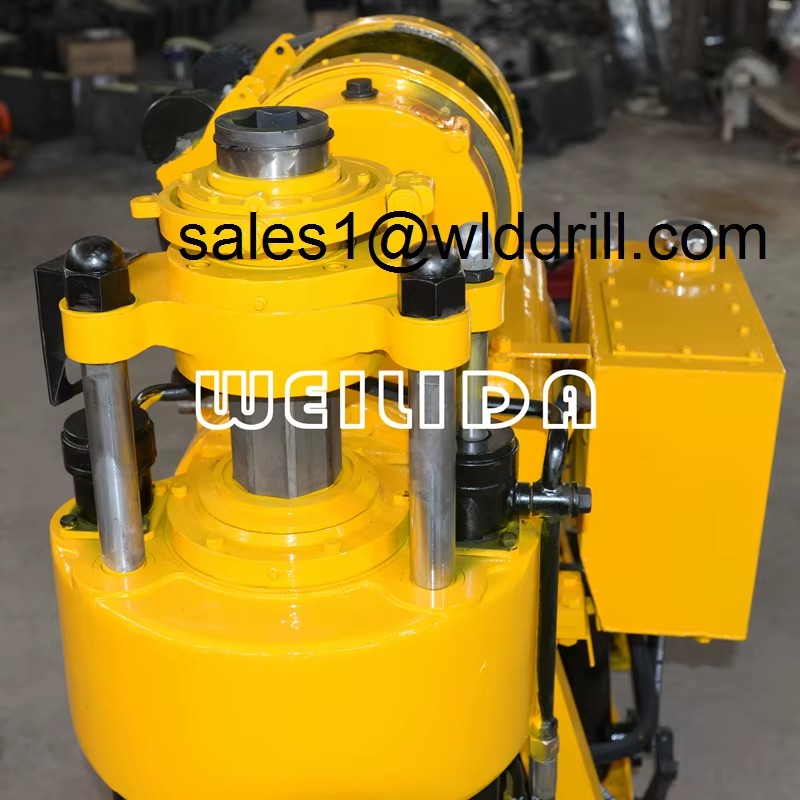

Gyrator
Spindle speed (four gear) (r/min)115,230,505,1010
Spindle travel(mm)450
Spindle no-load lifting maximum moving speed(m/s)0.05
Spindle no load drop maximum movement speed(m/s)0.067
Spindle maximum feed pressure(KN)15
Spindle maximum lifting force(KN)25
Spindle maximum output torque(KN• m)1.5

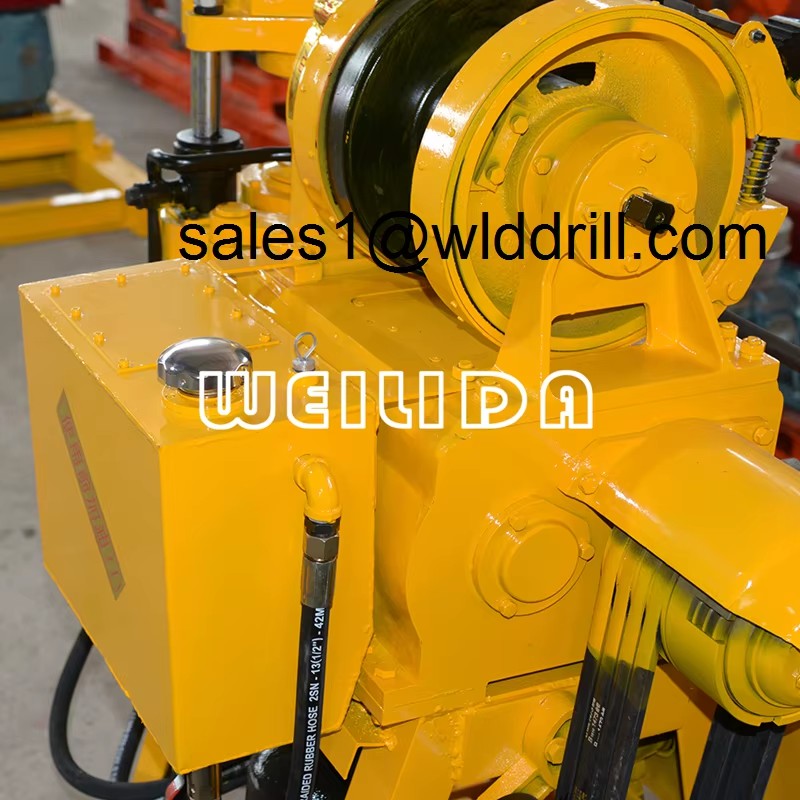

Winch assembly
Winch maximum lifting force (single rope)20
Reel speed (r/min)20,39,85,170
Reel circumferential speed(m/s)0.172,0.345,0.738,1.476
Reel diameter(mm)140
Wire rope diameter(mm)9.3
Wire rope density (m)40
Brake diameter(mm)278
Brake band width (mm)50
Water pump
Pump typeBW160 horizontal single cylinder mud pump
Maximum displacement (motor)(L/min)160
reciprocal times(time/min)165
Work pressure (Mpa)1.3
Cylinder diameter (mm)95
Piston stroke(mm)85
Shaft speed(r/min)951
Transmission power(kw)588

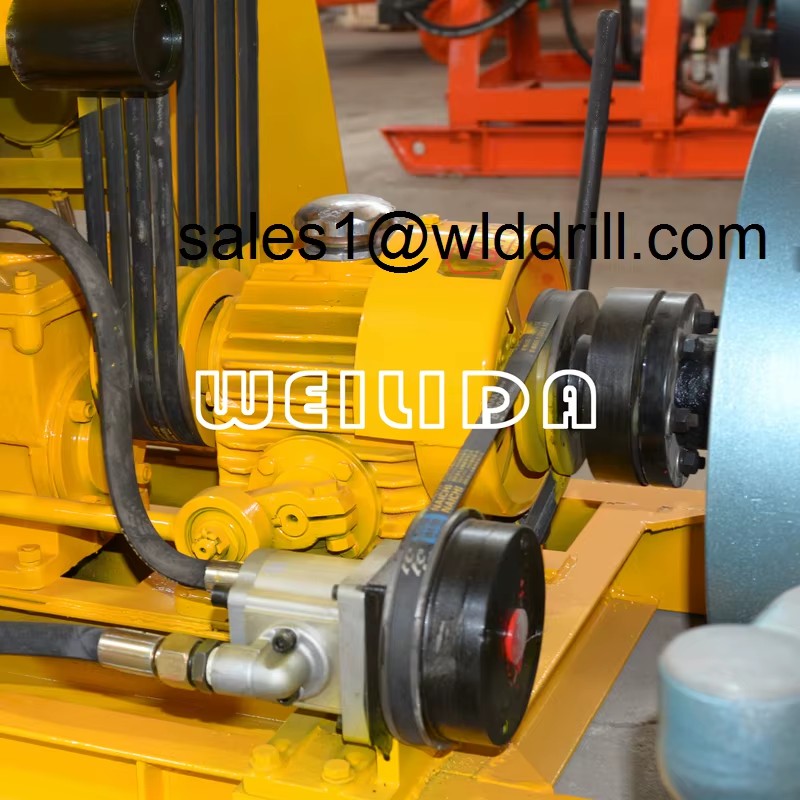

Oil pump
Oil pump typeYBC -20/125
Nominal pressure (Mpa)12.5
Rated flow(ml/r)20
Rated speed(r/min)800-2500

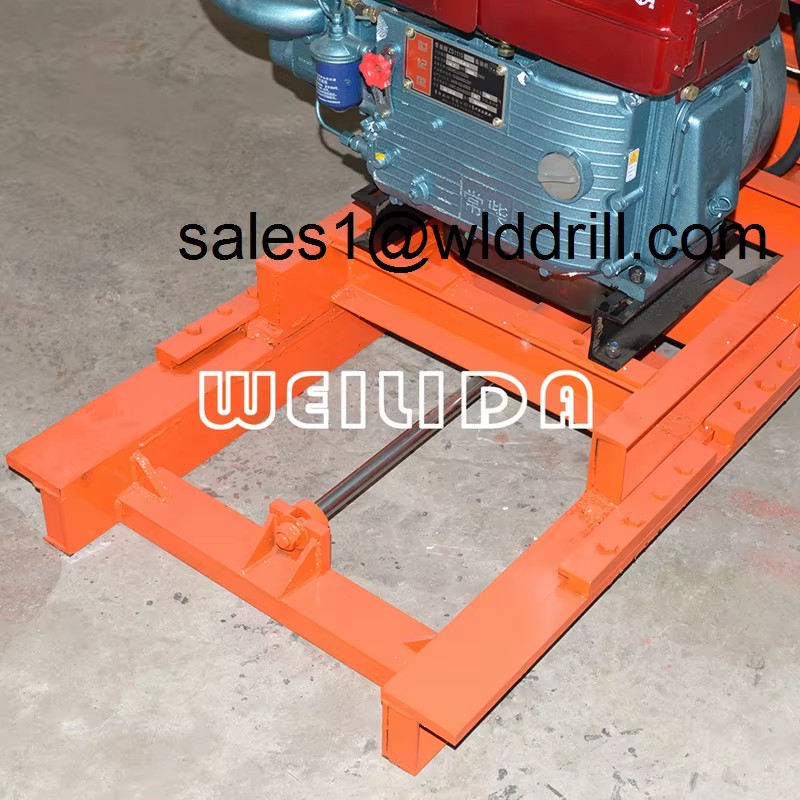

Diesel engine or motor
Diesel engine1115
Rated power (KW)16.2
Rated speed (r/min)2200
Rated pressure(Mpa)12.5
Motor typeY160M - 4
Rated power (KW)11
Rated speed (r/min)1460

1.We have our own experienced QC.

2.There will be strict inspection and testing for every order before shipping out.

3.Each accessories are manufactured by

Packing Details: The drilling rig will be packed into wooden box while t he drill pipes will be packed into bundles or as customer's requirements.

is a professional manufacturer of drill pipe, drilling rig and other drilling tools.

Stable raw material purchasing

Favorable orders follow-up management

Laudable lead-time & shipment control

Traceable quality evaluation

Flexible payment terms

Remarkable after-sale service

Description images
100m,150m,180m,200m
100m,150m,180m,200m
100m,150m,180m,200m
100m,150m,180m,200m
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    10 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
Usage
Water Well, core, soil test
Type
Rotary Drilling Rig
Drilling Depth
Max.200m
Drilling Diameter
75mm, 300 mm, 100 mm, 200 mm, 75-300mm, 50 mm, 60 mm
Power Type
Electric or diesel
Core components
Bearing, Pressure Vessel, Gear
Warranty
1 Year
Machinery test report
Not Available
Video outgoing-inspection
Provided
Key selling points
Flexible Manufacturing
Place of origin
China, Hebei
Weight
800 KG
Engine
Diesel, Electric
Max Drilling Depth
210m
Model
GK200 with mud pump bw160
Color
Customer Required
Application
Water Well, Geological Exploration, core, soil sample
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
GK200
Lead time
10 days
Minimum order
1 Units
