Benefits of Portable Waterjet Cutting

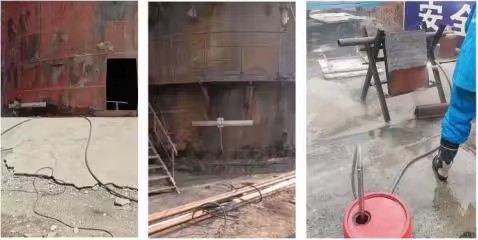

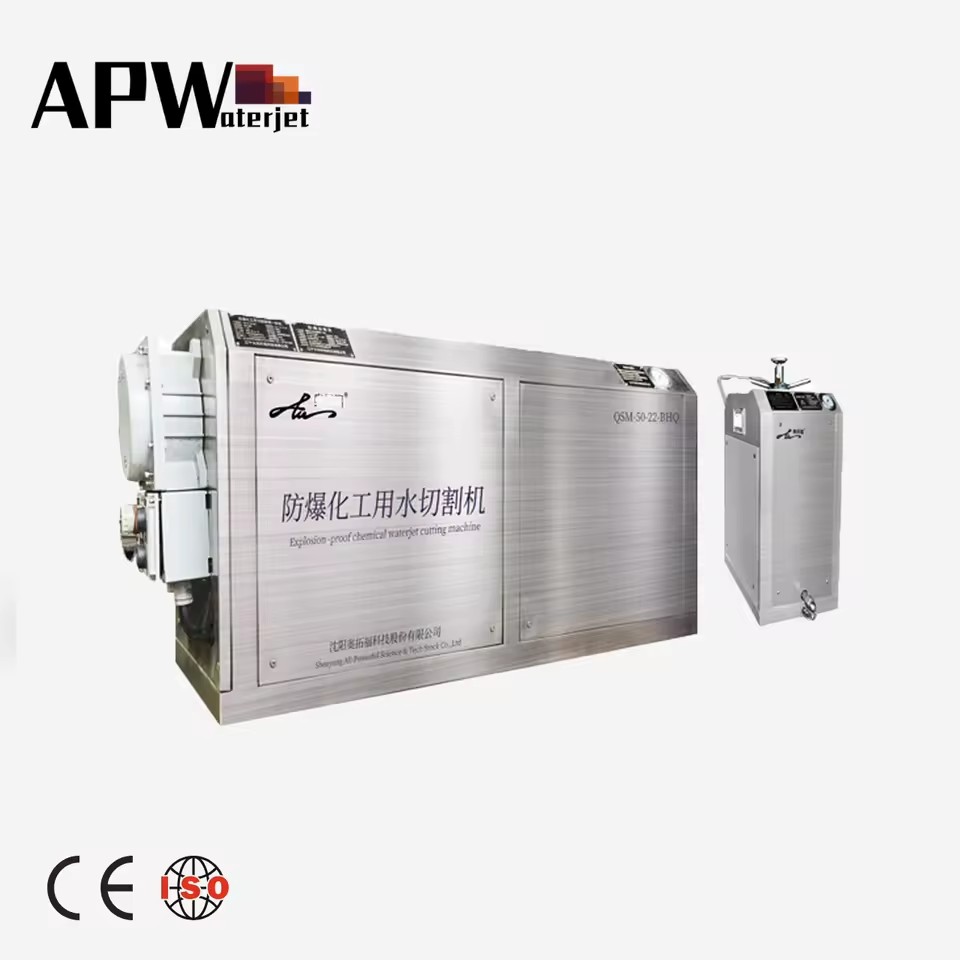

Explosion-proof cutting and derusting integrated machine, suitable for cutting chemical storage tanks, petrochemical pipelines, cylindrical metals, dismantling and repairing chemical plants, punching incisions, cleaning and derusting, etc. It is a safety equipment for cutting operations in flammable and explosive environments in chemical enterprises. Portable Waterjet can cut any material with a thickness of 0-100mm (except diamond and special carbide). Portable Waterjet adopts the form of double feeding of front and rear mixing, the front mixing is used for cutting, and the rear mixing is used for rust removal. It can not only cut various plates, pipes and profiles, but also remove rust, oxide scale, paint and residual oil on metal surfaces. Compared with other cutting methods, the advantages are: no high temperature, no open flame, no static electricity, no harmful gas
Item
Parameter value
Nominal Pressure
N50 Mpa
Cutting Conditions
Orifice Diameter
1.2mm
Speed (5mm stainless steel )
N180 mm/min
Feeding Form
Pre-mixing
Rust removal (cleaning) condition
1*3 mm
Speed
NO.4 m 2 /min
After-fixing
Noise sound Pressure Level
W90 dB (A)
Demension ( Lx Wx H )
Demension
( Lx Wx H )
HP Power Protection system
1620X500X790 mm
HP mortar mixing system
420X420X860 mm
Machine weight
High voltage Power protection system
W360 kg
HP mortar cum vertical
W90 kg
HP water pump
Motor Model
YB3-180L-4
Power
22 kw
Voltage
380/660 V
Current
42. 4/24. 5 A
Pump Flow
N22 L/mi n
Abrasive type
Silicon carbide
Our mission is to help our customers solve their manufacturing challenges and achieve their highest level of productivity, precision and accuracy.
1. What are the benefits of purchasing a portable waterjet comparing CNC plasma or a laser?
Versatility CNC portable waterjet can cut almost anything – from metal to stone to glass to composites to ceramic. Laser and plasma cut with heat, and so can only cut materials that have the right thermal properties. Metal is almost always the target material in industry for these heat-based processes. And mild steel is almost always the metal that is cut by them. In addition, plasma can only cut things that are electrically conductive. To optimize laser and plasma cutting, change to gasses is required. No change to waterjet parameters, except speed, is usually required for any material. Thickness CNC portable waterjet can cut very thin and up to 150mm (sometimes more) of any metal, glass, stone, composite, etc. Laser cuts very thin and up to 20mm. Plasma cuts from about 25mm up to 30mm. Edge finish Nothing cut by a plasma or laser will be as high of quality of an edge as a cnc water cutter machine. We leave behind a smooth edge. No heat affected zones or mechanical stresses are introduced. The plasma and laser cut with heat (we cut with supersonic erosion). Plasma and laser therefore will leave behind a heat affected zones, mechanical stresses, and especially with plasma, dross 'drips' on the edge.
Please
2. What kind of material does your portable waterjet machine can cut?
There are plenty materials our portable waterjet can cut, such as metal stone glass foam plastic rubber, ect. 4-axis was professionally designed for mable pattern and medallion. 5-axis was professionally designed for 3D materials.
3. What's your portable waterjet machine's max.cutting thickness?
The max.cutting thickness of our portable waterjet depends on the materials you cut. Generally speaking, the thickness of our portable waterjet can be up to 150mm, virtually Z constraint is the only limit to thickness.
4. How much training is required to learn how to run a portable waterjet system? An operator with no experience should be able to learn how to operate and maintain a portable waterjet with as little as one weel of training. New CAD/CAM nesting software offered by APW make it possible for an operator with no programming experience to program the machine with only a few hours of training.
Overview

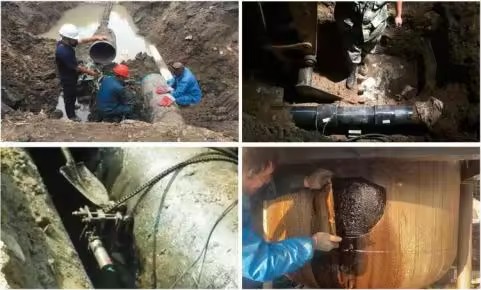

Explosion-proof cutting and derusting integrated machine, suitable for cutting chemical storage tanks, petrochemical pipelines, cylindrical metals, dismantling and repairing chemical plants, punching incisions, cleaning and derusting, etc. It is a safety equipment for cutting operations in flammable and explosive environments in chemical enterprises. Portable Waterjet can cut any material with a thickness of 0-100mm (except diamond and special carbide).
Portable Waterjet adopts the form of double feeding of front and rear mixing, the front mixing is used for cutting, and the rear mixing is used for rust removal. It can not only cut various plates, pipes and profiles, but also remove rust, oxide scale, paint and residual oil on metal surfaces. Compared with other cutting methods, the advantages are: no high temperature, no open flame, no static electricity, no harmful gas
Specification
Product Specifications
(5mm
stainless steel
NO.4 m
2
/min
Lx
Wx
H
Company Information
Certifications
Our Services
FAQ
Versatility
CNC portable waterjet can cut almost anything – from metal to stone to glass to composites to ceramic.
Laser and plasma cut with heat, and so can only cut materials that have the right thermal properties. Metal is almost always the target material in industry for these heat-based processes. And mild steel is almost always the metal that is cut by them. In addition, plasma can only cut things that are electrically conductive. To optimize laser and plasma cutting, change to gasses is required. No change to waterjet parameters, except speed, is usually required for any material.
Thickness
CNC portable waterjet can cut very thin and up to 150mm (sometimes more) of any metal, glass, stone, composite, etc.
Laser cuts very thin and up to 20mm.
Plasma cuts from about 25mm up to 30mm.
Edge finish
Nothing cut by a plasma or laser will be as high of quality of an edge as a cnc water cutter machine. We leave behind a smooth edge. No heat affected zones or mechanical stresses are introduced. The plasma and laser cut with heat (we cut with supersonic erosion). Plasma and laser therefore will leave behind a heat affected zones, mechanical stresses, and especially with plasma, dross 'drips' on the edge.
There are plenty materials our portable waterjet can cut, such as metal stone glass foam plastic rubber, ect.
4-axis was professionally designed for mable pattern and medallion.
5-axis was professionally designed for 3D materials.
The max.cutting thickness of our portable waterjet depends on the materials you cut.
Generally speaking, the thickness of our portable waterjet can be up to 150mm, virtually Z constraint is the only limit to thickness.
4. How much training is required to learn how to run a portable waterjet system?
An operator with no experience should be able to learn how to operate and maintain a portable waterjet with as little as one weel of training. New CAD/CAM nesting software offered by APW make it possible for an operator with no programming experience to program the machine with only a few hours of training.
Certifications & compliance
CE
Complies with EU standards
