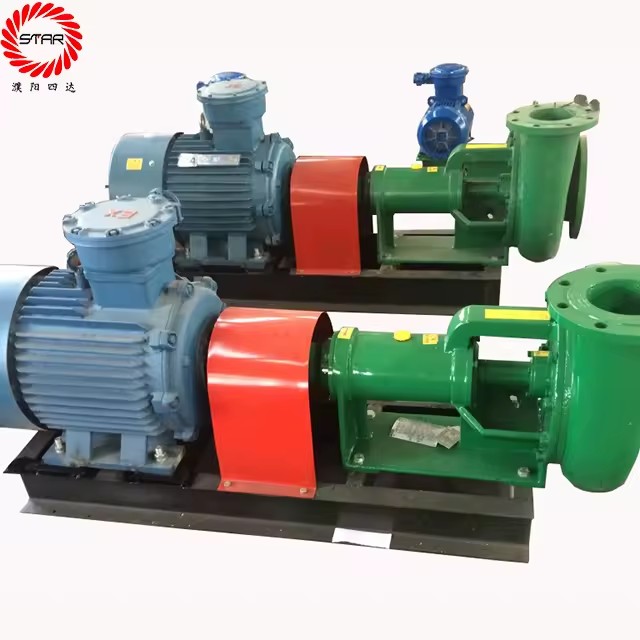

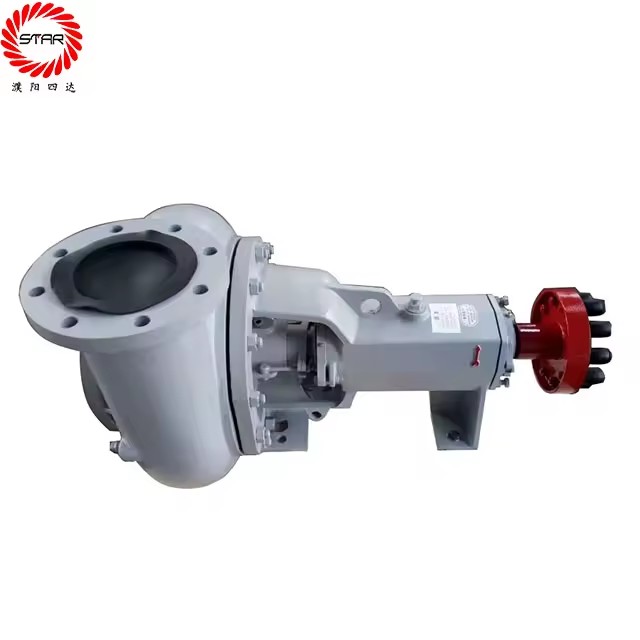

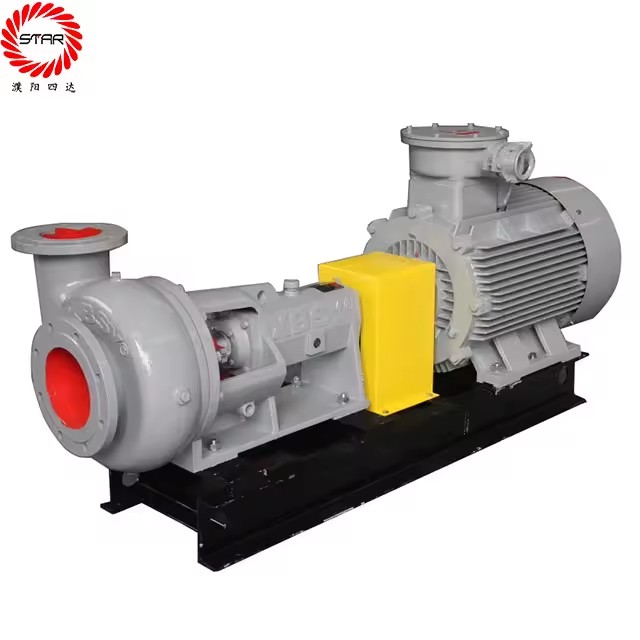

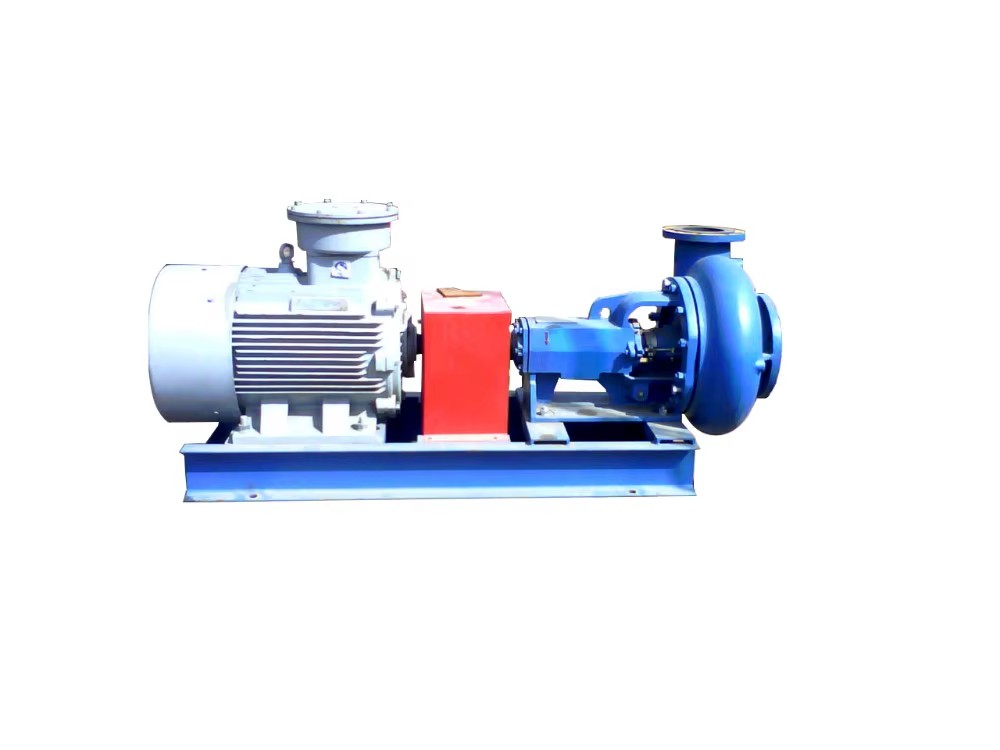

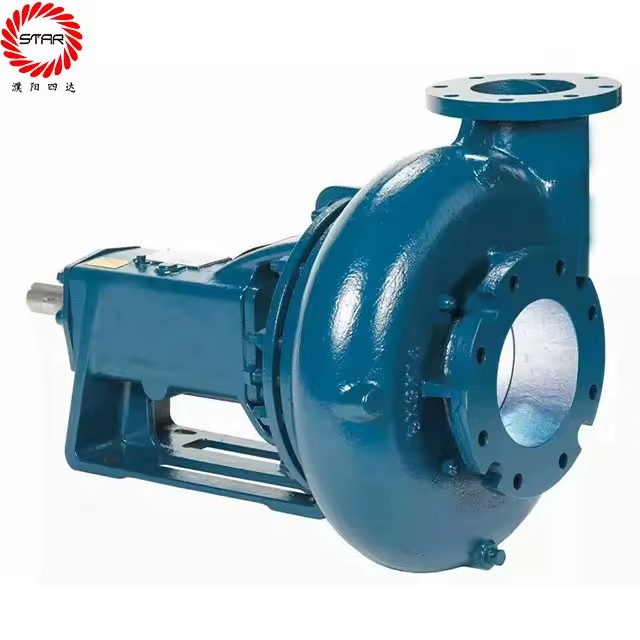

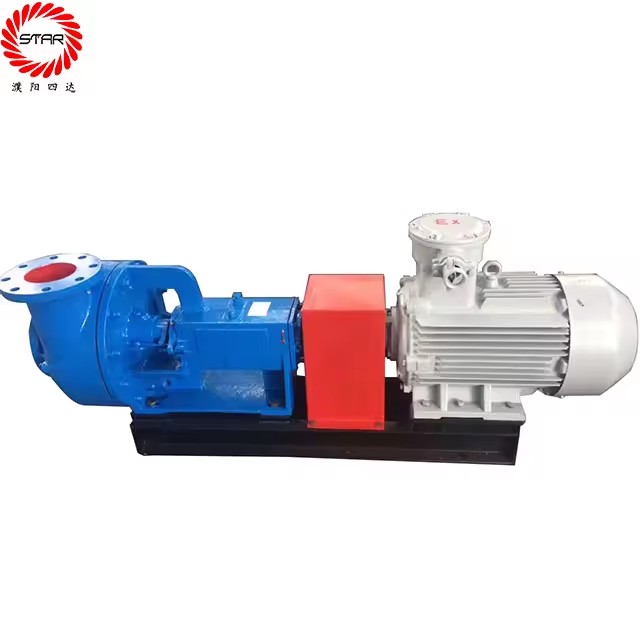

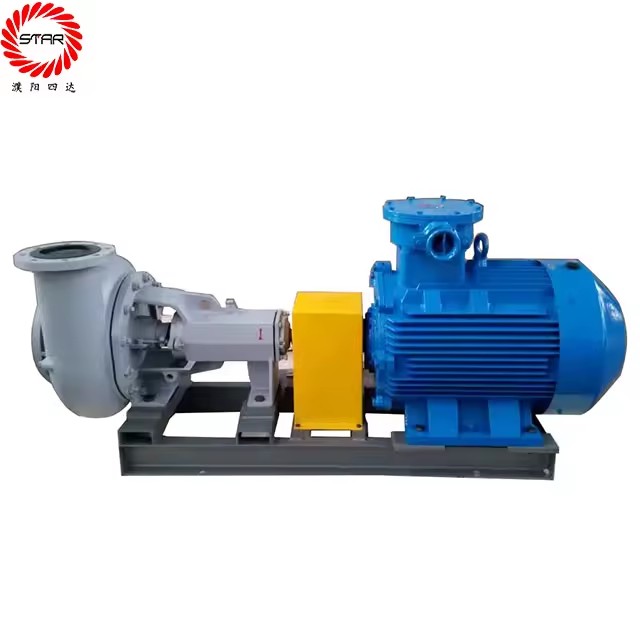

Oilfield Transport Drilling Mud Use Sand Pump

Available for enquiry 0.0 · 0 reviews
USD

$ 2,730.00 2730.0 USD $ 2,730.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Core components
Motor
Voltage
460V/380V
Machinery test report
Provided
Warranty
1.5 year
Video outgoing-inspection
Provided
Production Capacity
120m3/h(4237.76ft3/h)
Product description
Product NameSand Pump
Flow120m3/h
Total Head20m
Inlet Size3in
Outlet Size2in
Power11kw
Rotary Speed1740rpm
Dimension1400x600x700mm
Weight210kg

Product Application

Sand Pump is mainly used to transport drilling mud, it can be used as a slurry pump for de-sanding,desiltering, and centrifuges. It can be used as a mixing pump for jet mixing, and it is also used as an infusion pump for recharge and mud pumps.

ModelSB8x6x14SB8x6x11SB6x5x11SB4x3SB3x2
Discharge Capacity (m3/h)240~260220~240180~2206050
Pump Head (m)28~3324~2824~2822~2822~28
Efficiency65%65%65%65%65%
Motor Power (kW)55/7537/4530/37/4511/157.5/11
Motor Speed (rpm)1450/17501450/17501450/17501450/17501450/1750
Inlet Diameter (in)88643
Outlet Diameter (in)66532
Weight (kg)11501050920460400
Dimensions (mm)1920x652x10151800x600x9801788x580x9001360x500x6321355x500x632
Remarks: 1.Standard model available; 2.Non-standard models can be produced according to customer requirements.
FaultCauseRemedy
Pump pressure and flow are too lowThe impeller size is too small.Replace the larger one impeller
Leakage at the suction line interfacePress the bolt or replace the seal
The suction and discharge lines are too long and the bend is not straight.Straighten and shorten the suction and discharge lines.
The inlet has blockage.Remove foreign matter and clear the pipeline.
The suction pipe gate valve opening is too small.Gate valve opens bigger
The surface temperature of the bearing part exceeds the specified valueAxial adjustment sleeve with offsetLoosen the axial adjustment bolt and tighten it again
Bearing damageReplacement bearing
Abnormal sound during pump operationThe pump line or connector has broken.Find the broken piece and repair or replace it.
The connection is loose.Fasten the loose parts.
Serious leakage at the sealMechanical seal failureEnable packing seal

Want to know more,please be free to contact Lillian · 1.By Trademanager 2.By Following information Remark:please supply more detail require specification,that I can back the quotation to you soon.

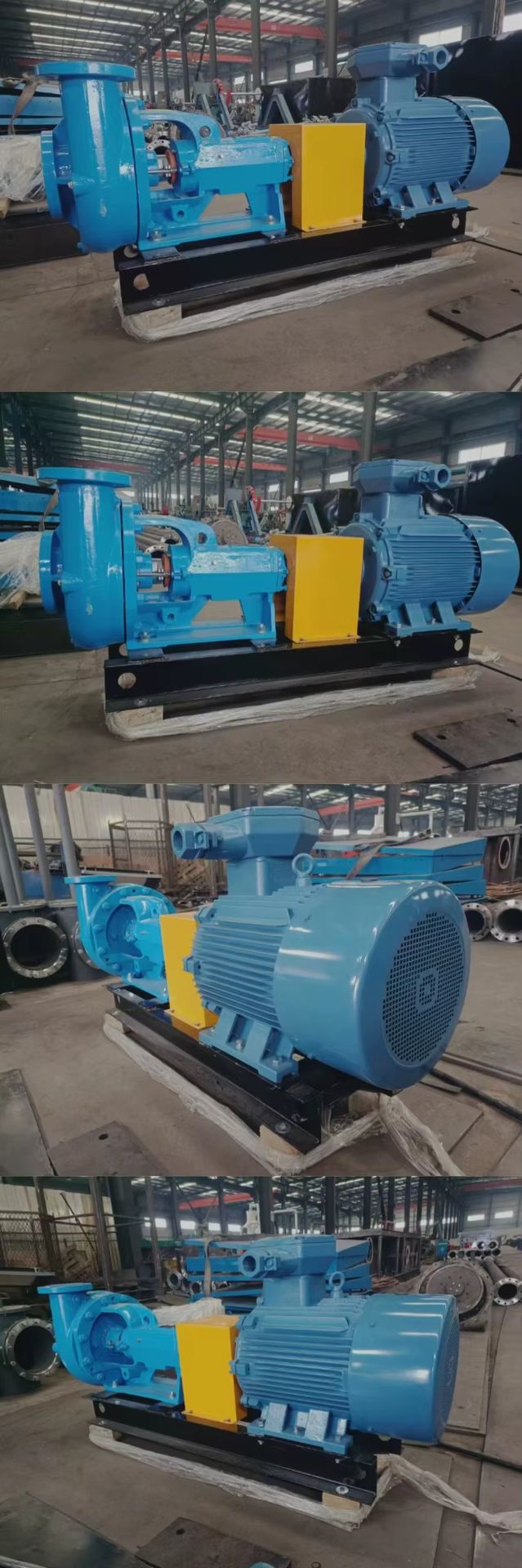

Waiting for delivery

Sand Pump ready well, waitiing to be transport to the port.

Transport to the port

Container is transported to the port.

Sea Shipping

Container loaded on board, travel across to sea to the port of destination.

Welcome friends from all over the world to come to visit

Mud Pump

91.8% Response Rate

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 24 fields
Core components
Motor
Voltage
460V/380V
Machinery test report
Provided
Warranty
1.5 year
Video outgoing-inspection
Provided
Production Capacity
120m3/h(4237.76ft3/h)
Power (W)
15
Place of origin
China, Henan
Model number (Specification)
SB2x3x13
Weight (kg)
210
Application
Pump Liquid, Transport Drilling Mud
Features
centrifugal pump
Dimension (L*W*H)
1400x600x700mm(55.12x23.62x27.56in)
Standard or Nonstandard
Standard
Theory
Centrifugal Pump
Company Nature
Factory
Industrial Area
Oilfield Well Drilling
Category
Solid Conrol Device
Processing Object
Drilling Fluid
Weight
210kg
Main motor power
11kW
Selling Units
Single item
Single package size
150X70X90 cm
Single gross weight
250.0 kg
Lead time
20 days
Minimum order
1 Units
