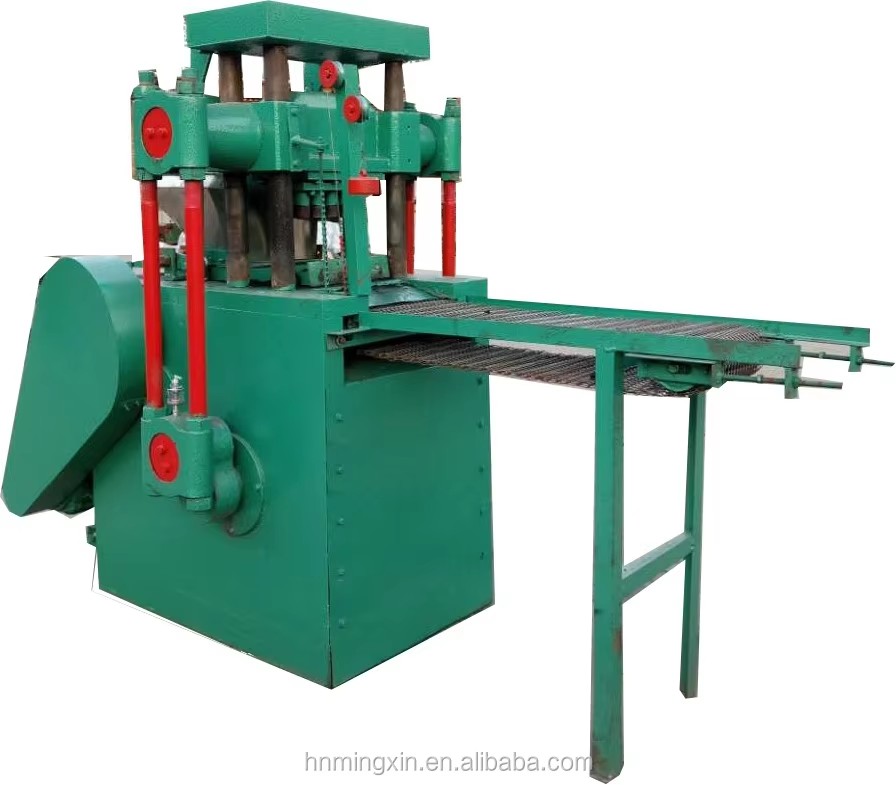

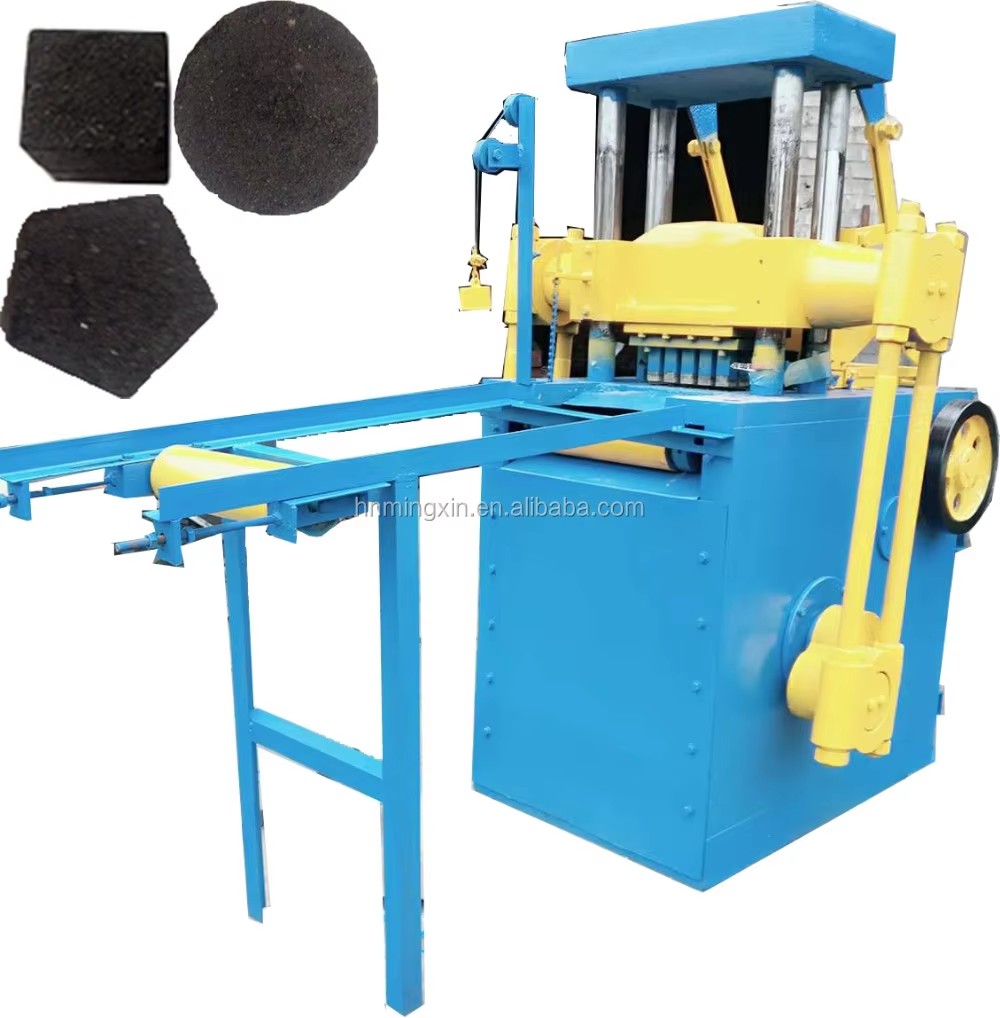

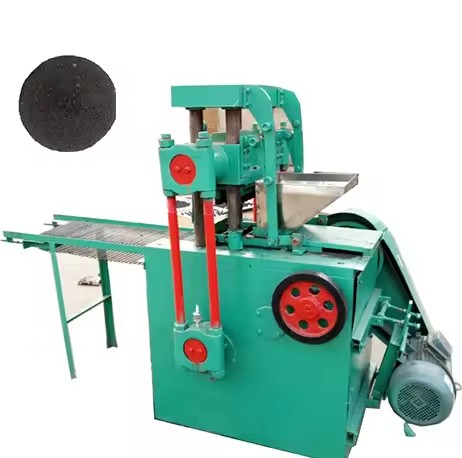

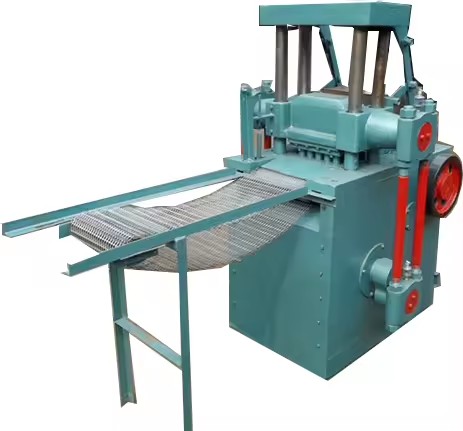

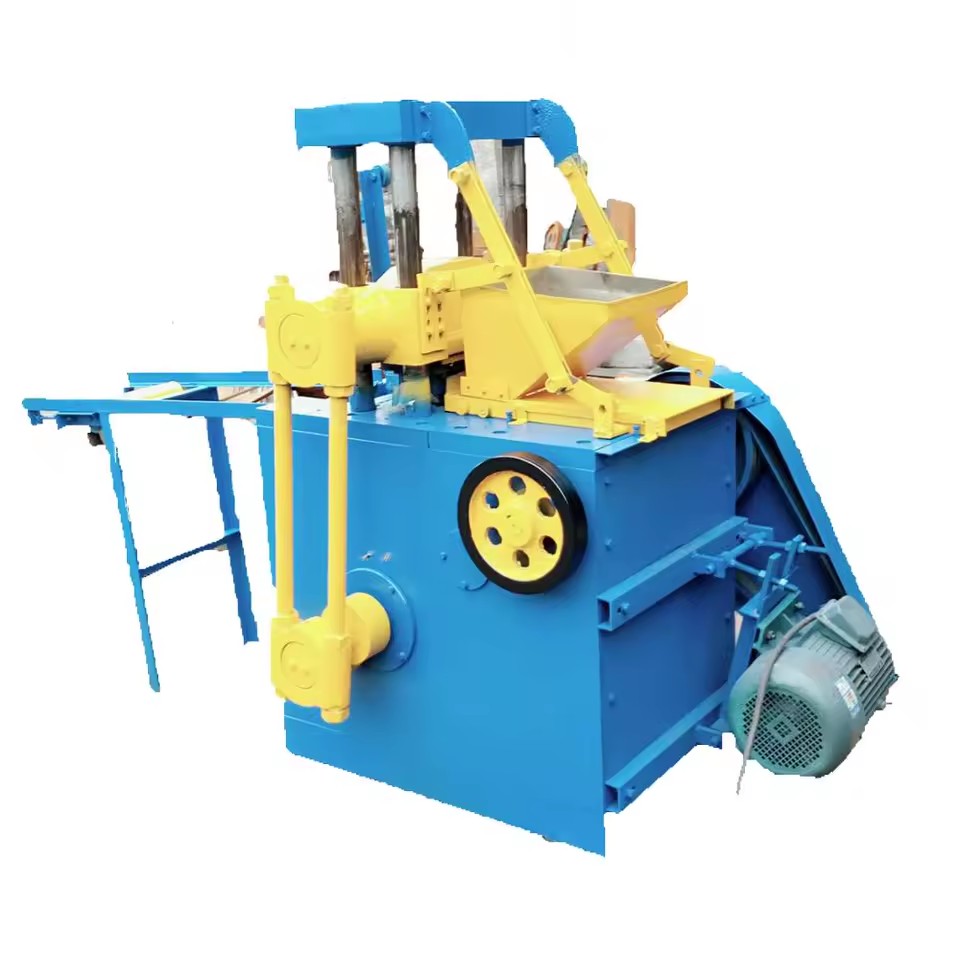

Circular Hookah Coal and Charcoal Tablet Briquette Machine

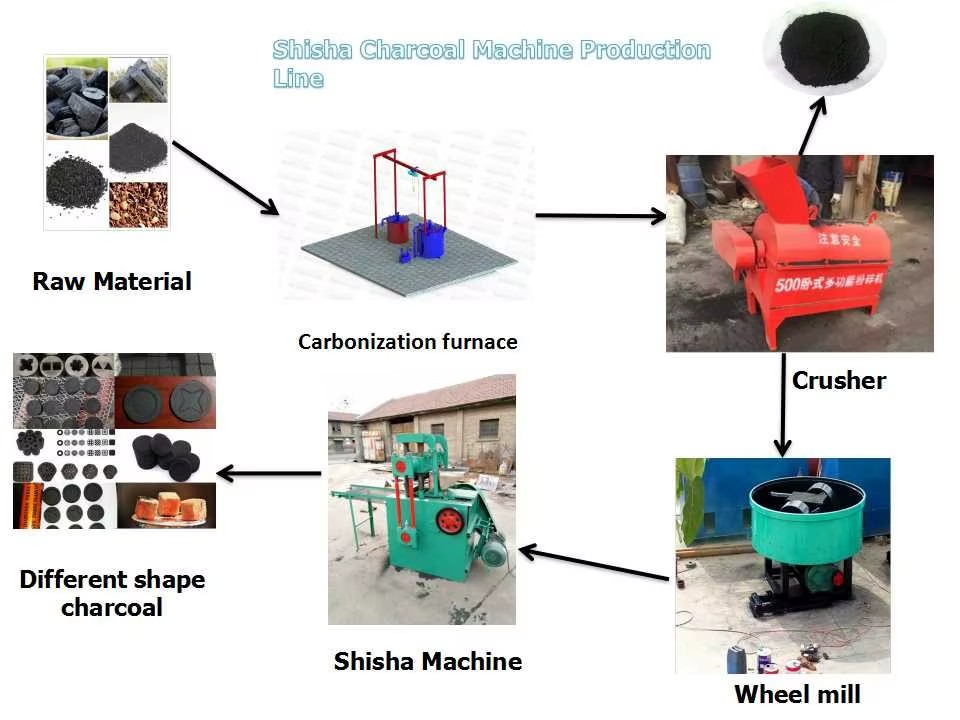

circular hookah coal and charcoal tablet briquette machine is to carbonize the raw material crush the wood firstly, next to crush the material, and to mix and stir with the wheel mill. Then put the materials into the energy saving shisha coal and charcoal extruder machineto get the charcoal rods.

Main Features of circular hookah coal and charcoal tablet briquette machine

1. reasonable design, reliable quality, simple structure, convenient operation, small size, small occupation area, labor saving and electricity saving. 2. The auto-control electric heating device can adjust the dry humidity of the materials, ensure the stability and improve the working efficiency. 3. The main parts of the machine with a kind of special wear-resistant material can be continuously produce. 4. suitable for all kinds of raw materials of biomass briquetting with less energy consumption and high efficiency. 5. has improved adding one bearings into the traditional ones, which makes the machine more stable and durable. 6. has improved from basting to immersing so that the oil can be used for many years as long as it is enough. 7. has increased to improve the amount of feed so as to greatly improve the output. 8. The structure of the molding cylinder has improved to reduce friction between the machine and materials and to increase the density of mandrel.

Application of circular hookah coal and charcoal tablet briquette machine

Wood, rice husk, peanut shell, straw and other carbon containing wood material (without any additives) can be made into rodlike solid fuels under the condition of high pressure and high temperature.The kind of machine can crush the particulate waste materials(length≦5mm, diameter≤3mm)the water content <12% of bamboo, wood, husk, straw(except rice straw, wheat straw)into solid hollow rods without any binders under the high temperature and high pressure.

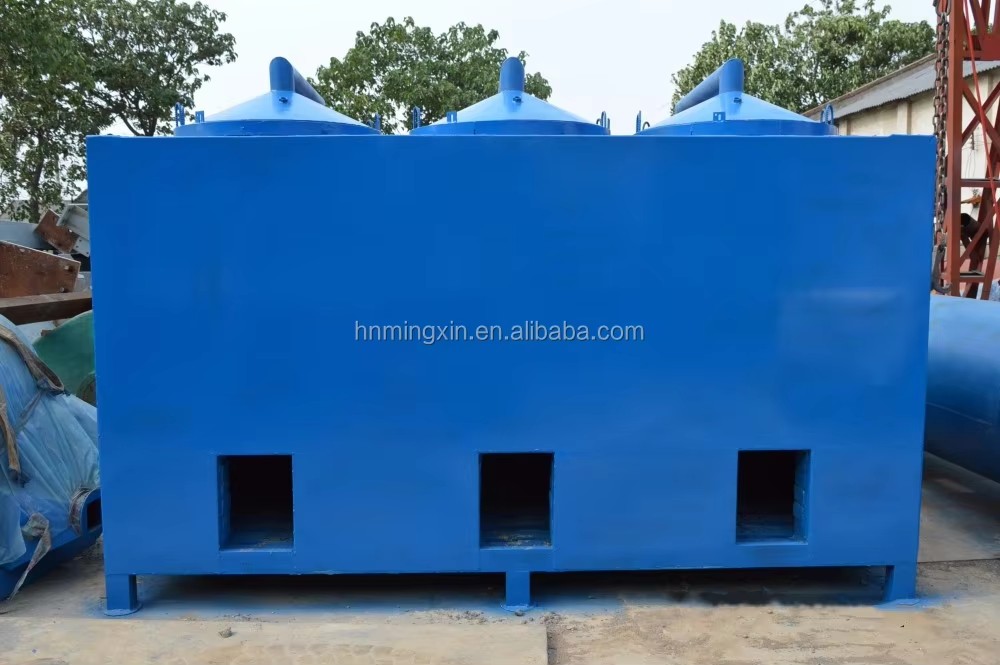

① Carbonization

Including the motor, crane, temperature controllers, valves, 3 inner tanks being used in turns. Per inner tank needs to work for 8 hours to complete the carbonization, then put the inner tank out and put the next the inner tank into the furnace. The cooling time of carbonized briquettes is 10 hours. Total height: 2350mm. Furnace: diameter is 1900mm, height is 2000mm, wall thickness is 6mm, bottom thickness is 8mm Three inner tanks: the diameter is 1500mm, 1440mm, 1400mm respectively. The height is 1500mm. wall thickness is 6mm, bottom thickness is 8mm.

② Crushing

Including the motor, crush the charcoal powder into less than 1mm

③ Wheel mill mixer

Including the motor, add the binding macterial, mix it with the charcoal powder evenly

Including the motor, shape the material with different moulds

Packing of circular hookah coal and charcoal tablet briquette machine

Inner package of circular hookah coal and charcoal tablet briquette machine: plastic packing Outside package of circular hookah coal and charcoal tablet briquette machine: wooden case

Delivery of circular hookah coal and charcoal tablet briquette machine Within 20 days after the order

We offer 5 different main varieties products which include charcoal machine, garbage disposal equipment, mineral processing equipment, wood processing equipment, grain and oil equipment to numerous overseas customers. In the meanwhile, favorable and complete service is our obvious advantage which compare with other companies in our industry. We support site inspect our products, and Engineers are available at any time as well. As a result of our high quality products ans outstanding customer service, has gained a global sales network reaching,, and other countries.

1. 24 hours all day service. 2. Can be customized according to customer needs 3. check again before we send the goods 4. send the goods on time 5. The more you need, the cheaper the unit price is. 6. One year warranty from the date of receiving. 7. We can test the machine before we send it if the client needs. 8. The more you need, the cheaper the unit price is. 9. Help the client with shipment
