Production process introduction
Hookah paste is a special leaf product used for hookah smoking, mainly made of raw materials such as leaf, honey/syrup, glycerin, edible flavors, and fruit extracts. This

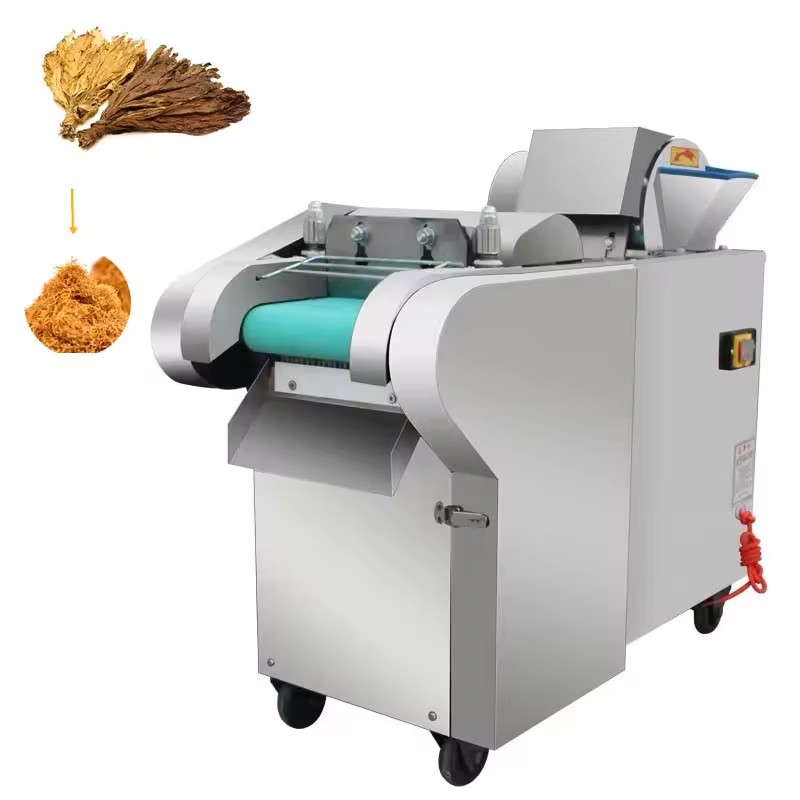

1. Vegetable Cutter The vegetable cutter is the first pre-processing equipment in the
| M odel | Capacity(kg/h) | Dimension(mm) | Net weight(kg) | Width of belt(mm) | Voltage | Power |
| EC-1000 | 400kg/h | 1020*760*1370mm | 130kg | 160mm | 220/380v | 2.2KW |

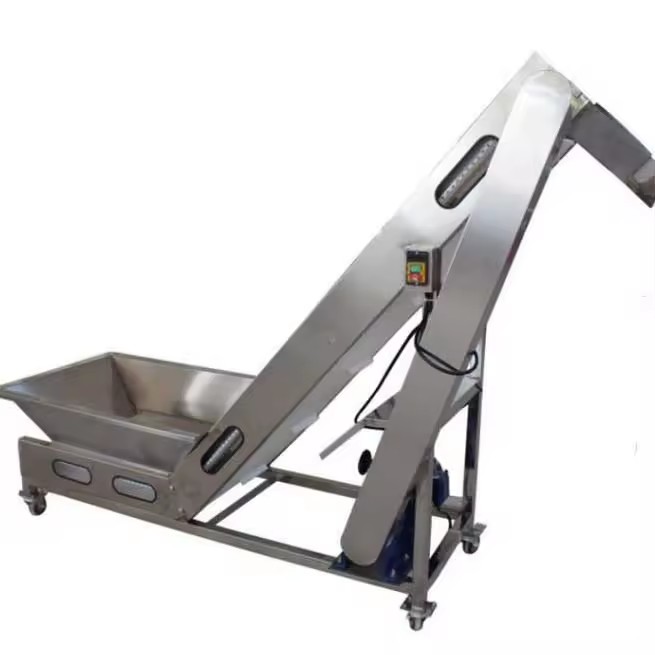

2. Elevator
The elevator is used to transport raw materials in this
| M odel | Capacity | Power | Size | Weight |
| CUSM-2000 | 500kg/h | 1.1kw | 2000*600*1550mm | 80kg |

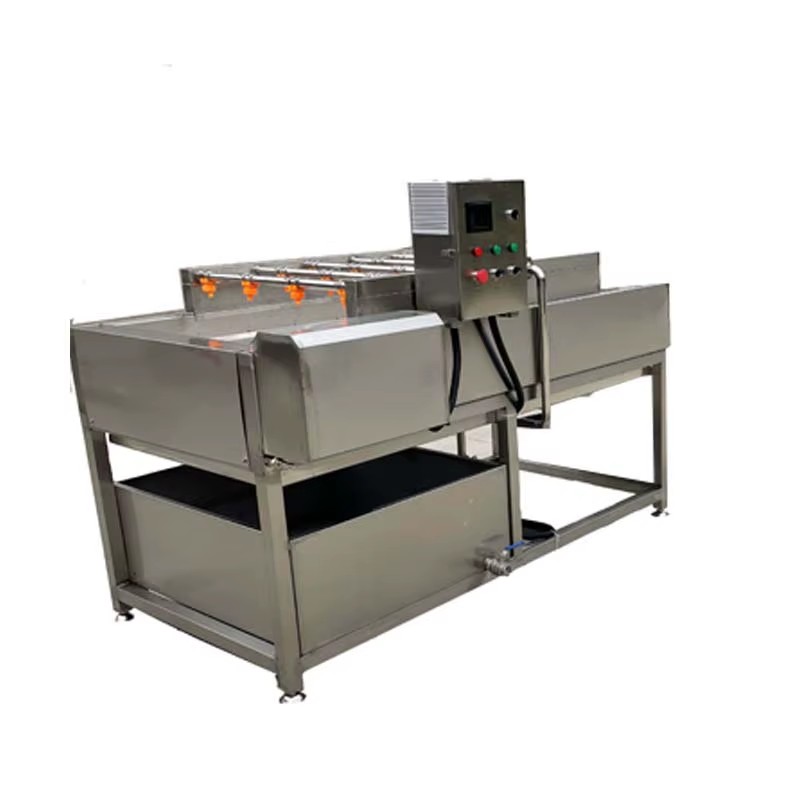

3. Brush cleaning machine The brush cleaning machine is used to remove dirt, pesticide residues, and other impurities on the surface of the raw materials.
Technical Data
| M odel | Size | Transmission power | Pump power | Hair roller length | Weight |
| LFCY-2000 | 2000*1200*1200mm | 1.1kw | 0.75kw | 800mm | 290kg |

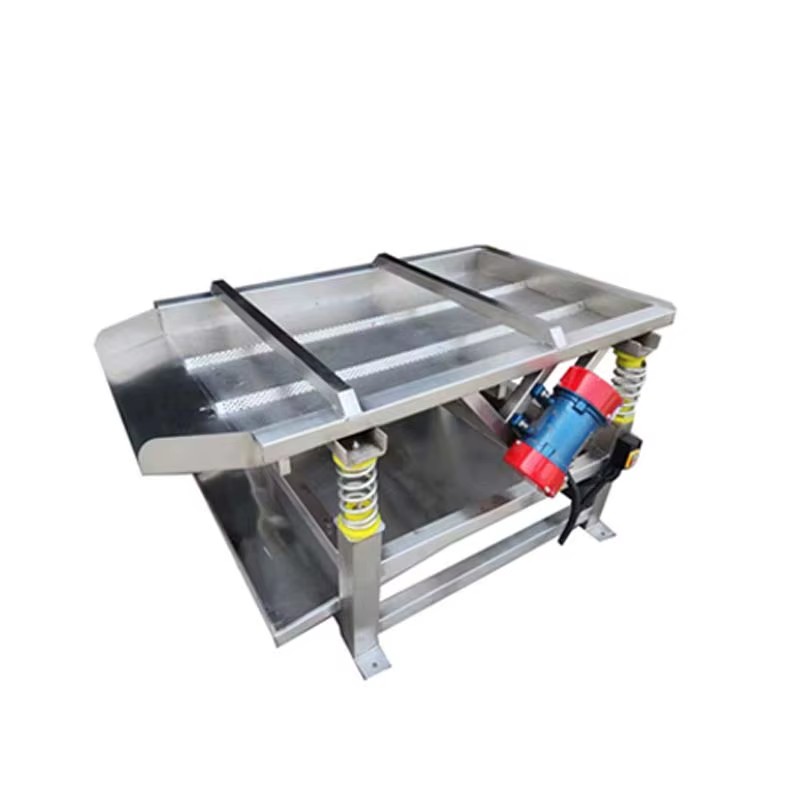

4. Vibrating screen machine The vibrating screen machine is mainly used for the dehydration of raw materials after cleaning and preliminary screening.
| M odel | Voltage | Power | Capacity | Weight | Dimension |
| WSDY-1000Q | 110V,50HZ, single phase | 0.4kw | 800~1000kg/h | 280 kg | 2*0.93*0.74m(6.56*3.05*2.43 feet) |
5. Tumble dryer The drum dryer is used to reduce the moisture content of raw materials and extend the shelf life. The equipment adopts the principle of hot air circulation, and there are multiple layers of turning trays in the drying chamber. The materials are turned regularly during the drying process to ensure uniform heating.
| M odel | Output | Size | Transmission power | Fan power | Mesh belt width | Weight |
| FAD-4000 | 500kg/h | 4000*1200*1450mm | 0.75kw Number of fans 8 (4 groups) | 0.75kw*8 | 800mm | 365kg |

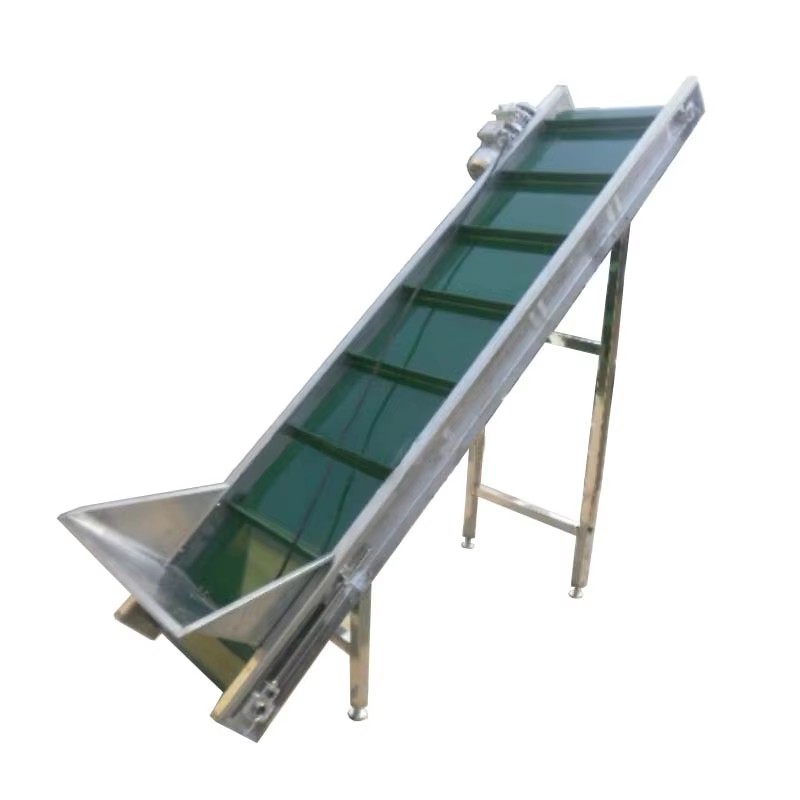

6. E levator
| M odel | Capacity | Power | Size | Weight |
| CUSM-1500 | 500kg/h | 0.75kw | 1500*600*1050mm | 60kg |

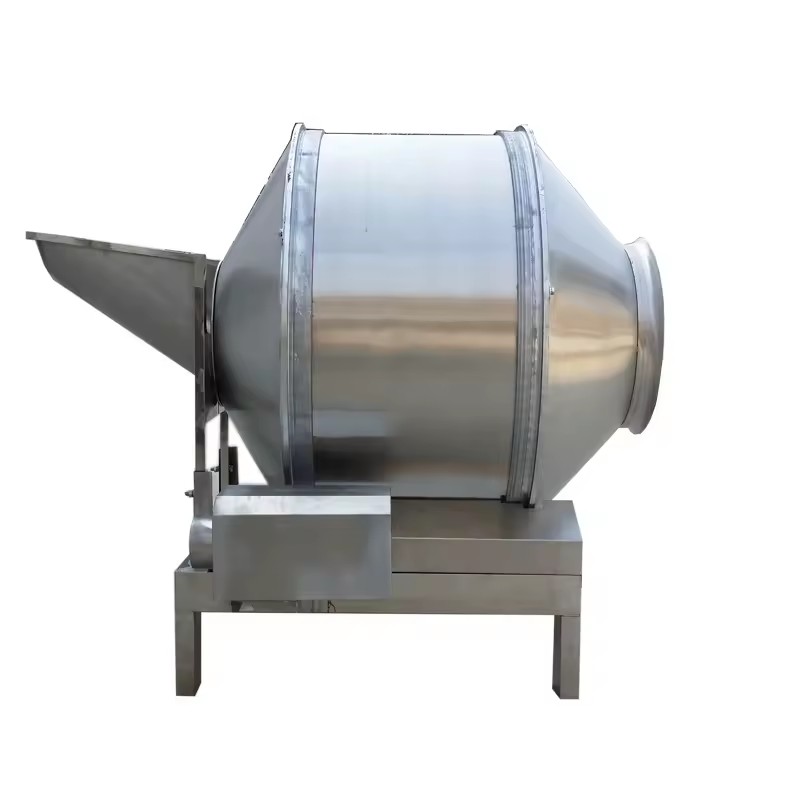

7. Mixing machine
The mixing machine is used to mix various dry and wet raw materials evenly according to the formula ratio.
| M odel | Dimensions | Weight | Power | Output |
| TW-350 | 2300*1650*1650mm | 420kg | 2.2kw/380 | 350L/time |
8. Interlayer pot
The interlayer pot is the core equipment for boiling hookah paste, which is used to heat the mixed materials to 80-90℃ to fully blend the components.
| M odel | Metric volume | Caliber | Depth of pot | Heating area(m2) | Stirring speed | Stirring power |
| WSJC-500 | 500L | Φ 1100mm | 730mm | 2 | 36 r/min (customizable) | 1.1kw |
9. Mixer with pump system The mixer with a pump is used for the final homogenization of the boiled hookah paste.
| Model | Nominal capacity | Actual capacity | Electric heating power | Jacket capacity | Inner pot size | Outer pot size | Motor power | Stirring speed |
| CM-1000 | 1000L | 121.5L | 12*4kw | 560L | 1200mm | 1400mm | 4kw | 60-80N/min |
Accessories
Finished product display

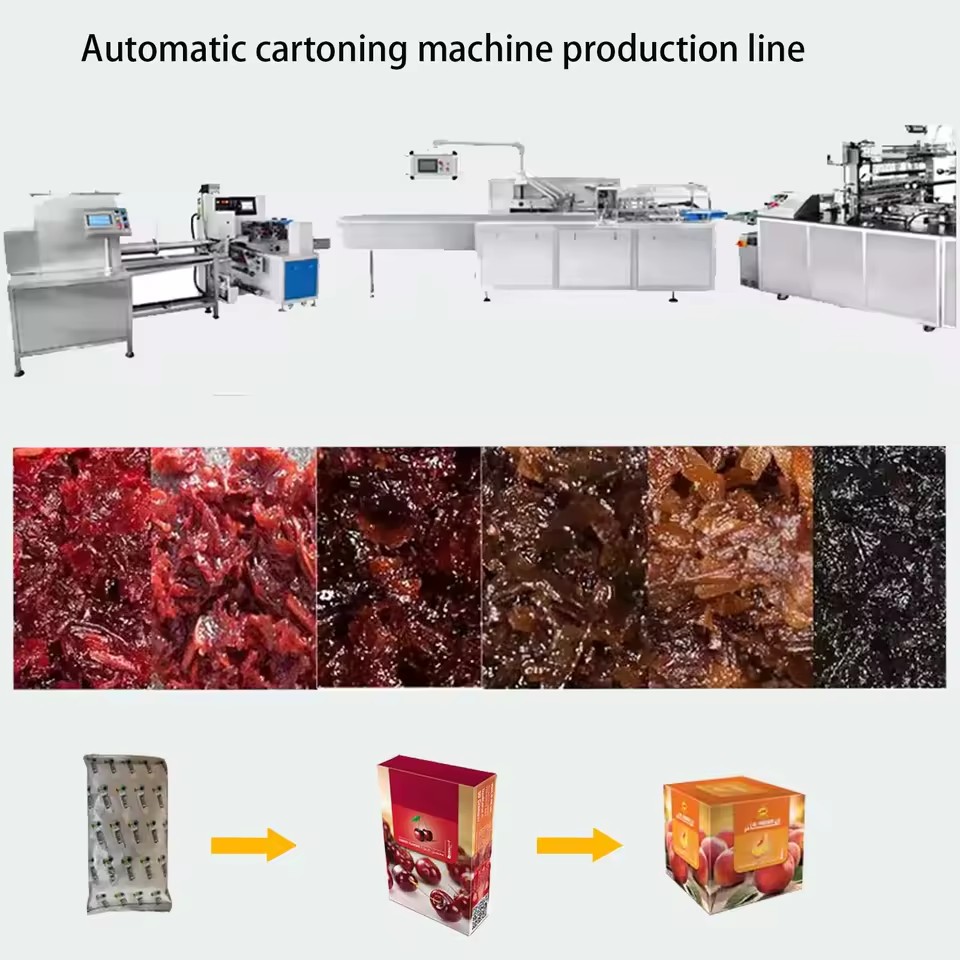

Packaging process introduction

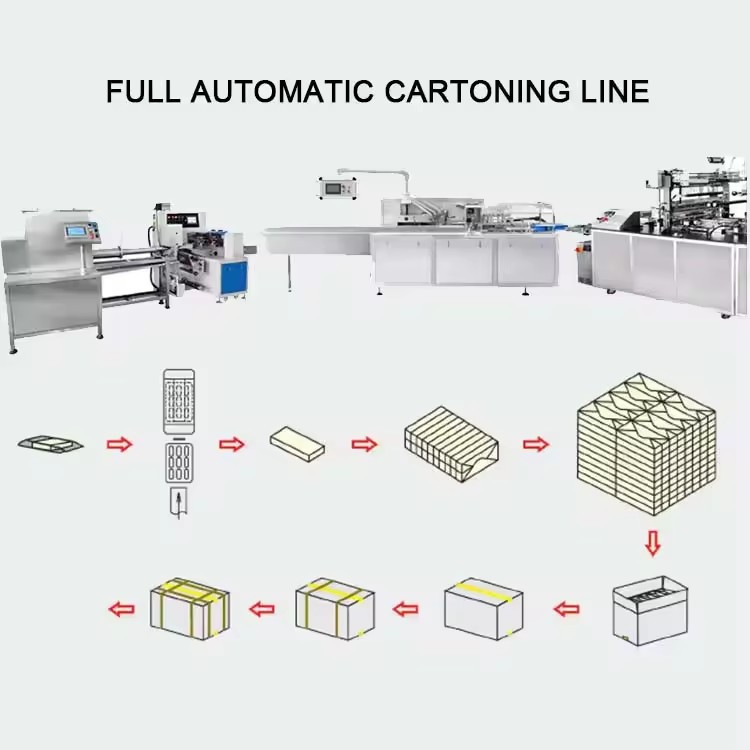

Our shisha paste packaging line is a complete automated product packaging solution, covering all aspects from initial product forming to final box packaging. The integrated system consists of four different operating steps: extrusion, precision metering, primary packaging, and secondary packaging.
1. Hookah Paste Extruder Hookah Paste Extruder is the first molding equipment in the
| Model | Packing speed | The largest film width | Machine size (mm) | Machine weight (kg) | Power supply | Bucket capacity (L) |
| DS-250SY | 50-120bags/min | 250mm | 1417.5*750*1290 | 890 | 220V,50/60HZ, 2.4KW | 80 |
2. Weighing scale Workflow: After the small bags are packaged, they enter the weighing area through the conveyor belt. The system automatically removes the out-of-tolerance products, and the qualified products are transferred to the small box packaging process.
| Model | Weighing table specifications(mm) | Weighing range(g) | Highest accuracy(g) | Maximum speed | Weighed material size(mm) | Overall machine size(mm) |
| CQ-XP210 | 400*210 | 1-1000 | ±0.3~±0.5 | 160pcs/min | 280*200 | 1522*560*1222 |
3. Small box packaging machine
| Model | Mask machine voltage | Power | Paper requirements for cartons | Carton size range(mm) | Gas consumption | Dimension (mm) | Weight (kg) |
| KXZ-1 2 0B | 380V 50Hz | 1.5KW | 250-400g/m3 | L(80-210)*H(10-60) | 120-160L/min | 3600*1200*1750 | 1300 |
4.3D packaging machine The three-dimensional packaging machine is used to complete the one-time sealed packaging of the product.
| Model | Power (KW) | Carton size range(mm) | Temperature range (℃) | Packaging material BOPP Dimensions(mm) | Weight (kg) |
| RF-200A | 4.5 | L(50~240)* W(20~120)*H(10~60) | 0-300 | (L*W*H) 2000*790*1550 | 550 |
5. Big box packaging machine The big box packaging machine packs multiple three-dimensional packaged finished products into display boxes.
| Model | Mask machine voltage | Power | Capacity boxes/min | Paper requirements for cartons | Carton size range (mm) | Dimension (mm) | Weight (kg) |
| KXZ-160B | 380V 50Hz | 1.5KW | 5-20 | 300-450g/m3 | 210*105*110 | 4200*1400*1800 | 1600 |
6.Large 3D packaging machine
| Model | Production efficiency | Packing size range L-W-H | Power supply | Motor power | Heating power | Dimensions (L×W×H) | Weight | Packing materials |
| TY-500 | 20-35packs/min | 100-360mm,40-250mm,20-130mm | 380V 50-60Hz | 2.5Kw | 7.5Kw | 3550×1020×1720 | 1000Kg | OPP,BOPP film, PVC film |
7. Case packing machine The automatic case packing machine completes the final product palletizing operation.
| Model | Mechanical dimensions (mm) | Applicable carton range | W (width) | H (height) | Cartoning capacity | Power supply | Machine weight |
| KX-550 | 2000*1900*1450 | L, maximum 600 - minimum 200 | maximum 500 - minimum 150 | maximum 350 - minimum 100 | 720 pieces/hour (maximum) | single-phase 220V | 600Kg |

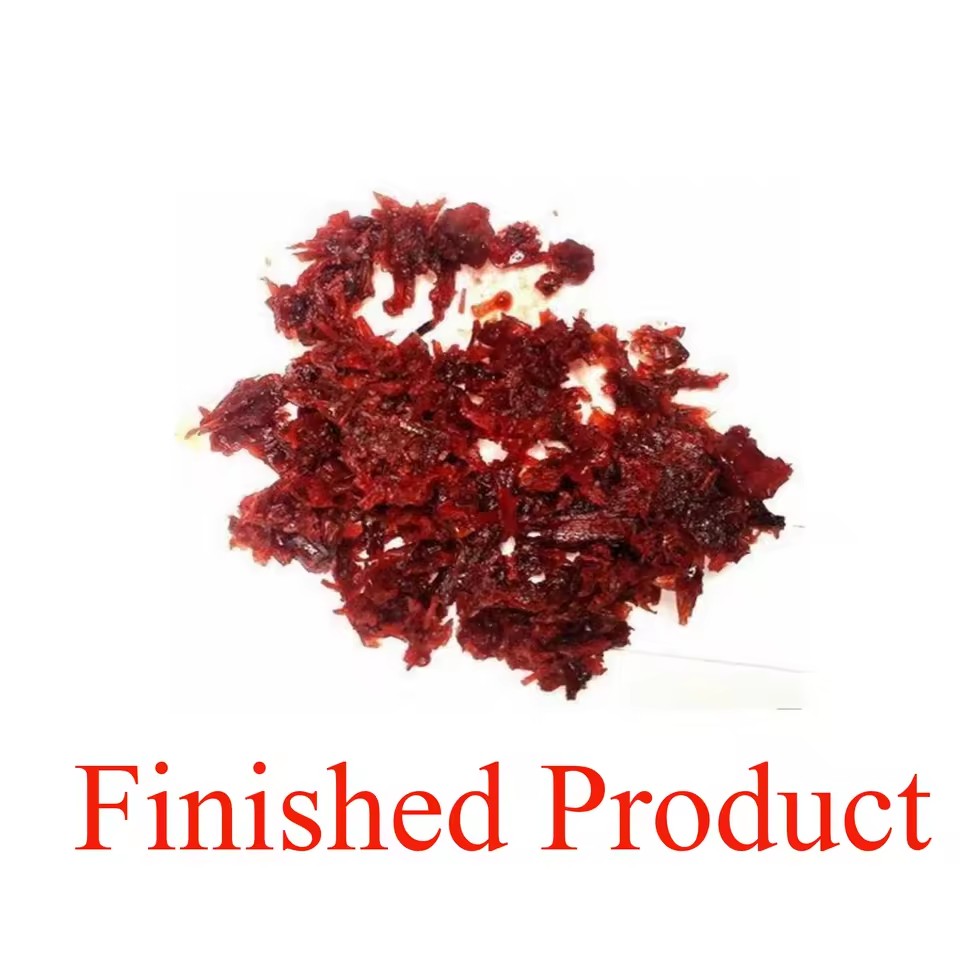

Final Product
