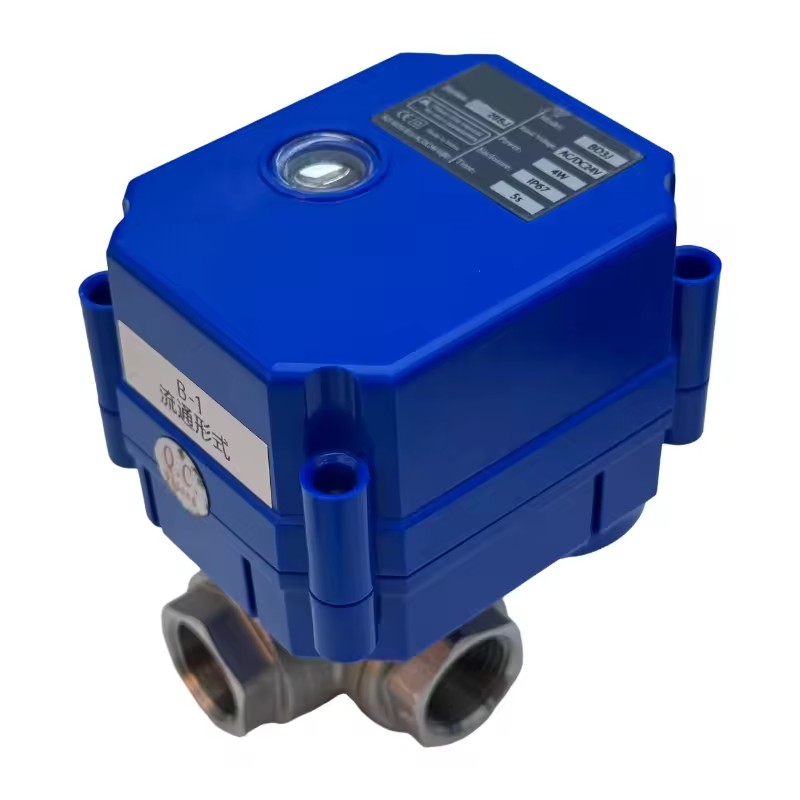

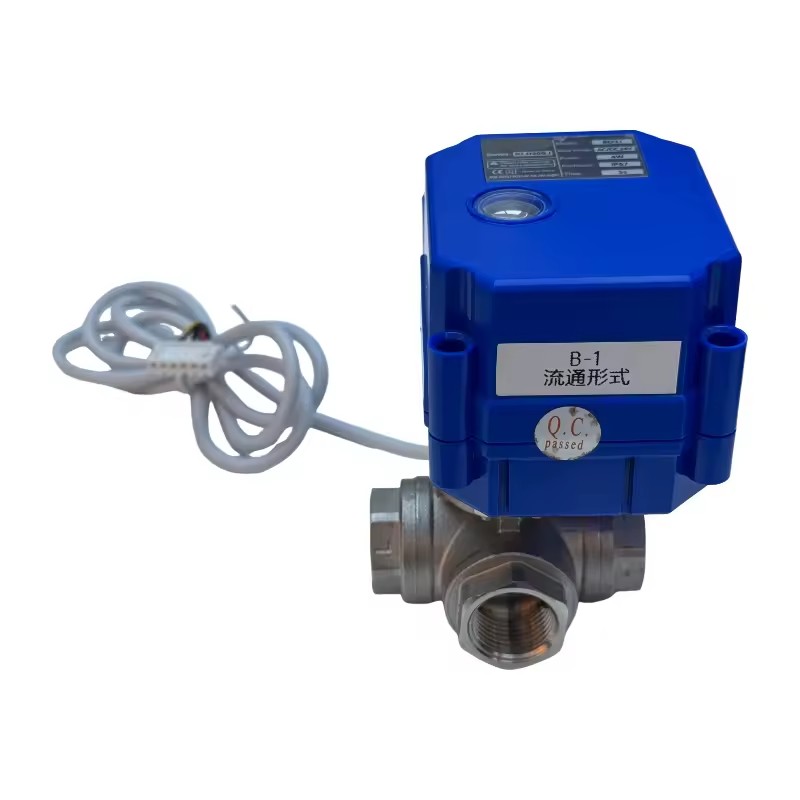

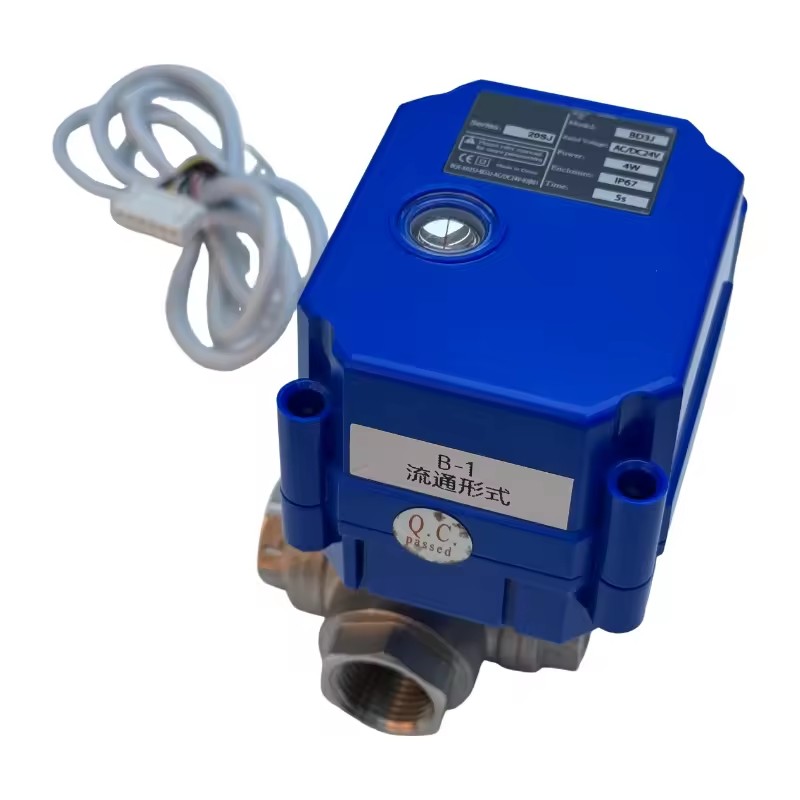

5V/220V Mini Thread 3-Way DN15 1/2'' SS304 Stainless Steel Motorized Electric Ball Valve IP67 CE Certified Water Gas Low Temp

Available for enquiry 0.0 · 0 reviews 1 sold
USD

$ 120.00 120.0 USD $ 120.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Connection Size
  • Operating Pressure
  • Operating Temp. Range
  • Media
  • Sealing Material
  • Connection Type
  • Power
  • Ball Material
  • Port Size
  • Flow rate
  • For Maximum Pipe Size
  • Application
  • Temperature of media
  • Structure
  • Customized support
  • Place of origin
  • Model number (Specification)
  • Nominal Voltage
  • Max Angle Of Rotation
  • Degree Of Protection
  • Medium Temperature
  • Ambient temperature
  • Parts
  • Applications
  • Certificate
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)

This combination is unavailable.

Key attributes

View all
Connection Size
1 in, 1/2 in, 2 in, 3/4 in
Operating Pressure
Maximum 1.0 MPa (PN10)
Operating Temp. Range
20°C to 45°C
Media
Gas, Liquid
Sealing Material
EPDM, FPM, SI
Connection Type
Thread, NPT
Product description

Product details

Premium multi-material combination: PC alloy actuator housing with excellent corrosion resistance, nickel-plated brass/304/316 stainless steel valve body, 304/316 wear-resistant valve ball and PTFE valve seat, matched with EPDM/FPM/SI seals. Adopt

patented floating seal structure and precision machining process, ensuring airtightness and structural stability; the nickel/chrome plating treatment on metal parts enhances anti-rust and wear resistance, with an IP67 high-level waterproof and dustproof enclosure, adapting to harsh working environments.

3-way electric ball valve with horizontal structure, support T/L port and 2/3/4 optional flow directions, realize flexible medium switching and distribution, larger flow rate than vertical type for higher work efficiency

Equipped with manual override function, available for emergency operation when power off, safe and convenient (KLD20S series)

Low working current, suitable for battery-powered systems, DC/AC multi-voltage optional, match different power supply scenarios

Optional fail-safe function (capacitor return) and 2s fast running version, customizable 3/4 positions for personalized industrial needs

Long service life up to 70,000-100,000 cycles under standard test conditions, replace unreliable solenoid valves with stable and durable performance

Compact mini size, perfect for small equipment and small-scale automated control systems, save installation space

CE certified, with PN10 maximum pressure (1.0Mpa) resistance, adapt to HVAC, water treatment, chemical processes, medical equipment and other multiple scenarios

Low power consumption (3W/4W/5W optional) with high torque (2N.m), energy-saving and powerful, realize efficient and stable medium control

Frequently asked questions

TCR/TCN series electric actuators (standard/explosion-proof) and a full range of electric valves (ball valves, butterfly valves, etc.).

Metallurgy, chemical engineering, water supply, pharmaceuticals, petroleum, natural gas and other industrial fluid control fields.

ISO9001, CE, 3C certifications, explosion-proof certificates and multiple utility model patents.

IP67 protection level, suitable for harsh environments.

4-20mA, 0-10V analog signals, RS485/CANBUS bus and LoRa wireless protocols.

Yes, we can optimize product functions for special working conditions.

55℃ to +60℃, adapting to extreme climates.

Product selection, installation and commissioning, technical support and after-sales service.
Description images

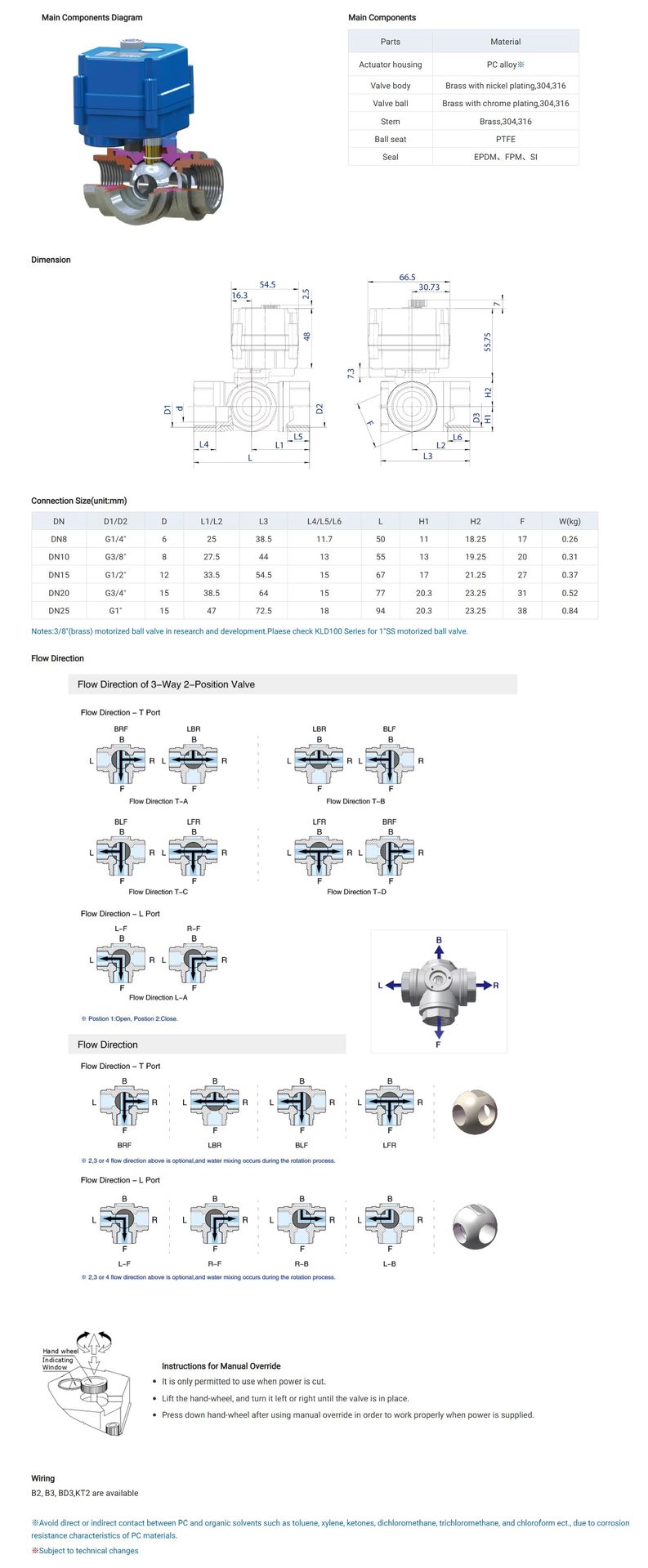

Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    8 days

  • Step 3

    Packaging and dispatch

    Economy · Estimated delivery: Sep 29–Oct 23 (29–53 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

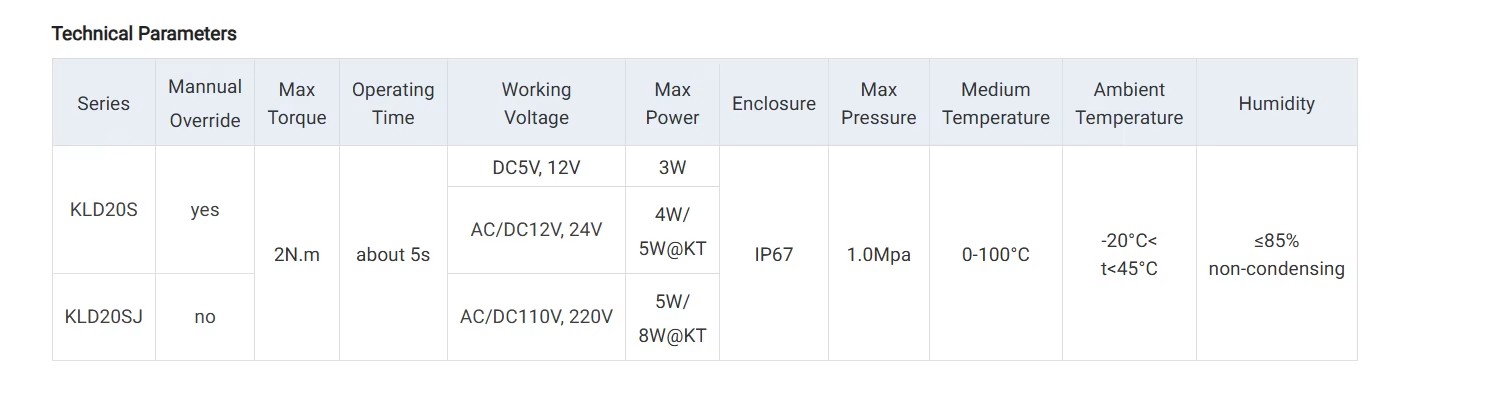

Technical specifications
Other details 31 fields

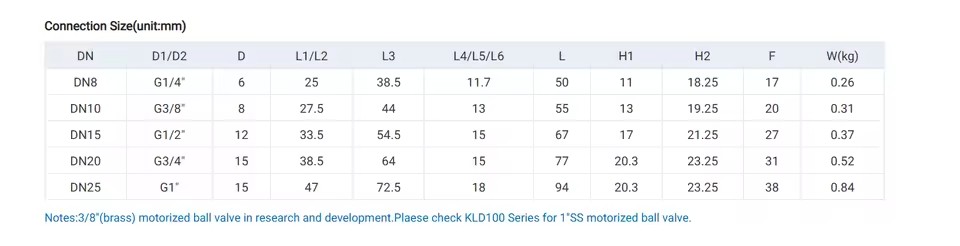

Connection Size
1 in, 1/2 in, 2 in, 3/4 in
Operating Pressure
Maximum 1.0 MPa (PN10)
Operating Temp. Range
20°C to 45°C
Media
Gas, Liquid
Sealing Material
EPDM, FPM, SI
Connection Type
Thread, NPT
Power
electric
Ball Material
Stainless Steel
Port Size
1/4 in, 1 in, 3/4 in, 1/2 in, 3/8 in
Flow rate
Varies with valve size and application
For Maximum Pipe Size
15 mm
Application
General, Replacing solenoid valve, especially when it cannot work reliably
Temperature of media
0°C to 100°C
Structure
Ball
Customized support
OEM, ODM, OBM
Place of origin
China, Tianjin
Model number (Specification)
Three-way electric ball valve
Nominal Voltage
DC5V, DC12V, DC24V, AC/DC24V, AC220V
Max Angle Of Rotation
90±2°
Degree Of Protection
IP67
Medium Temperature
0°C to 100°C
Ambient temperature
20°C to 45°C
Parts
Actuator housing, Valve body, Seal, Valve ball, Stem, Ball seat
Applications
Water Treatment, HVAC, Chemical process
Certificate
CE
Selling Units
Single item
Single package size
30X30X40 cm
Single gross weight
5.0 kg
Material (Product option)
304-DC5/12V, 304-AC/DC24V, 304-AC95-265V, 316L-DC5/12V, 316L-AC/DC24V, 316L-AC95-265V
Pressure (Product option)
1.0 MPa(145.04psi)
Size (Product option)
1/2 in, 3/4 in, 1 in, 1/4 in, 3/8 in
Lead time
8 days
Minimum order
1 Units
