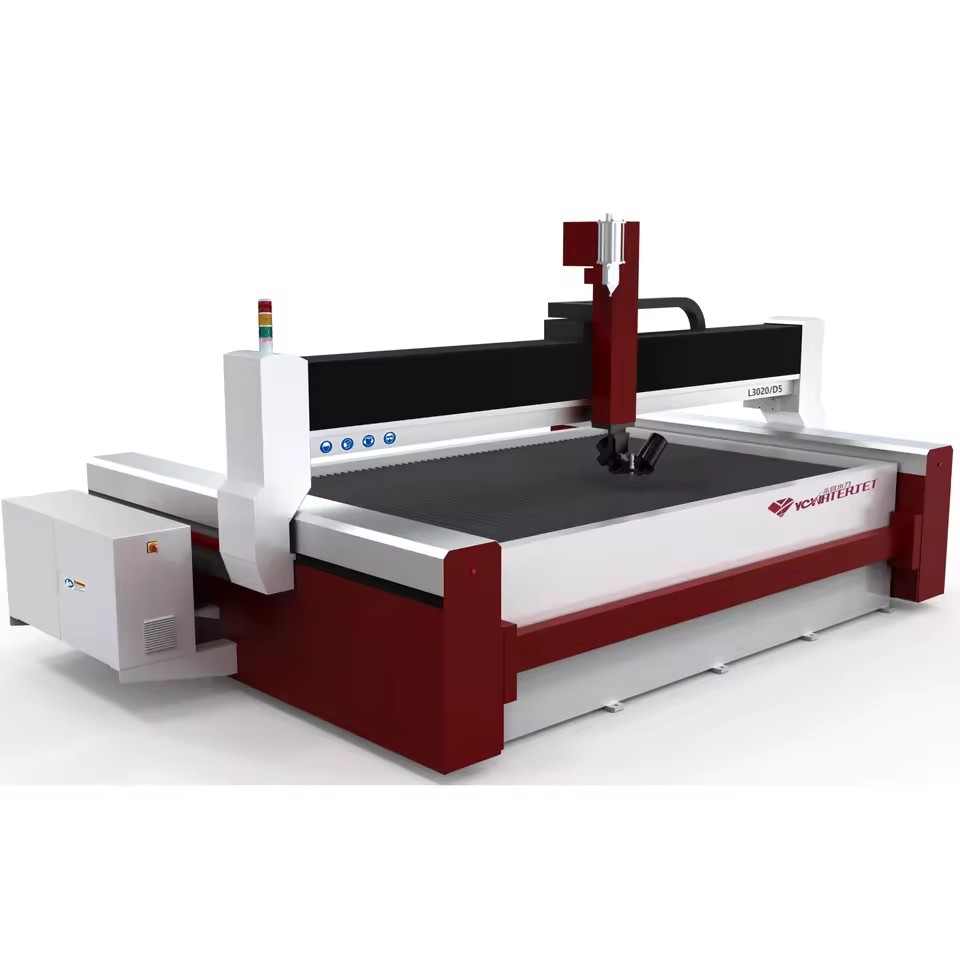

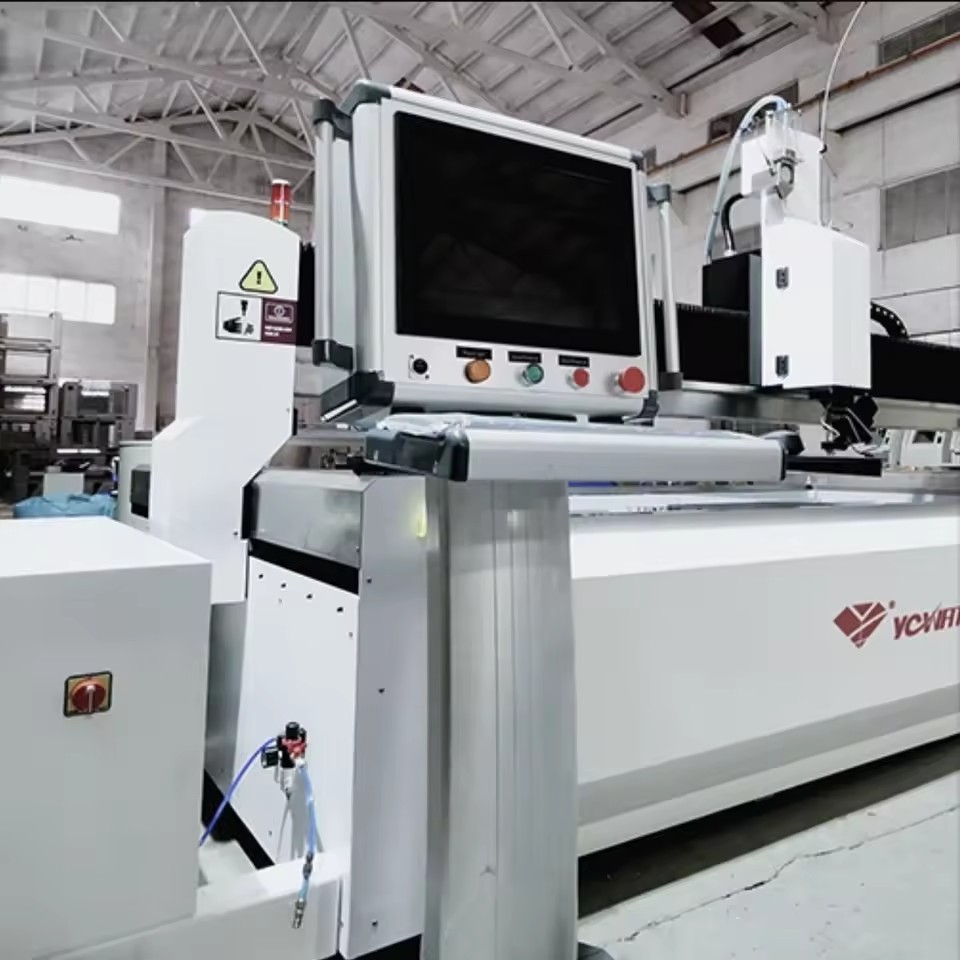

YC Water Jet Cutter Machine Cnc Granite Water Jet Cutting Machine

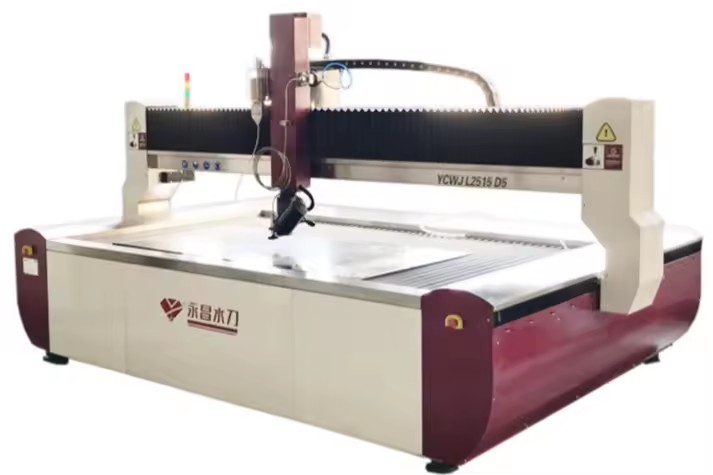

Dyn amic 5axis water jet cutting machine

This Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate ±10° cutting angle. It is one kind of bevel cutting machine.

Due to the water jet cutting is a flexible cutting, therefore,there will be a certain degree of inclination on the product cross section after cutting by the traditional 3 axis water jet order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.

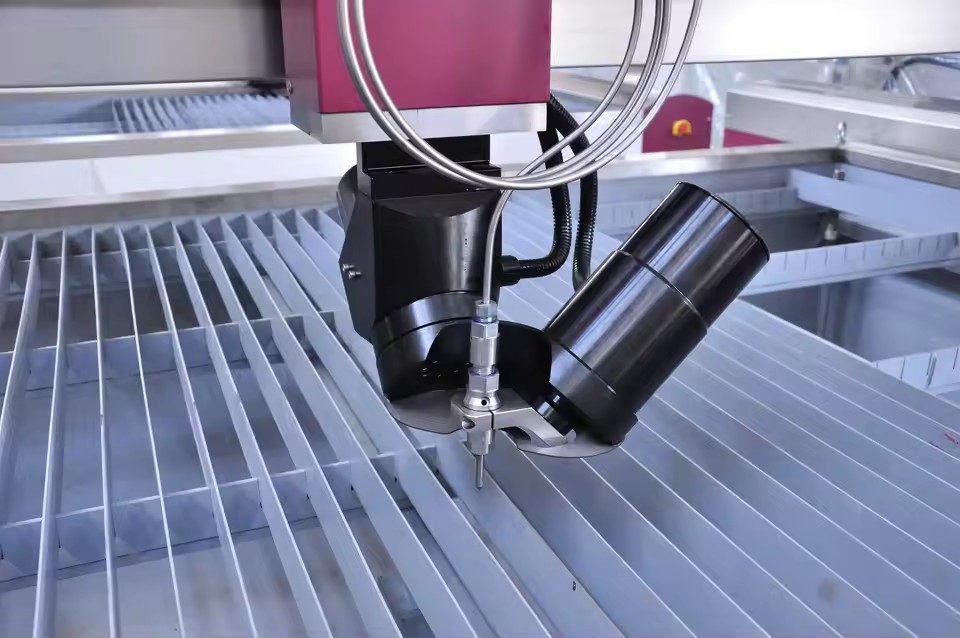

Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°

CNC Water Jet Cutting Machine P arameter (L=Gantry type)

Parameters

Unit

YCWJ-L1010

YCWJ-L2015

YCWJ-L3015

YCWJ-L3020

YCWJ-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.2

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

High Pressure Pump

Model

YCG-3038

YCG-3742S

YCG-7542S

Max Pressure

3800Bar/55,000Psi

4137Bar/60,000Psi

Max Water Flow

3.7L/min

7.4L/min

Max Orifice/Nozzle

0.011/0.03

0.013/0.04

0.016/0.05

Power

30KW/40HP

37KW/50HP

75KW/100HP

（Bevel Cutting 0-±10°）

3 axis Waterjet Cutting Machine

Max5 axis

Water Jet Cutting Machine

（Bevel Cutting 0-±45°）

1999, was established by Mr. Min, mainly engaged in manufacturing large production line.

2019,YC has sold the products to more than 50 countries.

We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.

Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience. YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.

For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs. Our Engineers go to many countries for installation and debugging every year.

Product Details

Dyn

amic 5axis water jet cutting machine

CNC Water Jet Cutting Machine P

arameter

(L=Gantry type)

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

W

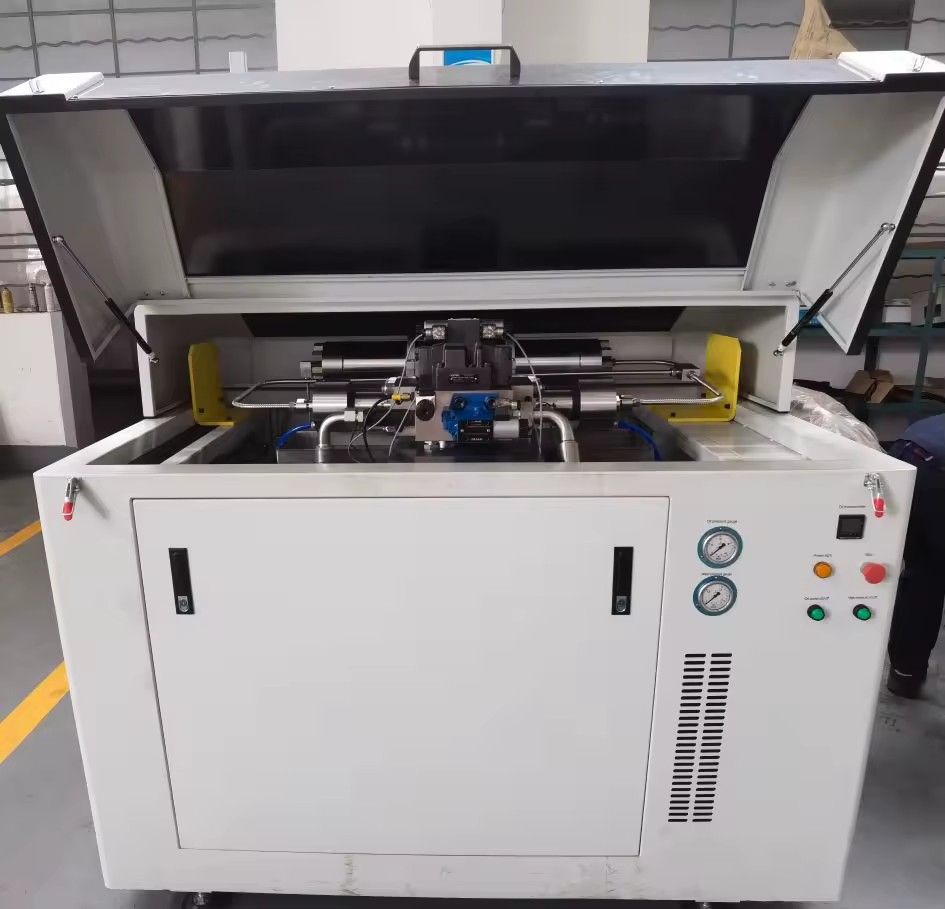

ater Jet High Pressure Pump

Main Feature

Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

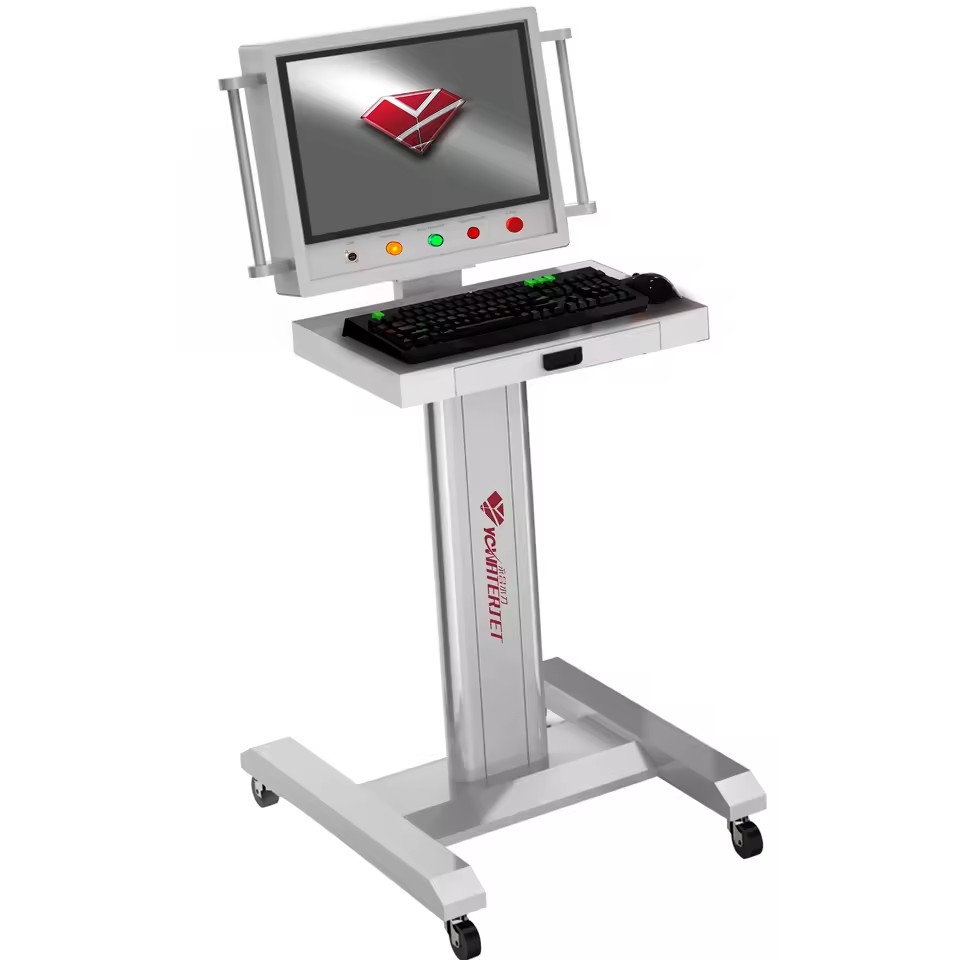

Waterjet CNC Controller

1. 17 LCD liquid crystal display.

2. DNC on-line working function.

3. Functions of returningarbitrary point,bending and circular are working auto deceleration.

4. Function of cutting figure imitation display.

5. 80GB memory hard disk.

6. 6. MITSUBISHI AC servo driver and motor.

7. 1GB memory card.

8. Multilingual function(Chinese English etc.).

9. Drive-by-wire and hand-hold controller.

10. NAIKY PCIMC-6A special software is special for YC.

Optional Accessories

Auto sludge removal system

Remove the abrasive from the tank automatically, separate the abrasive and water.

Reduce the labor force,improve work

efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are

plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are

collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.

Water Soften System

Hydraulic Loading System

Cutting Head With Drilling
