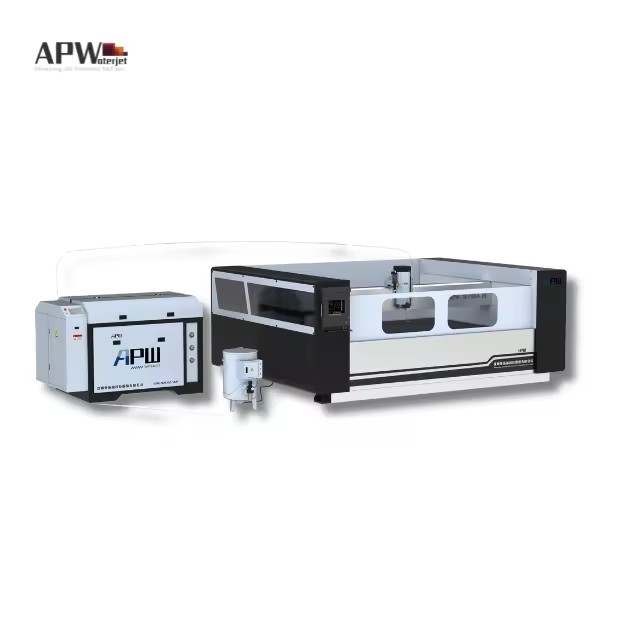

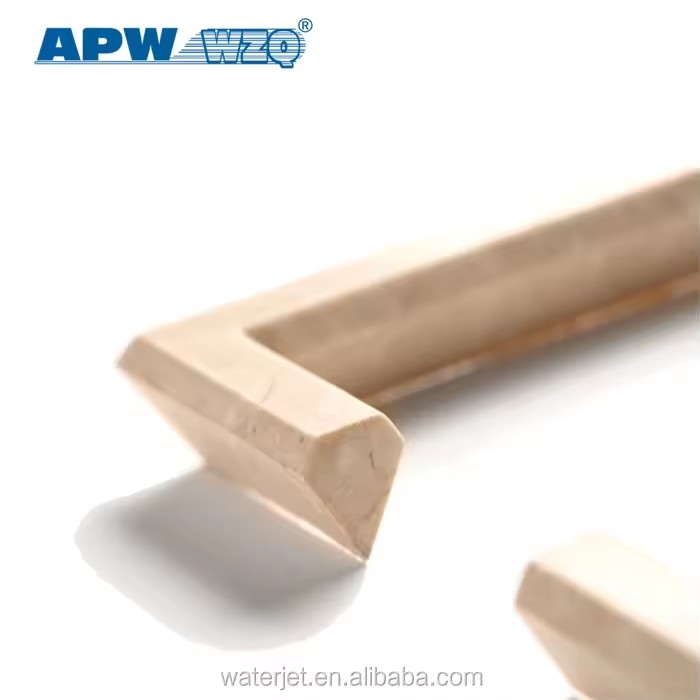

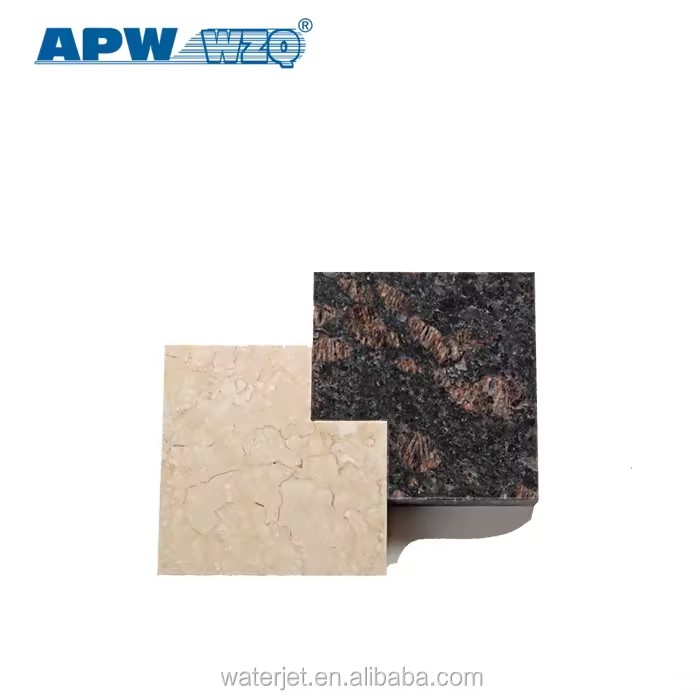

Waterjet tile cutter

Pump

Main technical data

Main motor power:37KW

Length:1745mm

Max. working pressure:380Mpa

Width:1045mm

Max. flow tate:3.7L/min

Height:1350mm

Control system:PLC(Omron)

Weight:1200Kg

Cutting Water Inlet pressure:>0.1Mpa

Lp Low Pressure Filter:10um

Cooling Water Inlet pressure:>0.5Mpa

Safety unloading valve:Standard components

Max. oil pressure:20Mpa

Oil level and oil temperature sensor:Standard components

Accumulator Volume:1.2L

High Pressure Outlet Connections:M16×X1.5

Main technology feature

1. There is shock absorber instal led in the four corners of the motor,which reduces the shock and noise.

2. The wave crest cotton has good effect to low the noise.

3. Double oil filter for inlet and outlet ports,which will improve the clean of hydraulic oil and the stability of machine working.

4. The stage safety unloading valve can discharge the system pressure which guarantee the safety of operators and machine,when the machine need to stop in emergency.

5. There is low pressure inlet water safety overflow switch,which can guarantee the safety of high pressure water,and the inspection of low pressure inlet water can avoid the trouble shooting of machine casued by the less low pressure inlet water supply.

6. The efficient cooling system component can reduce the volume of oil tank and low the wirking cost.

7. Imported intensifier,which guarantee the quility of the whole pump.

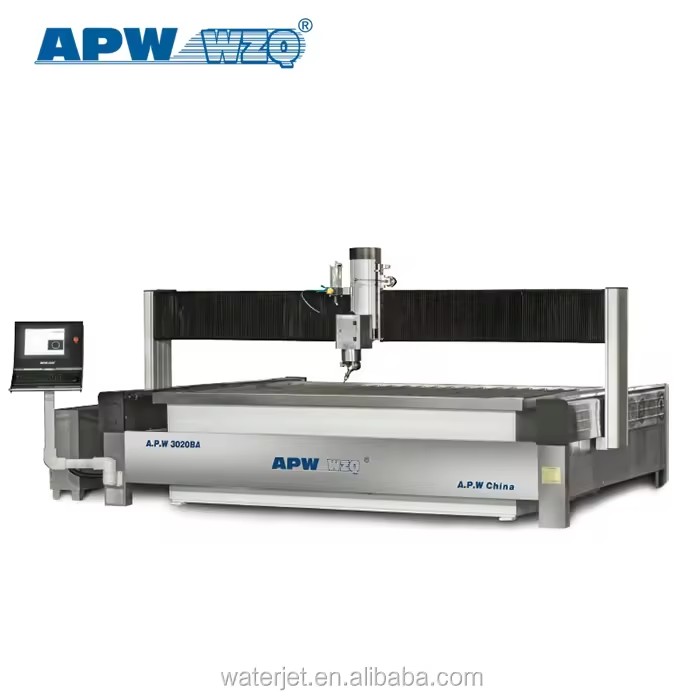

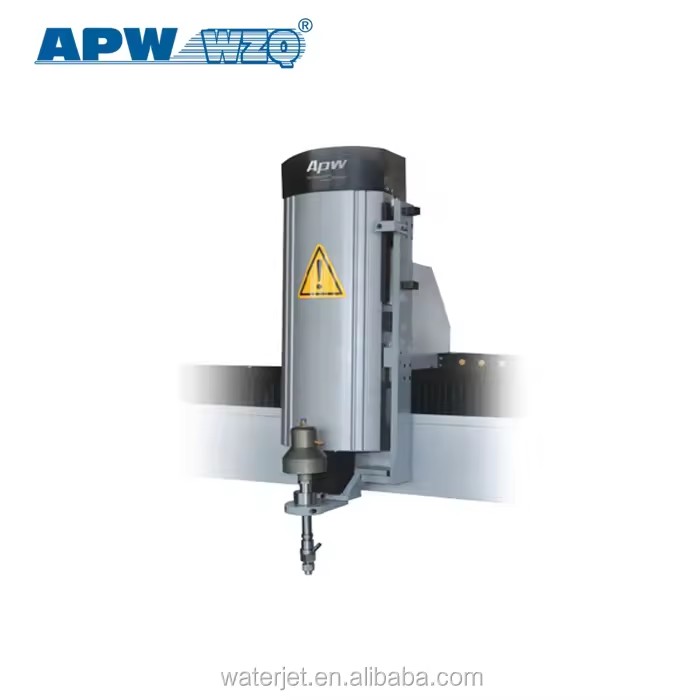

Cutting table

technical data

Way of drive:AC servo

Max. moving speed:6000mm/min

Control accuracy:±0.01mm

Cutting accuracy:±0.1mm~±0.2mm

Power supply:220V 50Hz

Environmental temperature:-10-50°C

Atmospheric pressure:86Kpa~106Kpa

Dust concentration:Not more than10mg/m 3.

There should not be acidoid, alkaline substance and corrosive substance in the air. The machine should be kept away from hypocenter, heat producer, intense magnetic field, electric field and other source of the disturbance.

Model

X-axis journey (mm)

Y-axis journey (mm)

Z-axis journey (mm

1520BA

1500

2000

150

1525BA

2500

2030BA

3000

2040BA

4000

2060BA

6000

3020BA

3040BA

3060BA

4060BA

40120BA

12000

40200BA

20000

Dust concentration:Not more than10mg/m

3
