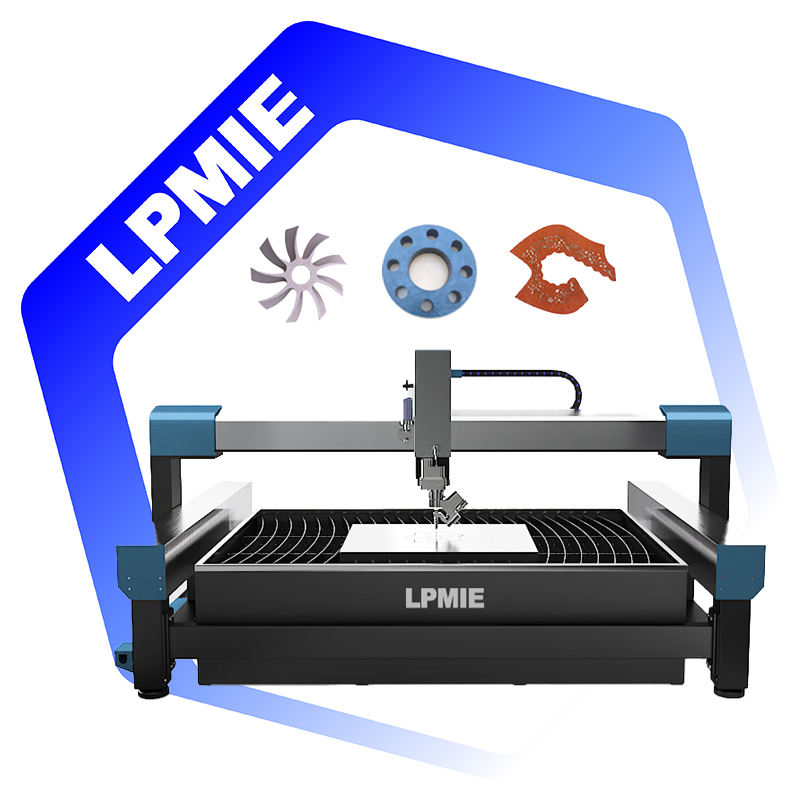

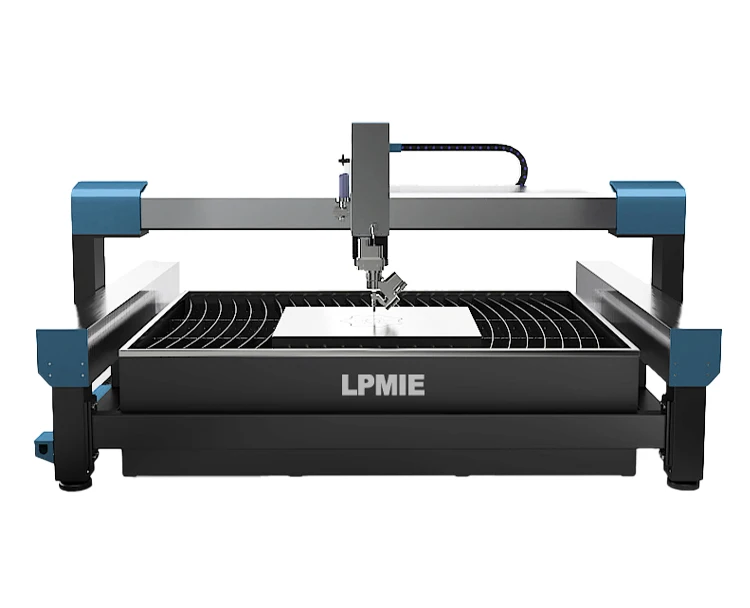

Name: 5axis Water Jet Cutters Customized 1000*1000mm Waterjet Cutting Machine Cnc Water Cutting Machine for Matble Metal
SKU: B2B-61
Price: 37710.0 USD
Availability: PreOrder

Product description

LPMIE Ultra-high Pressure Waterjet Cutter

Support cutting sample service

Support color customization service

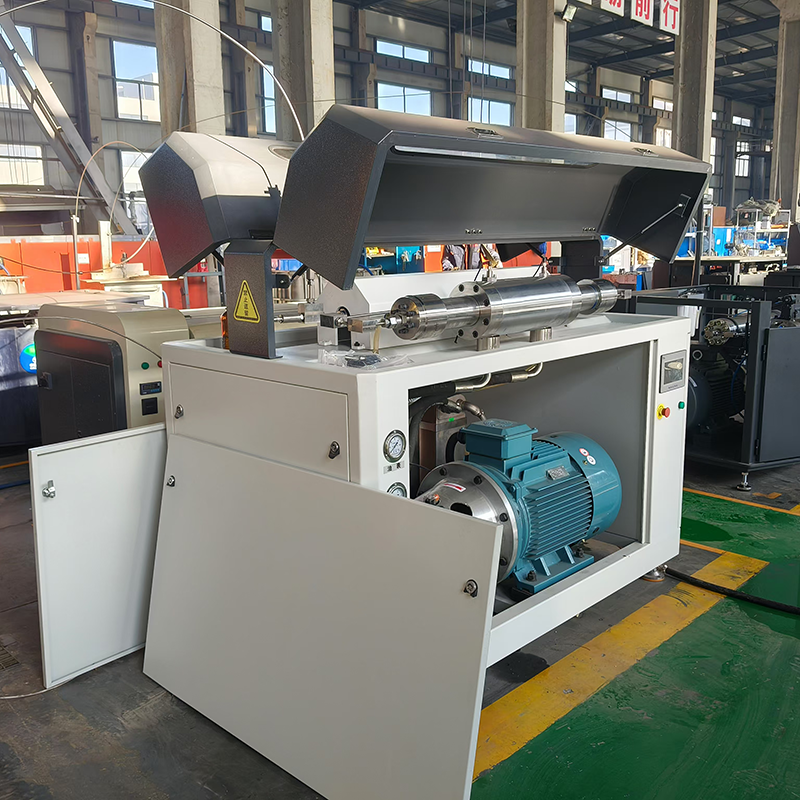

The LPMIE CNC Ultra-high Pressure Waterjet Cutting series, known as the 'Universal Cutting Machine', has strong cutting ability and can slice almost all kinds of materials under certain conditions. Equipped with a high-precision CNC multi-axis linkage system, it ensures powerful programming capabilities and a user-friendly interface. This system not only has a cutting error of just 0.1mm but also guarantees safety, eco-friendliness, and high efficiency. The high-pressure pump and the gantry cutting platform achieve an extremely high degree of pressure impulse cancellation and ultra-high precision long-distance cutting on the X-axis by being equipped with cutting-edge technology and structural design. Meanwhile, they can meet the requirements for efficient loading and unloading of processed materials. The new five-axis cutting head machanism design provides solutions for different industries, boasting superior materials, high cutting accuracy, precise control, and good waterproof performance.

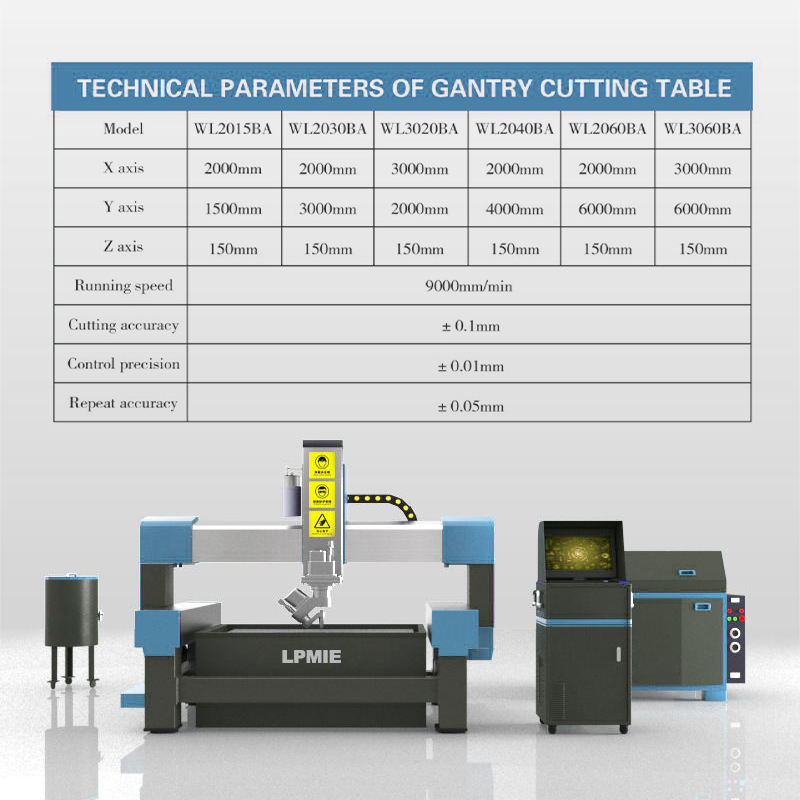

Parameter

Model	2015BA	2030BA	3020BA	2040BA	2060BA	3060BA
X axis	2000mm	2000mm	3000mm	2000mm	2000mm	3000mm
Y axis	1500mm	3000mm	2000mm	4000mm	6000mm	6000mm
Z axis	150mm	150mm	150mm	150mm	150mm	150mm

Running speed	9000mm/min
Cutting accuracy	±0.1mm
Control precision	±0.01mm
Repeat accuracy	±0.05mm

Intelligent 3D cutting

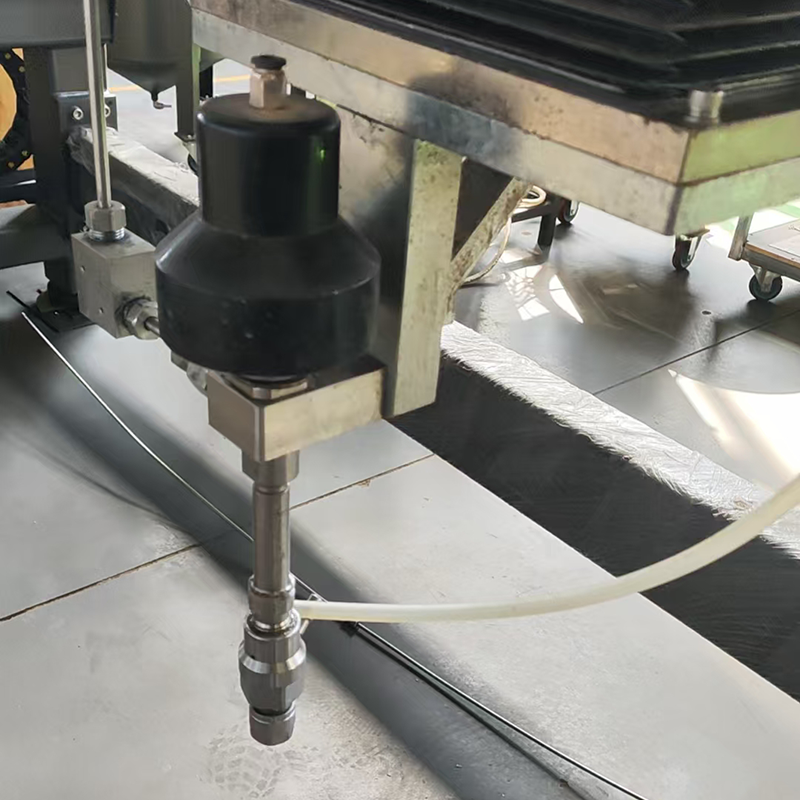

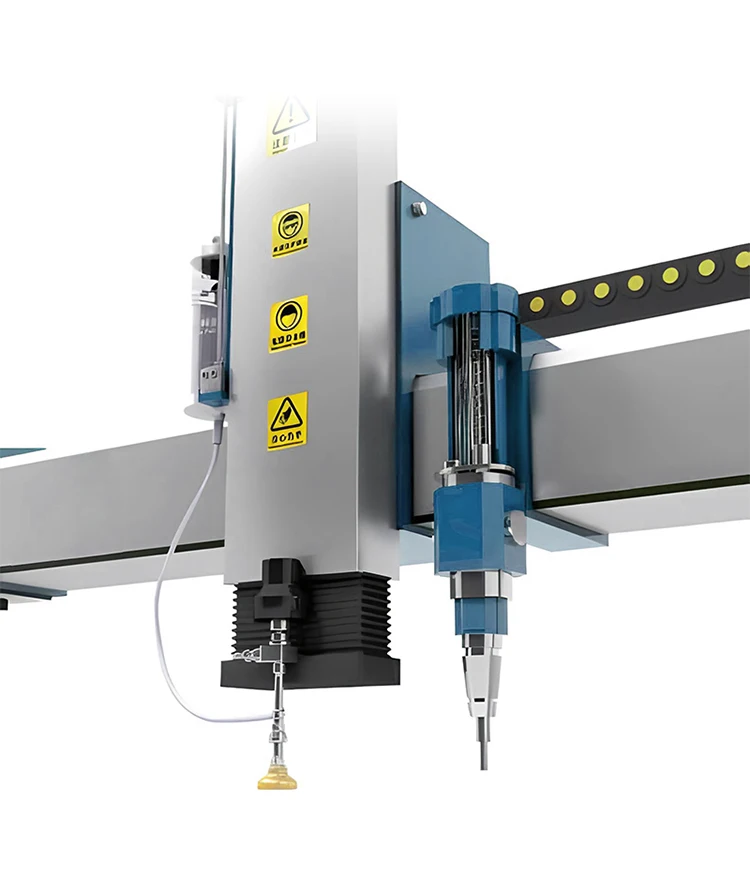

It enables fixed and variable angle 3D cutting within 90 degrees. The cutting head mechanism is crafted from aluminum alloy, boasting light weight, high strength and a small load. Under the reaction of 380Mpa high-pressure water, the offset of the cutting position is less than 0.01 mm, resulting in extremely high cutting accuracy.

What is the cutting precision of the waterjet cutter?

Our waterjet cutting machine has very high cutting precision, which can reach ±0.1mm. It can accurately cut various materials. Whether it is metal, stone, glass or ceramic, it can ensure smooth and neat edges.

What materials can the waterjet machine cut?

The waterjet cutting machine can cut a very wide range of materials, including metals (such as stainless steel, aluminum, copper, etc.), stones (marble, granite, etc.), glass, ceramics, rubber, plastics, composite materials, etc. Almost any material of any hardness can be precisely cut by a waterjet.

How long does is the life span of waterjet cutter?

Our waterjet cutting machine uses high-quality materials and advanced manufacturing processes and has a long service life. Under normal use and maintenance, it can generally be used for 8-10 years or even longer. Of course, the specific service life will also be affected by factors such as usage frequency, operation methods, and maintenance conditions.

How is the cutting speed of the waterjet cutter?

The cutting speed of the waterjet cutting machine depends on factors such as the thickness and hardness of the material being cut. Generally speaking, for thinner materials, the cutting speed is faster; for thicker or harder materials, the cutting speed will be correspondingly reduced. But in general, our waterjet cutting machine has a relatively high cutting efficiency among similar products and can meet the production needs of most customers.

Superior products and services are inseparable from an excellent team. Since its inception, LPMIE has always attached great importance to talent acquisiton and training, attracting numerous outstanding talents from around the world. LPMIE is resolute in adhering to and continuously enhancing the core principle of "people-oriented, customer first", constantly making contributions and persevering in self-improvement. It is not only a service provider for sellers but also a companion for development. Let's collaborate for a win-win future.

LPMIE's equipment enjoys wide popularity across the country and is also marketed in more than 70 countries including the,,, and so on. It offers more than 800 products including mixers, dryers, fillers, forging machinery, and additional varieties. Additionally, LPMIE has successfully completed turnkey projects for

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

60 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Key attributes 25 fields

Voltage

380V

Number of axes

Repeatability (x/y/z) (mm)

±0.001

Core components

Motor, Pressure Vessel, Engine

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

2000*1500*200mm

Key selling points

High-Accuracy

Rated power

37KW

Place of origin

China, Liaoning

Weight (kg)

5000

Table travel (x) (mm)

2000

Table travel (y) (mm)

1500

Table travel (z) (mm)

200

Cutting accuracy(mm)

0.1

Application

WATERJET CUTTING MACHINE

Type

Water Cutting Machine

Usage

Ultra High Pressure Cutting

Name

Water Jet Cutting Machine Part

After-sales Service Provided

Online Support

Keyword

Cutting Waterjet Parts

Control system

CNC Controller

Function

High Pressure Water Cutting

Cutting material

Stone Metal Glass.etc

Packaging and delivery 3 fields

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Product options 2 fields

Model number

1520

Effective cutting range (mm)

4000×2000, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 3000×1500, 3000×2000, 6000×2000, 2000×8000, 2500×1200, 3000×8000, 3500×2000

Lead time

60 days

Minimum order

1 Units
