Product video
Certifications CE(4) · RoHS(6) · FCC · MSDS(2) · REACH(2)

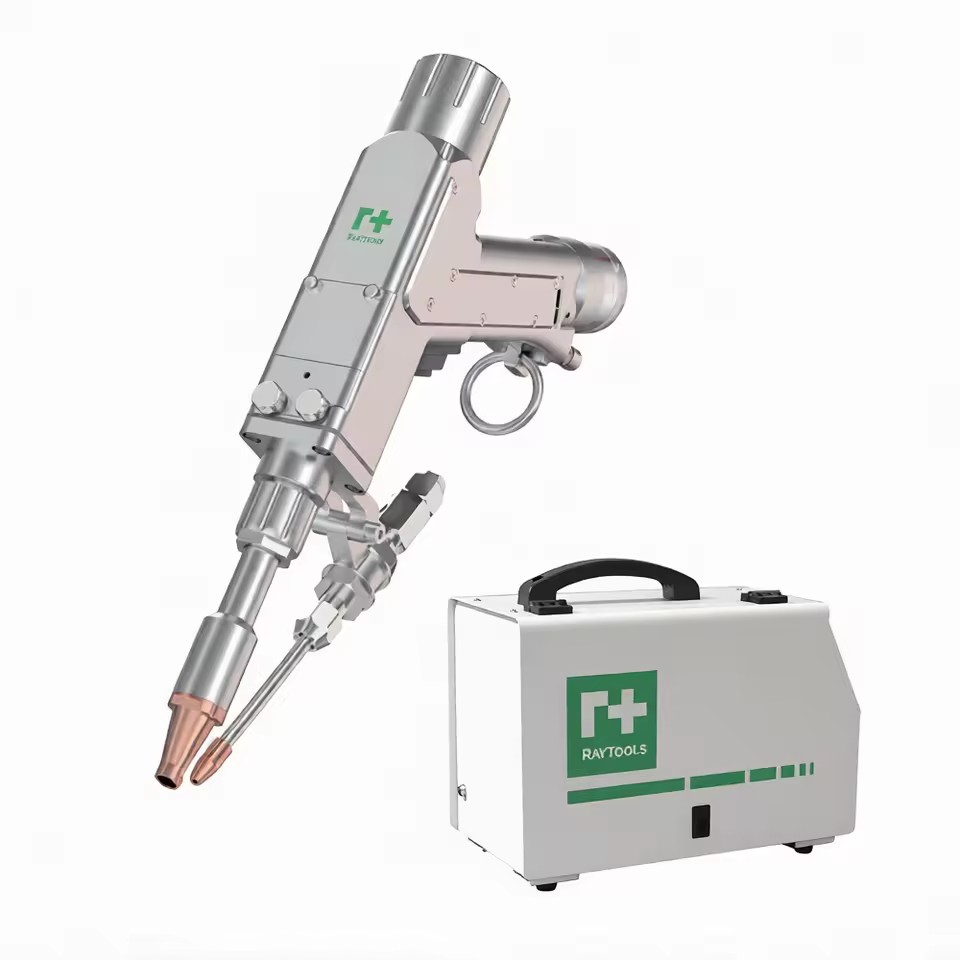

Raytools BW101-GS Laser Welding Gun 1500W 2000W 3000W Handheld Fiber Laser Welder Head Torch Kit for Stainless Steel Metal

Available for enquiry 0.0 · 0 reviews
USD

$ 970.00 970.0 USD $ 970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Spare parts type
Laser Component
Wavelength
1064 nm
Laser type
Fiber Laser
Accessory Type

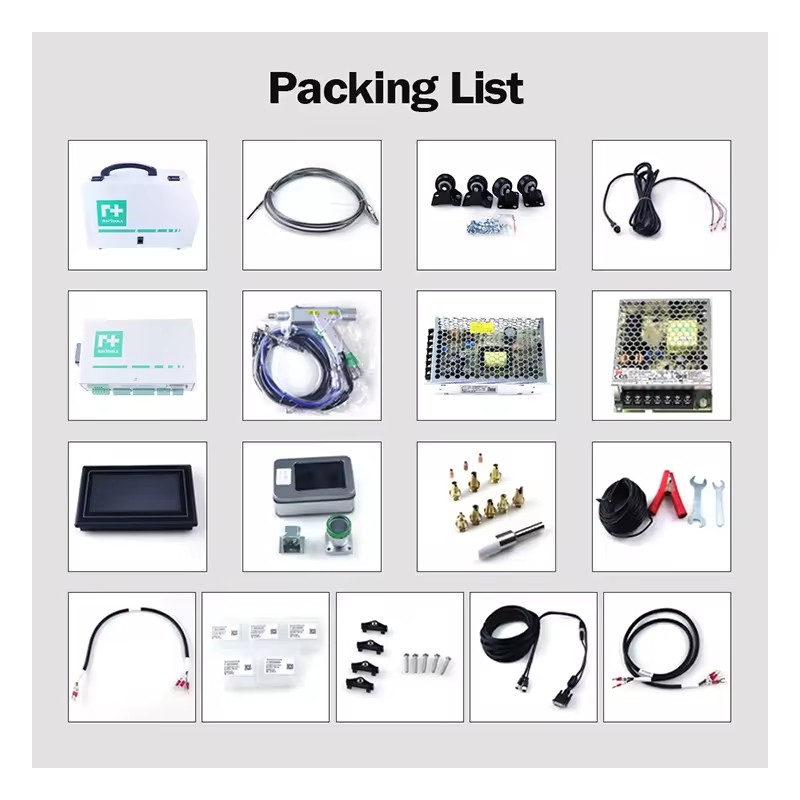

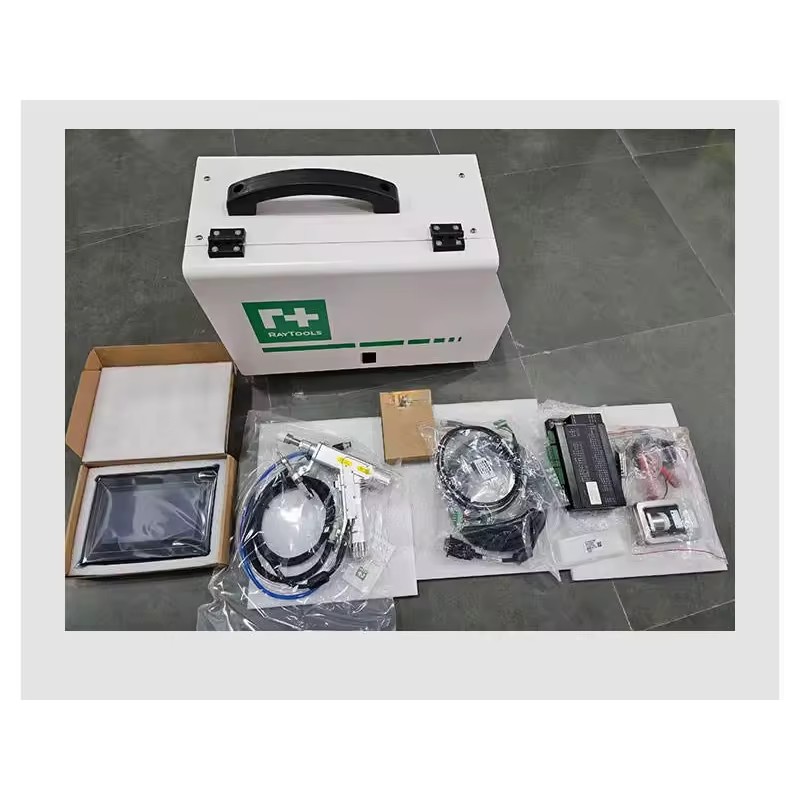

Power Supply, Driver, Interface, Mounting Bracket, Welding Nozzle, Protective Lens, Wire Feeder, Control Box
Key selling points
Long Service Life, Low Maintenance Cost, Ultra-lightweight 0.9kg, 4-in-1 Function
Warranty
1 Year
Product description

Highlights at a glance

  • REPLACE TIG/MIG WELDING - The BW101-GS handheld laser welding gun delivers 4-10x faster welding speed than traditional TIG/MIG methods. No slag, minimal heat-affected zone, and near-zero post-weld grinding. Metal fabrication shops report 60% labor cost reduction after switching to laser welding.
  • PLUG-AND-PLAY QBH CONNECTION - Standard QBH fiber optic connector mates directly with IPG, Raycus, MAX, JPT, and BWT laser sources. No adapters, no signal converters. Connect your 1500W-3000W fiber laser, set the parameters on the touch-screen control box, and weld within 5 minutes.

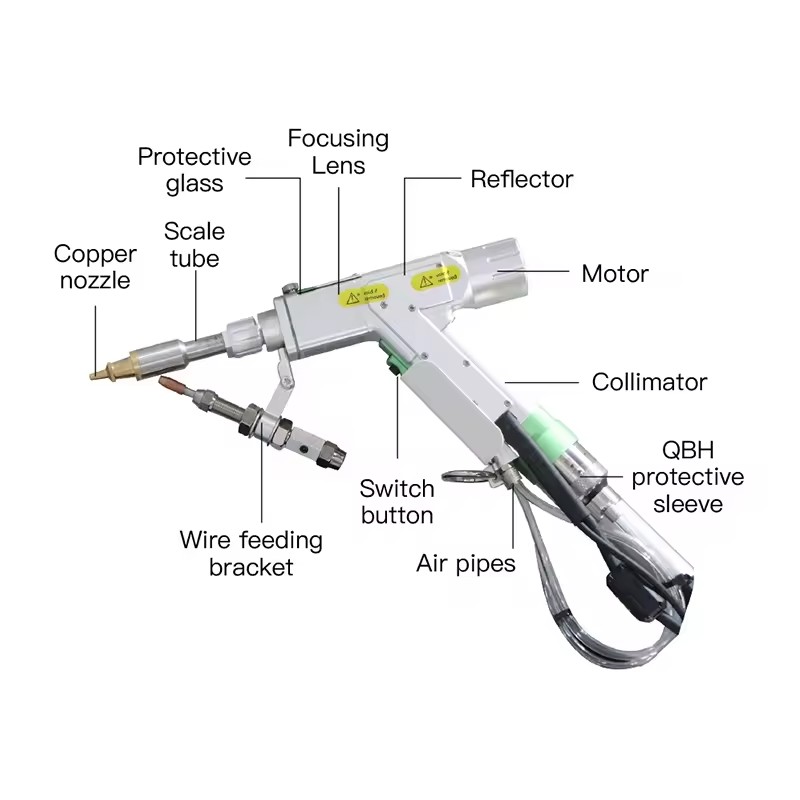

  • 0.9KG GUN BODY - The lightest handheld laser welding head in its class. Operators can weld overhead joints, vertical seams, and tight corners for hours without arm fatigue. Ergonomic pistol grip with green safety trigger and built-in interlock protection.

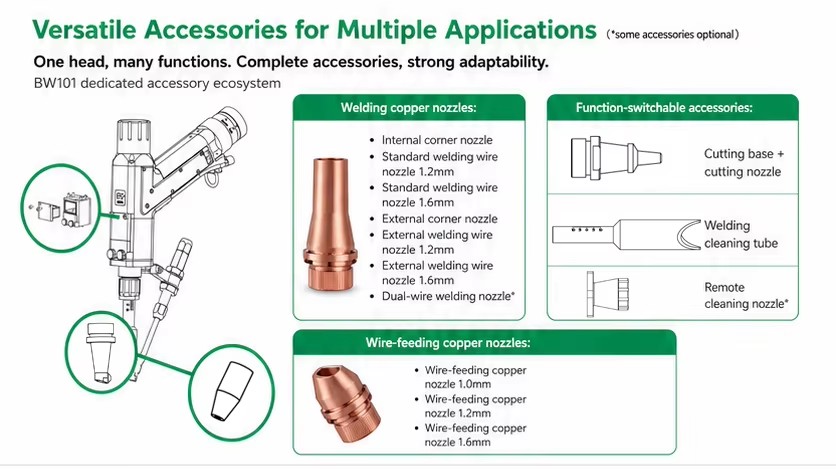

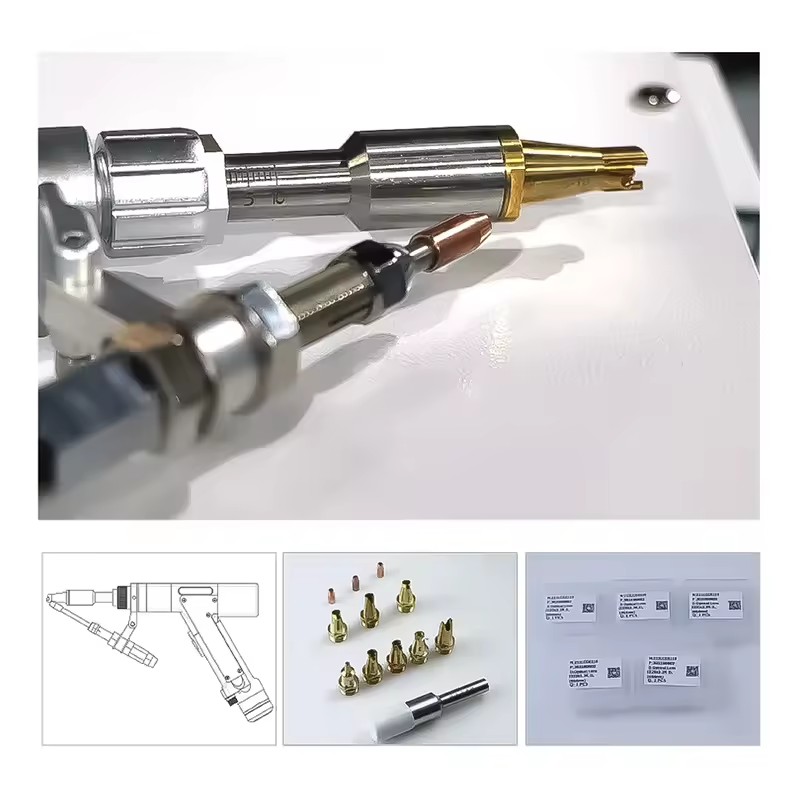

  • 4 MODES, 1 TOOL - Weld, cut, clean, and remote-clean with quick-change nozzle heads. Switch from welding stainless steel joints to removing rust from carbon steel surfaces in under 60 seconds. Eliminates the need for separate cleaning equipment and abrasive consumables.
  • MOTORIZED WOBBLE BEAM - Built-in oscillating motor creates a circular beam pattern (0-5mm adjustable diameter) for uniform weld penetration and wider seam coverage. Essential for welding aluminum, brass, and other reflective metals where a static beam risks back-reflection damage.
  • TOOL-FREE LENS CHANGE - Quick-release protective lens drawer lets operators swap D20*3mm lenses in 30 seconds without wrenches or screwdrivers. Consumable cost is under $2 per lens - a fraction of what competing welding heads charge for proprietary optics.
  • WATER-COOLED FOR 8-HOUR SHIFTS - Integrated water cooling channel maintains optical temperature stability during continuous production. No thermal lens drift, no power drop-off. Consistent weld quality from the first piece to the last, shift after shift.
    • Certifications & compliance
    CE(4)
    Complies with EU standards
    FCC
    Electromagnetic Compliance
    RoHS(6)
    RoHS compliant
    MSDS(2)
    Chemical Properties
    REACH(2)
    REACH Certified
    Frequently asked questions

    Yes, this is 100% original RayTools BW101-GS produced by Shanghai Jiaqiang Automation.

    It is designed for high-power fiber lasers up to 3000W.

    The head itself weighs only 0.9kg, making it one of the lightest on the market.

    Yes, it is a 4-in-1 terminal that supports welding, cutting, and two types of cleaning.

    It uses standard D20*3mm protective lenses (top and bottom are universal).

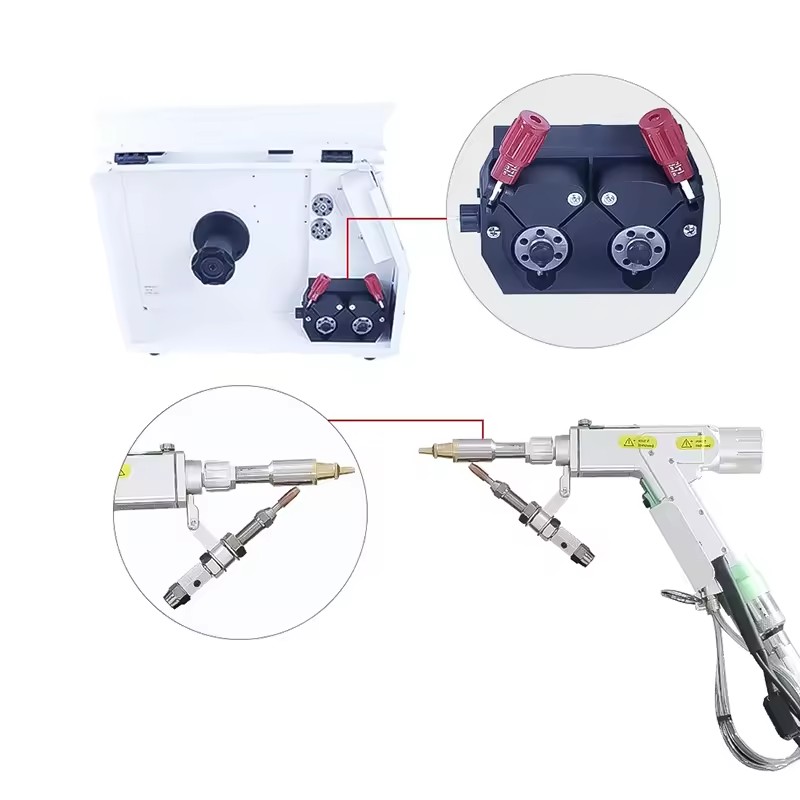

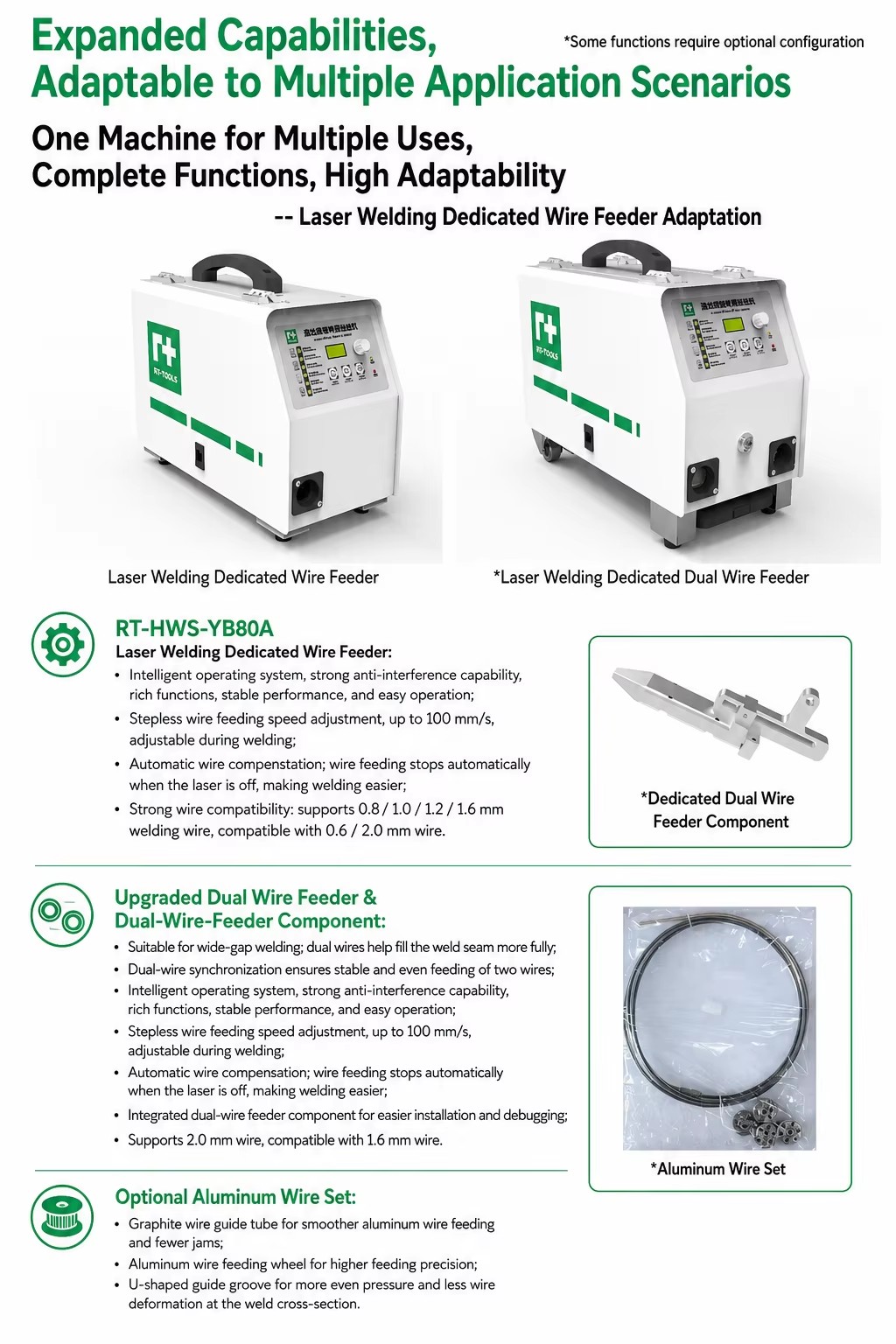

    Yes, it is compatible with most standard wire feeders. We also offer single/dual wire feeder kit options.

    The BW101-GS supports 1500W to 3000W fiber laser sources. For most sheet metal welding (0.5-2mm stainless steel or carbon steel), 1500W is sufficient. For thicker materials (2-3mm) or higher production speed requirements, we recommend 2000W or 3000W.

    It excels at welding stainless steel, carbon steel, aluminum, and various copper alloys.
    Description images

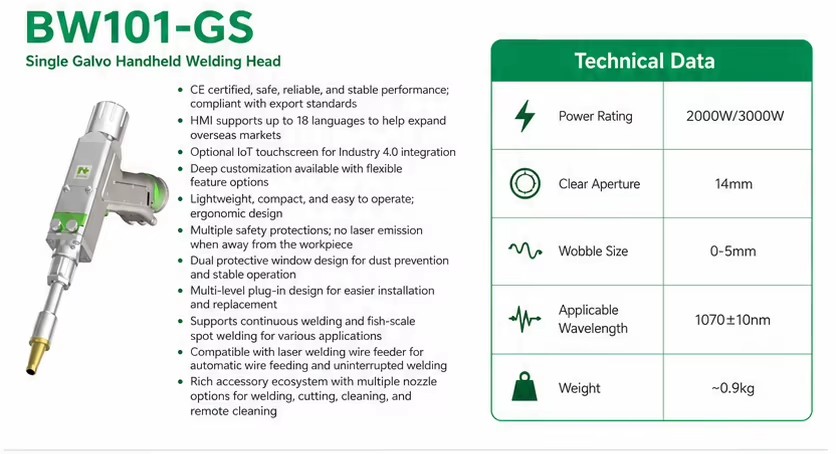

    Product detail

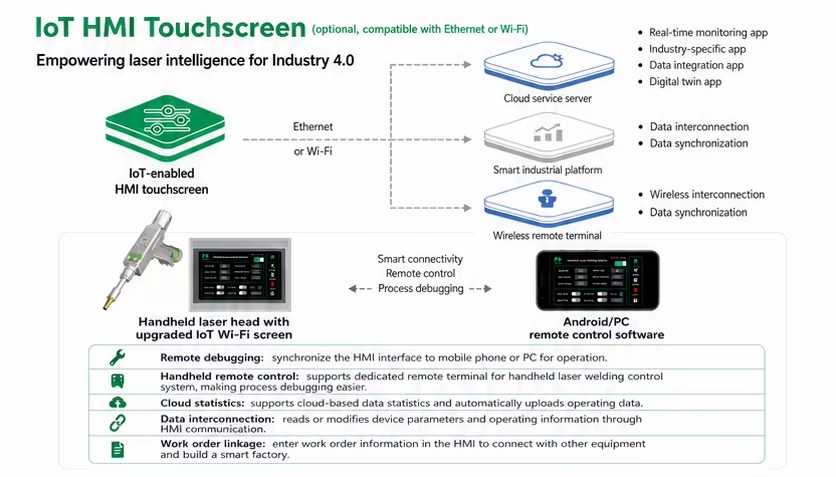

    Product detail
    Product detail
    Product detail
    CE(4)
    FCC
    RoHS(6)
    MSDS(2)
    REACH(2)
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      6 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 21 fields
    Spare parts type
    Laser Component
    Wavelength
    1064 nm
    Laser type
    Fiber Laser
    Accessory Type
    Power Supply, Driver, Interface, Mounting Bracket, Welding Nozzle, Protective Lens, Wire Feeder, Control Box
    Key selling points
    Long Service Life, Low Maintenance Cost, Ultra-lightweight 0.9kg, 4-in-1 Function
    Warranty
    1 Year
    Condition
    New
    Place of origin
    China, Jilin
    Weight (kg)
    0.9
    Rated power
    1500W / 2000W / 3000W
    Weld Head Weight
    0.9kg (Ultra-lightweight)
    Collimation Length
    60mm
    Focus length
    150mm
    Protective Lens Spec
    D20 * 3 mm
    Function Mode
    Welding, Cutting, Cleaning, Remote Cleaning
    Certificate
    CE/RoHS/REACH/FCC/ISO9001
    Selling Units
    Single item
    Single package size
    40X36X30 cm
    Single gross weight
    7.0 kg
    Model number
    BW101-GS
    Certifications & Compliance
    CE(4), RoHS(6), FCC, MSDS(2), REACH(2)
    Lead time
    6 days
    Minimum order
    1 Units
