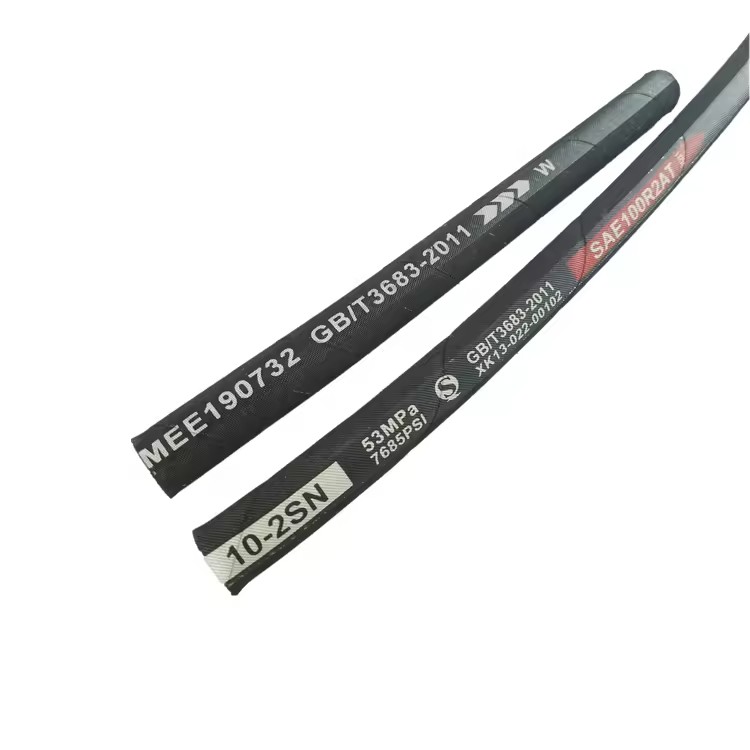

Industrial Rubber Fuel Oil Suction Hose/Hydraulic R4 SAE 100 R4 Flexible High-Pressure NBR Factory Cutting Service

Product Importer Gallery 01 · e6814b2de2

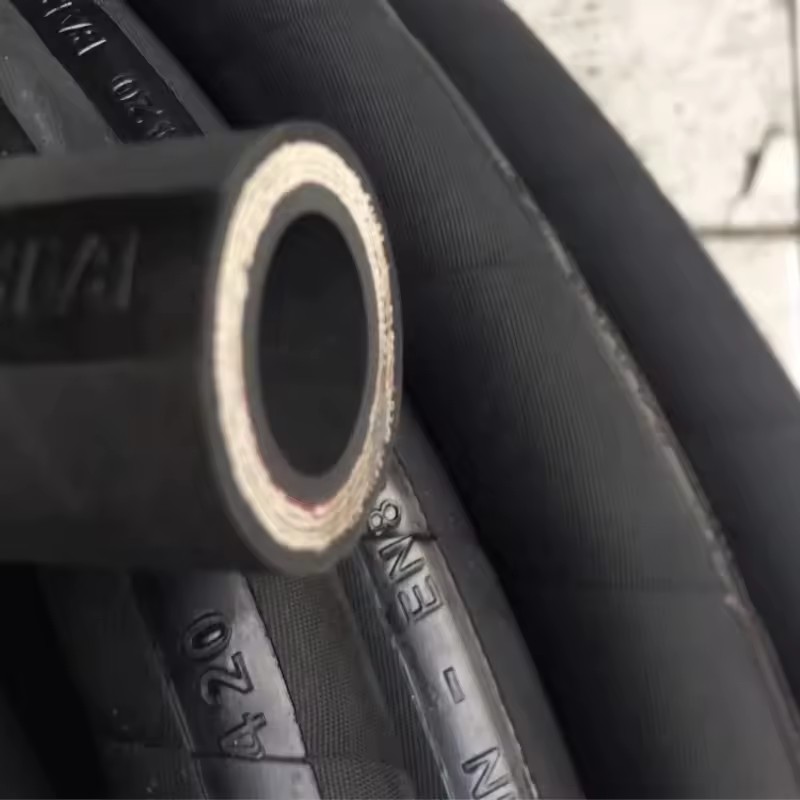

Product Importer Gallery 02 · f80cbfc1e4

Product Importer Gallery 03 · 81c18be8b1

Product Importer Gallery 04 · bc6c213ded

Product Importer Gallery 05 · 723b922847

Product video

Industrial Rubber Fuel Oil Suction Hose/Hydraulic R4 SAE 100 R4 Flexible High-Pressure NBR Factory Cutting Service

Name: Industrial Rubber Fuel Oil Suction Hose/Hydraulic R4 SAE 100 R4 Flexible High-Pressure NBR Factory Cutting Service
SKU: 569J-6E4S-RQKD
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews 212 sold

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 100 Units

Key attributes

View all

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Size

Customized Size

Color

Black

Length

Customized Length

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Approx. shipping fee: $ 113.70 for 100 meters · Estimated delivery: Sep 30–Oct 24 (22–46 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

item	value
Place of Origin
Hebei
Brand Name	XINCHI
Model Number	DIN
Processing Service	Moulding, Cutting
Size	Customized Size
Color	Black
Length	Customized Length
Material	NBR
MOQ	1pcs
Standard	SAE100RAT/DIN EN853
Sample	Free(Customer Pays Freight)
Quality	100% Product Testing
Reinforcement	1-6 Layers Wire
Warranty	12 Months

High Pressure Rubber Hose

Reinforcement	Number
One steel wire braided	SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK DIN/EN 1SN WG, DIN 1SC, SAE R5, SAE 100R17
Two steel wire braided	SAE R2AT/DIN 2SN, SAE R2AT/DIN 2ST, DIN 2SNK, DIN 2SC
One/two wire braided	SAE R16
Four steel wire spiral	SAE R9AT, SAE R10, SAE R12, DIN 4SP, DIN 4SH
High flexibility nylon or thermoplastic	SAE R7, SAE R8

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	9	10	11.1	13	25	50	100	85
6.3	1/4	10.6	11.6	12.7	14	22.5	45	90	100
8	5/16	12.1	13.3	14.3	16	21.5	43	86	115
10	3/8	14.5	15.7	16.7	18	18	36	72	130
12.5	1/2	17.5	19.1	19.8	21	16	32	64	180
16	5/8	20.6	22.2	22.9	25	13	26	52	200
19	3/4	24.6	26.2	26.9	29	10.5	21	42	240
25	1	32.5	34.1	34.6	37	8.8	17.6	35.2	300
31.5	1-1/4	39.3	41.7	42.2	45	6.3	12.6	25.2	420
38	1-1/2	45.6	48	49.1	52	5	10	20	500
51	2	58.7	61.7	62.5	66	4	8	16	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	10.6	11.6	12.7	14	41.5	83	166	90
6.3	1/4	12.1	13.3	14.3	16	40	80	160	100
8	5/16	13.7	14.9	15.9	17	35	70	140	115
10	3/8	16.1	17.3	18.3	20	33	66	132	130
12.5	1/2	19	20.6	21.4	23	27.5	55	110	180
16	5/8	22.2	23.8	24.6	26	25	50	100	200
19	3/4	26.2	27.8	28.5	30	21.5	43	86	240
25	1	34.1	35.7	37.3	39	16.5	33	66	300
31.5	1-1/4	43.3	45.7	47.1	50	12.5	25	50	420
38	1-1/2	49.6	52	53.3	56	9	18	36	500
51	2	62.3	64.7	66	69	8	16	32	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
10	3/8	16.9	18.1	20.6	22.2	44.5	89	178	180
12.5	1/2	19.4	21	23.8	25.4	41.5	83	166	230
16	5/8	23	24.6	27.4	29	35	70	140	250
19	3/4	27.4	29	31.4	33	35	70	140	300
25	1	34.5	36.1	38.5	40.9	28	56	112	340
31.5	1-1/4	45	47	49.2	52.4	21	42	84	460
38	1-1/2	51.4	53.4	55.6	58.8	18.5	37	74	560
51	2	64.3	66.3	68.2	71.4	16.5	33	66	660
64	2-1/2	76	78	83.1	85.5	35	70	140	990
76	3	100	103	105.1	108	35	70	140	1200
89	3-1/2	114	115.5	118	122	35	70	140	1300
102	4	126	128	131	134.2	35	70	140	1400

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
19	3/4	27.6	29.2	31.4	33	42	84	168	280
25	1	34.4	36	37.5	39.9	38	76	152	340
31.5	1-1/4	40.9	42.9	43.9	47.1	32.5	65	130	460
38	1-1/2	47.8	49.8	51.9	55.1	29	58	116	560
51	2	62.2	64.2	66.5	69.7	25	50	100	700

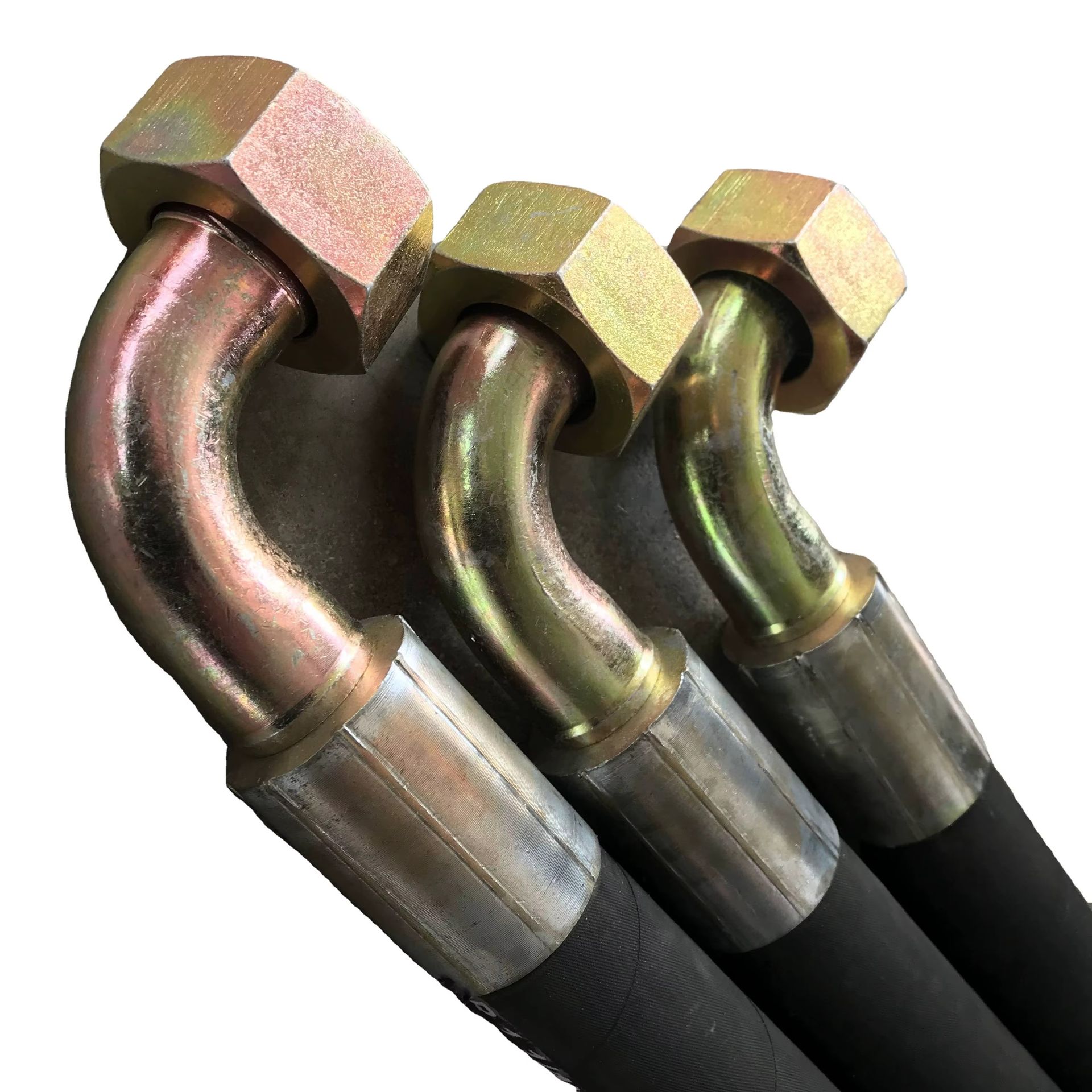

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

8 days
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 113.70 for 100 meters · Estimated delivery: Sep 30–Oct 24 (22–46 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 16 fields

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Size

Customized Size

Color

Black

Length

Customized Length

Material

NBR

MOQ

1PCS

Standard

SAE100RAT/DIN EN853

Sample

Free(Customer Pays Freight)

Quality

100% Product Testing

Reinforcement

1-6 Layers Wire

Warranty

12 Months

Selling Units

Single item

Single package size

100X5X5 cm

Single gross weight

1.0 kg

Lead time

8 days

Minimum order

100 Units
