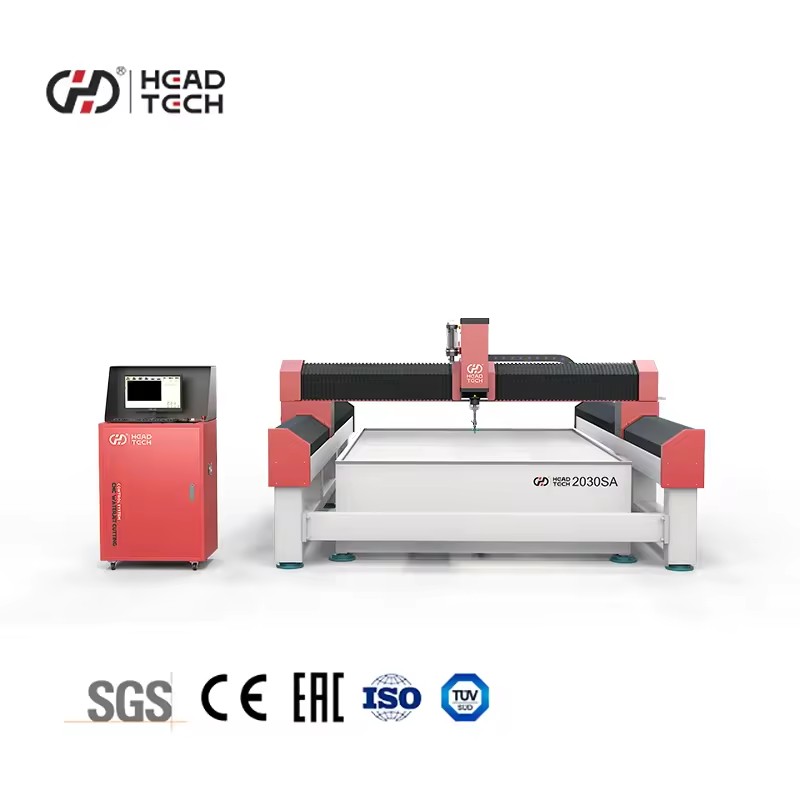

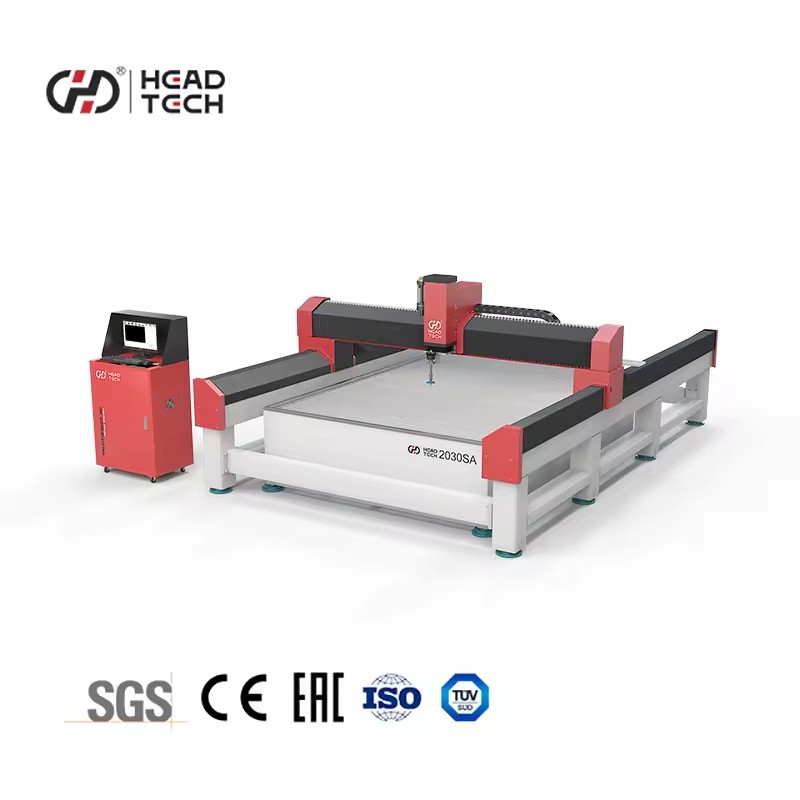

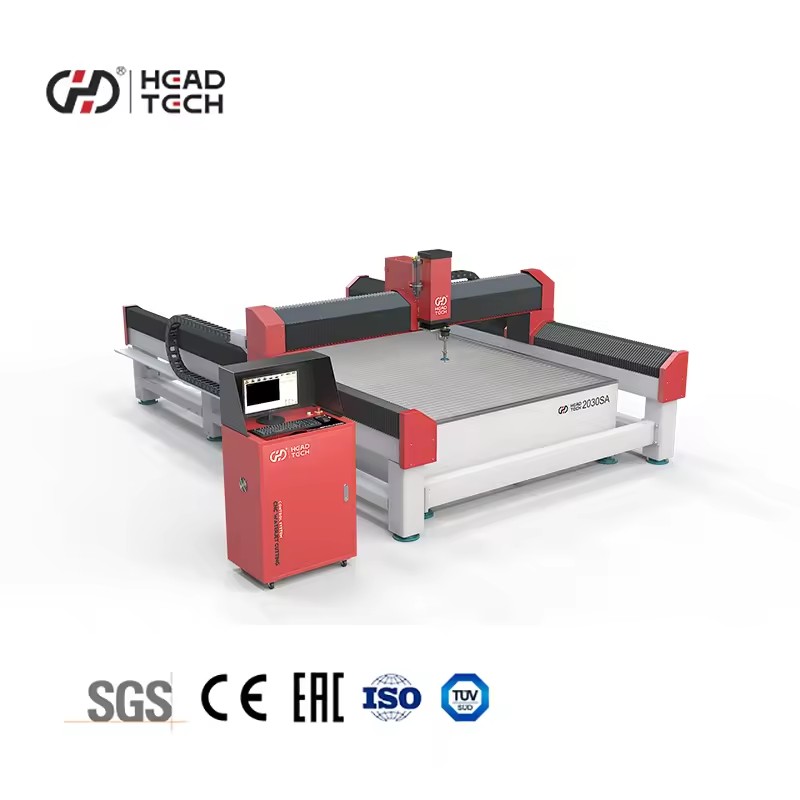

Universal 2030SA Water Jet Cutter Machine for Metal, Marble, Ceramic Tiles

Design Machinery for Ceramic Waterjet Cutting Stone Tile Granite Countertop CE Certifications Core Pump Motor Engine

Model

HEAD2030SA

Journey

2000mm*1500mm

Z axis max journey

150mm

X Y axis feeding speed

9m/min

Cutting accuracy

0.1mm

Max working pressure

420Mpa

Continus working pressure

380Mpa

Power supply requirement

380v 50HZ

Software brand

Weihong brand

Recommended by seller

$45,000

set

$35,000-55,000

$65,000

$55,000

piece

$56,000-58,000

Product Description

Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantagesuch as

compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a

tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no

pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications

including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut

rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.

Intelligent operation software

Ncstudio software is a cutting software specially customized and developed for the water cutting industry. It is easy to operate

user-friendly, and suitable for various types of processing occasions.

Intelligent Control 3D Cutting

It can achieve three-dimensional 3D cutting, with strong rigidity of the blade mechanism, made of aluminum alloy material, light

weight, low load, and a cutting position deviation of less than 0.01mm under the reaction of 380Mpa high-pressure water, ensuring

high cutting accuracy.

Fourth generation aviation aluminum alloy crossbeam

Processing is carried out using T6 heat treatment technology, which has high strength and strong deformation resistance. Solution

treatment improves the strength and plasticity of the crossbeam, optimizes weight reduction, and accelerates movement speed.

Optional wireless remote control handle eliminates the constraints of cables, providing a more flexible operating experience. Real

time display of travel values for more flexible control of equipment operation

Specification

Company Profile

water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the

focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research

manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting

aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting

machine in Liaoning, with more than 15 years full experience and a professional sales team. water jet, so cutting is no

longer a problem!

Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and

develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the

advantages of high technology.

Service & FAQ

1. Maintenance free of charge for 12 months.

2. We will provide the consumable parts at an agency price.

3. 24 hours online service, free technical support.

4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls

kindly tell me.

5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send

professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD

drawing, common problems and solution, etc.

Q1: Does This Machine Pass CE Certificate?

A2: Yes, this machine passed European CE certificate and meet Safety Standard.

Q2: How much of cutting thickness?

A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm

aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm

stones. It is good for customers cut thicker materials.

Q3: How fast of speed?

A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
