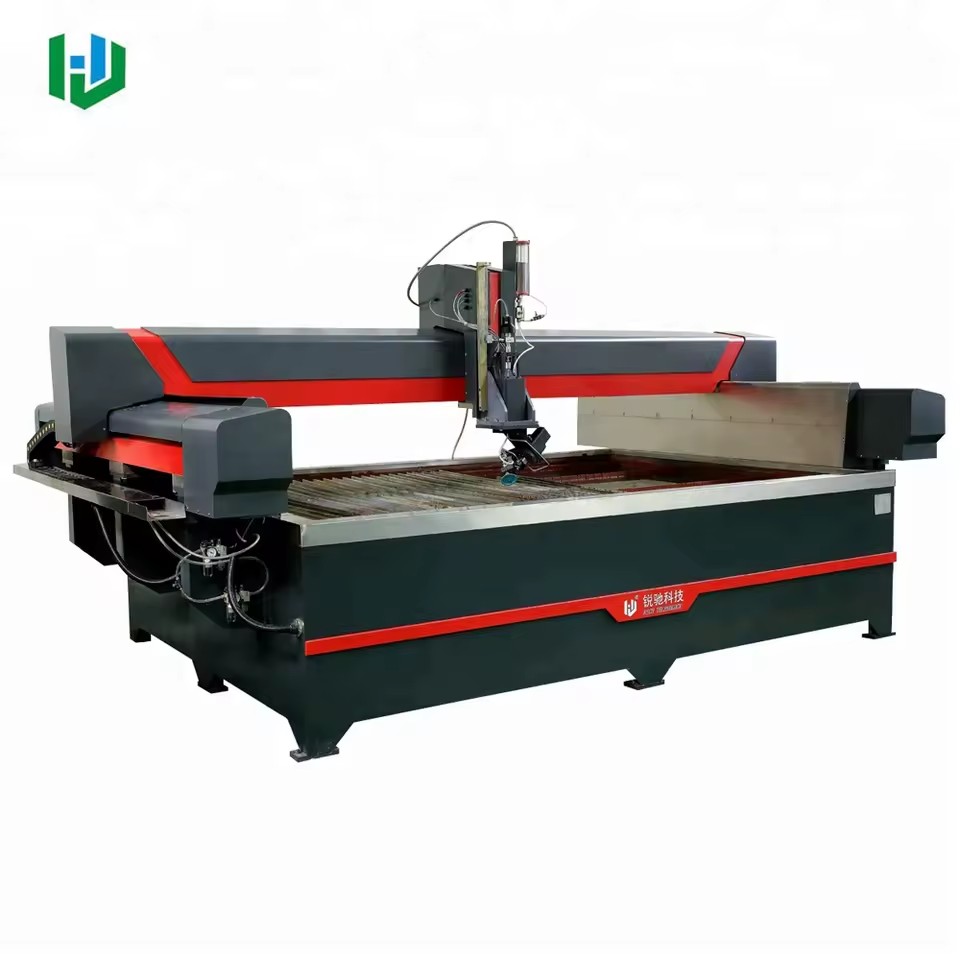

CNC High Pressure Granite Cutting Machine Waterjet RC4025 AC 5-Axis

Cutting Table

Code

RC4025

Structure

Bridge

X and Y Axis Beam

Material: Ductile Cast Iron (S.G.Iron) Process: Extra High Accuracy Calibration

Accuracy

Cutting: ±0.1mm

Repeat Positioning: ±0.05mm

Lead Rail

Oil-immersed, Ball-screw and linear guide

Loading Dimension

4000mm (X-Axis) ✖ 2500mm (Y-Axis)

Turning Table

Optional

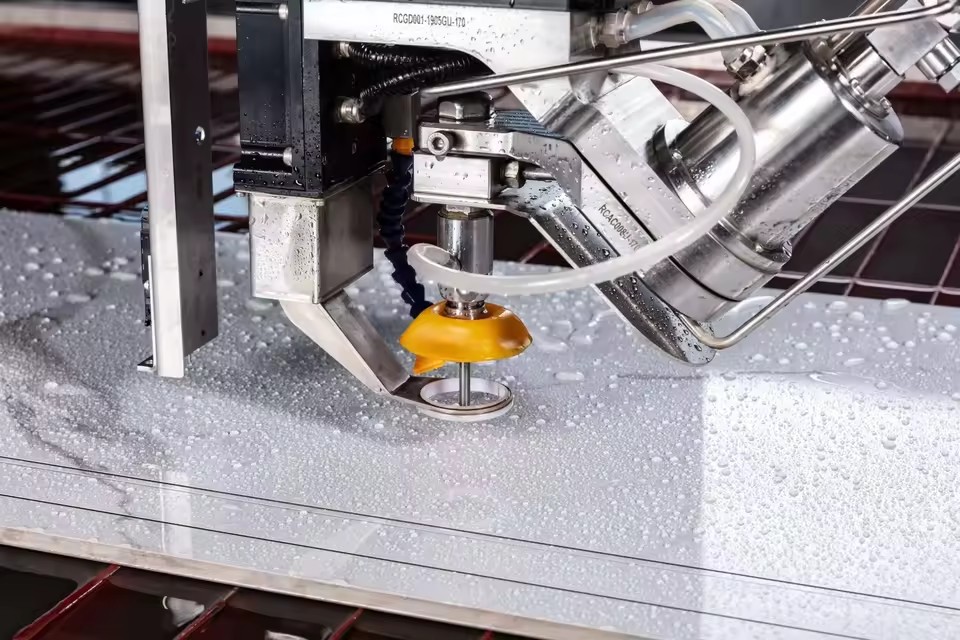

Cutting Head

Name

AC 5-Axis

Cutting Stroke

X-Axis: 3600mm

Y-Axis: 2300mm

Z-Axis: 60~80mm

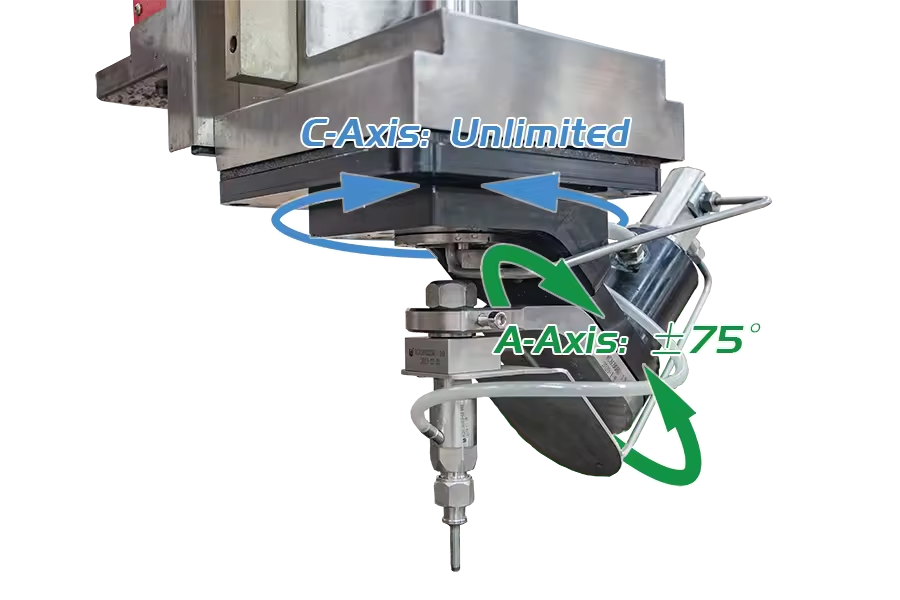

Rotation Range

A-Axis: ±75°

C-Axis: Unlimited

Level Checking

Laser Level Checking

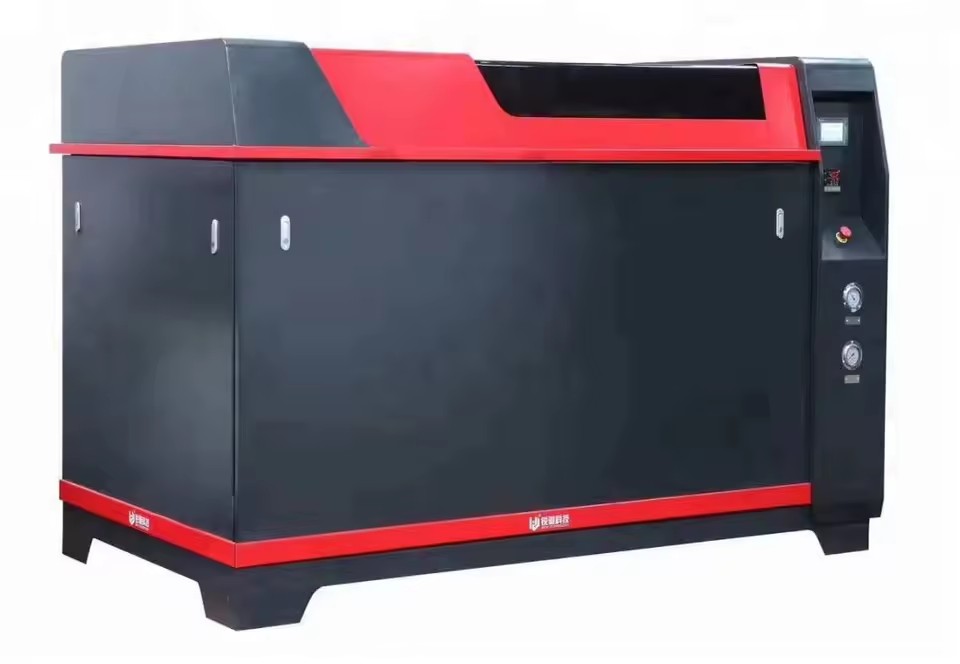

Intensifier Unit

Main Motor Power

37kW

Maximum Pressure

450 mPa (65 kpsi)

Regular Operating Pressure

350~380 mPa

Power Supply

380V 50Hz / customized

Accumulator

Some Parts

UI Monitor

Reminding daily maintenance, error alarm, self-diagnosis function available

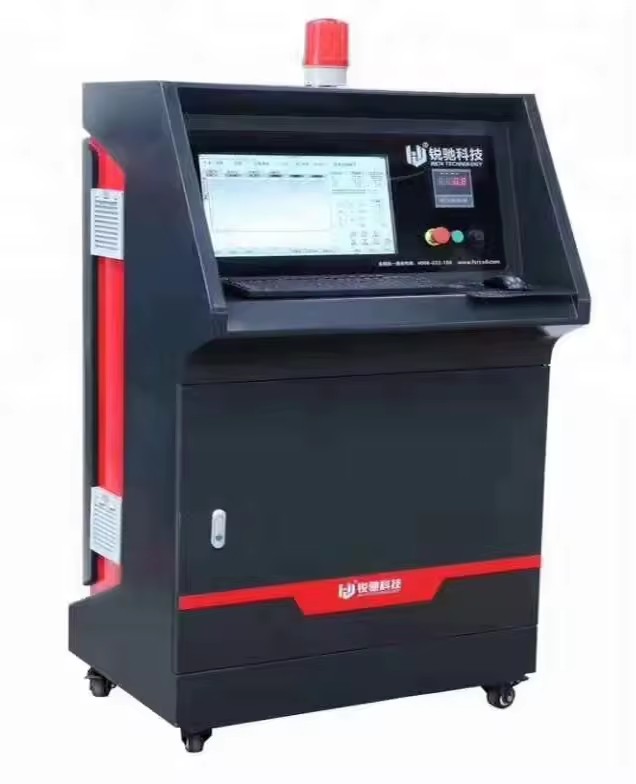

CNC Main Controller

Monitor Size

19" / 19 inches

Controll System

WeiHong

Drawing Format

Front Panel

USB port, pressure monitor etc.

TCP/IP Function

Available

Servo Motor

WeiHong or Customized

Auto Alarming

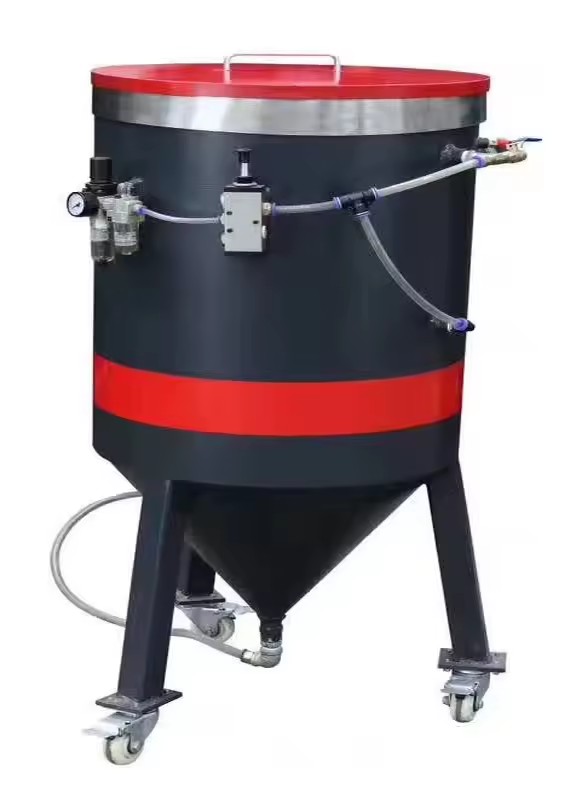

Arasive Feeding System

Abrasive Storage

Maximum: 200 Kg

Cutting Head Supported

Maximum: 2

Company Profile

is a professional waterjet machinery manufacturer.

With our own R&D team, RICH has a strong supply ability for accessories, full-set machine after-sales service and highly customized machinery.

RICH products are not only leading in domestic sales, and also exported to many countries and regions such as:, America, Europe, Middle East

Southeast Asia.

Product Specification

Material: Ductile Cast Iron (S.G.Iron)

Process: Extra High Accuracy Calibration

Packaging and Delivery

Professional Packaging For Overseas Delivery

As a waterjet machinery manufacturer we delivery over 100 sets to overseas market each year. Accumulated packaging and loading experience allows us to provide perfect protection to our machine. Minimizing the transporation risk is our goal. RICH Waterjet focus on stability and water jet cutting machine value.
