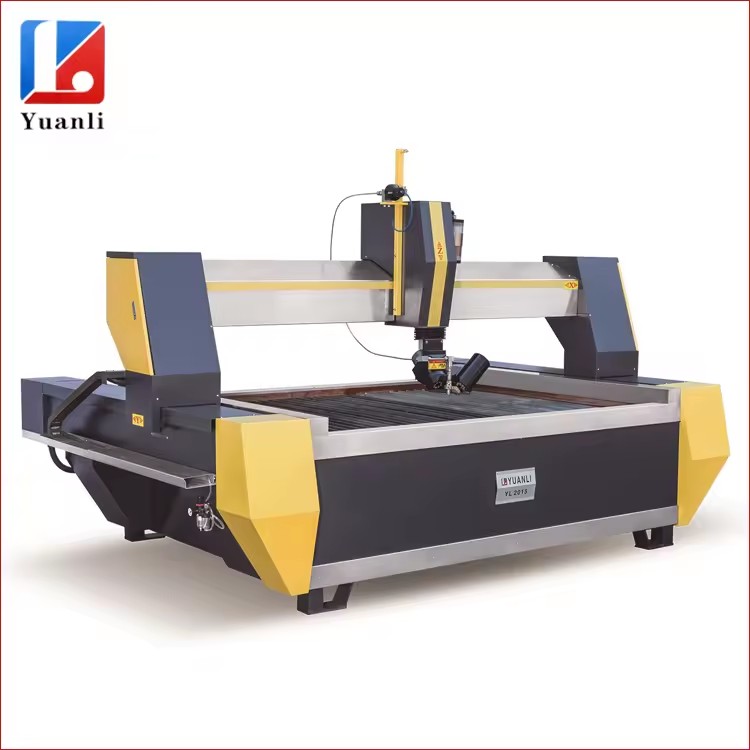

YL-3020 AB 5 Axis Waterjet Small Waterjet Cutting Machine We Can Cutting Any Material

Small waterjet five axis water jet works by triaxial add two axis of rotation, namely C axis and B axis, can make any swing cutting head, the entire intelligent control system completely.

Technical Parameters

Model

YL-3020

Cantilever

Gantry

Platform dimensions

3000*2900

3300*2500

Travel

2000mm*1500mm

CNC control system

AC servo system

Cutting accuracy

±0.1mm

Repeatability

±0.01mm

Vo

Fast positioning accuracy

±0.025mm

voltage

220V/380V/415V

Power

50/60Hz

C water jet can cut on any plane and material such as glass,granite, marble and steel plate etc., the cutting materials' thickness can be reached to 150mm maximum; It can enhance the productivity efficiency substantially by installing the reliable pneumatic high pressure water switch control device on the cutting head;and the unique sand valve design makes the sand flow more smoothly and easier to be cleaned.Our company can customize different sizes according to user requirements;and our products and design can also ment the traditional consumers' habits,The pursuit of high-quality low-consumption products, to provide a wide range of after-sales service is our commitment to each client.

YL-3020 AB 5 Axis Waterjet small waterjet cutting machine We can cutting any material

Product DescrIption

Advantage

5 axis can realize the any angle of cutting within the range of ±5 degrees,and it has the superior performance during the machining process by marble, ceramics, etc. When the cutting head is less than 2-4 degrees, two pieces of the work piece can have the effect of the upper surface has almost no crack and the lower surface has horn mouth. That means you needn't to do the secondary machining, and it can improve the efficiency, decrease the investment in machining, improve the environment and improve the quality of parquet. At present, it is widely used in the parquet, especially for ceramics, stone, glass, metal, etc. It is the advanced version of free polishing in the traditional parque.
