1.Working Table & Controllor
Model
2015
2515
3020
4020
6020
Dimension(mm)
2650*2150mm
3100*2150mm
4500*2300mm
5250*2300mm
7250*2300mm
Max. cutting range
2000*1600mm
2000*1500mm
3200*1750mm
4000*1750mm
6000*1750mm
Travel of Z axis
180mm
Servo system
Weihong,OEM Panasonic
ball-screw linear-rail
ABBA/TBI, Brand
Re-positioning accuracy
±0.025mm/m
Cutting accuracy
±0.1mm
Max. running speed
15m/min
lubrication
Oil Immersion
Material
203stainless steel material tank,cast steel beam,rubber and stainless steel cover
Dimension(L*W*H)
1800*1000*1400mm
Weight
1200Kg
Power rate
37kw/50hp
Max. pressure
550Mpa /5500bar
Working pressure
350-450Mpa
Max. oil discharge
104L/min
Max. Flow rate
4.2 L/min
Power supply
380 V 50hz
Water supply
≥15.1L/min
Accumulator
1.5liter
Hydraulic system
Bosch Rexroth
Main Motor
Siemens Brand
Φ of orifice
0.30-0.33mm
AC220V 50/60Hz
Drawing system
Auto-CAD
Computer system
Windows 7
Function
Remoter controller
screen
Apply 19 inch LCD
Water jet software NC-Studio-V10
Support DXF file and NC code
±0.05/1000mm
±0.15/1000mm
Max. prussure
420mpa
A-Axis Roteting Angle
±10°
B-Axis Roteting Angle
Bevel cutting
±5°
IDE Integrated cutting head working life 1500 hours each one.
700*700*1350mm
80kg
Max. capacity
200kg
Max. air pressure supply
2bar
software controlling motor adjustting regulator
Eliminates abrasive waste
Product Description
00:00
00:50
Advantage of PMT waterjet cutting machine
1. Smooth cutting quality is.
G
erman Rexroth hydrualic and siemens motor and eletric part.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
About size, we have
4000*2000 mm, 3000*2000mm, 2000*1500mm, 2500*1550mm, 6000*1950mm
ect, which you want?

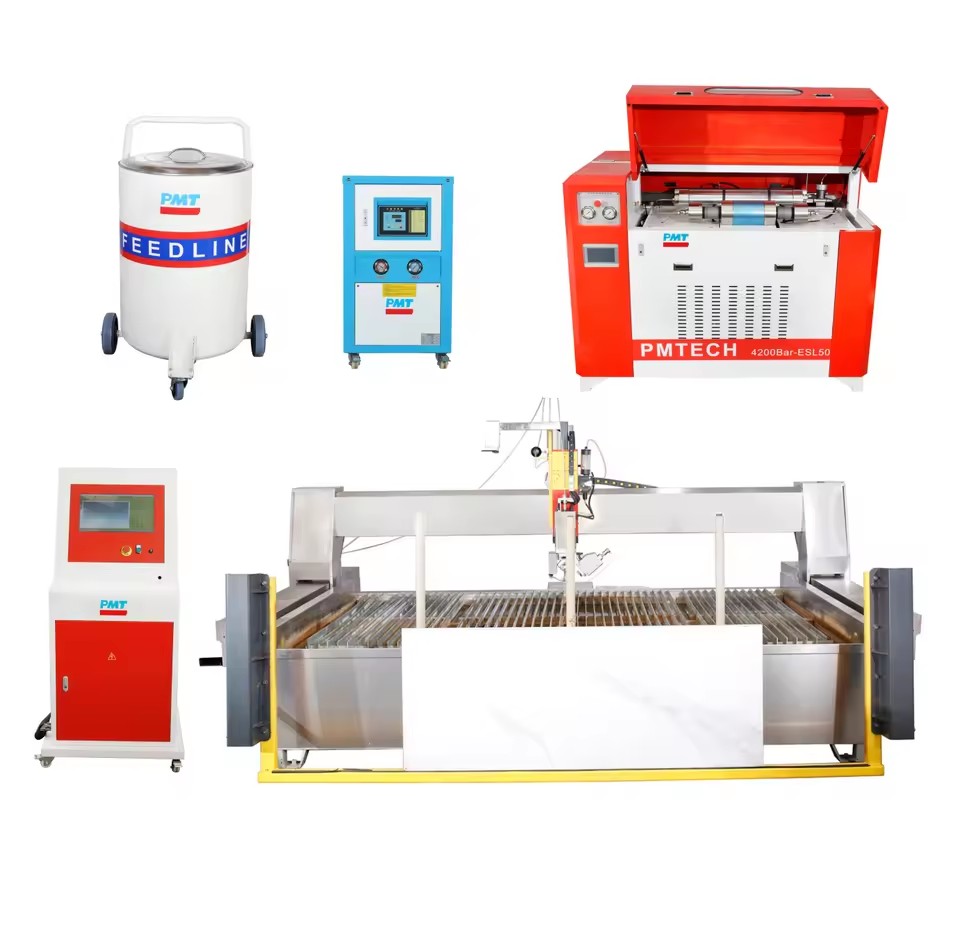

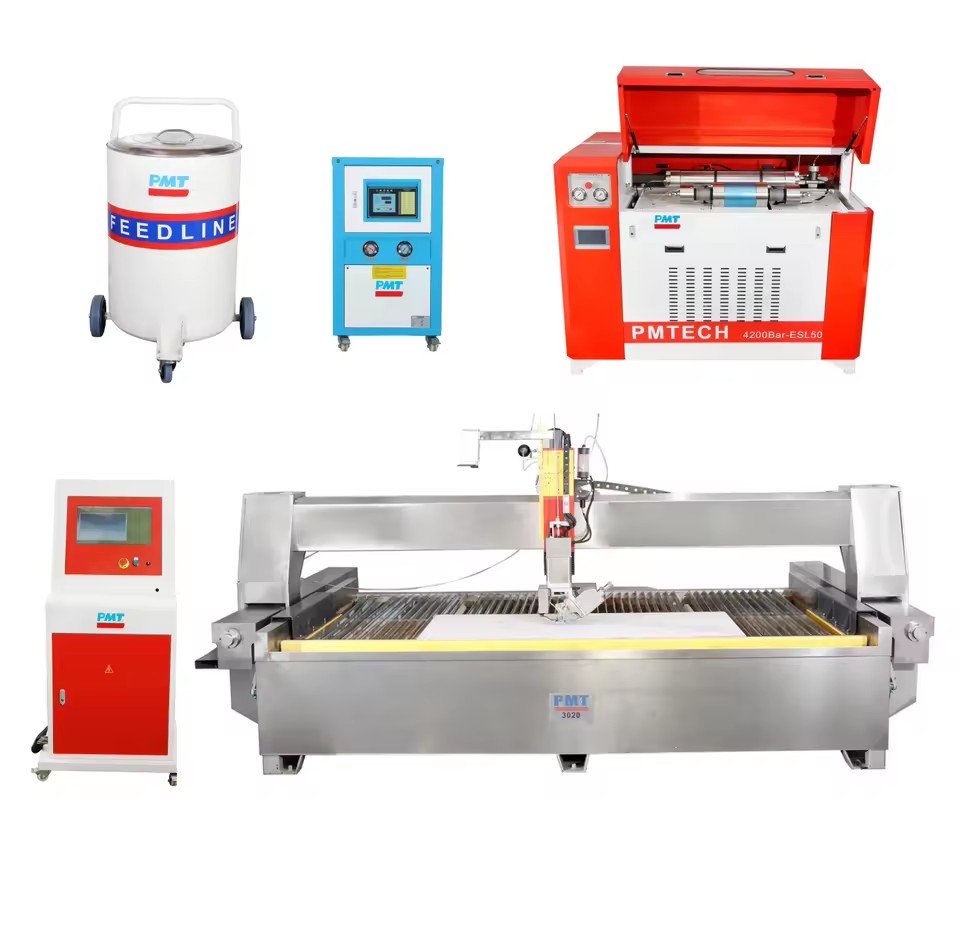

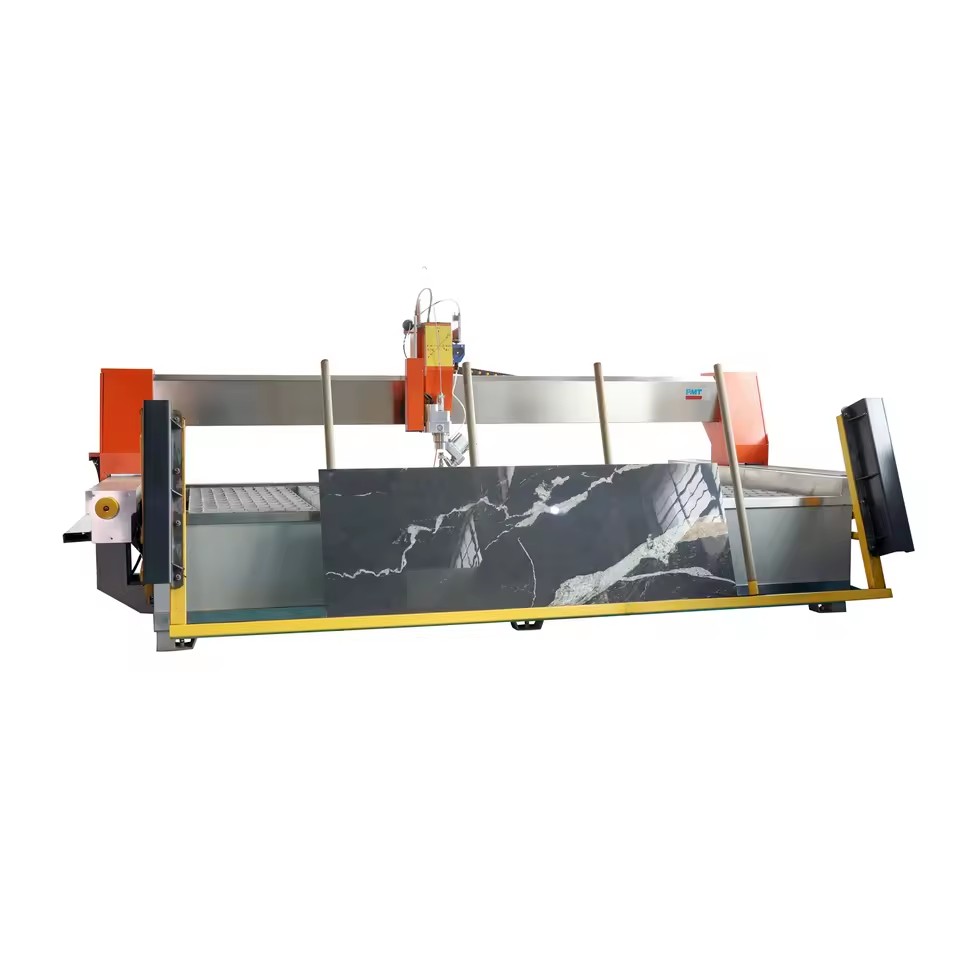

PMT waterjet cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis,suitable for processing a variety of complex big size parts.
The cutting table is a 2-D pc-controlled table, consisting of Y-axis, catcher, X-axis, Z-axis (cutting head rest), cutting head,high pressure hose, and the abrasive box. Both the X axis and the Y-axis are installed with linear guide and ball screw.
2.

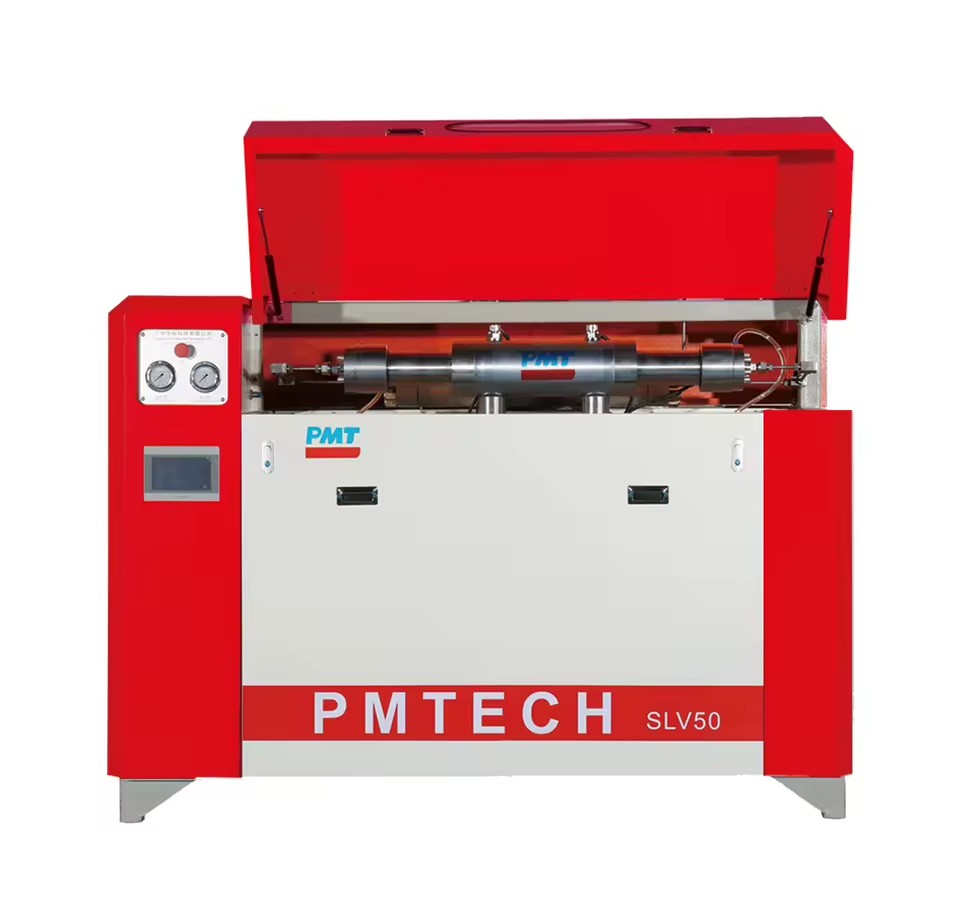

SLV 50 High presssure pump structure
It is includes water supply system
Hydraulic system
Waterjet Intensifer system
Electrical control system.
The Intensifier part is,the motor is Greman Siemen motor.
The main engine needs two water sources for cutting and cooling, thus we need two drainages: the cooling water drainage and the water leakage drainage.
Special definition is listed below
Cutting water: The intensifier must be supplied with water of 20-1000psi (1.4-6.9bar). The input water should not less than the output water by 1.5 times.
Cooling water (for the heat exchanger): The heat exchanger is used to adjust the accumulated heat in the hydraulic oil.

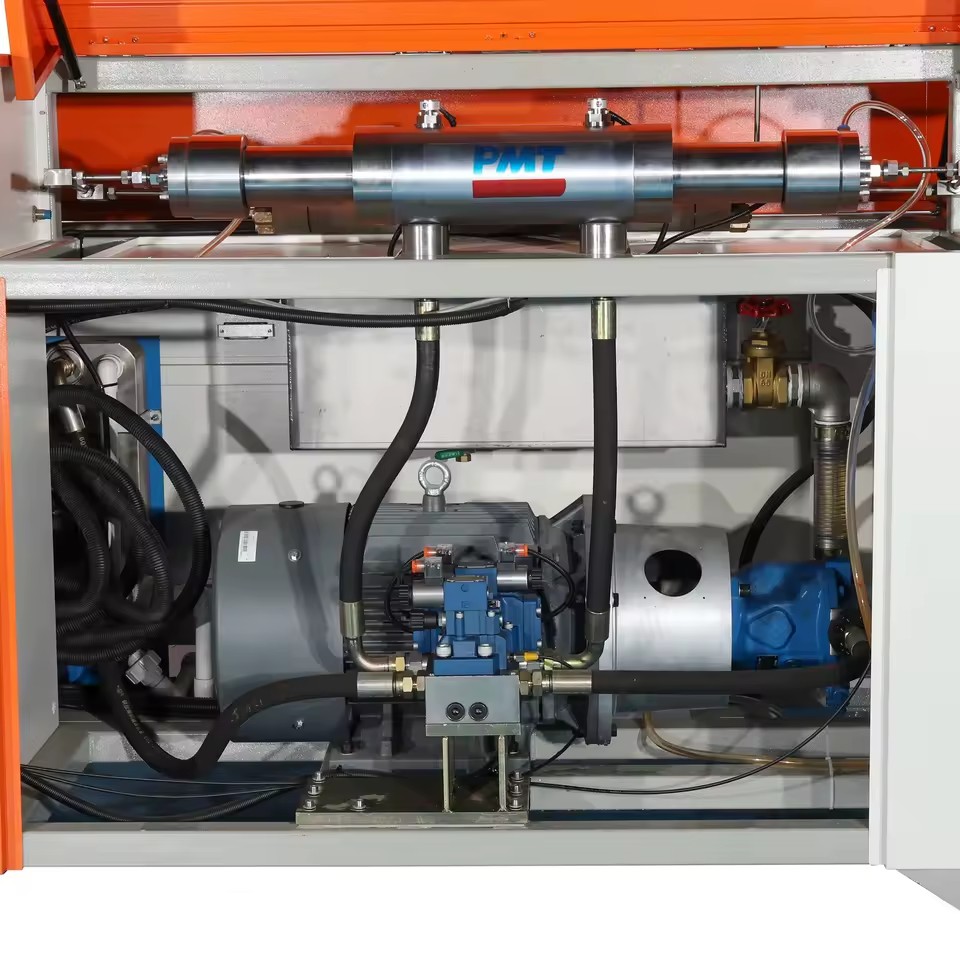

The hydraulic system consists of pressurization, filtration, and cooling systems. The intensification principle is: a motor of
37kw drives the hydraulic pump, then the pump will pressurize the hydraulic oil up to 20Mpa max.
The intensification system mainly refers to the intensifier, but it also includes other components in the water circuit that make the lower pressure water into high pressure water. Specifically, it includes intensifier, accumulator, high pressure tube,connector etc. Intensifier is main part of the intensification system. A section for the intensifier 's principle, structure, and maintenance is contained in this manual.
④
Electrical control system
The electric control system is integrated into the control panel, including PC, control circuit. This control system is used to start/stop the main engine and adjust the speed. The function of the display, buttons and knobs on the panel is listed below.
"power indicator" "voltage meter" "currency meter" "master switch" "Pump & main engine switch" "high pressure/abrasive switch" "emergency stop"
3.
Swing-Arm PC Controller
、
Water jet software
NC-Studio-V10
Support
DXF
file and NC code
4.A

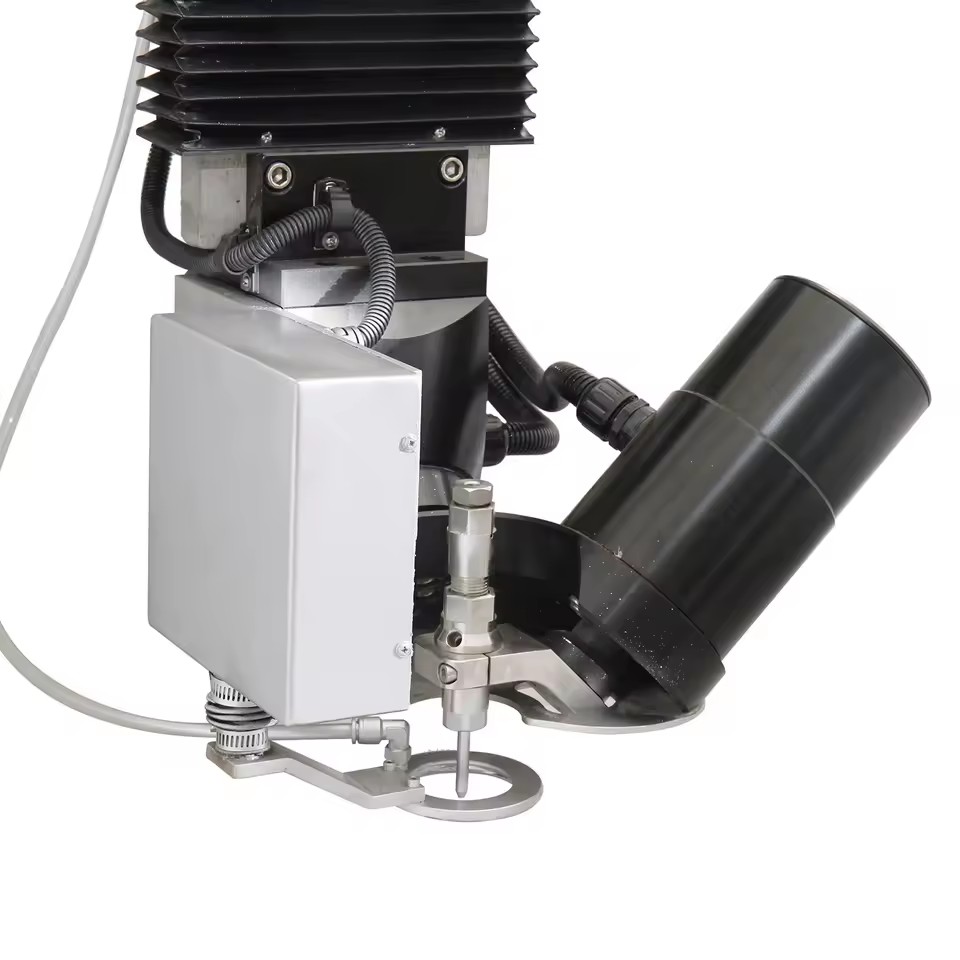

B Five-axis cutting system for diamond cutting head
PMT diamond import diamond,it can work 1500 hours.
IDE Integrated cutting head working life
1500
hours
each one.
5.
Abrasive Feeding System
The cutting speed of mini waterjet cutting machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for PMT waterjet, you could find the following speed just for your reference.
Ralevant Products
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on!!!
1, basic working principle of the super-high pressure water jet cutting machine2, working principle of the high-pressure system
and supercharge
3, replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4, maintenance of the high-pressure system and judgment and troubleshooting of common failures
5, CNC Programming&operation&operation of the NC cutting platform
6, daily maintenance of the NC cutting platform
7, equipment installation
8, abrasive control and transportation operation and CNC communication
9, operation of the CAD / CAM software and CNC communication
10, working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional
parts, high-pressure water switches and abrasive cutting head
1, Free warranty for the whole machine for one year or 2000 high-pressure/hour 2, Training of two personnel for operation and
maintenance of equipment and one computer operator for the user
3, On-line installation and commissioning (the user is responsible for board and lodging)
4, Lifetime maintenance
5, To Guarantee long-term supply of spare parts
6, To enjoy upgrade of special prices when there are new products and technologies
7, Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after
receipt notice. For a common failure, direct the user to resume production as soon as possible by way of
Product packaging
Wate jet cutting machine package
wooden package out side, inside soft packages or all of soft film and ensure safety. including hp pump,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm, 4000-6000kgs,whole one set waterjet machine equiment.
Water jet
spare parts
soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.
Delivery time for machines
15-30days Delivery time
waterjet spare parts
1-7days
Company Profile
Certifications
FAQ
Q: What is the advantage of water jet cutting head machine?
A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universalcutting machine.
Q: How to choose the cutting table for waterjet cutting machine?
A:You need to offer the size of the materials.you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting for waterjet machine?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required
precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate for waterjet cutting machine?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network.
The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatio.
