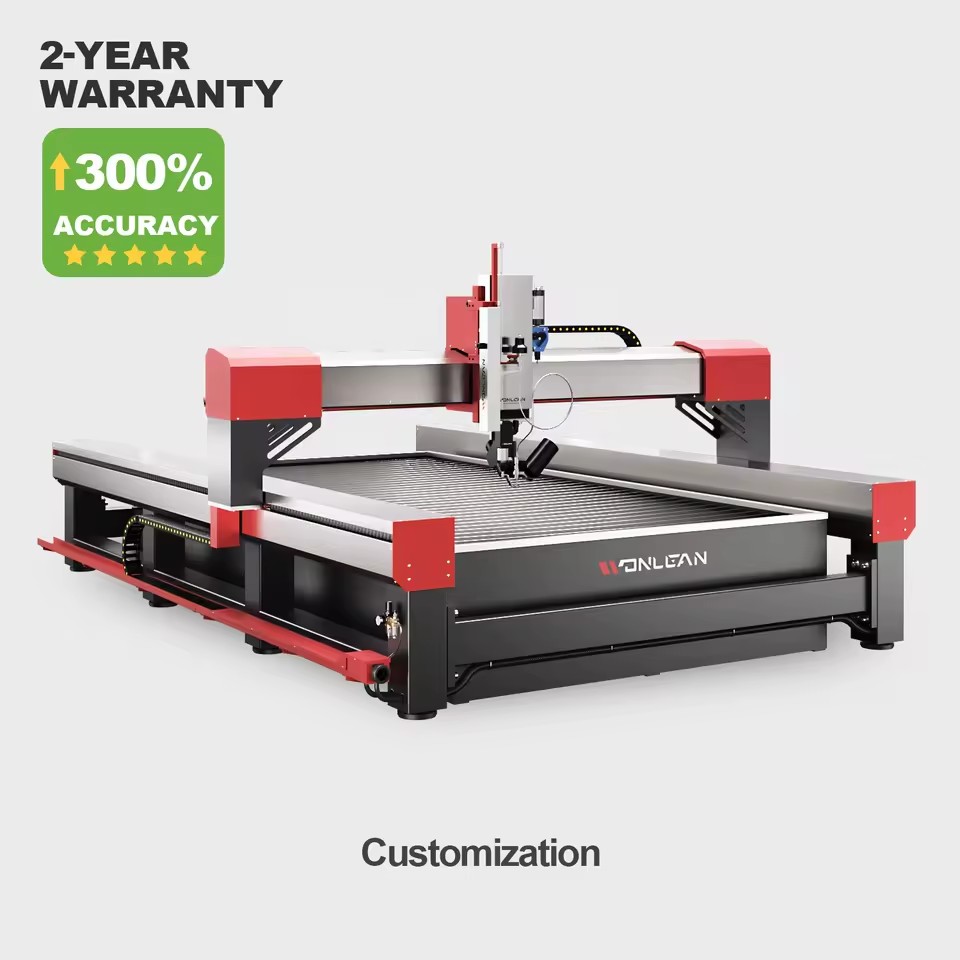

Name: 5 Axis Waterjet Cutting Machine for Mosaic Stone Cnc Waterjet Marble Mosaic Cutting Machine
SKU: NGYM-CMRE-8AY4-04
Price: 62940.0 USD
Availability: PreOrder

Product description

New Design Multifunction Water Jet Cutter for Metal Stone Glass Rubber Foam Price Cnc 3d 5 Axis Waterjet Cutting Machine

High pressure system specifications

Model

WL30018Z

WL38030Z

WL42037Z

Max. Pressure

300Mpa

380Mpa

420Mpa

Continuous working pressure

260Mpa

340Mpa

Power

18KW

30KW

37KW

Maximum water flow

3.7L/min

Maximum nozzle diameter

0.33mm

Working power supply

380V/50HZ

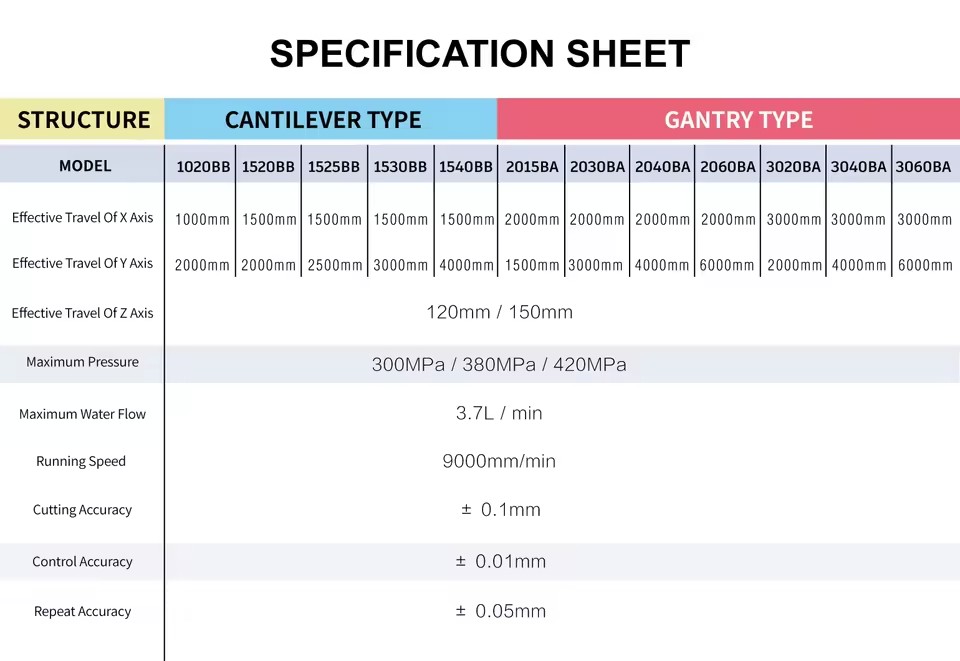

Technical parameters of gantry cutting platform

WL2015BA

WL2030BA

WL3020BA

WL2040BA

WL2060BA

WL3060BA

X axis

2000mm

3000mm

Y axis

1500mm

4000mm

6000mm

Z axis

150mm

Running speed

9000mm/min

Cutting accuracy

±0.1mm

control precision

±0.01mm

Repeat accuracy

±0.05mm

Delivery Time

30days

Payment Term

T/T,30% in advance,70% before shipment(negotiable)

Packaging details

Normal packaging is container. We can also according to the special requirements of customers for packaging

port

Dalian

Validity

45 days from the date we offered validity

Oil-immersed Structure

The guide rail and ball screw are fully immersed in an oil tank，providing ample lubrication and preventing the wear of the transmission system caused by abrasive and water splash. This feature not only provides ultra-high cutting precision but also greatly improves the lifespan of the machine, solving the issue of serious accuracy degradation in traditional water jet cutting machine. And no matter when the cutting is accurate.

Concrete Casting Bed

After finite element analysis, the bed is welded with the best stress points and support structures. After aging treatment, the bed is cast with concrete, providing extreme stability and excellent shock absorption. This greatly reduces bed stress and maintains accuracy in the long term.

Split Structure

The bed and water tank of the waterjet cutting table are completely separated, adopting split design that avoids the risk of the bed becoming deformed due to the deformation of the water tank over time and ensures the precision and lifespan of the bed.

Stainless Steel Double Sealing

The X, Y, Z axis adopts an external high-quality stainless steel wire drawing casing and internal high-quality dustproof folding design, providing double-seal protection that effectively protects the machine and ensures complete sealing. This is currently the most effective sealing form for waterjet cutting machine.

Direct Connection Transmission System

The high-power servo motor is directly connected with large-diameter ball screw and guide rail, which has smaller transmission losses, higher precision, and greater stability compared to traditional synchronous belt connection. The accuracy is achieved to within a thousandth of a millimeter.

Intelligent Identification and One-touch Processing

Automatically identifies CAD electronic drawings and generates cutting path and access parameters, reducing manual coding and repetitive operations while simplifying operations and improving productivity.

Intelligent 3D Cutting

Enables fixed and variable angle cutting of up to 60 degrees, with an aluminum alloy cutting head structure that is lightweight, high strength, and has a small load. The cutting position deviation under 380Mpa high-pressure water is less than 0.01mm,and the cutting accuracy is extremely high.

Intelligent Variable Boosting System

Waterjet cutting machine equipped with a variable oil pump and a intelligent variable high pressure system consisting of four imported valve bodies, our intelligent variable pressure system intelligently adjusts the oil volume based on pressure requirements, ensuring high cutting efficiency, better oil temperature control and more energy-saving.

Wireless Remote Control Handle

Everything is under control, f

lexible and convenient for tool adjustment, a

ll functions from one, c

ontrol machine operation at any time, m

agnetic suction design for easy access.

The Main Components Adopt Internationally Renowned Brands

International top quality accomplishes the classic.

✔Oil immersed structure

Dry automatic lubrication structure

✔The accuracy of life increased by morethan 300%.

✔Ball screws is connected directly with servo motor

The screw is fixed

✔Transmission accuracy increased by 17%.

✔Double seal

Adopt folded cloth dustproof seal

✔Service life increasedby more than 500%.

✔Welded structure and filled with concrete

Welded structure

✔Resonance jitter is smaller and stability is improved by 30%.

✔

Yaskawa brand

Inovance brand

✔Power and torque increase by 15%-200%.

✔ Automatic variable pump

Quantitative pump

✔Energy saving is 10% and oil temperature control increased by20%.

✔Cooling oil pump

✔Cooling system life increased by more than 200%.

✔Air cooling system

✔Heat dissipation efficiency increased by 30%.

ABOUT US

Service

Packing and Delivery

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A: intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Clearance Sale

$33,000-45,000

set

$35,000-36,000

$41,000-42,000

$41,500-42,500

$44,000-45,000

$29,000-30,000

$45,000-46,000

$25,000-26,000

$250-450

piece

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Voltage

380 V

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

2 Years

Video outgoing-inspection

Provided

Dimension(L*W*H)

2000MM*1500MM(78.74in*59.06in)

Key selling points

Multifunctional

Rated power

37kw(49.62hp)

Place of origin

China

Weight (kg)

5000

Table travel (x) (mm)

2000

Table travel (y) (mm)

1500

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Name

Water Jet Cutting Machine

Keyword

5 Axis Waterjet Cutting Machine

Application

Material Cutting

Type

Water Jet Cutters

Function

High Pressure Water Cutting

Machine Cover

Stainless Steel

Control system

CNC Controller

Size

Custom-made

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

WL4020, WL3020, WL2015, WL3015

Effective cutting range (mm)

4000×2000, 2000×1500, 3000×1500, 3000×2000, Size can be customized

Certifications & Compliance

Lead time

30 days
