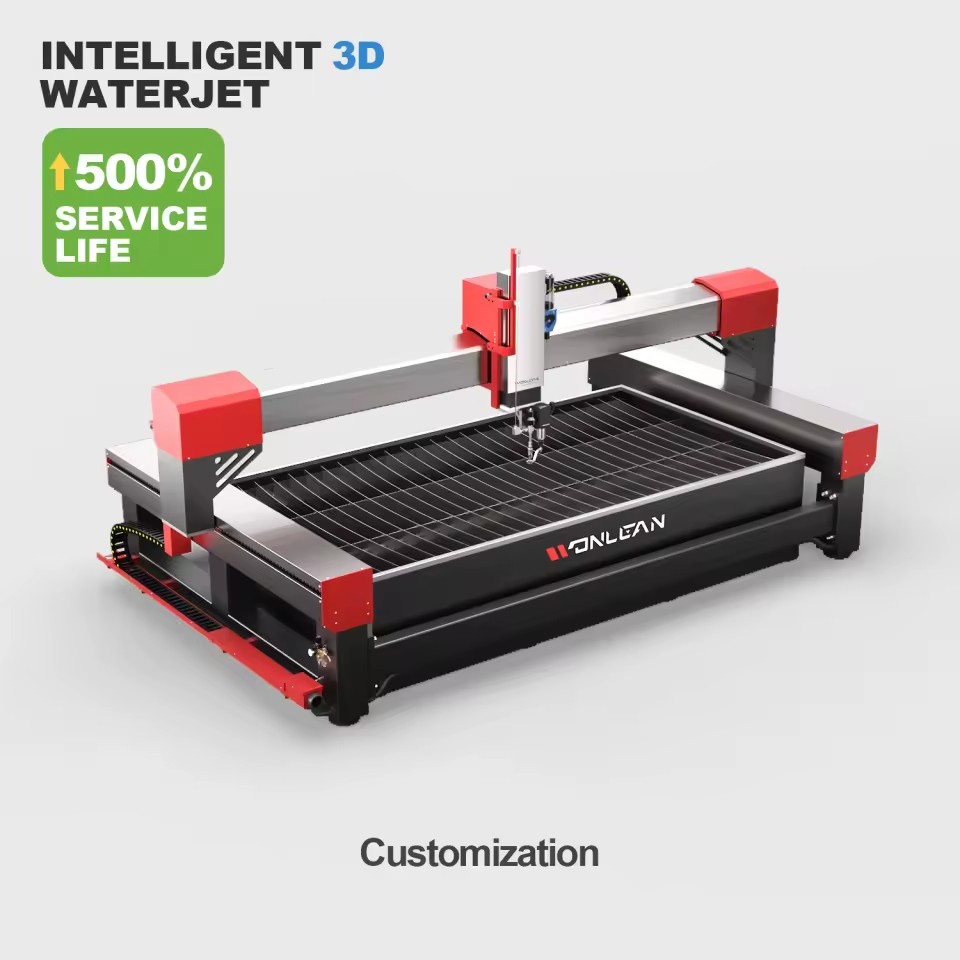

Name: 5 Axis 3d CNC Water Jet Cutting Machine for Marble Granite Glass Cutting Water Jet Cutter
SKU: B2B-1869
Price: 57220.0 USD
Availability: PreOrder

Product description

15 years of practice creates classic

High pressure system specifications

Model

WL30018Z

WL38030Z

WL42037Z

Max. Pressure

300Mpa

380Mpa

420Mpa

Continuous working pressure

260Mpa

340Mpa

Power

18KW

30KW

37KW

Maximum water flow

3.7L/min

Maximum nozzle diameter

0.33mm

Working power supply

380V/50HZ

Technical parameters of gantry cutting platform

WL2015BA

WL2030BA

WL3020BA

WL2040BA

WL2060BA

WL3060BA

X axis

2000mm

3000mm

Y axis

1500mm

4000mm

6000mm

Z axis

150mm

Running speed

9000mm/min

Cutting accuracy

±0.1mm

control precision

±0.01mm

Repeat accuracy

±0.05mm

Delivery Time

30days

Payment Term

T/T,30% in advance,70% before shipment(negotiable)

Packaging details

Normal packaging is container. We can also according to the special requirements of customers for packaging

port

Dalian

Validity

45 days from the date we offered validity

Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.

Product Description

Years

Experience

CNC WATERJET

CUTTING MACHINE

✔

Support non-standard customization

Provide free sample trial cutting service for you

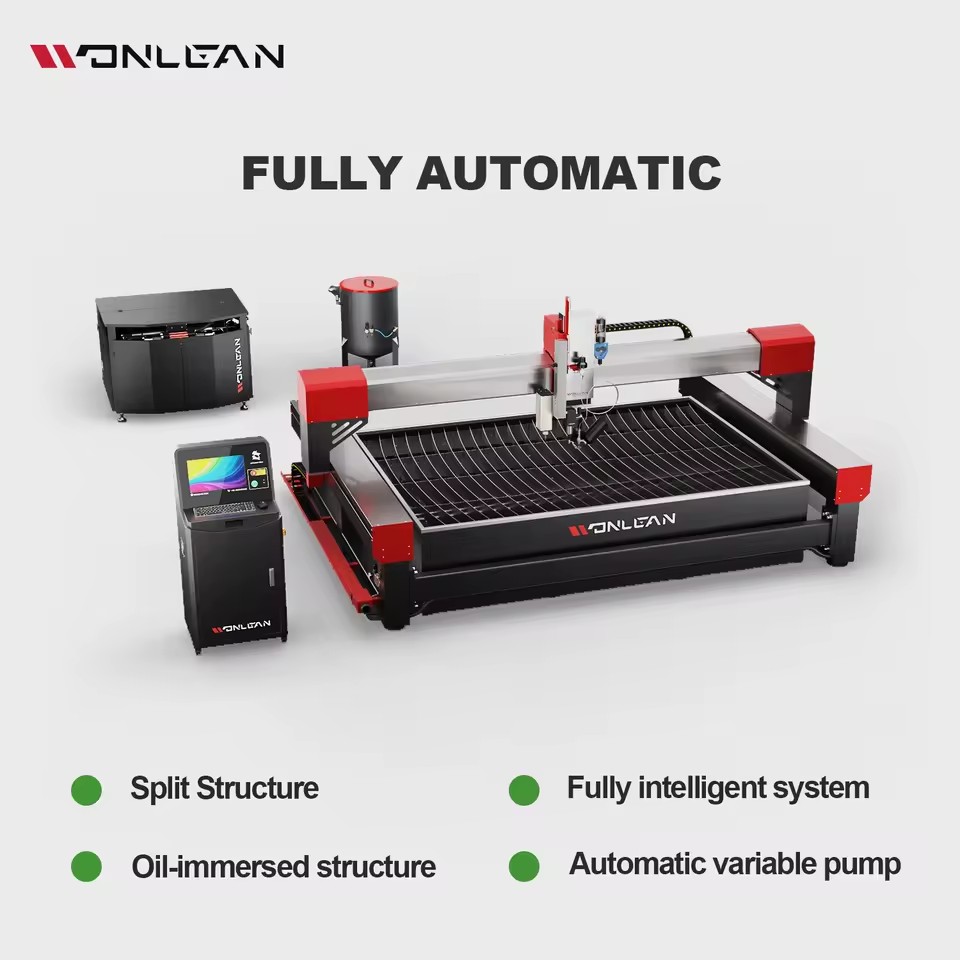

new generation water jet cutting machine

√

All cast iron bed

Oil-immersed structure

Automatic variable pump

Fully intelligent system

The guide screw is completely immersed in the oil tank, which can fully lubricate and prevent the wear of the transmission system from the splashing of abrasive and water. And it has high cutting accuracy, but also greatly improves the service life of the equipment, and solves the serious accuracy attenuation problem of water jet cutter in the past, and the cutting is accurate at any time

Concrete casting bed

After finite element analysis, the bed is welded in one body by making full use of the optimum stress point and supporting structure. After the aging treatment, concrete is poured into the bed body, which has strong stability and excellent shock absorption, greatly reduces the stress of the machine bed and maintains the long-term guarantee of accuracy

Split structure

There is no connection point between the bed and the water tank of the cutting table, and it adopts a fully split structure, which avoids the associated deformation of the bed due to the deformation of the water tank after long-term use, and ensures the accuracy and service life of the bed

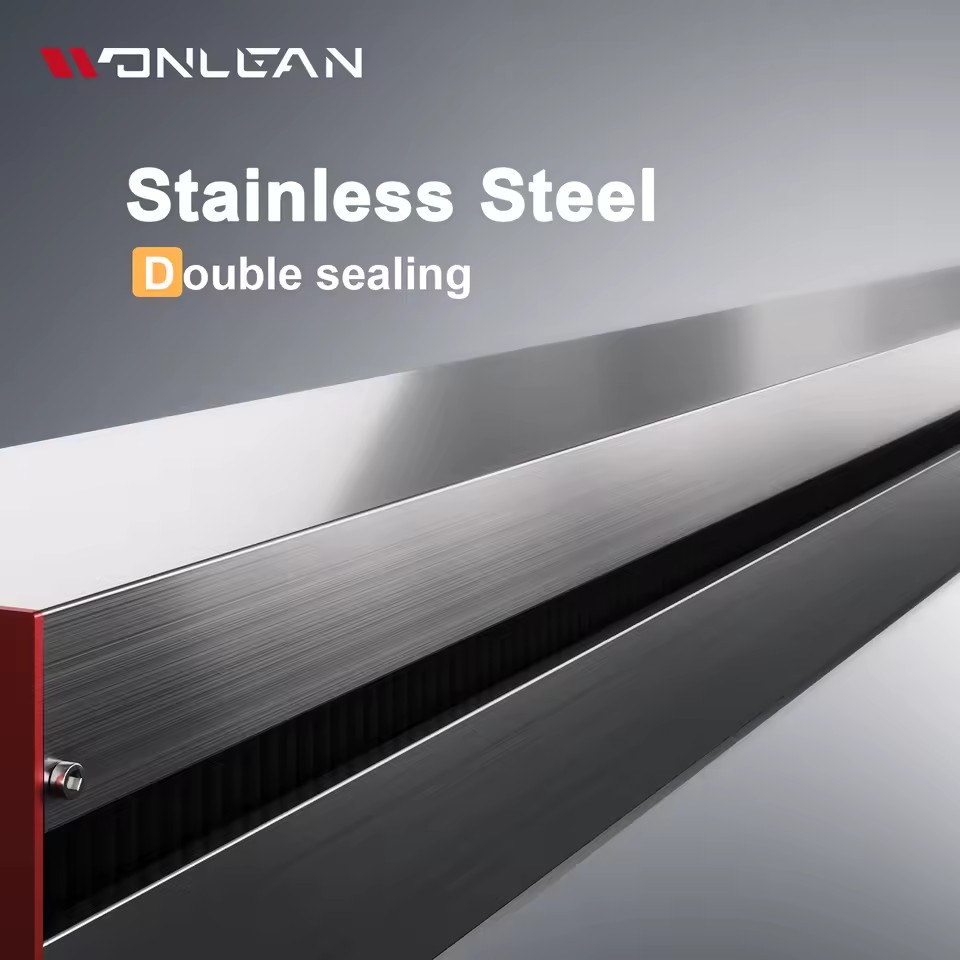

Stainless steel body

The X,Y,Z axis adopts double sealing design, with external high-quality stainless steel brushed shell and high-quality dust-proof folding cloth, which can provide effective hard protection and full sealing for the equipment, and is the most effective sealing form of waterjet cutter at present

Direct connection transmission system

The high-power servo motor is directly connected with the large-diameter guide screw. Compared with the traditional synchronous pulley belt connection, it has less transmission loss, higher precision, better stability. High accuracy without the slightest error

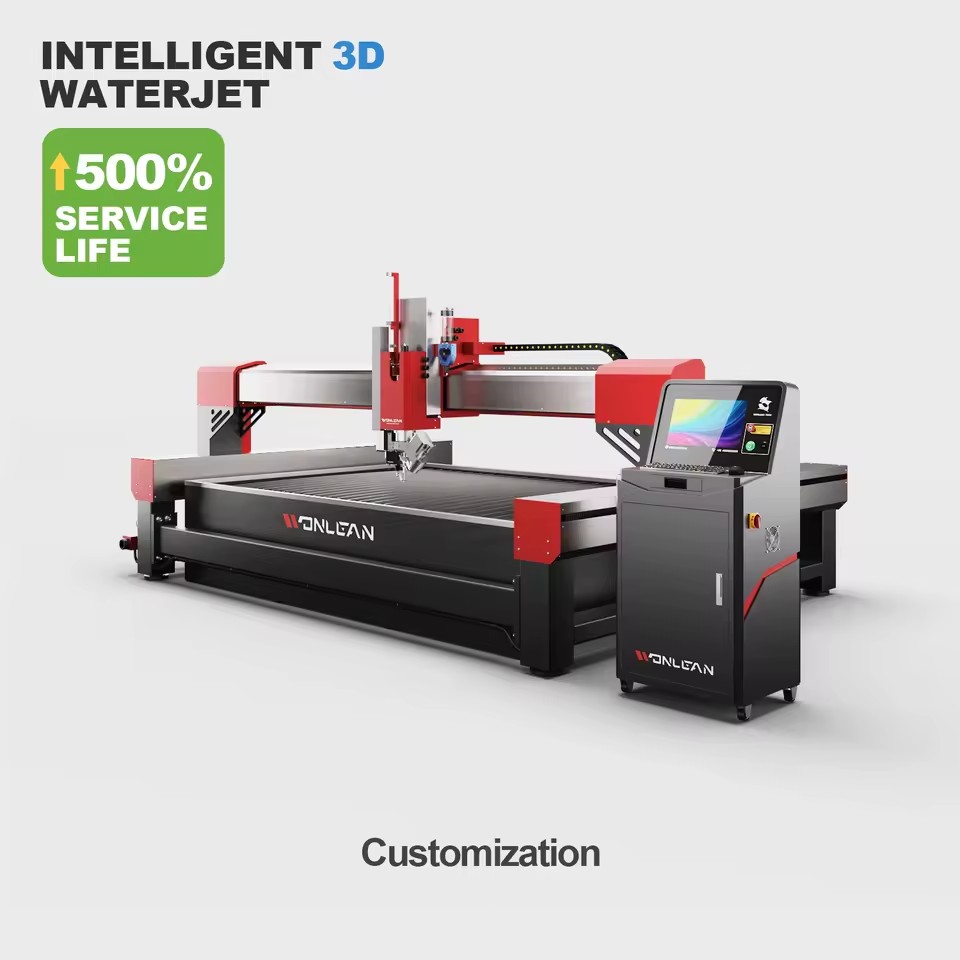

Intelligent 3D cutting

It can achieve fixed and variable angle 3D cutting within 75 degrees. The cutting head mechanism is made of aluminum alloy, with light weight, high strength and small load. The offset of the cutting position under the reaction of 380Mpa high pressure water is less than 0.01 mm, and the cutting accuracy is extremely high

Tilting compensation system

Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting within 8 degrees

Intelligent variable pressurization system

Equipped with a variable oil pump and an intelligent variable high pressure system composed of four imported valve bodies, which can intelligently adjust the amount of oil according to the pressure requirements and has high cutting efficiency, better oil temperature control and more energy-saving, so that each pressurization is just right

Wireless remote control handle everything under control

More flexible and convenient for tool setting Control equipment operation at any time Display feed values in real time

Magnetic design for easy access

Intelligent identification and one-touch processing

Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity

The main components adopt internationally renowned brands

World-leading quality accomplishes the classic

Why Choose Us

Company Profile

ABOUT US

Service

Packing and Delivery

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A: intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Clearance Sale

$46,000-48,000

set

$42,000-43,000

$39,000-40,000

$31,000-32,000

$26,000-27,000

$28,000-29,800

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Voltage

420MPA

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

3000MM*1500MM

Key selling points

High-Accuracy

Rated power

37KW

Place of origin

China

Weight (kg)

5000

Table travel (x) (mm)

3000

Table travel (y) (mm)

1500

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Name

CNC Water Jet Cutting Machine

Type

Water Cutting

Application

Metal Processing

Structure

Oil immersion

Machine Cover

Stainless Steel

Intensifier

ACCUSTREAM

Main Motor

SIEMENS Motor

Rail Screw

HIWIN

SERVO MOTOR

Yaskawa

Selling Units

Single item

Single package size

XX cm

Single gross weight

0.0 kg

Model number

WL3015

Effective cutting range (mm)

3000×1500, Other

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
