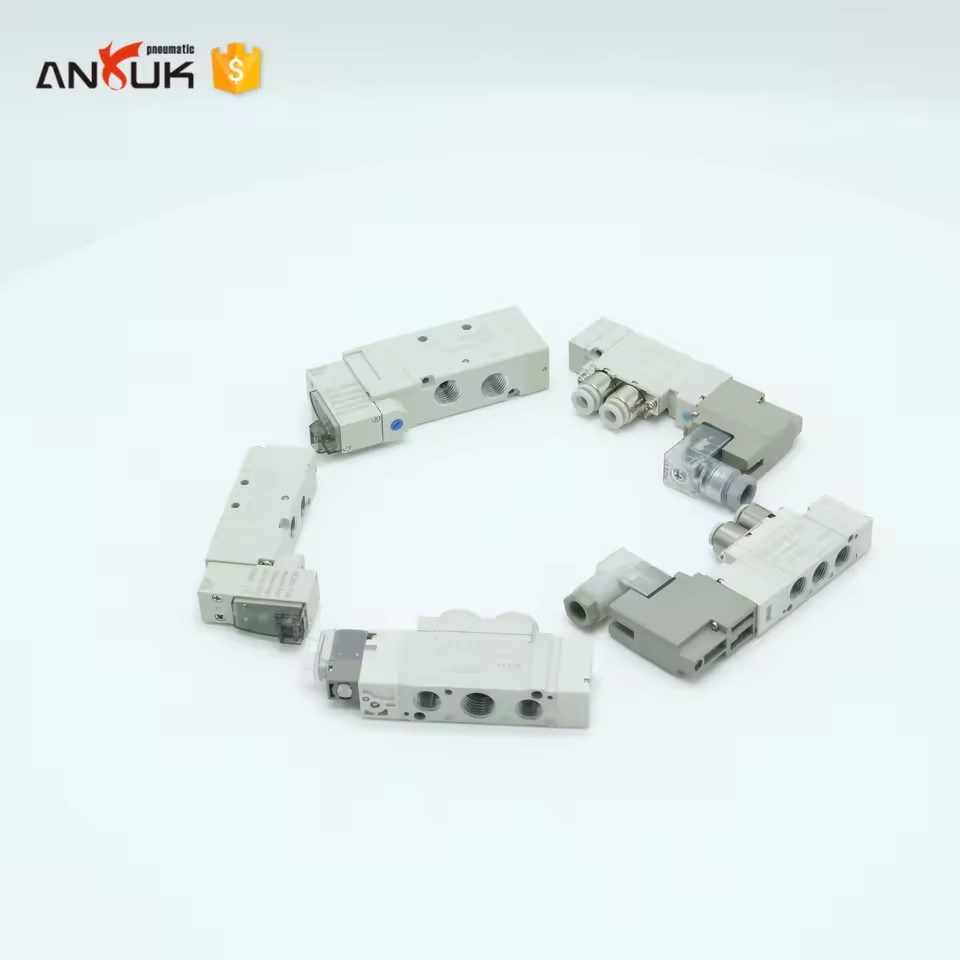

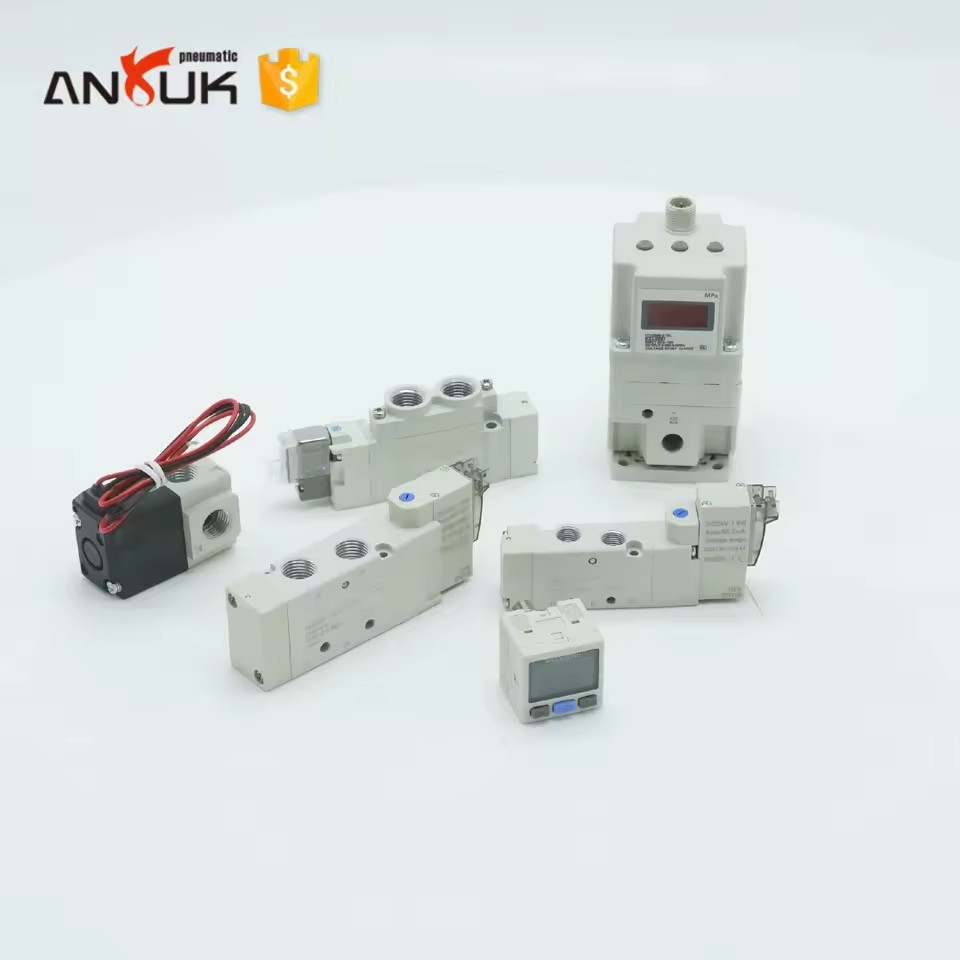

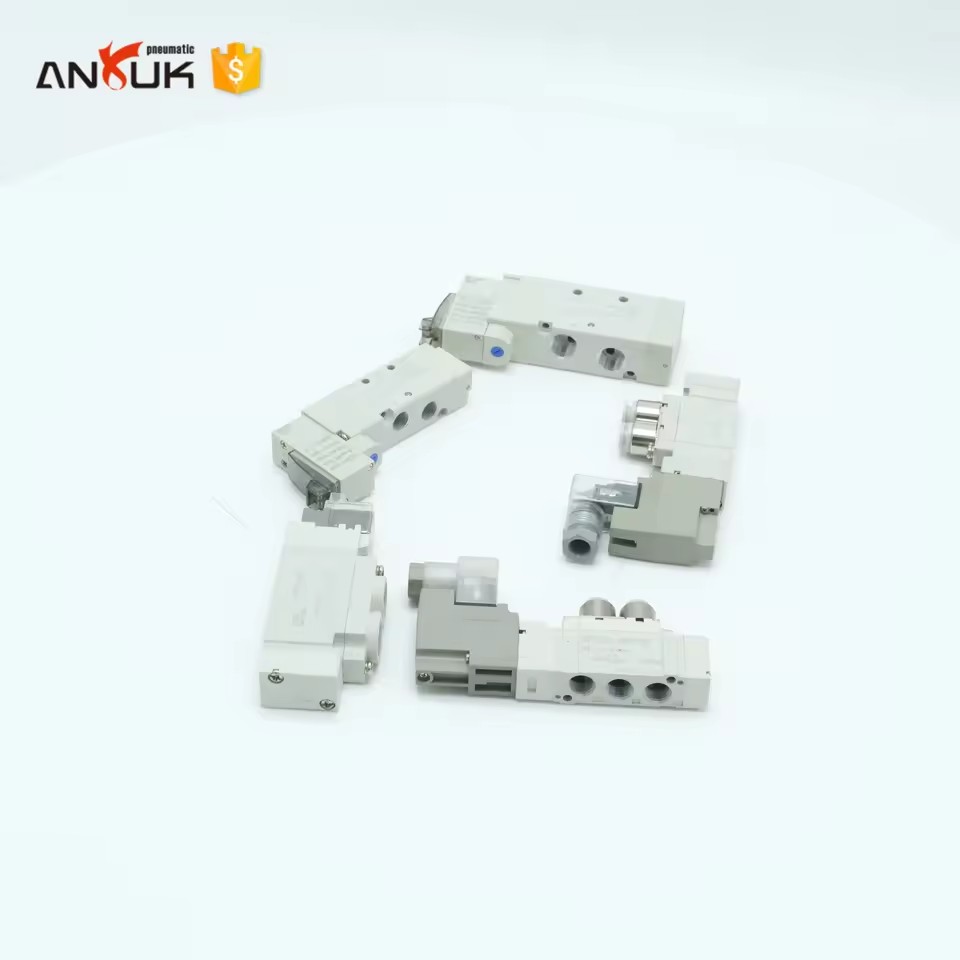

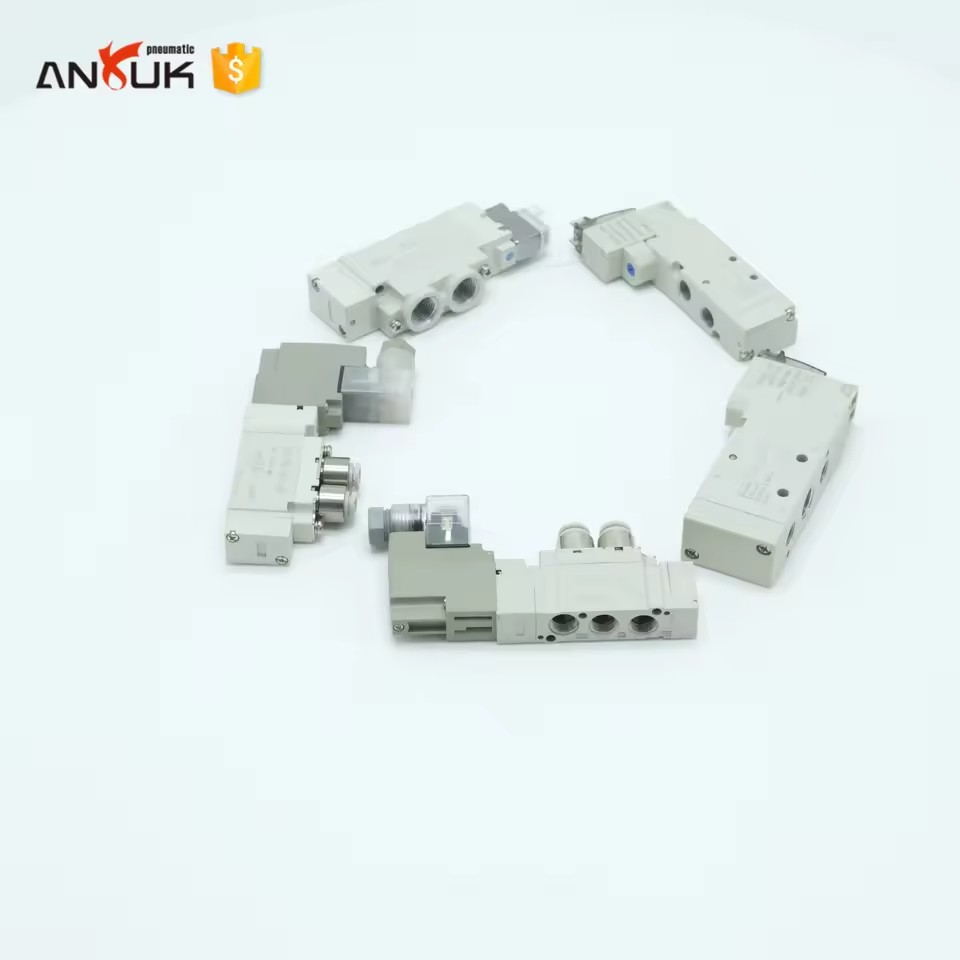

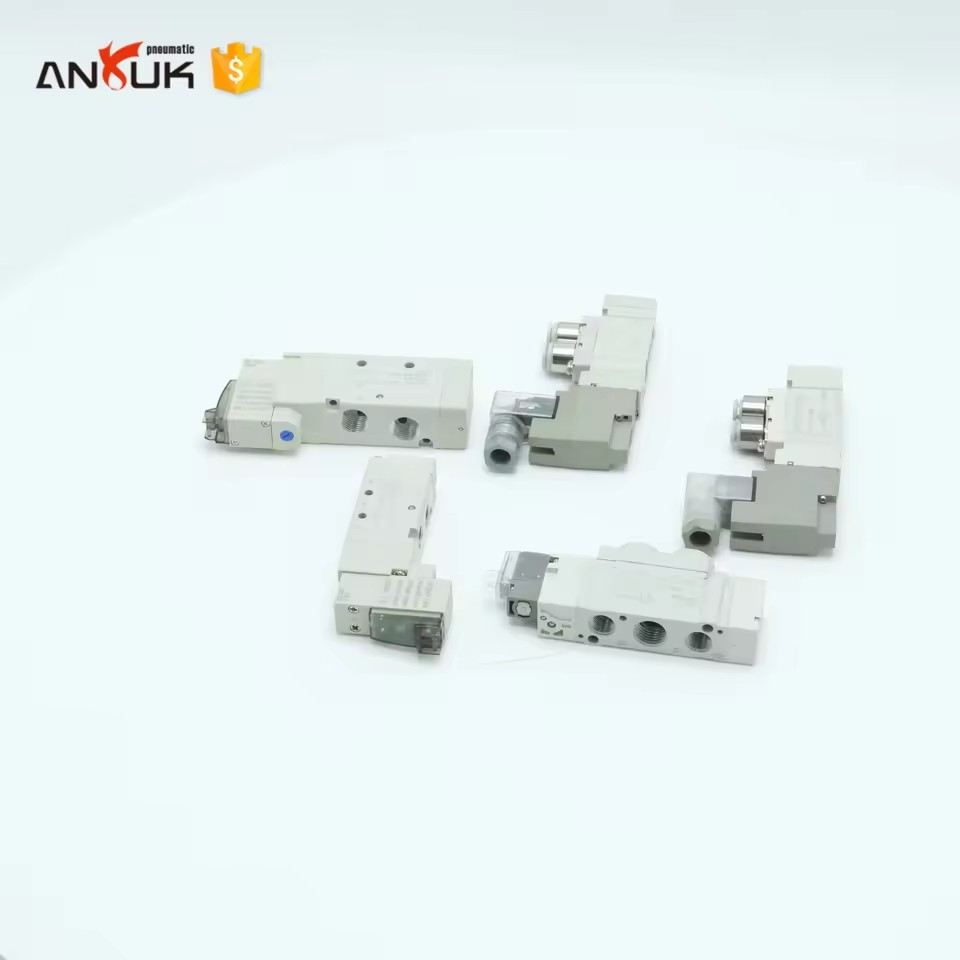

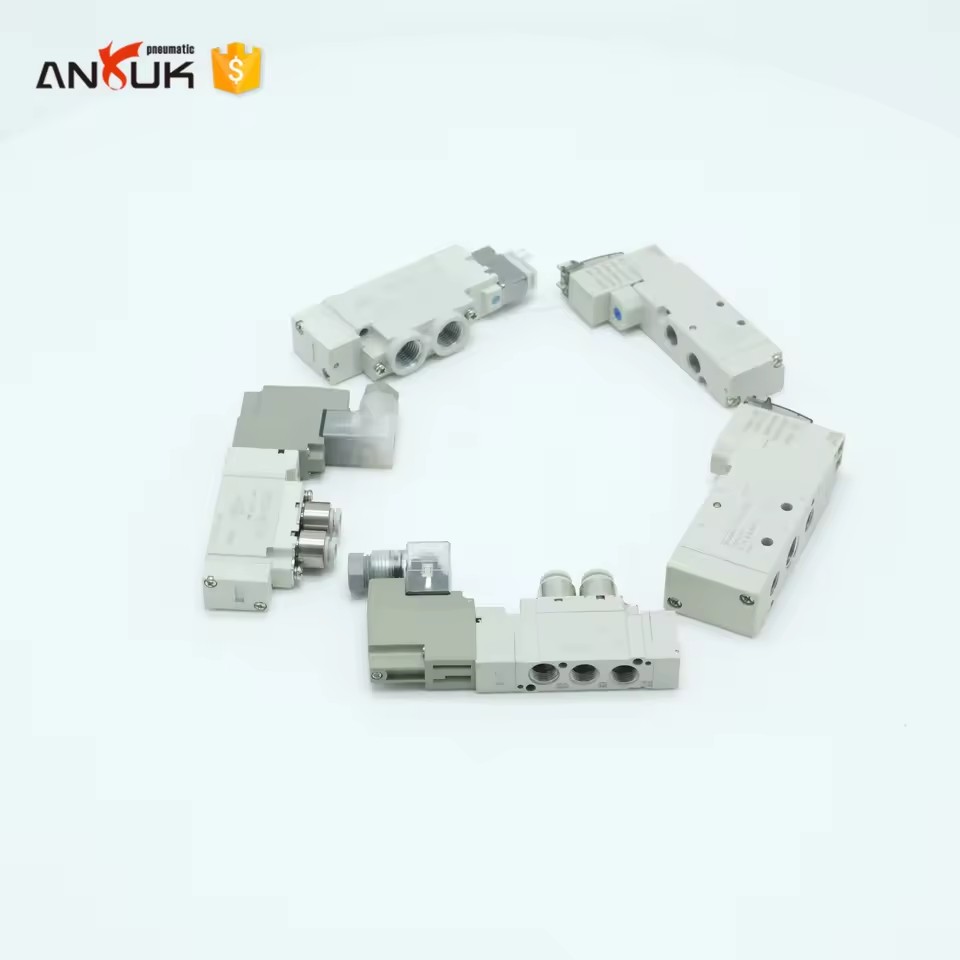

5/2 Way Air Solenoid Valve SY3120-5LZD-M5 SY7120-5LZD-02 For Robots Pneumatic Control System

Available for enquiry 0.0 · 0 reviews
USD

$ 30.00 30.0 USD $ 30.00

Not Available For Sale

Minimum order quantity: 50 Units
  • Type
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Weight (kg)
  • Place of origin
  • Material
  • Marketing Type
  • Color
  • Pressure
  • Body Material
  • Standard or Nonstandard
  • Quality warranty
  • Media
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number

This combination is unavailable.

Key attributes

View all
Type
Valves
Machinery test report
Not Available
Warranty
1 Year
Video outgoing-inspection
Not Available
Weight (kg)
0.02
Place of origin
Zhejiang, China
Product description
Solenoid valves

offers a wide range of solenoid valves, including 2-way, 3-way, and 5-way types, available in both normally open and normally closed configurations. Our valves are designed for high reliability, fast response time, low power consumption, and long service life. They are commonly used in applications such as packaging machinery, pneumatic tools, automation lines, and air treatment systems. All products conform to ISO and CE standards, and can be customized to suit different voltage, pressure, and flow requirements.

Item5V210-085V110-06SY7120-5LZD-02
Model5V210-085V110-06SY7120-5LZD-02
Type2-position 5-port single solenoid2-position 3-port single solenoid2-position 5-port double solenoid
Working MediumFiltered compressed airFiltered compressed airFiltered compressed air
Port SizeInlet/Exhaust: PT1/4, Cylinder: PT1/8Inlet/Exhaust: PT1/8, Cylinder: PT1/8IN/OUT: M5, Ports 1(P)/3(R)/5(R1): 1/8
Effective Section Area16 mm² (Cv=0.89)12 mm² (Cv=0.67)20 mm² (Cv≈1.0)
Operating Pressure0.15 – 0.8 MPa0.15 – 0.8 MPa0.1 – 0.7 MPa
Maximum Pressure Resistance1.2 MPa1.2 MPa1.0 MPa
Actuation TypeInternal pilotInternal pilotInternal pilot
Voltage AvailableDC12V, DC24V, AC110V, AC220VDC12V, DC24V, AC110V, AC220VDC24V, AC110V, AC220V
Wiring TypeDIN connector or lead wireDIN connector or lead wireLead wire
Response Time≤ 20 ms≤ 20 ms≤ 15 ms
Operating Temperature Range5°C ~ 50°C5°C ~ 50°C10°C ~ 60°C
Mounting PositionAny directionAny directionAny direction
WeightApprox. 190gApprox. 140gApprox. 200g
Brand CompatibilityCompatible with AirtacCompatible with AirtacOriginal SMC

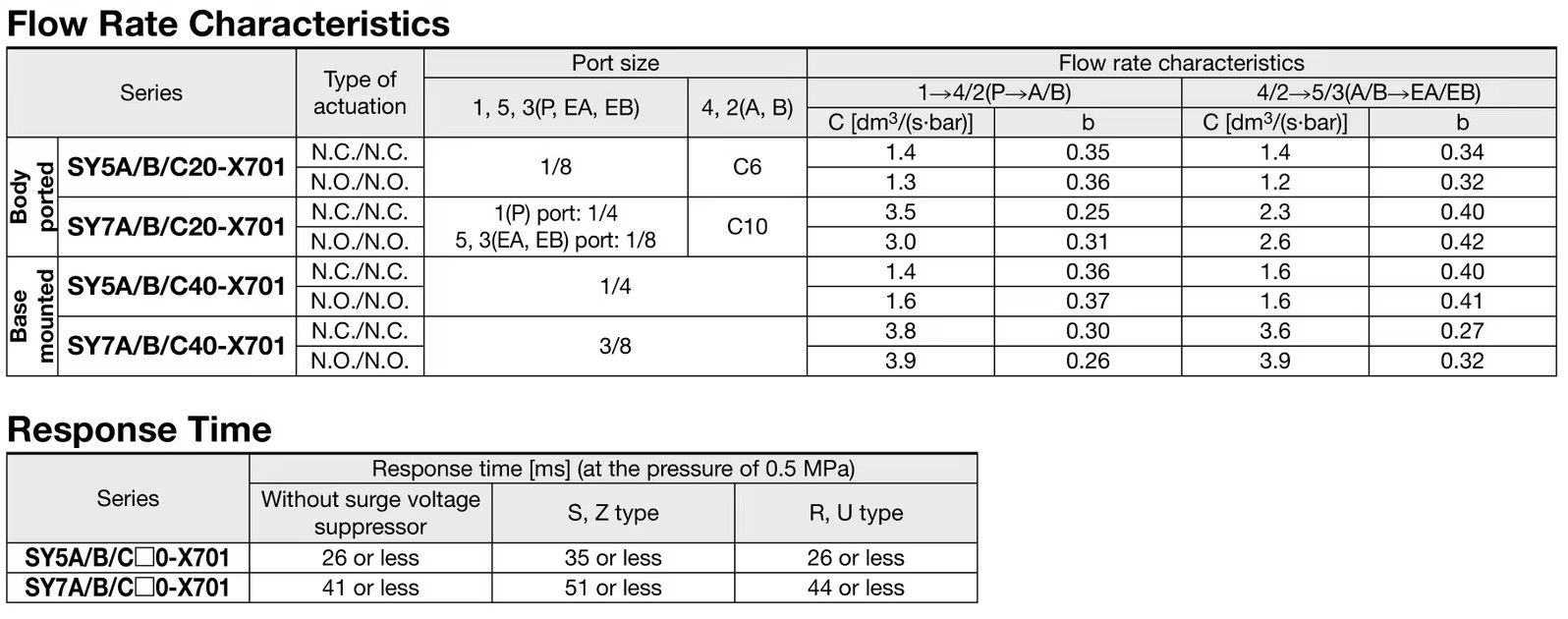

Description images

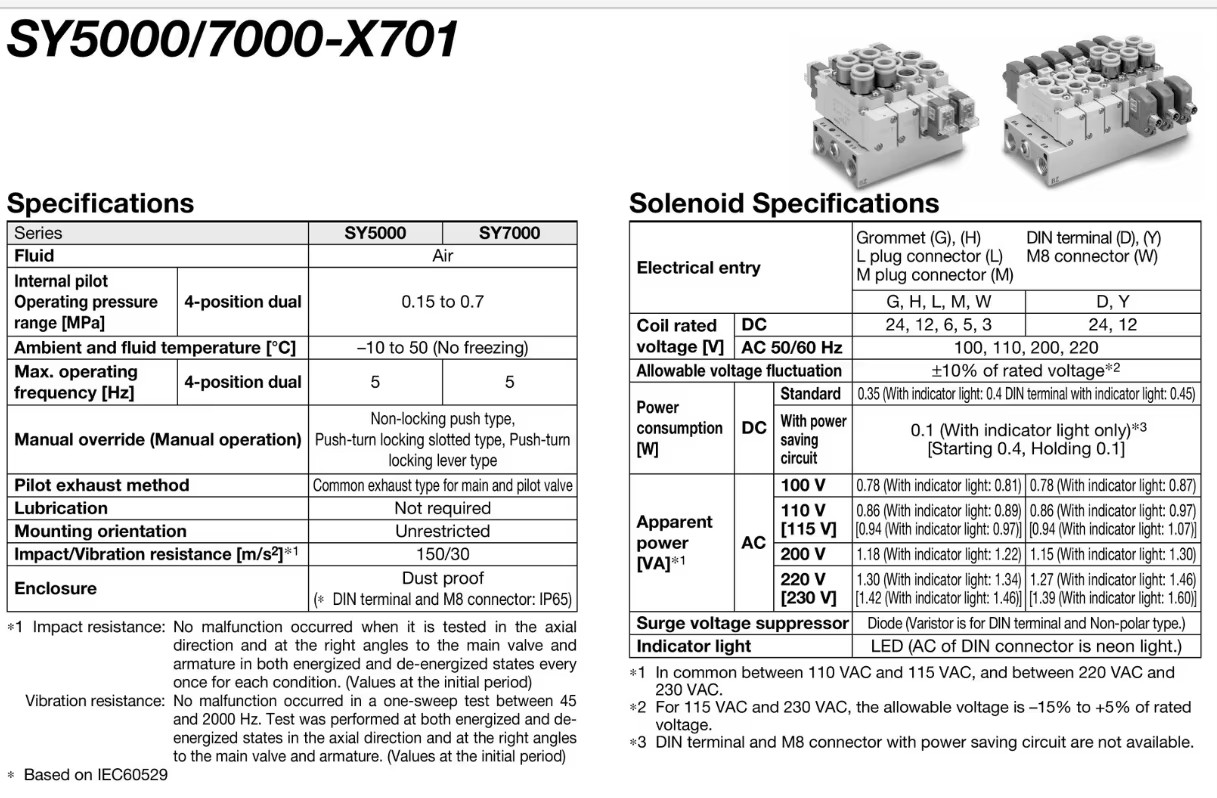

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 50 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Economy · Approx. shipping fee: $ 6.59 for 50 pieces · Estimated delivery: Oct 1–Nov 9 (31–70 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 18 fields
Type
Valves
Machinery test report
Not Available
Warranty
1 Year
Video outgoing-inspection
Not Available
Weight (kg)
0.02
Place of origin
Zhejiang, China
Material
Carton
Marketing Type
Ordinary Product
Color
Black
Pressure
Medium Pressure
Body Material
Aluminum Alloy
Standard or Nonstandard
Standard
Quality warranty
1 year
Media
Air/water/oil
Selling Units
Single item
Single package size
20X3X7.5 cm
Single gross weight
0.33 kg
Model number
SY1120 SY1120-5LZ SY1120-5G-C6 SY1120-5LZD SY1120, SY1220 SY1220-5LZ SY1220-5LZD-C6 SY1220-5DZ SY1220, SY3120 SY3120-5LZ SY3120-5LZD SY3120-5G-C6 SY3120, SY3220 SY3220-5LZ SY3220-5LZD SY3220-5DZ SY3220-5G, SY3140 SY3140-5LZ SY3140-5LZD SY3140-5MZD SY3140-5, SY3240 SY3240-5LZ SY3240-5LZD SY3240-5DZ SY3240-5M, SY5120 SY5120-5DZ SY5120-5LZ SY5120-5LZD SY5120-5M, SY5220 SY5220-5DZ SY5220-5LZD SY5220-5G SY5220-5MZ, SY5140 SY5140-5DZ SY5140-5LZD SY5140-5MZD SY5140-5, SY5240 SY5240-5DZ SY5240-5LZD SY5240-5MZD SY5240-5, SY7120 SY7120-5LZD SY7120-5DZ SY7120-5MZD SY7120-5, SY7220 SY7220-5DZ SY7220-5LZD SY7220-5MZD SY7220-5, SY7140 SY7140-5LZD SY7140-5DZ SY7140-5MZD SY7140-5, SY7240 SY7240-5DZ SY7240-5LZD SY7240-5MZD SY7240-5
Lead time
30 days
