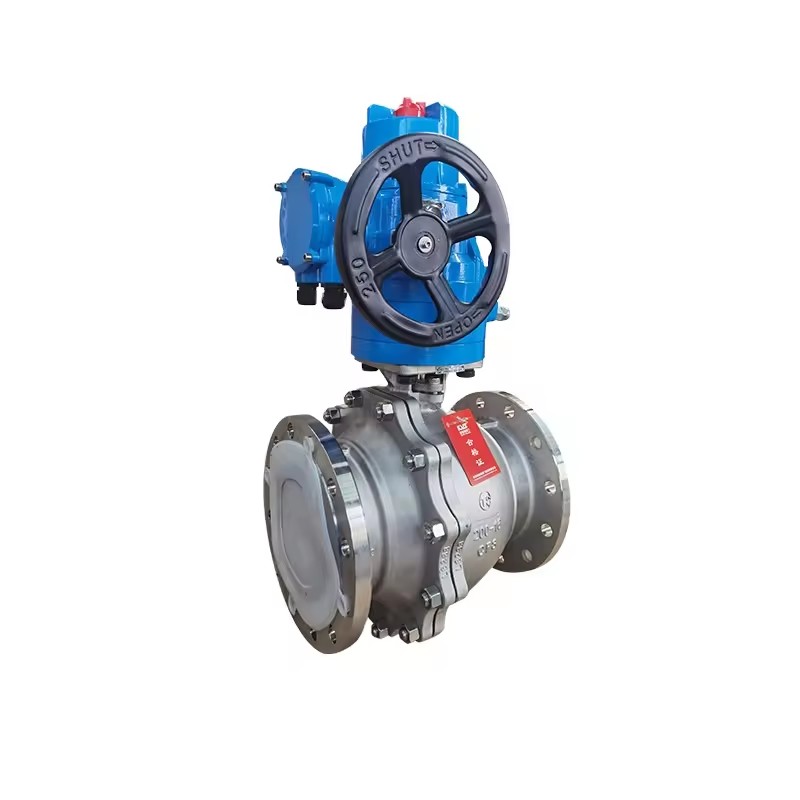

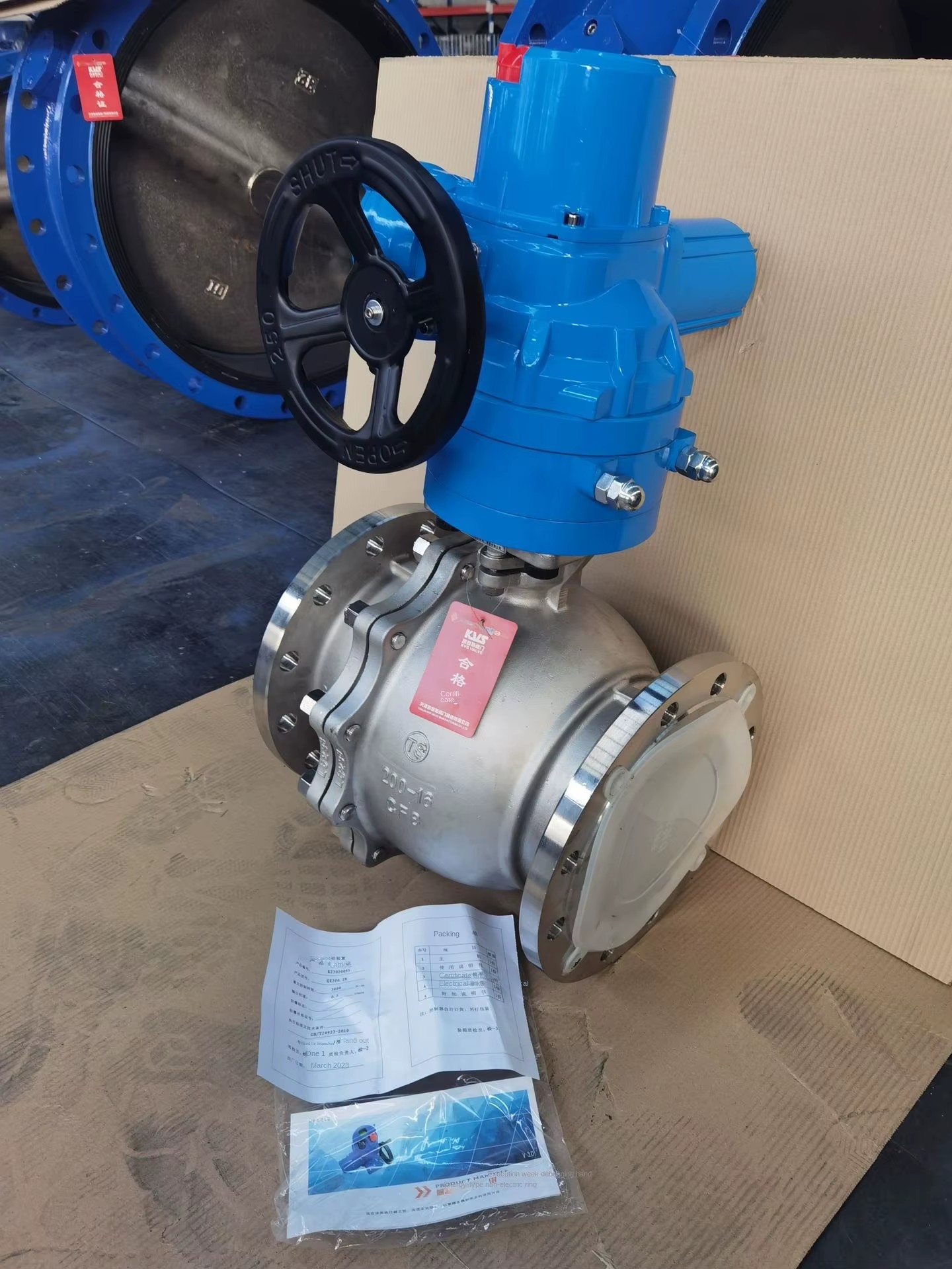

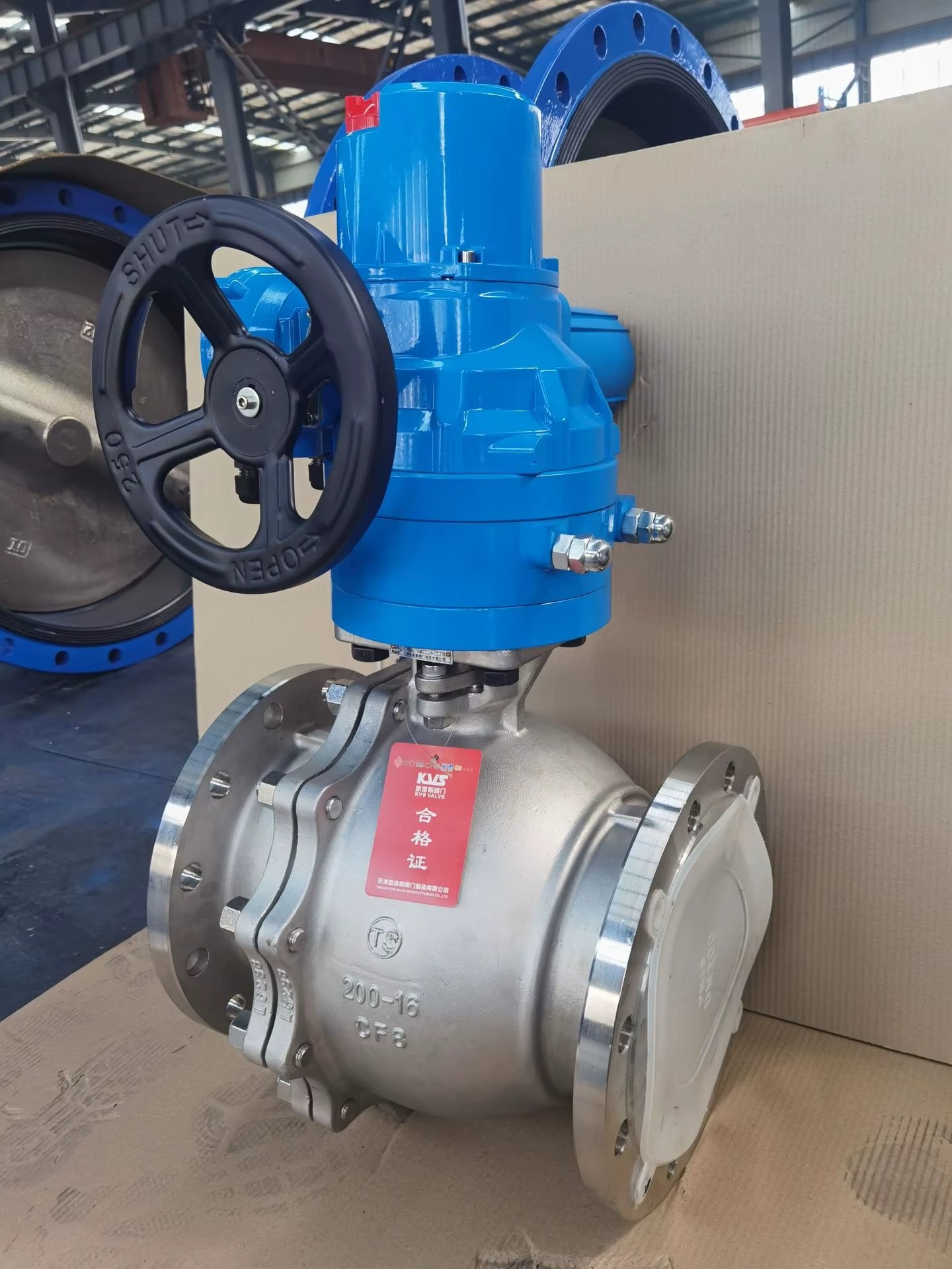

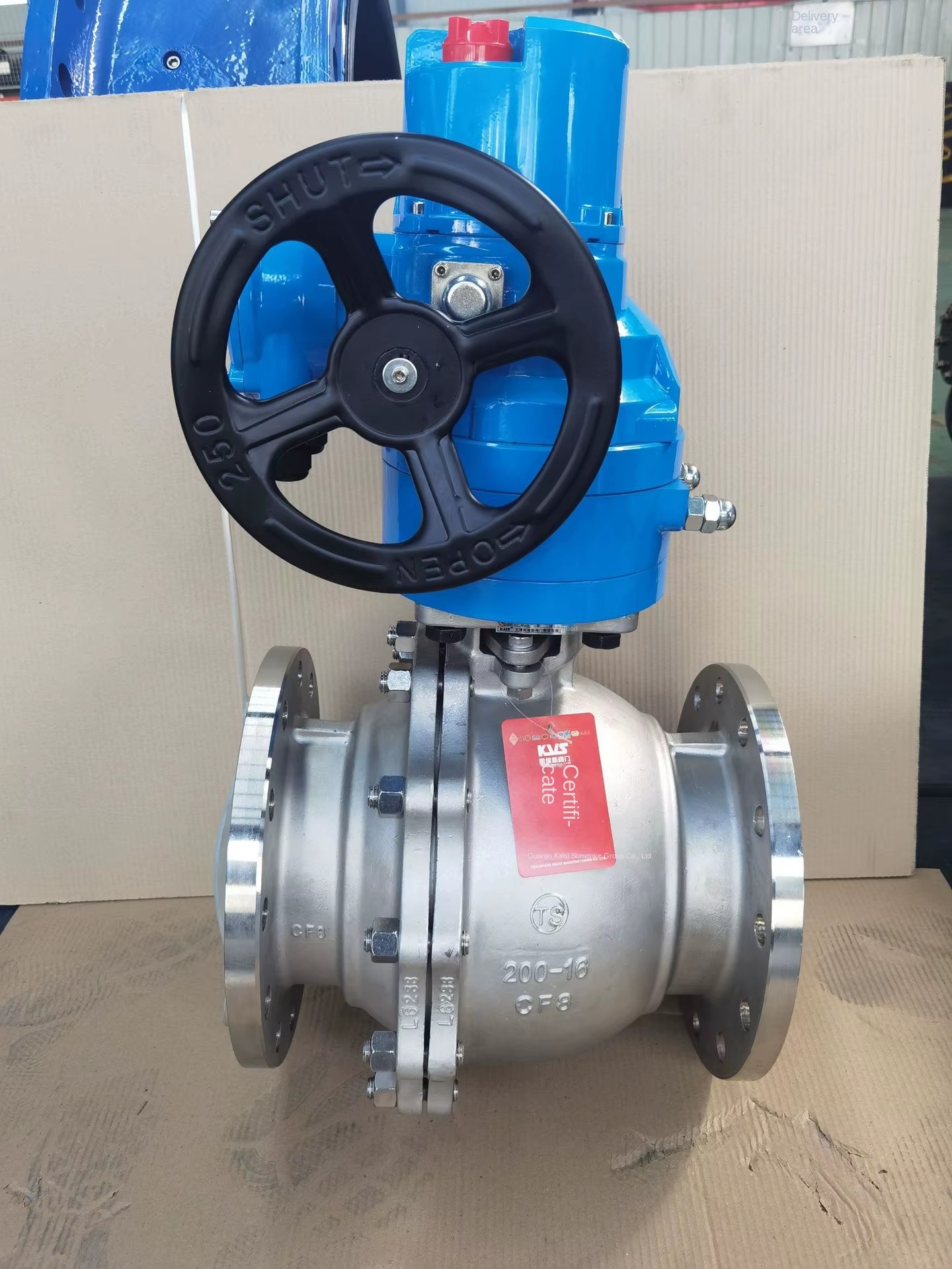

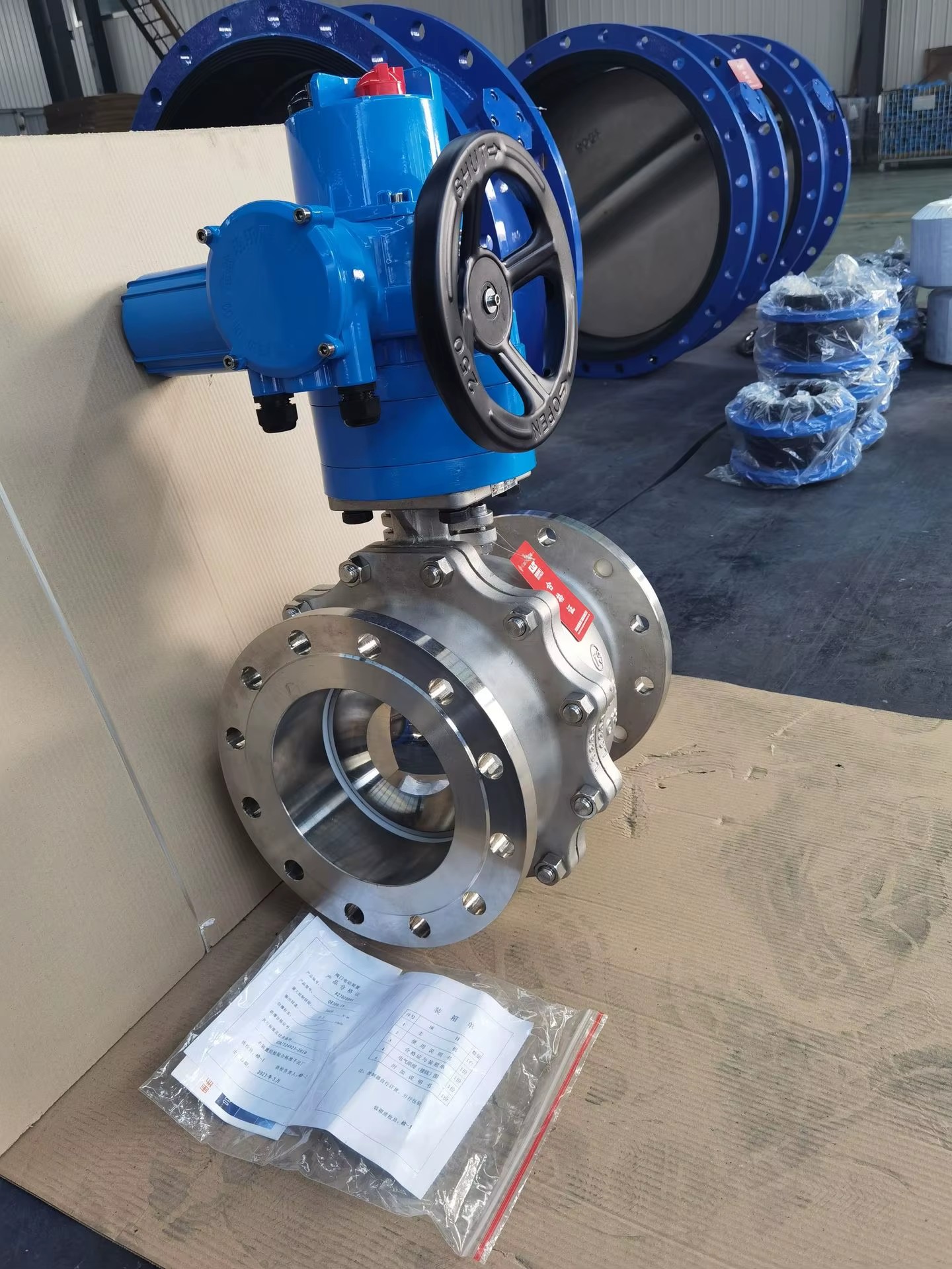

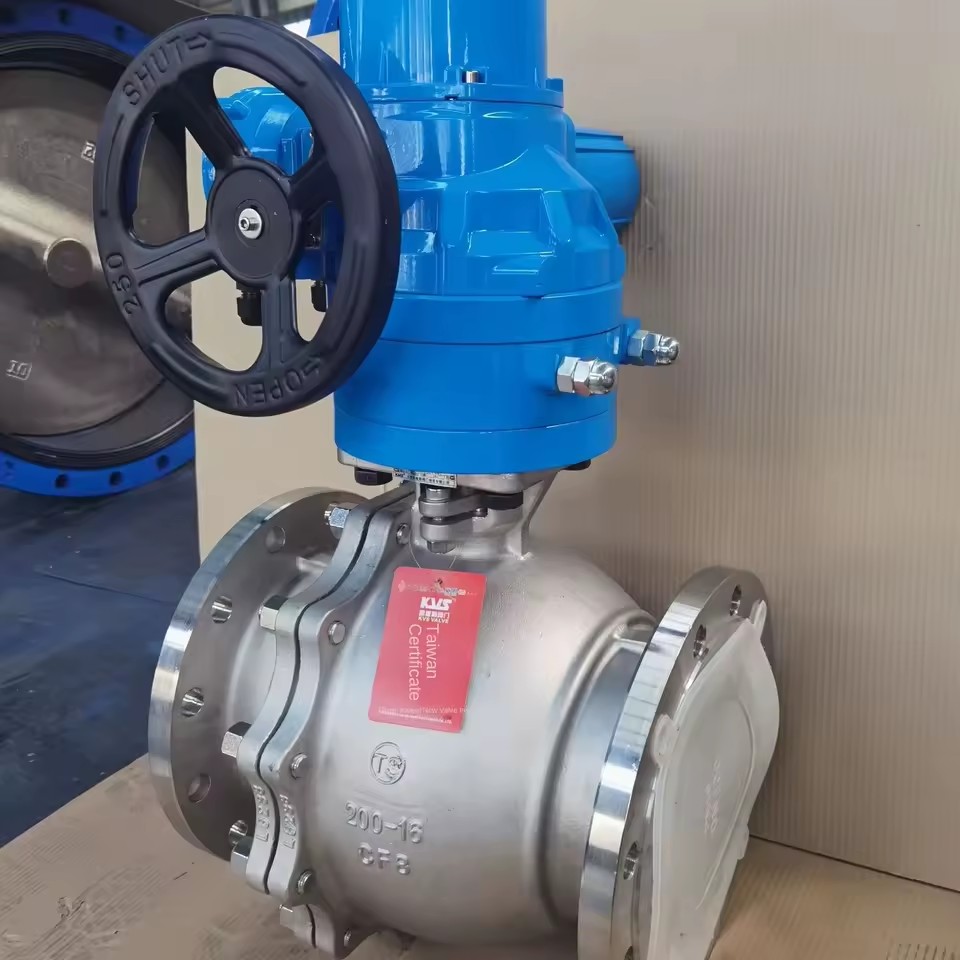

Q941F-16P Electric Adjust Stainless Steel Ball Valve Normal Temperature Water Media PTFE Sealing Flange Connection 1 Year

Name: Q941F-16P Electric Adjust Stainless Steel Ball Valve Normal Temperature Water Media PTFE Sealing Flange Connection 1 Year
SKU: 4XC2-7F8W-AXSX
Price: 70.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 70.00 70.0 USD $ 70.00

Minimum order quantity: 1 Units

Key attributes

View all

Connection Size

1/2"-2"

Operating Pressure

1.6-6.4mpa(232.06-928.24psi)

Operating Temp. Range

Normal Temperature

Media

Water

Sealing Material

PTFE

Connection Type

Flange

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Model	Nominal pressure PN(MPa)	Test pressure ps(MPa)	Applicable temperature ()	Applicable media
Shell	Seal (liquid)	Seal (gas)
Q941F-16C	1.6	2.4	1.76	0.6	Teflon 150 Reinforced PTFE 180 Metal inlay sealing position polystyrene 200	Water, oil, etc.
Q941F-25C	2.5	3.75	2.75
Q941F-40C	4.0	6.0	4.4
Q941F-16P	1.6	2.4	1.76	Nitric acid
Q941F-25P	2.5	3.75	2.75
Q941F-40P	4.0	6.0	4.4
Q941F-16R	1.6	2.4	1.76	Acetic acid
Q941F-25R	2.5	3.75	2.75
Q941F-40R	4.0	6.0	4.4

Main parts material

Part Name	Valve body, side body	Ball, Stem	Packing	Sealing ring
Q941F-16C Q941F-25C Q941F-40C	WCB	2Cr13	Teflon or flexible graphite	PTFE, reinforced PTFE, para-polystyrene
Q941F-16P Q941F-25P Q941F-40P	ZG1Cr18Ni9Ti	1Cr18Ni9Ti
Q941F-16R Q941F-25R Q941F-40R	ZG0Cr18Ni12Mo2Ti	0Cr18Ni12Mo2Ti

Main outer size

PN1.6(MPa)
Path (DN)	L	D	D1	D2	B	H	Z-d	Weight	Drive device
15	130	95	65	45	14	352	4-14	LQ51
20	130	105	75	55	14	355	4-14	LQ51
25	140	115	85	65	14	360	4-14	8	LQ51
32	165	135	100	78	15	386	4-18	13	LQ5-1
40	180	145	110	85	16	394	4-18	17	LQ5-1
50	200	160	125	100	16	472	4-18	25	Q10-6 3/4
65	220	180	145	120	18	486	4-18	60	Q10-6 3/4
80	250	195	160	135	20	579	8-18	65	Q30-6 3/4
100	280	215	180	155	20	595	8-18	75	Q30-6 3/4
125	320	245	210	185	22	650	8-18	97	Q60-4 3/4
150	360	280	240	210	24	739	8-23	162	Q120-2 3/4
200	400	335	295	265	26	799	12-23	226	Q120-2 3/4
250	533	406	362	324	30	890	12-25
300	610	483	432	381	32	940	12-25

PN2.5(MPa)
Path (DN)	L	D	D1	D2	B	H	Z-d	Weight	Drive device
15	130	95	65	45	14	352	4-14	LQ51
20	130	105	75	55	14	355	4-14	LQ51
25	165	115	85	65	16	360	4-14	8	LQ51
32	178	135	100	78	18	386	4-18	13	LQ5-1
40	190	145	110	85	18	394	4-18	17	LQ5-1
50	216	160	125	100	20	472	4-18	25	Q10-6 3/4
65	241	180	145	120	22	486	8-18	60	Q10-6 3/4
80	283	195	160	135	22	579	8-18	65	Q30-6 3/4
100	305	230	190	160	24	595	8-23	122	Q30-6 3/4
125	381	270	220	188	28	650	8-25	Q60-4 3/4
150	403	300	250	218	30	760	8-25	170	Q120-4 3/4
200	502	360	310	278	34	12-25	Q200

PN4.0(MPa)
Path (DN)	L	D	D1	D2	D6	B	f	H	Z-d	Weight	Drive device
15	140	95	65	45	40	16	4	325	4-14	LQ5-1
20	152	105	75	55	51	16	4	354	4-14	LQ5-1
25	165	115	85	65	58	16	4	360	4-14	LQ5-1
32	180	135	100	78	66	18	4	386	4-18	LQ5-1
40	200	145	110	85	76	18	4	394	4-18	LQ5-1
50	220	170	125	100	88	20	4	472	4-18	17	Q10-6 3/4
65	250	180	145	120	110	22	4	599	8-18	55	Q30-6 3/4
80	280	195	160	135	121	22	4	579	8-18	60	Q30-6 3/4
100	320	230	190	160	150	24	4.5	632	8-23	70	Q60-4 3/4
125	400	280	220	188	176	28	4.5	710	8-25	122	Q120-2 3/4
150	403	300	250	218	204	30	4.5	760	8-25	Q120-2 3/4
200	550	375	320	282	260	38	4.5	12-30	170	Q200

item	value
application	General
structure	Ball.
place of origin
customized support	Odm
power	Electric
Ball Material	Stainless steel
Connection Type	Flange
media	Water
Port Size	1/2"-2"
model number	Q941F-16P
brand name	KH
Connection Size	1/2"-2"
Flow Rate	1/2"-2"
For Maximum Pipe Size	2"
Operating Pressure	1.6-6.4mpa
Operating Temp. Range	Normal temperature
Sealing Material	PTFE
temperature of media	Normal Temperature
warranty	1 years

is a well-known manufacturer specializing in the production and manufacturing of industrial valves, with over 20 years of industry experience. We provide one-stop solutions for overseas industries such as petrochemicals, gas pipelines, water treatment, healthcare, and food. Our business scope covers more than 50+countries worldwide, adhering to the principle of customer priority and only providing the highest quality products and services

1. who are we? We are based in Zhejiang,, start from 2016,sell to Northern Europe(20.00%),Western Europe(20.00%),Mid East(20.00%),Southeast Asia(20.00%),Eastern Europe(20.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Ball Valve,Butterfly Valve,Gate Valve,Check valve,Globe valve 4. why should you buy from us not from other suppliers? With over 20 years of experience in manufacturing industrial valves, we can provide one-stop solutions for valves. Our service team of over 100 people has complete industry access qualifications and relevant certification qualifications 5. what services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP; Accepted Payment Currency: USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Cash; Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Connection Size

1/2"-2"

Operating Pressure

1.6-6.4mpa(232.06-928.24psi)

Operating Temp. Range

Normal Temperature

Media

Water

Sealing Material

PTFE

Connection Type

Flange

Power

electric

Ball Material

Stainless Steel

Port Size

1/2"-2"

Flow rate

1/2"-2"

For Maximum Pipe Size

Application

General

Temperature of media

Normal Temperature

Structure

Ball.

Customized support

ODM

Warranty

1 years

Place of origin

Zhejiang, China

Model number (Specification)

Q941F-16P

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Material (Product option)

Stainless Steel

Size (Product option)

DN15-DN200

Lead time

7 days

Minimum order

1 Units
