Oil Paint Tool Equipment for Pull-off Adhesion Tester Instrument Adhesion Tester for Ndt Testing

Available for enquiry 0.0 · 0 reviews
USD

$ 1,970.00 1970.0 USD $ 1,970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Hardness Tester
Application
Adhesion Tester
Accuracy Class
High Accuracy
Voltage
Other
Protection Class
A
Warranty
1 Year
Product description

Product details

dustrial color touch screen, glove-friendly operation, Chinese & English language switchable. Adjustable screen brightness for outdoor site inspection.

2. Real-time force-time curve display, automatically capture maximum pull-off force. Test process traceable for ISO17025 laboratory audit.

3. High precision pressure sensor, accuracy ±1% FS. Automatically calculate adhesion strength after inputting dolly size (10/14/20/50mm), no manual conversion required.

4. Motorized automatic loading, pull-off rate adjustable (0.1~2MPa/s). Constant loading speed minimizes human operation error and ensures excellent repeatability.

5. Large internal memory stores test data with timestamp. Data export via USB Type-C; optional Bluetooth printer for on-site hard copy reports.

6. Self-aligning dolly ensures vertical pulling force even on uneven concrete, curved or rough coated surfaces, avoiding eccentric pulling failure.

7. Portable integrated design with rechargeable lithium battery, shockproof protective case, suitable for both laboratory quality control and field on-site testing.

8. Support MPa, kN, psi unit switch, fully compliant with ISO 4624, ASTM D4541, ASTM D7234 & GB/T 5210 standards

Frequently asked questions

This model adopts electric automatic loading system. The loading rate can be adjusted from 0.1~2 MPa/s. Constant speed loading effectively reduces human operation error, better repeatability than manual hydraulic type.

Standard compatible dolly sizes: 10mm,14mm,20mm,50mm. After inputting dolly diameter, the instrument automatically converts test result into MPa, no manual calculation needed.

Yes. The color touch screen displays real-time force-time curve and automatically captures peak pull-off force. Test records with curve can be stored and exported, convenient for ISO17025 laboratory audit

Equipped with self-aligning dolly fixture. It keeps vertical pulling force on rough, curved or uneven substrate, preventing eccentric pulling which causes invalid test results.

Built-in large capacity memory to save test data with time stamp. Data can be exported via Type-C USB flash drive. Optional Bluetooth module supports on-site wireless printing.

Switchable units: MPa, kN, psi, to satisfy domestic and overseas project requirements.

Integrated portable design with built-in rechargeable lithium battery. Full set equipped with shockproof transport case, suitable for both laboratory and outdoor site testing.
Description images

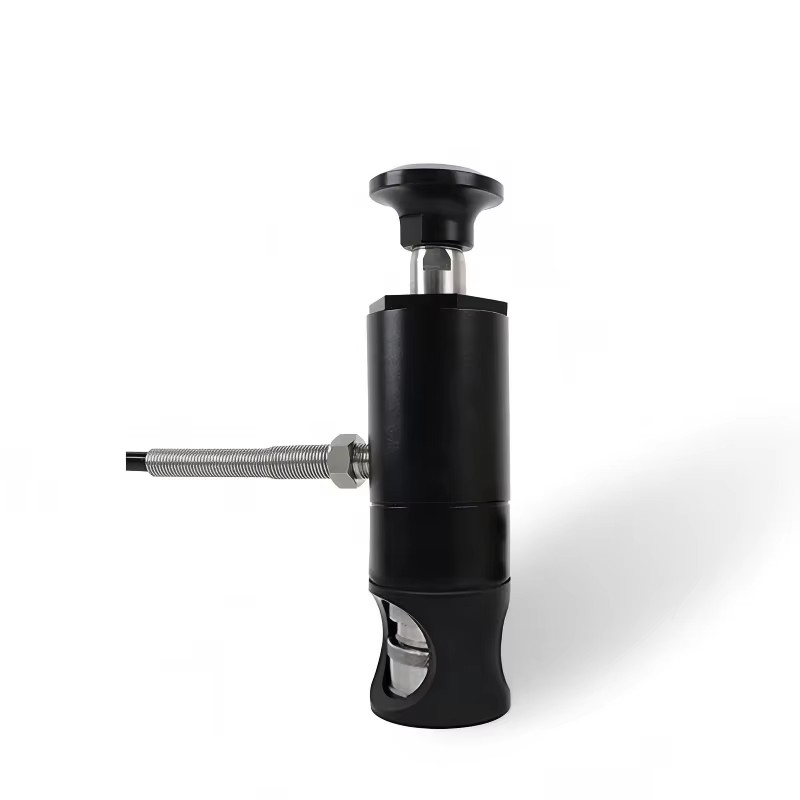

Product detail

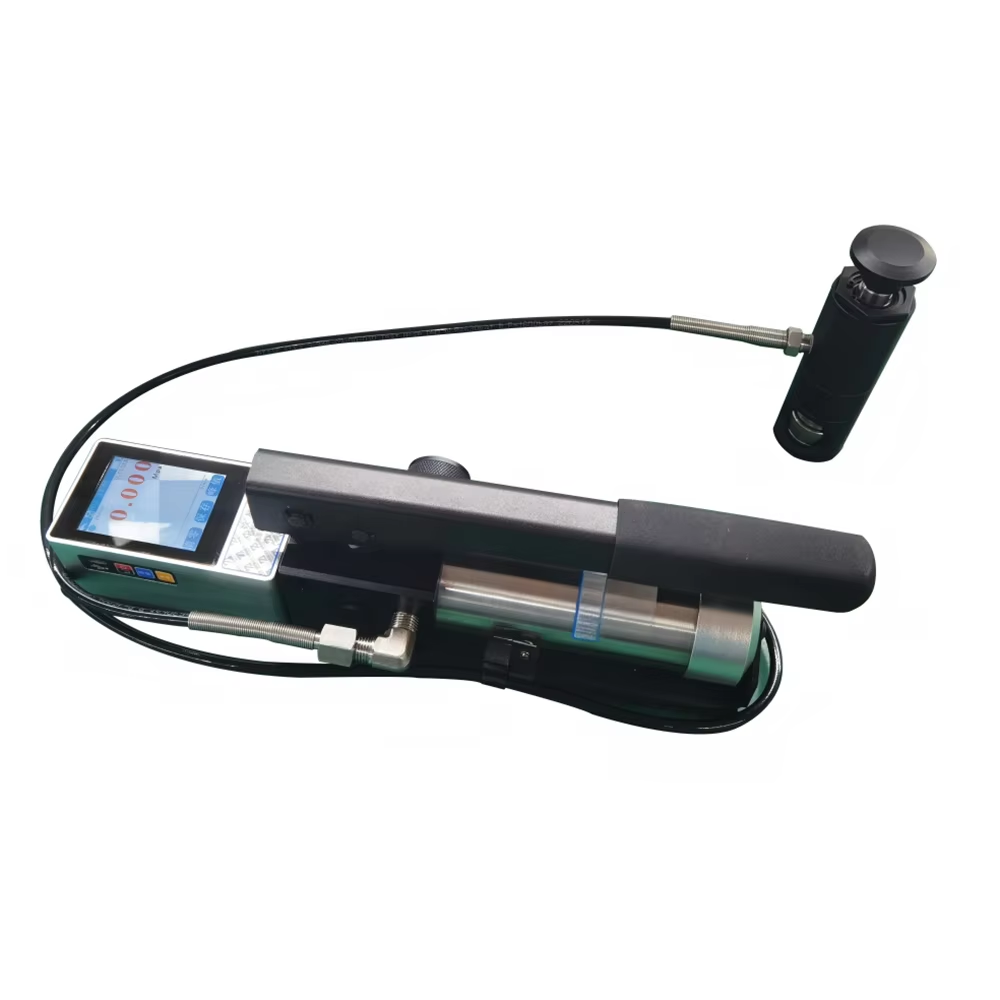

Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    5 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
Type
Hardness Tester
Application
Adhesion Tester
Accuracy Class
High Accuracy
Voltage
Other
Protection Class
A
Warranty
1 Year
Customized support
OEM, ODM
Power
10KN
Accuracy
+-1%, ±1% full scale
Place of origin
China, Shaanxi
Keyword
pull-off-adhesion-tester
Measuring Range
0-10kn
Load Min Readout
0.001kn
Dolly Sizes
20 mm (standard), 10 mm, 14 mm, 50 mm (optional)
Resolution
0.01 MPa (0.1 psi)
Main Unit Dimensions
360 mm x 75 mm x 115 mm
Main Unit Weight
2.8 kg
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
ZP-FZL-M
Lead time
5 days
Minimum order
1 Units
