100mm Drilling Diameter DTH Hard Rock Small Drill Rig 380v Strong Power with Air Compressor Gear Motor Bearing for Mining Quarry

Available for enquiry 5.0 · 1 reviews
USD

$ 29,920.00 29920.0 USD $ 29,920.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
MINING
Type
dth drill rig
Drilling Depth
30m(98.43ft)
Drilling Diameter
90-100mm(3.54-3.94in)
Power Type
Diesel
Voltage
380 V
Product description

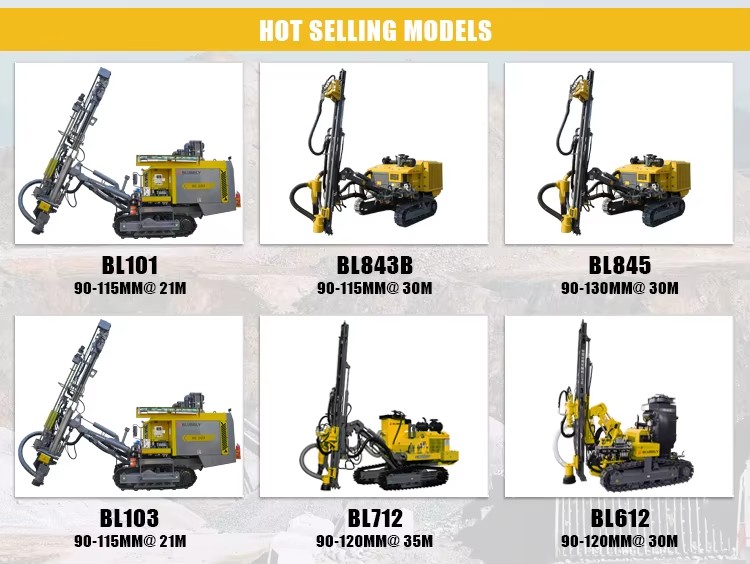

ModelBL101BL103BL845BL612BL617BL712
Drilling diameter90-115mm90-115mm90-130mm90-120mm90-100mm90-120mm
Engine powerYuChai162kwYuchai176kwYuchai176kwYuchai78KwYuchai78kwYuchai78kw
Drilling Depth21m21m30m30m30m35m
Drill Magazine60 drill rod3M drill rod60mm*2000mm64mm*3000m76mm/64mm
GuideAluminum AlloyAluminum AlloySteel Beam
Rotate Torque1700N.m(13Mpa)1700N.m(13Mpa)2700N.m1650N.m2400N.m2500N.m
Rotary Speed0-120r/min0-150 r/min70-150r/min0-150r/min0-140r/min
Advance Beam Stroke3400mmAutomatic rod change
Tramming SpeedFaster 3km/h Slower 1.5km/hFaster 3km/h Slower 1.5km/hFaster 3km/h Slower 1.5km/h0-2km/h0-3km/h
Feed FormOil Cylinder + Wire RopeOil Cylinder + Wire Rope
CompressorBOSI singe-Stage，14m³/min，16bar2-stage，BoSi，15m³/min，18bar2-stage，BoSi，15m³/min，18barNeed Mactch Air compressor 10-18 m³/min；0.7-1.8Mpa
Weight10Tons12Tons10Tons4400kg4800kg5300kg
Overall Dimension8800*2300*2600mm8800*2300*2600mm8800*2300*2600mm4500*2150*2500mm5700*2100*2300mm5550*2290*2600mm
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Usage
MINING
Type
dth drill rig
Drilling Depth
30m(98.43ft)
Drilling Diameter
90-100mm(3.54-3.94in)
Power Type
Diesel
Voltage
380 V
Core components
Bearing, Motor, Pressure Vessel, Gear, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Productivity
Place of origin
Zhejiang, China
Weight
4800 kg(10582.19lb)
Dimension (L*W*H)
5700*2100*2300mm(224.41*82.68*90.55in)
Mobility
YES
Application
Mining/Drilling
Motor power
YuChai Engine 78kw
DRILLING ROD
64mm*3000mm
Air consumption
9-15m3/min
Rotary Speed
0-150r/min
Selling Units
Single item
Single package size
570X210X230 cm
Single gross weight
4800.0 kg
Model number
BL617
Power (W) (Product option)
78KW(104.60hp)
Lead time
30 days
Minimum order
1 Units
