High Efficiency Motorized Steel Gravity Separator with High Rigidity for Iron Ore and Manganese Mineral Processing

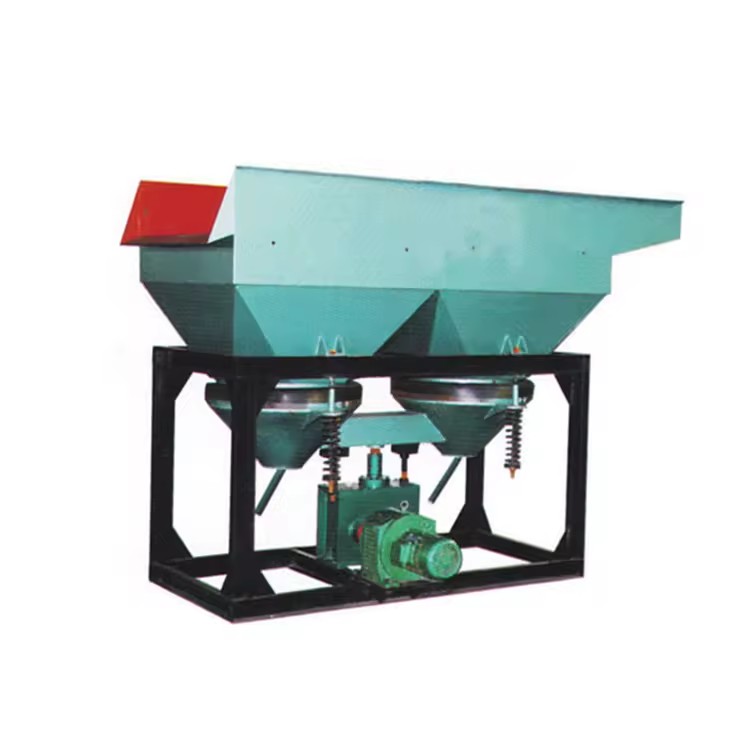

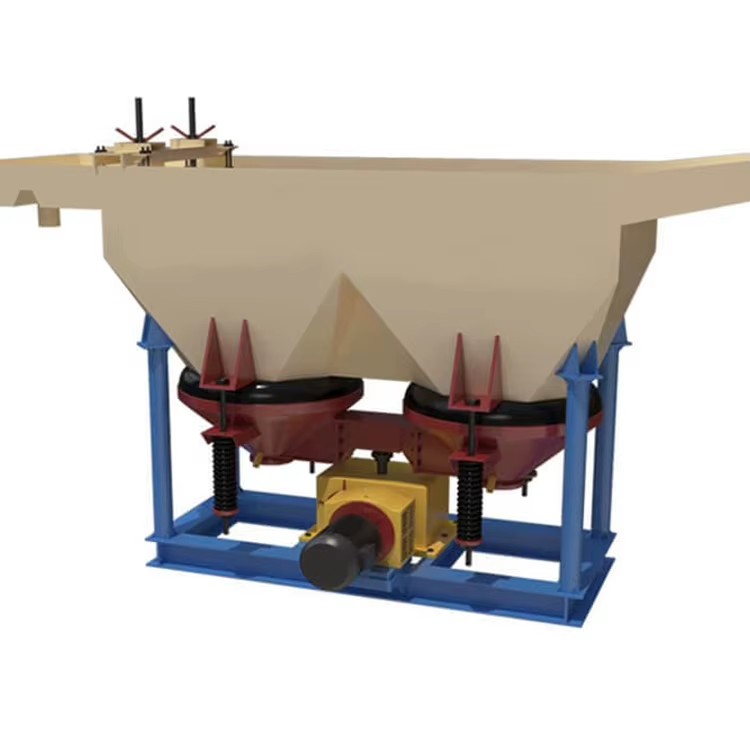

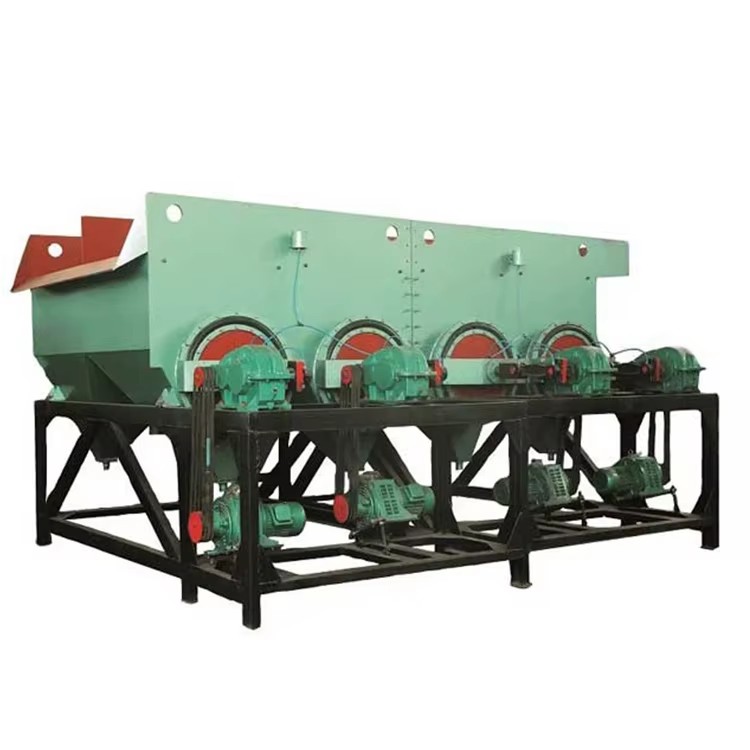

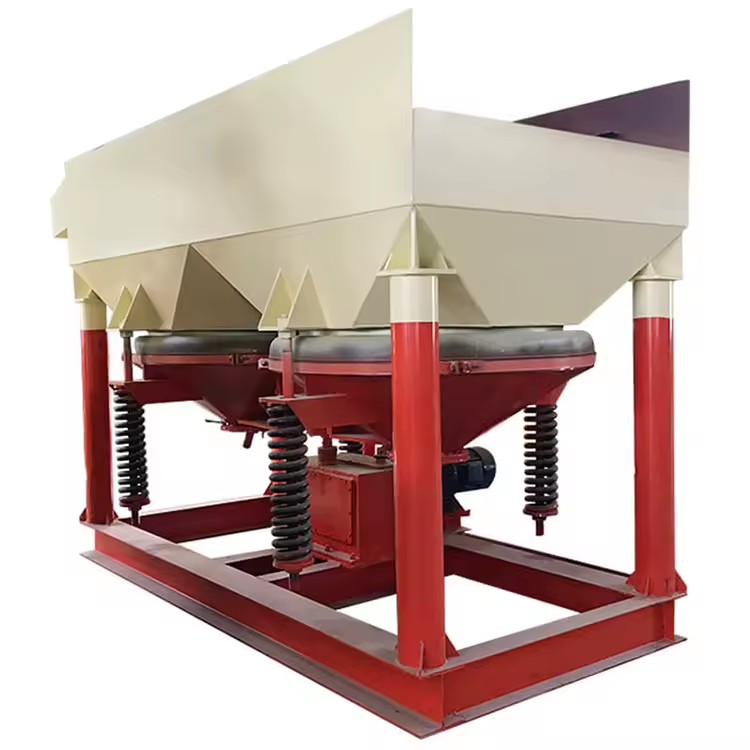

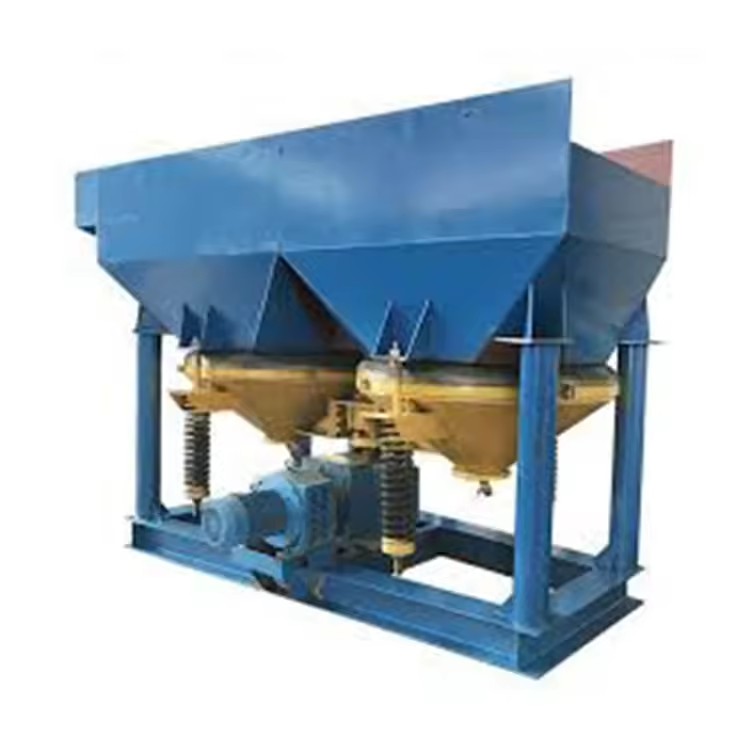

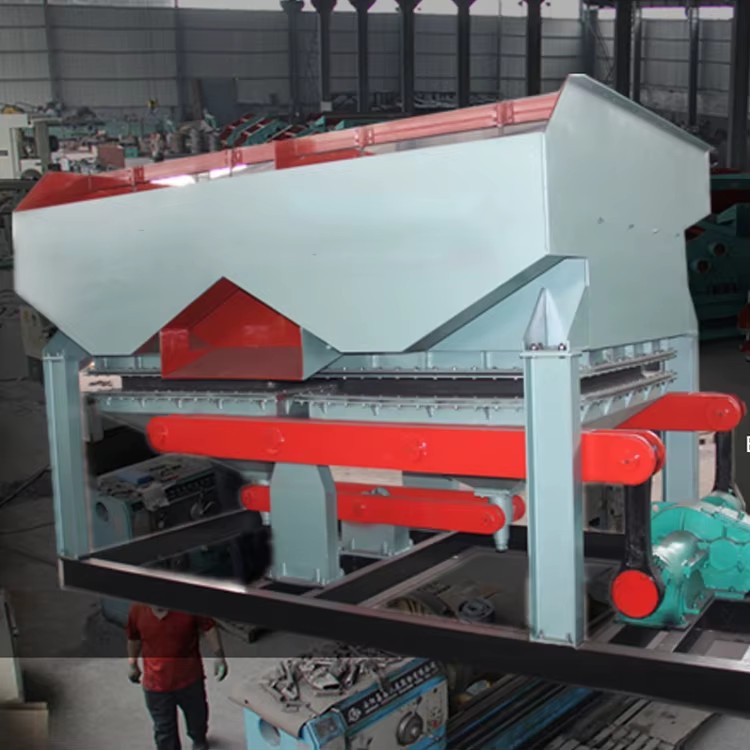

The jig plant (jig machine) belongs to gravity-based equipments, which can separate mineral based on differing of specific gravity. Saw-tooth wave jig mainly consists of three parts: main frame, driving set and jigging chamber.

Scope of Application: metal ore, such as tungsten, gold placer, etc

Production capacity: 1~25t/h

jig machine Structure

jig plant( jig machine) need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately.

The basic composition of jigger is jigging chambers, there have screens in each chamber.Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.

jig machine Advantages

High capacity of jig plant

High concentration ratio and high recovery of jig plant

The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling

Saving water 30-40% than ordinary jig of jig plant

The pulsation speed very easy adjusted by regulator

Suitable for roughing and desliming

jig machine Parameters

Marketing Center Address: Room 1106,Rongcheng Buliding,Jianshe Road,Zhengzhou
