Optional Items( Welcome to inquire )
Model

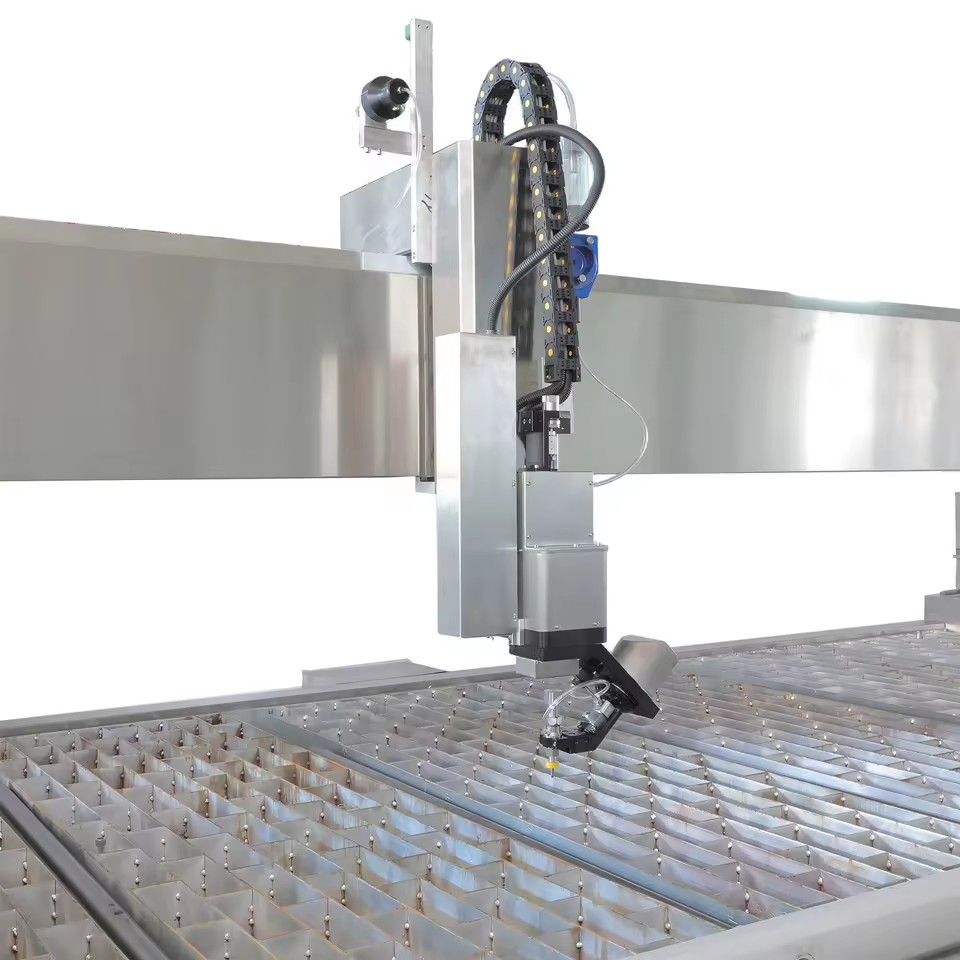

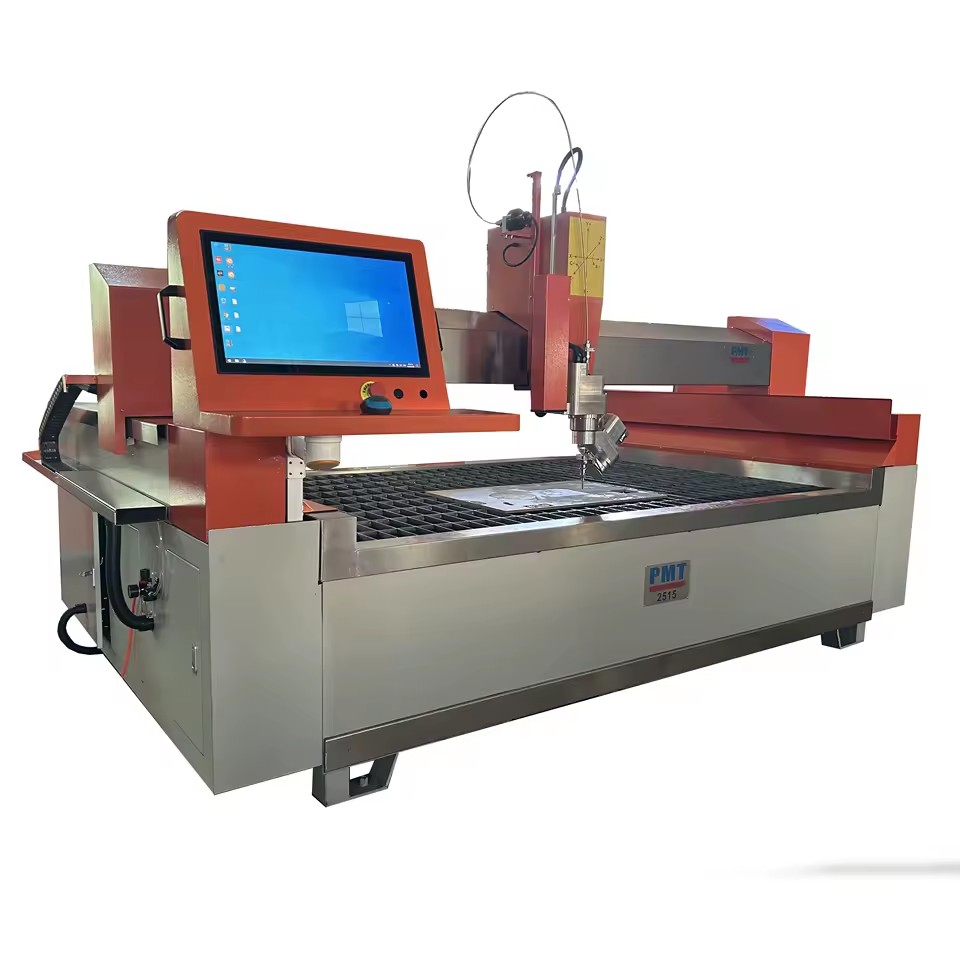

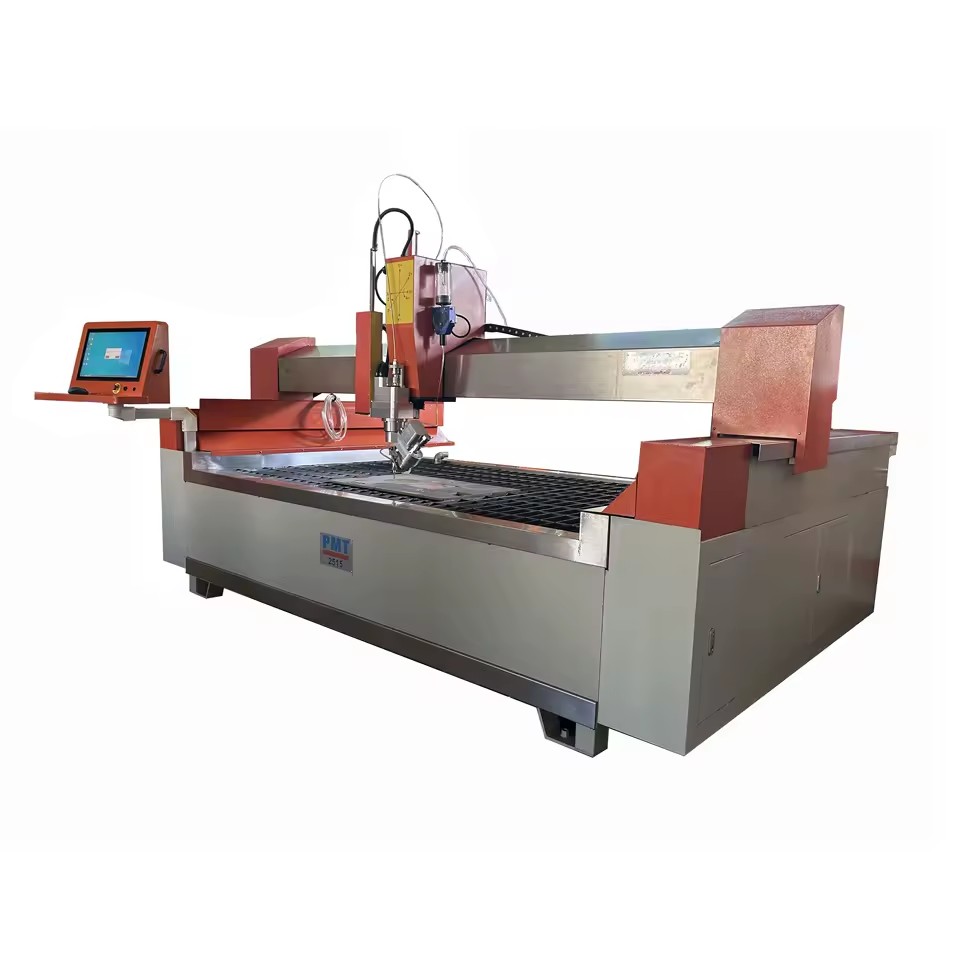

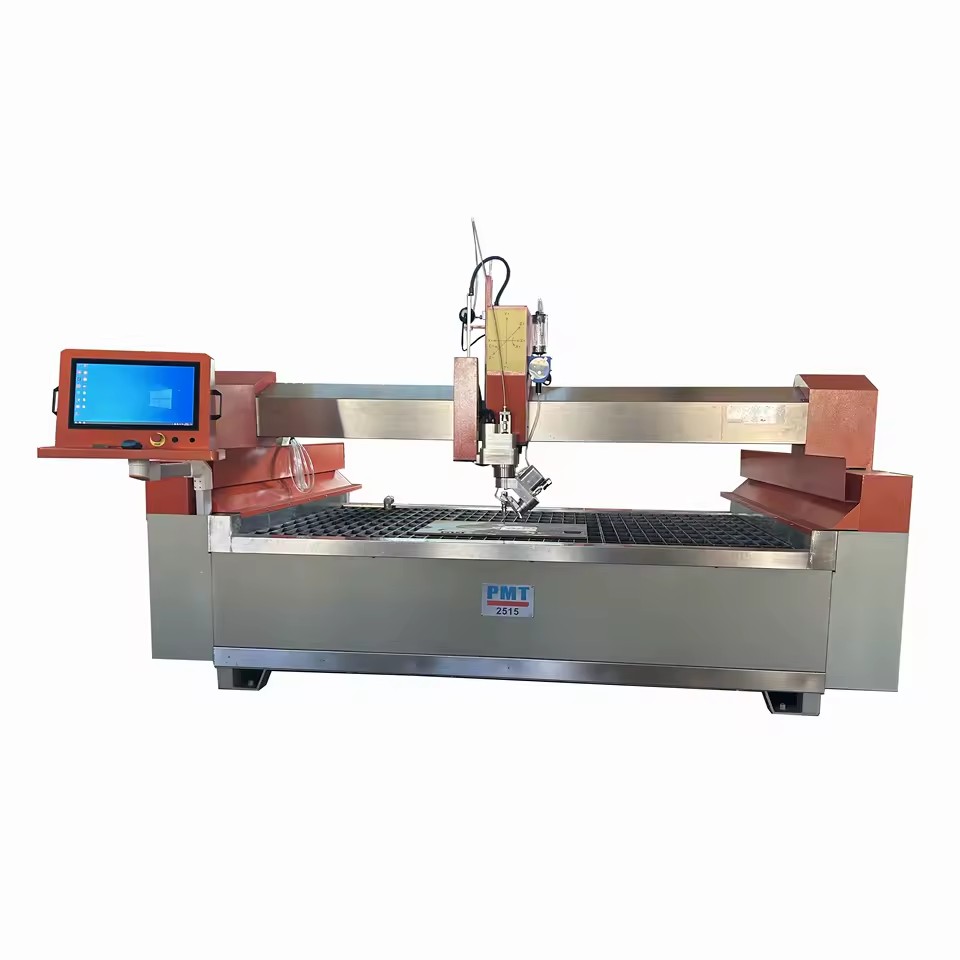

PMT High Precision 5 Axis AC Water Jet Cutter Glass Mosaic Creamic Marble Waterjet Cutting Machine
Dimension(mm)
3100*2150mm
Max. cutting range
2500*1500mm
Travel of Z axis
200mm
Servo system
Veichi
ball-screw linear-rail
ABBA/TBI, Brand
Re-positioning accuracy
±0.025mm/m
Cutting accuracy
±0.1mm
Max. running speed
15m/min
lubrication
Oil Immersion
Material
203stainless steel material tank,cast steel beam,rubber and stainless steel cover
Dimension
1800*1000*1400mm
Weight
1000kg
Power rate
37KW/50hp
Max. pressure
420Mpa/4200bar/60ksi
Working pressure
350-400Mpa
Orifice Dia
0.33-035mm
Power Supply
380V 50hz
Water supply
≥15.1L/min
Accumulator
1.5liter
Hydraulic system
Bosch Rexroth
Main motor
Siemens Brand
Dimension(L*W*H)
700*700*1350mm
80kg
Max. capacity
200kg
Max. air pressure supply
2bar
software controlling motor adjustting regulator
Eliminates abrasive waste
fine-tune your abrasive delivery
30 Precision Setting
no more over delivery of your abrasive
CNC Controller
AC220V 50/60Hz
Drawing system
Auto-CAD
Computer system
Windows 10
Function
Remoter controller
screen
Apply 19 inch LCD
Water jet software flowedge
Support DXF file and NC code
Abrasive Removal System
Without electricity (only compressed air)
incl. 3 filter fabric bags (1t each)
Full control through user-friendly, manual control
Chiller 6P
The return water temperature of the chiller should not be higher than 40 degrees.
The operation of water chiller system is through refrigeration. Agent circulation system, water circulation system and electrical automatic control system are three interrelated systems.
Chillers are divided into low-temperature chillers and normal-temperature chillers in temperature control, and the normal temperature is generally controlled within the range of 0 -35℃.
Water Treatment
Loading Tilt Table
Camera System
Anyone who operating a cnc water jet knows the time it takes setting up the material properly,making sure your parts will fit the material and more importantly,making the water jet start on the right position.Seven different types of beveling for easy part creation Teenking water jet with I-camera(from IGEMS) will helps you for pick points in a grid on the water jet table.This grid will be used to transform the image into acutal size of the water jet table.Once the image lands on the drawing,it will have the remnant sheet in live size and it is the piece of cake fitting you parts.
Controlnest System

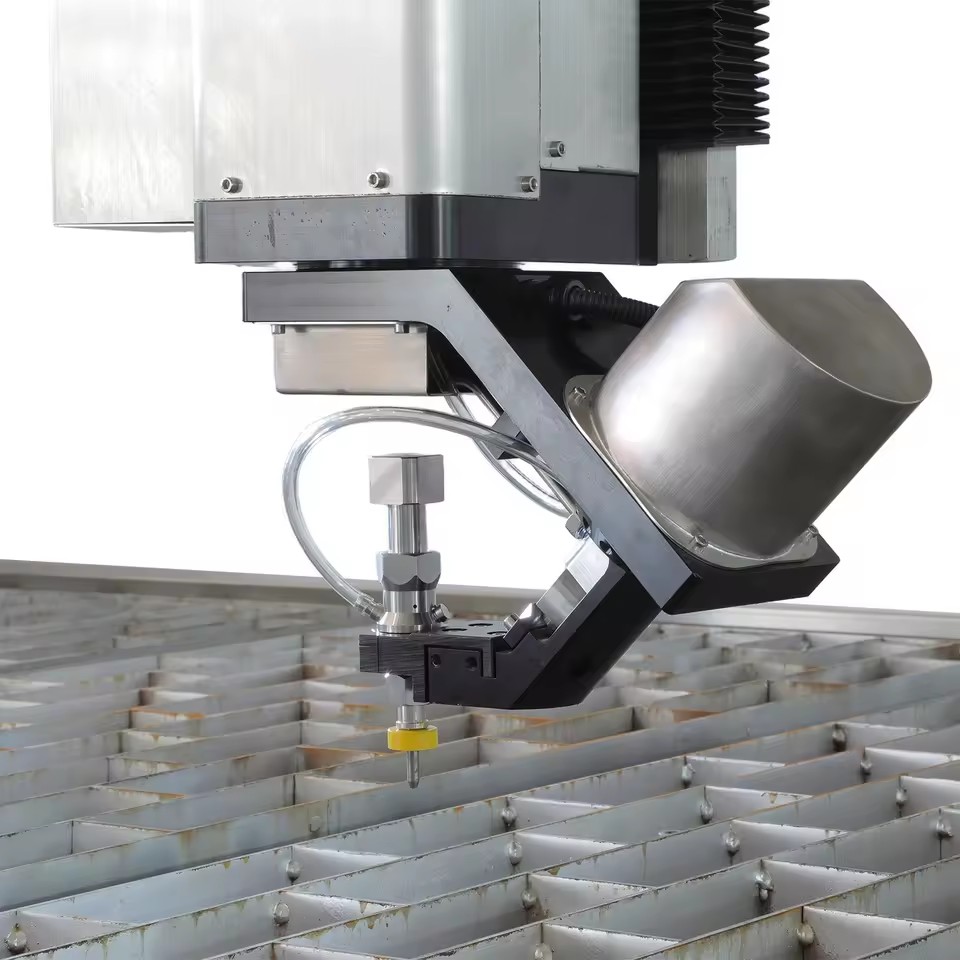

Seven different types of beveling for easy part creation
Support both and unlimited rotation for C axis
Can easily select different beveling type for each contour or each segment(Line or arc).
Can select segments to be excluded from beveling for same shape
IGEMS 5x Software
When cutting with low speed, the jet will erode more material from the bottom of the part than cutting with higher speeds. Since we are making speed compensations for corners etc. the measurement on the top/bottom of the part is different and the angle will not be straight.
You can make standard 2D parts in IGEMS and add cutting angles afterwards. It’s for fast programming with simple designs. You can also create 3D parts from a top and a bottom geometry. When using this method, you can create more complex 3D parts using IGEMS.
3D-5X can use STEP and IGES files containing surfaces and solids. It means that you can cut directly on models from your 3D system. (Inventor, SolidWorks, SolidEdge etc.) Just open the file in IGEMS and add a toolpath. 3D-5X is very easy to use compared to other 3D softwares, even on complex geometry.
3D-5X will supply you with full 5 axis information, meaning X, Y and Z linear positions and A, B and C information for the 5 axis kinematics.
Working Table

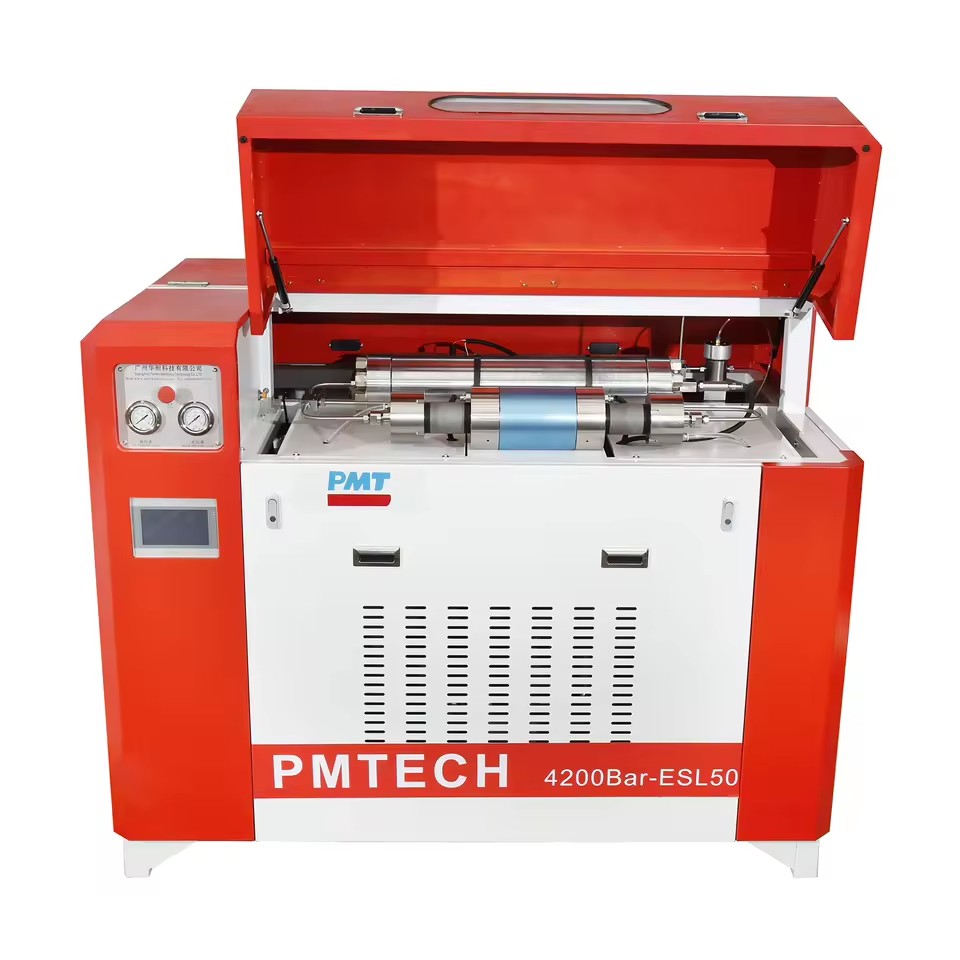

4200bar-ESL50 High Pressure Pump
Abrasive Feeding System
Water jet software
flowedge
Exhibition
Optional Items(
Welcome to inquire
Helping to work efficiently and effectively
The operation of water chiller system is through refrigeration. Agent circulation system, water circulation system and electrical
automatic control system are three interrelated systems.
Chillers are divided into low-temperature chillers and normal-temperature chillers in temperature control, and the normal
temperature is generally controlled within the range of 0 -35℃.
Anyone who operating a cnc water jet knows the time it takes setting up the material properly,making sure your parts will fit the material and more importantly,making the water jet start on the right position.Seven different types of beveling for easy part creation
Teenking water jet with I-camera(from IGEMS) will helps you for pick points in a grid on the water jet table.This grid
will be used to transform the image into acutal size of the water jet table.Once the image lands on the drawing,it will have the
remnant sheet in live size and it is the piece of cake fitting you parts.
