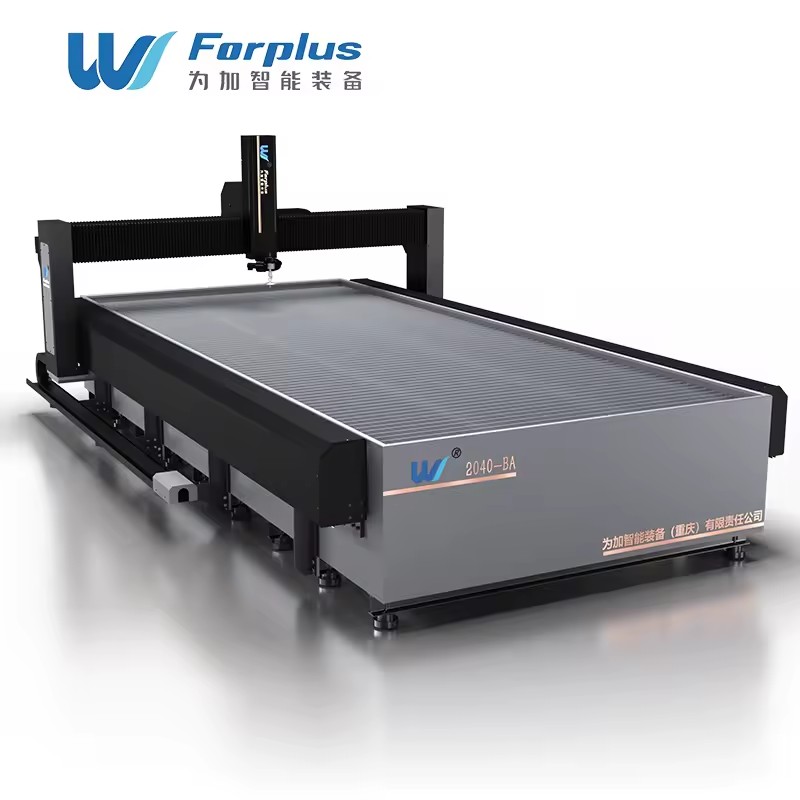

Cheap Price Water Jet Cutter Efficient Cutting of Marble Tile Ceramic and Leather

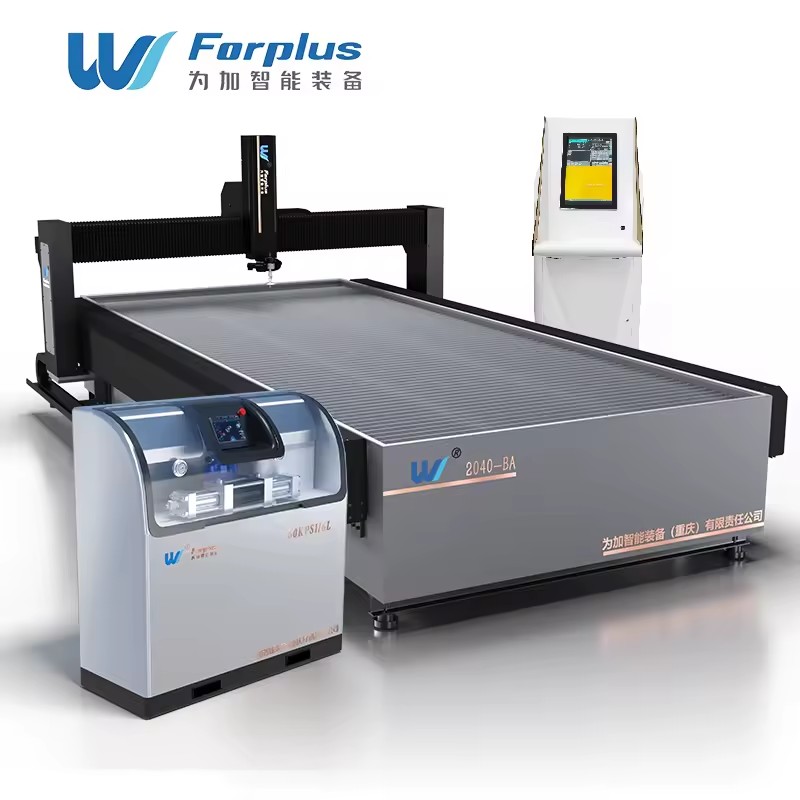

Forplus Standard XY Waterjet Cutting Machine

X /Y/Z travel

2000mm/3000mm/150mm

Machine structure

Gantry structure

Transmission mode

Ball screw,linear guide rail

Positioning accuracy

±0.05mm

Re-positioning accuracy

Max no-load speed

10M/min

model

Foplus standard cutting platform

Core parameters

X travel

1500mm-4000mm

Y travel

1500mm-18000mm

Z travel

150mm-1000mm

Optional items

Abrasive feeding system

continuous abrasive feeding module

Abrasive removal system

spiral-flow type auto abrasive removal system

Cutting head assembly

standard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)

Water tank platform

linear grid,corrugated grid,honeycomb (optional)

Height measurement

laser-measurement

Technical parameters

Power requirement of electric cabinet

single phase 220V 50HZ

Compressed air pressure

≥5bar

Compressed air caliber

φ12mm

Products Parameters

Products Description

ForPlus 15/20/30 series Waterjet cutting machines, as classic waterjet XY platforms, are built to cut with precision, efficiency and reliability.

Details Images

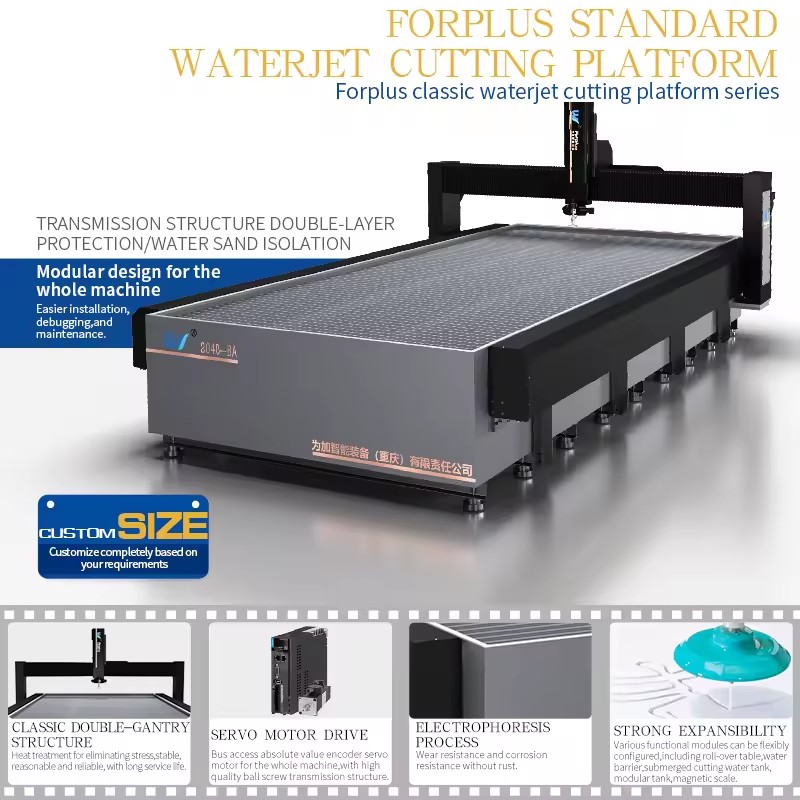

Classic Double-Gantry Structure

Heat treatment for eliminating stress. Robust and reliable, with long service life.

Servo Motor Drive

Equipped with a bus absolute encoder servo motor and a high-quality ball-screw transmission system.

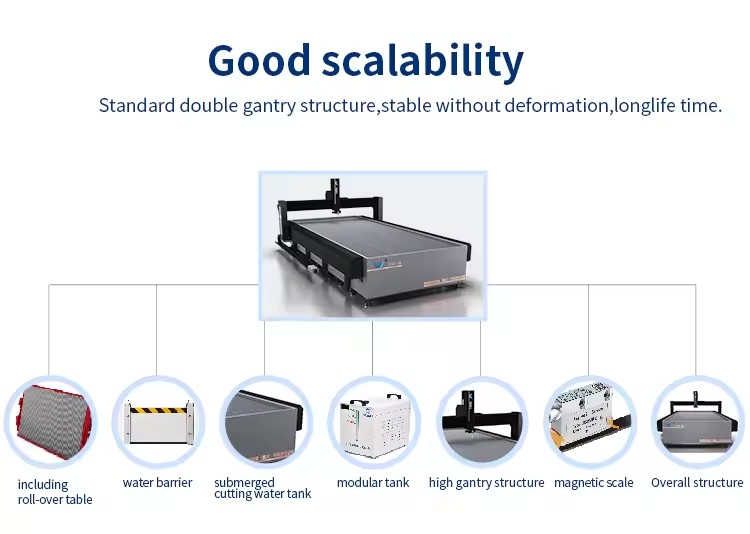

Variety of Add-ons

Add-ons to your needs - roll-over table, water shield, submerged cutting water tank,modular tank, magnetic scale etc..

5-Axis Cutting Head (Optional)

Waterjet cutting head is one of key sub-systems of waterjet machine, as itconvert high pressure water flow to high speed cutting jet with consistencyCutting head has a lot more to do with the cutting performance(precision, cutspeed and up-time).

Controlled axes

(Centering Ac 5-axis) 5-axis linkage (AC)

Control accuracy

A, B= 5 arc seconds

Control angle:A

=±75°,C= +360°

30000-55000psi

Black Panther Series High Pressure Pump

60000-90000psi

1+N Pump

Pump for Water-jet-Guided Laser

Automatic Continuous Abrasive Metering & Feeding System

Abrasive and Water Separation System
