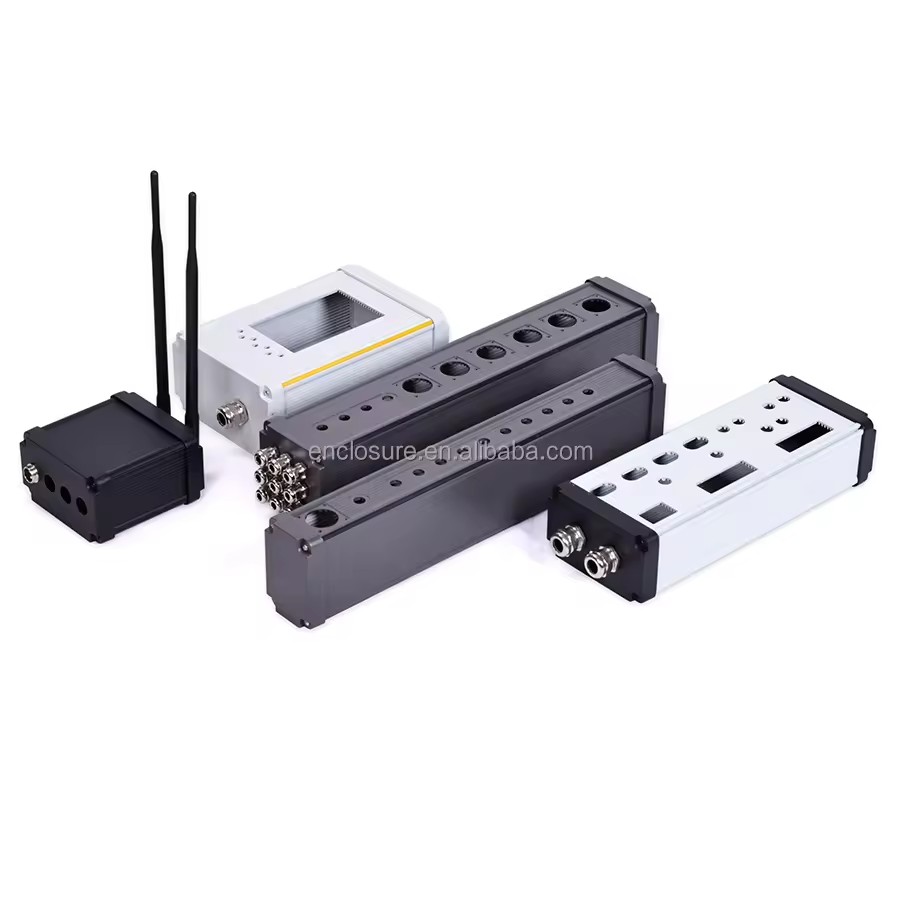

Custom Electronics Aluminum Extruded Enclosure Heat-sink Enclosure 35B-48

Name: Custom Electronics Aluminum Extruded Enclosure Heat-sink Enclosure 35B-48
SKU: 4DBF-3RYY-3PH5
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Switch Box

IP level

IP52-IP65

External Size

48*20mm to 241*171mm(W x H)

Place of origin

Zhejiang, China

Model number (Specification)

35 Series

Length

Custom Length

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

35G-35H-35L series

Model No.	External size in mm (LxWxH)	Internal size in mm (WxH)	Model No.	Internal size in mm (WxH)	Internal size in mm (WxH)

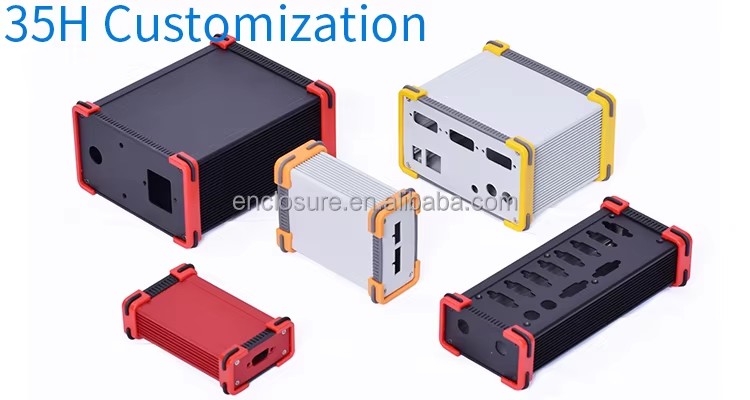

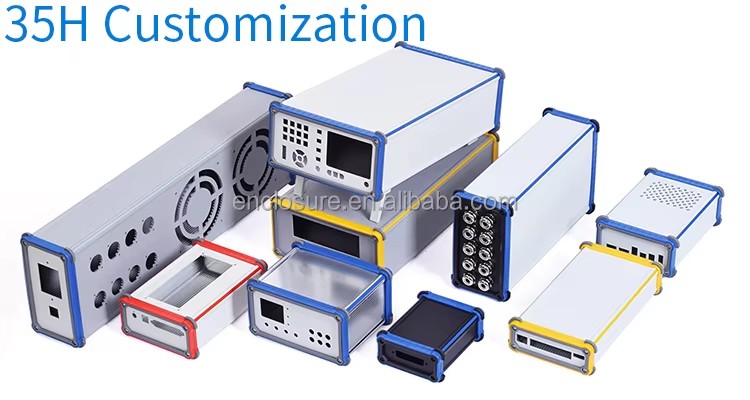

35G-1	Tx87x49	68x33	35H-6	Tx113x62	103.7x56.8
35G-2	Tx87x60	68x44	35H-7	Tx85x85	73.6x73.6
35G-3	Tx102x49	77x33	35H-8	Tx105x105	93.6x93.6
35G-4	Tx102x60	77x44	35H-9	Tx145x80	133.6x68.6
35G-5	Tx102x70	77x55	35H-10	Tx175x90	163.6x78.6

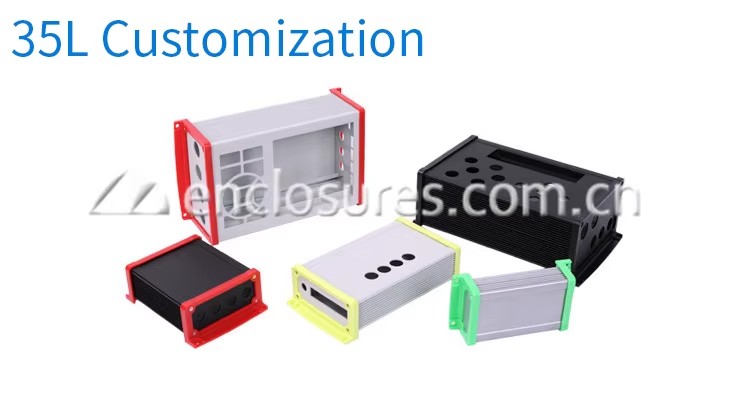

35G-6	Tx140x48	121x32	35L-1	Tx81x45	68x33
35G-7	Tx140x65	116x34	35L-2	Tx81x56	68x44
35G-8	Tx140x82	116x40	35L-3	Tx96x45	77x33
35G-9	Tx70x37	53x22.4	35L-4	Tx96x56	77x44
35G-10	Tx176x59	N/AxN/A	35L-5	Tx96x67	77x55
35H-1	Tx61x42	52x32.6	35L-6	Tx134x46	121x32
35H-2	Tx82x42	78x32.6	35L-7	Tx134x62	116x34
35H-3	Tx82x54	78x44.8	35L-8	Tx134x79	116x40
35H-4	Tx113x42	103.7x32.6	35L-9	Tx66x34	53x22.4
35H-5	Tx113x54	103.7x44.8

35M-35N series

Model No.	External size in mm (LxWxH)	Internal size in mm (WxH)
35M-1	Tx57x32	48.5x27
35M-2	Tx106x32	97.5x26.5
35M-3	Tx108x42	97x36
35M-4	Tx138x34	127x27.8
35M-5	Tx169x52	158x45.8
35M-6	Tx169x82	160x75.4
35M-7	Tx192x74	183x67
35N-1	(T+11.5)x57x32	48.5x27
35N-2	(T+11.5)x106x32	97.5x26.5
35N-3	(T+11.5)x108x42	97x36
35N-4	(T+11.5)x138x34	127x27.8
35N-5	(T+11.5)x169x52	158x45.8
35N-6	(T+11.5)x169x82	160x75.4
35N-7	(T+11.5)x192x74	183x67

35I-35J-35K series

Model No.	External size in mm (LxWxH)	Internal size in mm (WxH)	Model No.	External size in mm (LxWxH)	Internal size in mm (WxH)
35I-1	Tx88x55	78x44.8	35J-4	Tx104x104	93.6x93.6
35I-2	Tx114x67	103.7x56.8	35J-5	Tx144x79	133.6x68.6
35I-3	Tx89x89	73.6x73.6	35J-6	Tx175x89	163.6x78.6
35I-4	Tx104x104	93.6x93.6	35K-1	Tx95x62	78x44.8
35I-5	Tx144x79	133.6x68.6	35K-2	Tx120x73	103.7x56.8
35I-6	Tx175x89	163.6x78.6	35K-3	Tx90x90	73.6x73.6
35J-1	Tx88x55	78x44.8	35K-4	Tx110x110	93.6x93.6
35J-2	Tx114x67	103.7x56.8	35K-5	Tx150x84	133.6x68.6
35J-3	Tx89x89	73.6x73.6	35K-6	Tx181x95	163.6x78.6

35A - 35B - 35C series

Model No.	External size in mm (LxWxH)	Internal size in mm (WxH)	Model No.	External size in mm (LxWxH)	Internal size in mm (WxH)
35A-1	Tx90x42	85x37	35B-27	Tx95x95	91x91
35A-10	Tx160x90	157x85	35B-28	Tx95x47	91x43
35A-11	Tx240x90	234x81	35B-31	Tx67x15	64x13
35A-12	Tx214x136	209.5x126	35B-32	Tx117x63	111x57
35A-13	Tx225x150	220x140	35B-33	Tx179x63	173x57
35A-14	Tx65x42	60x37	35B-34	Tx48x20	46x17
35A-15	Tx90x65	81x60	35B-35	Tx83x33	73x27
35A-16	Tx136x52	127x47	35B-36	Tx112x38	88x33
35A-17	Tx150x57	141x52	35B-37	Tx63x27	44x23
35A-18	Tx104x85	93x78	35B-38	Tx95x27	64x23
35A-19	Tx160x105	158x92	35B-39	Tx95x54	64x50
35A-2	Tx150x75	141x70	35B-4	Tx119x63	114x57
35A-20	Tx194x155	180x149	35B-40	Tx131x27	100x23
35A-21	Tx197x166	187x157	35B-41	Tx131x54	100x50
35A-3	Tx90x90	85x85	35B-42	Tx131x82	100x78
35A-4	Tx136x136	131xT	35B-43	Tx75x27	44x23
35A-6	Tx150x150	143x142	35B-45	Tx75x37	42x33.3
35A-7	Tx136x64	131x60	35B-46	Tx58x39	47.7x28
35A-8	Tx160x42	156x37	35B-47	Tx84x39	73.5x28
35A-9	Tx240x42	234x37	35B-48	Tx84x51	73.5x40.2
35B-1	Tx119x38	114x32	35B-49	Tx110x39	99.1x28
35B-10	Tx160x70	157x65	35B-50	Tx110x51	99.1x40.2
35B-13	Tx106x36	98x30	35B-51	Tx110x63	99.1x52.2
35B-14	Tx61x26	53x22	35B-52	Tx80x80	69x69
35B-15	Tx61x37	53x33	35B-53	Tx100x100	89x89
35B-16	Tx61x48	53x44	35B-54	Tx140x75	129x64
35B-17	Tx76x26	68x22	35B-55	Tx170x85	159x74
35B-18	Tx76x37	68x33	35B-7	Tx160x45	155x39
35B-19	Tx76x48	68x44	35C-1	Tx116x46	157x32
35B-20	Tx91x37	77x33	35C-2	Tx245x46	235x24
35B-21	Tx91x48	77x44	35C-3	Tx162x90	157x80
35B-22	Tx91x59	77x55	35C-4	Tx245x95	235x74
35B-23	Tx73x21	70x19	35C-5	Tx198x34	158x28
35B-24	Tx129x37	121x32	35C-6	Tx83x33	73x27
35B-25	Tx129x54	116x34	35C-7	Tx112x38	88x33
35B-26	Tx129x70	116x40	35F-1	Tx105x55	100.8x27

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Type

Switch Box

IP level

IP52-IP65

External Size

48*20mm to 241*171mm(W x H)

Place of origin

Zhejiang, China

Model number (Specification)

35 Series

Length

Custom Length

Material

Extruded aluminum alloy

Surface Treatment

Clear Anodizing, sand blasting anodizing, or spray painting

Other Characteristics

EMI shielding, heat dissipation

Color

custom

OEM

Supprot

Customization

Supprot

Packaging Details

packed in cartons, seaworthy export standard in strong carton suitable for international transportation

Port of dispatch

ningbo

Selling Units

Single item

Single package size

20X20X10 cm

Single gross weight

0.5 kg

Supply Ability

1000 pieces per Day

Minimum order

1 Units
