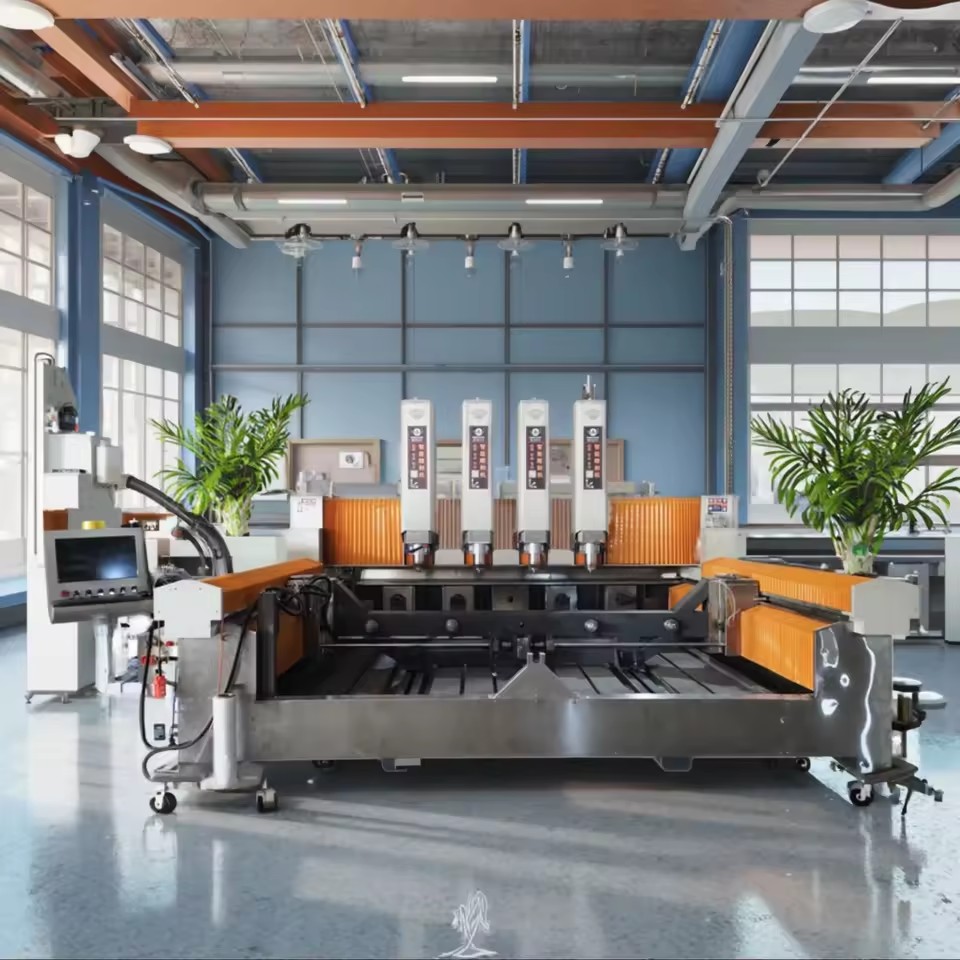

JK-3220A Marble Granite CNC Router Bridge Saw Polishing 4 Axis Tile Cutting Water Jet Stone Cutter Machine Motor

TECHNICAL DATA

Model No.

JK1512

JK1525

JK-1825

JK-1325

Workbench dimension

150*120cm

150*250cm

180*250cm

130*250cm

Number of working head

1 pcs(customizable)

Gantry height

410 mm

Feeding height

≤ 360 mm(customizable)

Spindle power

3.7 /4.5 / 5.5 (customizable)

Spindle rotating speed

6000-24000 rpm/min

Max. moving speed

30000 mm/min

Diameter of engraving tool

ø1-16 mm

Positioning precision

+/- 0.03 mm

Repeat positioning accuracy

+/- 0.02 mm

Command code

G code

Driving system

Step / Hybrid servo / Servo (customiable)

Cooling system

Water cooling

Gross power

12

Gross weight

1760 kgs

Dimensions (L x W x H)

270x225x200cm

350x225x200cm

350x255x200cm

230x325x200cm

Stone CNC Machine

3D CNC Router

Rotary CNC Router

CNC Machining Center

Stone Carving Machine

Multi-head CNC Router

Wire Saw Machine

Stone Cutting Bridge Saw

More>>

Products Description

JH-3220A Marble Granite Cnc Router Edge Saw Polishing 4 Axis Tile Cutting Water Jet Stone Cutter Machine

CNC Stone Carving Machine

equipped with NCstudio CNC control system, is a reliable and versatile machine for engraving, drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass. It's also workable for die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc.

Main Features

1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate. 2) Break to rusume function. Continue carving from break point after power resuming from failure. 3) Compatible with Artcam JD Paint CAM software and other software programs. 4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy.. 5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption. 6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform. 7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.

Machines with different quantity head are customizable

We are specialized in the production of stone engraving machine factory!

Any customization needs

Please

Application

* Bas-reliefs, * Line engraving Cutting, Edge inversing * Funeral tablets/gravestones, Milestones * commemorative plates * Furniture, Fireplace. * Countertops, Sink hole, grooving, shower trays

Details Images

Control system · CNC

Brand

NCStudio

Original

NCstudio CNC system, large screen display, easier to operate and maintain, more humanized design

Water-cooling Spindle

Power

3.5/4.5/5.5 (customizable)

Rotating Speed

Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed

and safeguard stability for longtime work.

Guide Rail, Ball screw

Origin

High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality

engraving.

DSP A11 Control

This machine adopts a DSP A11 controlsystem, which is more convenient and easy to operate.

Electronic Components

Using the standard components with CE cetification, such as Schneider company.

Product packaging

Company Profile

is a professional CNC machines manufacturer dedicated to the development and research of CNC stone router, CNC metal engraving machines, CNC wood router, and laser machines. Professional design solutions meet various of customized needs from customers, and are committed to the research and development, production and sales of high-end stone CNC router, four-axis and five-axis stone engraving machines.

The professionally matched design solution achieves a perfect combination of performance, precision and appearance, and various types and specifications of equipment can meet the needs of different customers. Through computer control and software and hardware system integration, the CNC machines developed and produced by our company are widely used in stone art processing, three-dimensional animals and three-dimensional Buddha statues, jade processing, large-scale casting, mold modeling, glass carving, metal processing, plasma cutting, Copper and aluminum mold manufacturing, ceramic tile carving, real estate model, packaging and printing industry, computer graphics, handicraft production, furniture stamping, interior decoration, wave plate processing, seal, sign nameplate production, clothing, leather, embroidery, advertising art, plastic processing, Wood processing, and other industries.

Our company's equipment strictly implements ISO9001 quality management system certification and European CE certification standards. We have exported our machines to many countries, for example,,,,,,,, Korea,,,,,,,,,,,,,, etc. Our good quality machines and perfect after-sales service have gotten the positive feedback and support from customers.

FAQ

Q1: How do I get the best price?

A: As you may know,the different type of CNC machine apply to the different pricre.

Q2: What machine suits me best?

A: Different material and the different model apply to the different machine. Please tell us what’s material you want to cutting or engraving? And what’s MAX size of carved material? Then we will recommend the most suitable model and the best price for you.

Q3: In of failure,how to do?

A: Call us · our enginers are online for 24-hours,and ready to serve you. Replacement of damaged parts for free · For more information,please

Q4: Are you trading company or manufacturer?

A: We are factory.

Q5: How long is your delivery time?

A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
