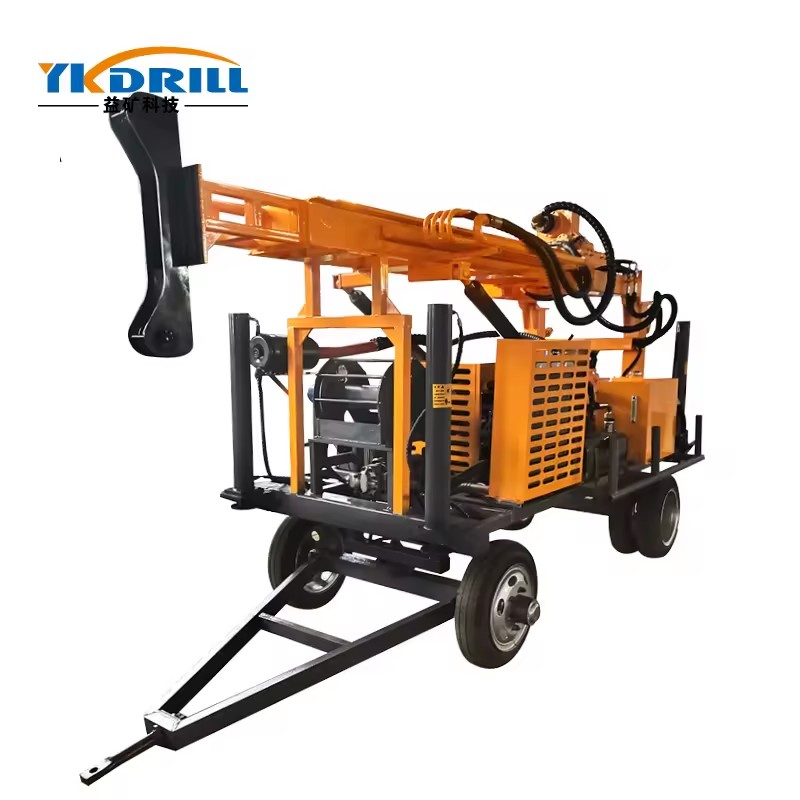

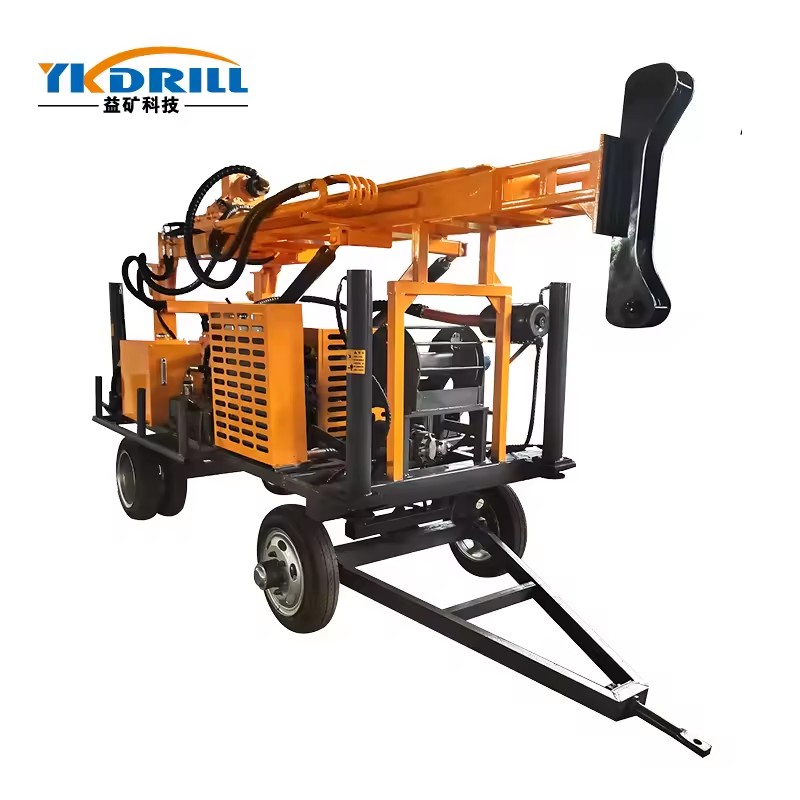

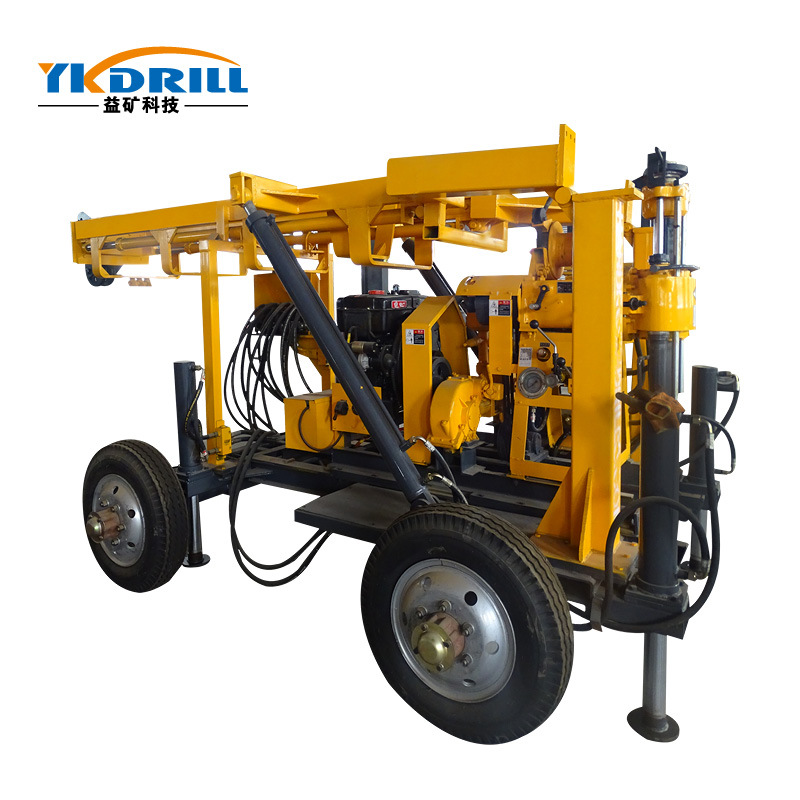

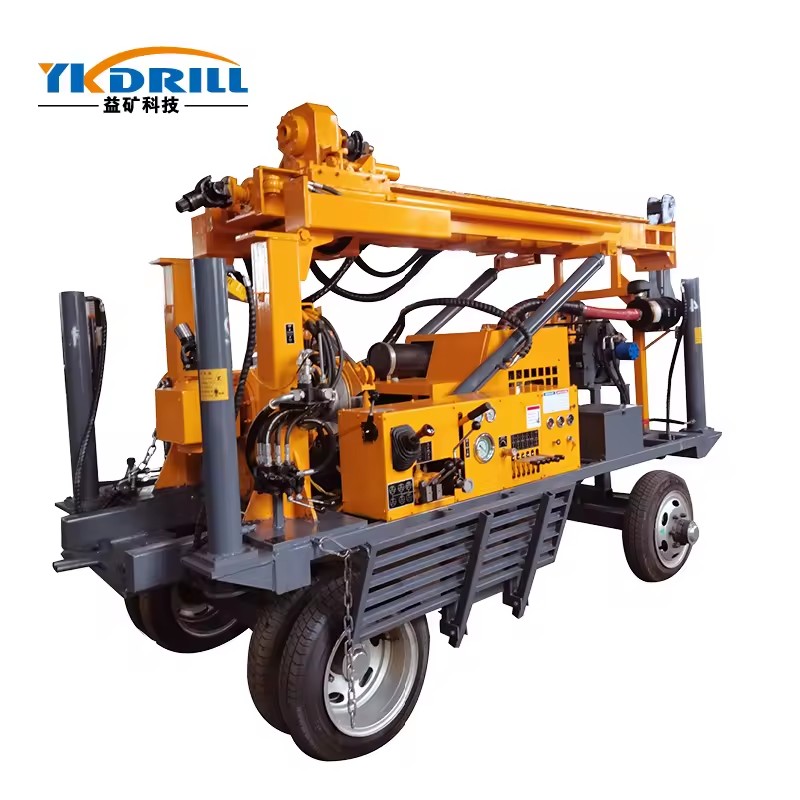

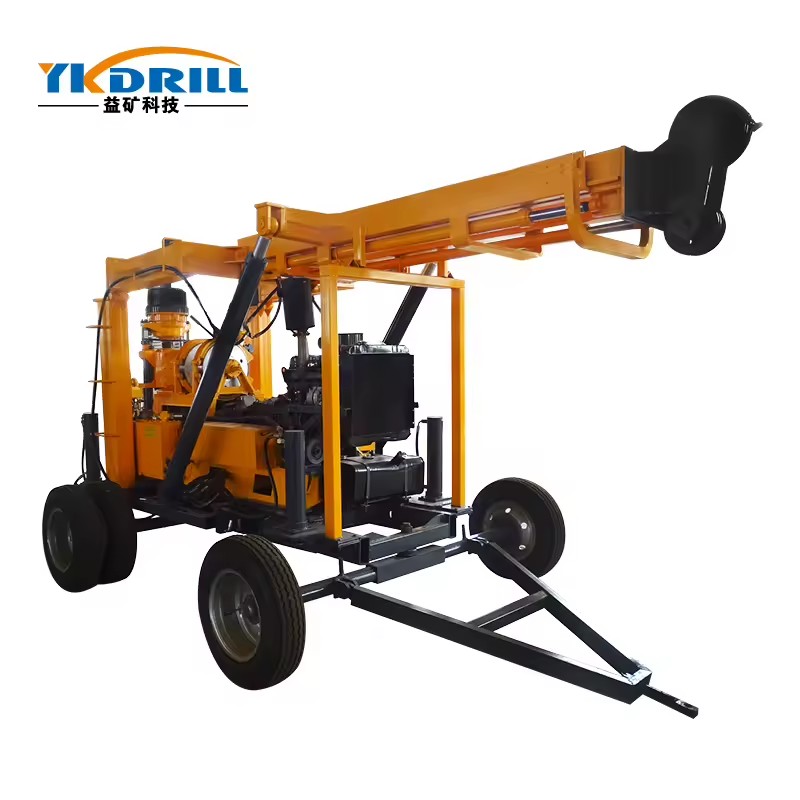

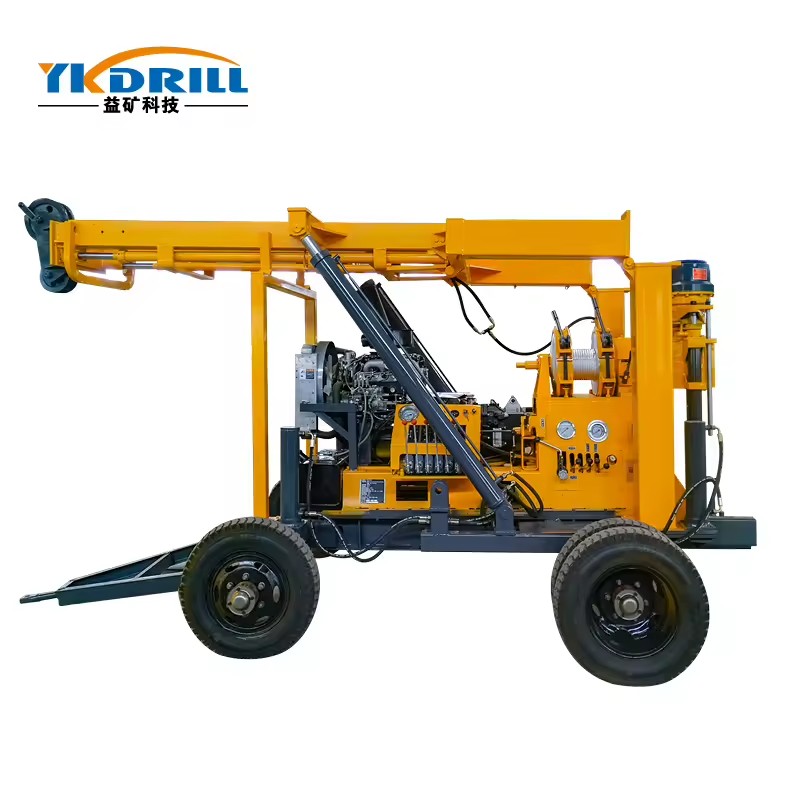

XYX-3 Mine Drilling Rig water well drill rig price

Available for enquiry 0.0 · 0 reviews
USD

$ 38,140.00 38140.0 USD $ 38,140.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
drill rig
Material
Carbide
Use
Well Drilling
Processing Type
Forging
Machinery test report
Provided
Machine type
Drilling Equipment
Product description

Product Application

1, the drilling rig is suitable for water well drilling, prospecting, geophysical exploration, roads and buildings and other exploration and blast hole drilling projects. 2, It can be chosen according to different alloy drill bit and PDC drill bits and so on. 3, It can drill 2-9 grade sandy clay and rock etc.

Main feature

1, It has hydraulic automatic feed mechanism structure, improves drilling efficiency, reduces labor intensity. 2, It adapts the ball chunk mechanism instead of the card holder,it can implement non-stop down the lever, easy to operate, safe and reliable. 3, Winch contains cage, forms a duplex structure supporting the star wheel, it can withstand strong impact. 4, Four groups of vertical box bearing retainer to ensure that the rotation has sufficient rigidity to deal with complicated geological conditions gravel layer, gravel layer, etc. 5, This machine adopts taper clutch national patent technology, it has transmission torque, easy operation, maintenance of the salient features.

Technical parameters
Max drill depth600m
Hole diameterφ75-φ300mm
End Hole diameter75mm
Kelly diameter53/59*4200mm
Drill rod diameterφ50、φ60mm
Drill hole angle90°～75°
Power(Diesel engine)15/2200kW/r/min
Weight of structure /size1150kg/2700*950*1770
Spindle
Spindle speed32-1057r/min
Spindle stroke600mm
Winch
Max lifting capacity30kN
Single line lifting speed0.5-1.9m/s
Roll diaφ300mm
Wirerope dia.φ13mm
Winch roll capacity65m
Drill tower
Rated load5t
Useful Height6m
Tower leg dimensionφ89mm
Mud pump
ItemBW-250
Flow250L/min
Max press2Mpa
stroke93T/min
Inlet tube dia.φ76mm*4.5m
Outlet tube dia.φ51mm*6m

DTH drill bit

91.8% Response Rate

Description images

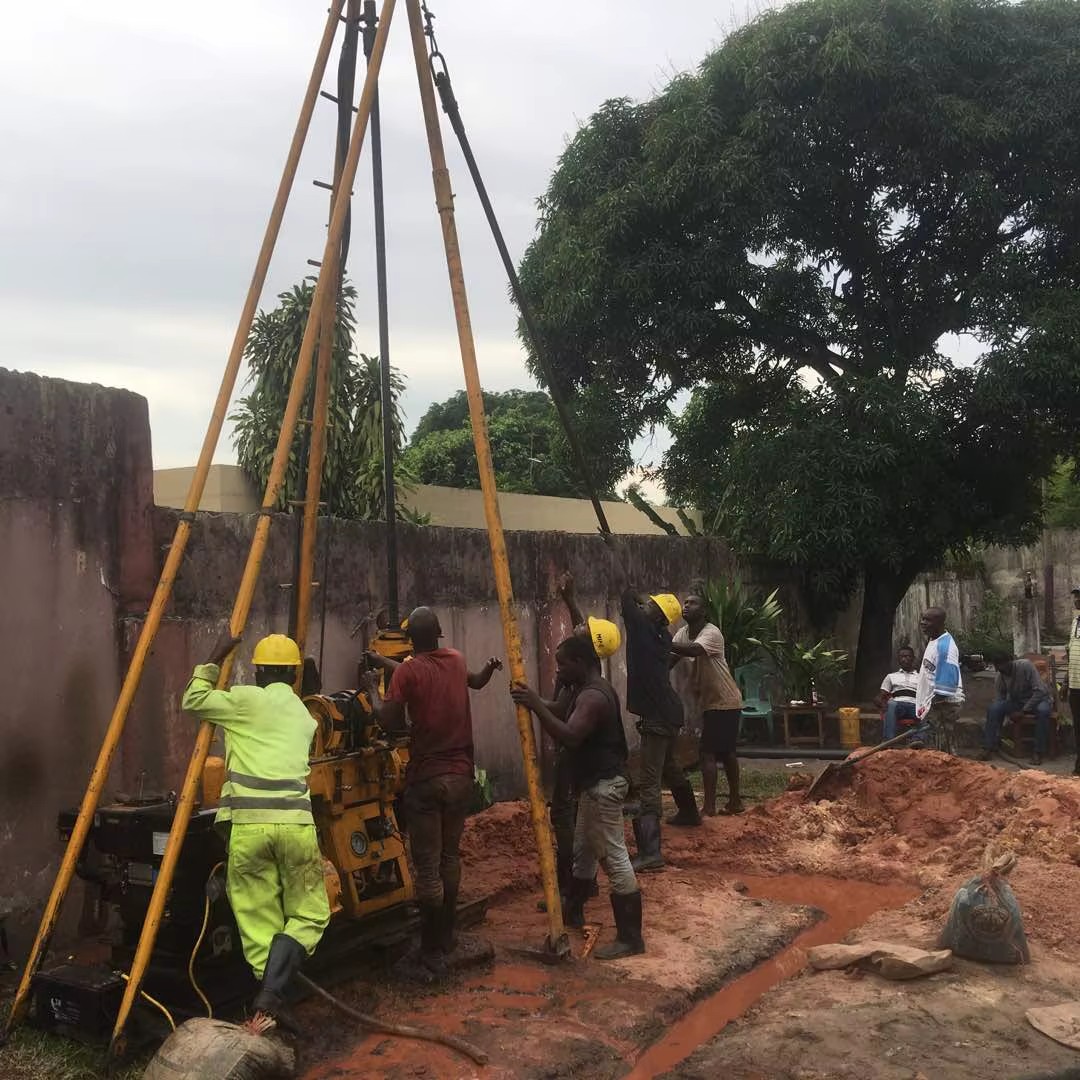

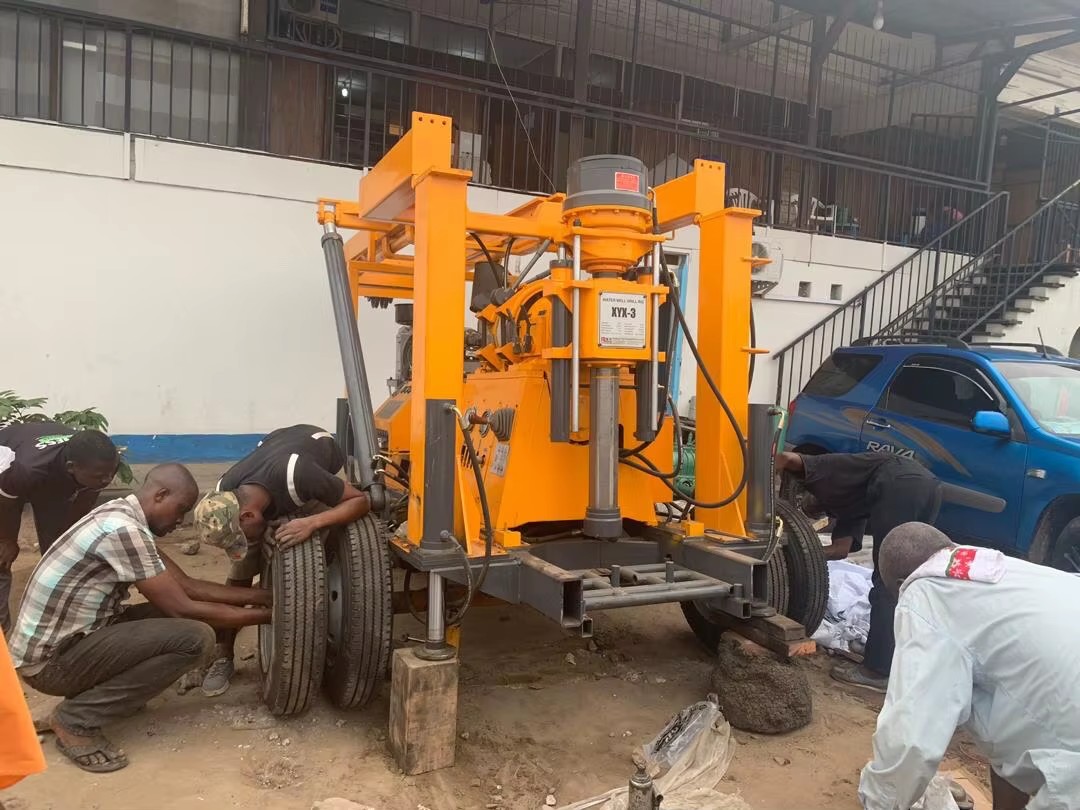

Product detail

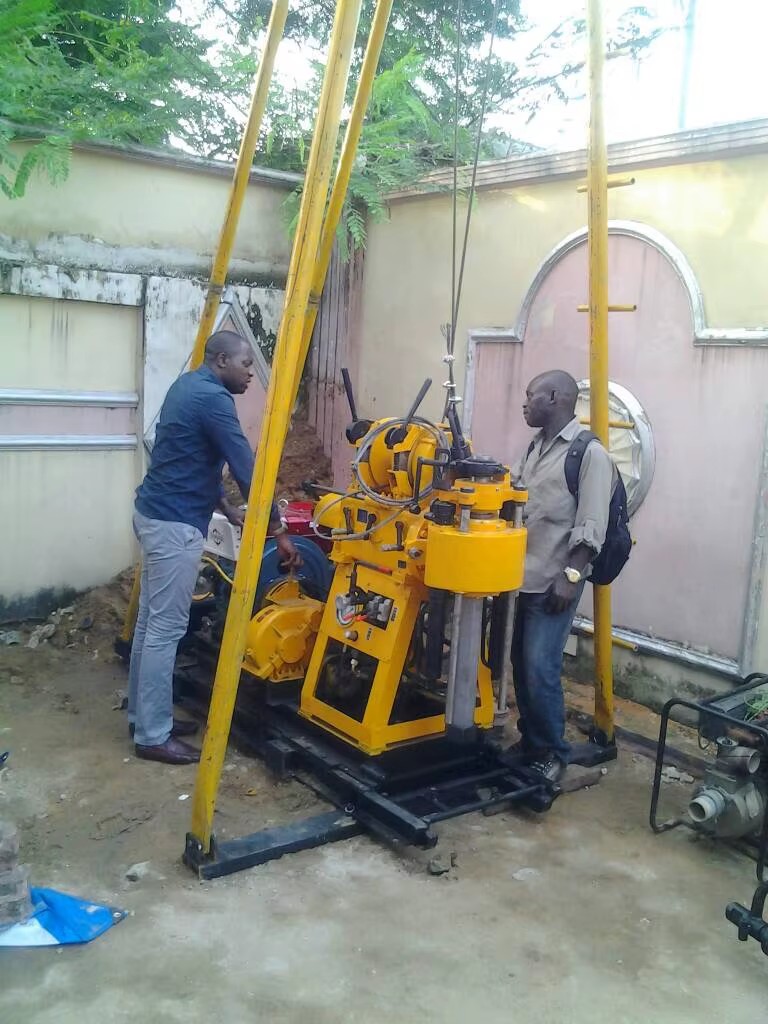

Product detail

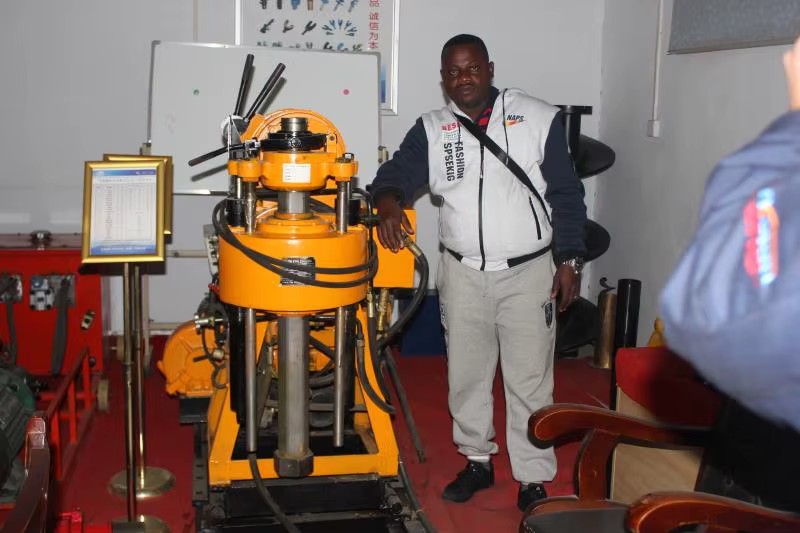

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Type
drill rig
Material
Carbide
Use
Well Drilling
Processing Type
Forging
Machinery test report
Provided
Machine type
Drilling Equipment
Warranty
1 Year
Video outgoing-inspection
Provided
Weight (kg)
60
Place of origin
China, Shandong
Name
cable tool drilling rig
Application
Wells
Diameter
75-152mm
Max Depth
600 m
Certification
IOS9000
Condition
New
Applicable Industries
Energy & Mining
Showroom Location
Peru, Pakistan, Mexico, France, Philippines
Marketing Type
Hot Product 2019
Packaging Details
Wooden case
Port of dispatch
Qingdao, ShangHai, tianjin
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
100 pieces per Month
Model number
XYX-3 water well drill rig
Lead time
30 days
Minimum order
1 Units
