ATM Cutting Water Jet 5 Axis CNC Router Bridge Saw Stone Cutter Machine Servo Motor Pump Bearing for Quartz Marble Granite Slab

Technical Parameters

Title

ATM Cutting Water Jet 5 Axis Cnc Router Bridge Saw Stone Cutter Machine for Quartz Marble Granite Slab

Machine Model

LD-Q5+2

Working Size

3600*2000*400MM

Power of Main Motor

18.5KW/(Optional: 22KW)(Permanent magnet)

Dia of Saw Size

ø350-ø400( Customizable)

Extra Spindle Power

7 KW

Max. cutting thickness

90mm

Tool Holder Type

Er32 (Optional BT40)

Commend

G Code

Max. Speed of X/Y axis

60000mm/min

Max. Speed of Z axis

8000mm/min

Spindle Rotating Speed

0-18000 RPM

Dimensions (LxWxH)

6300*3300*3520MM

Gross weight

4800KGS

Working Voltage

AC380V/50HZ( Customizable)

Products Description

Stone CNC Machine

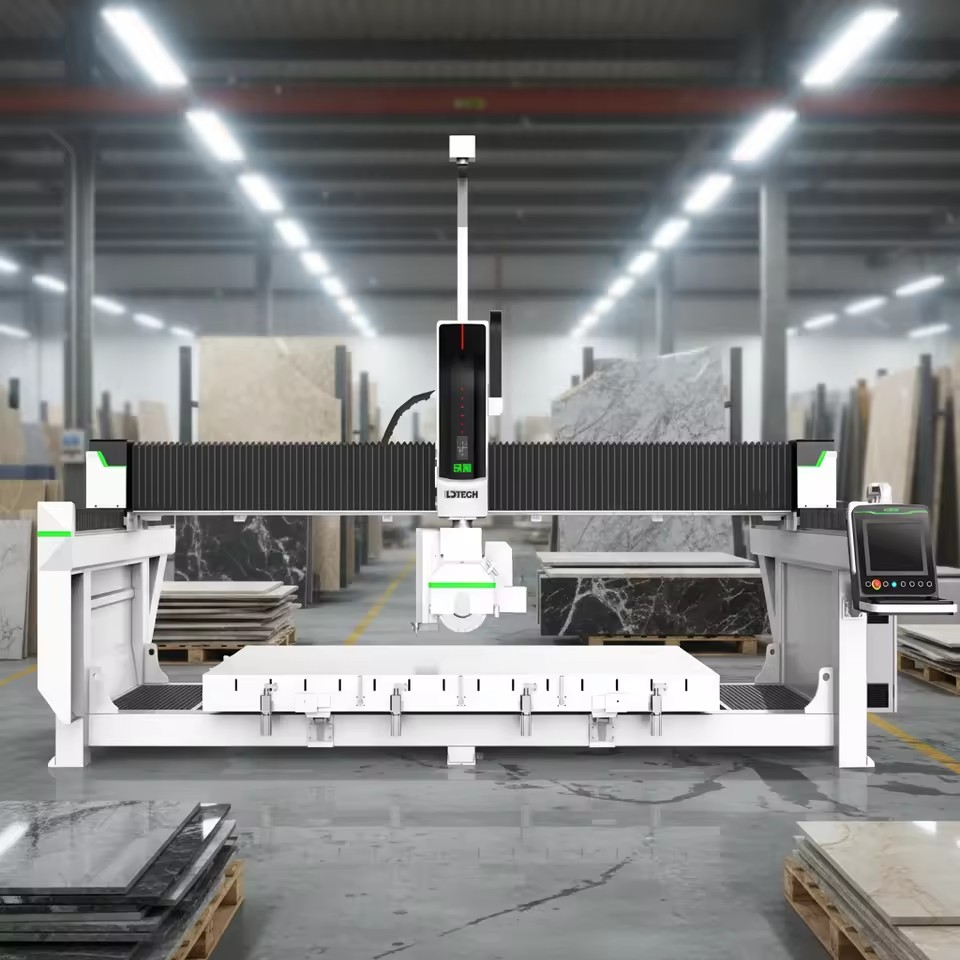

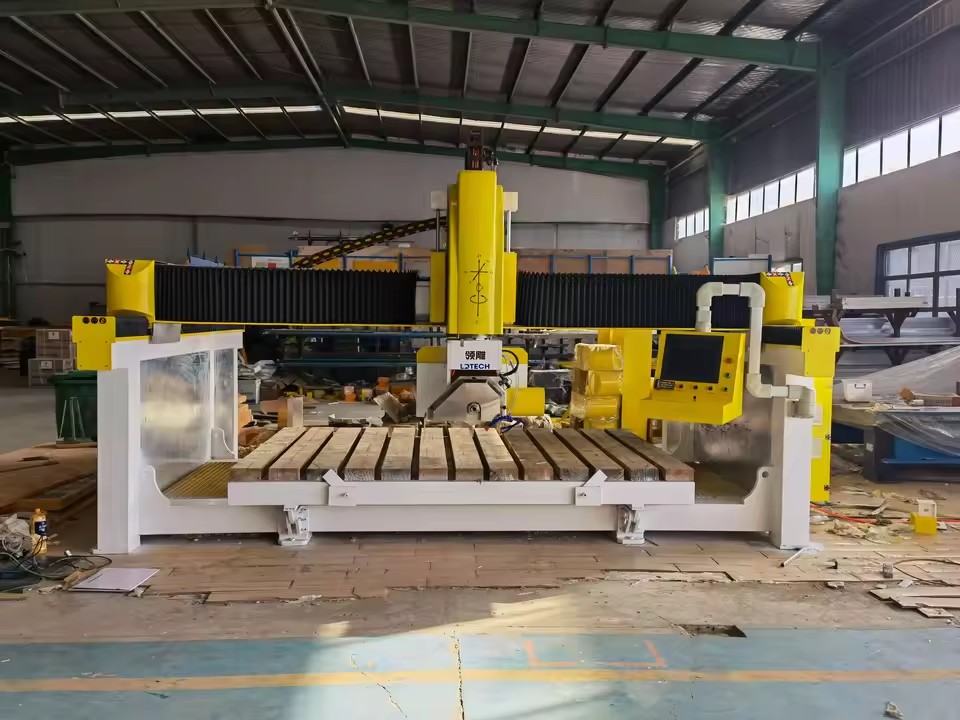

LD-Q5+2 Bridge Saw CNC machine.

It is a new generation of multi-function processing machine designed and manufactured by LDTech based on user experience. Using pattern operation and advanced t

ouch operation industrial computer

the machine can be easily operated without complex CNC knowledge.

It is widely used for cutting countertops slabs, monument, tombstone cutting. such as quartz, granite, marble, sintered stone, ceramic etc.

Functions.

* M

ake profile, any degree miter Cut with Disc Blade

* Make Sink cutting, such as

undermount sink cut out.

* Engraving, Polishing, Milling etc with Extra high speed spindle.

Features.

*

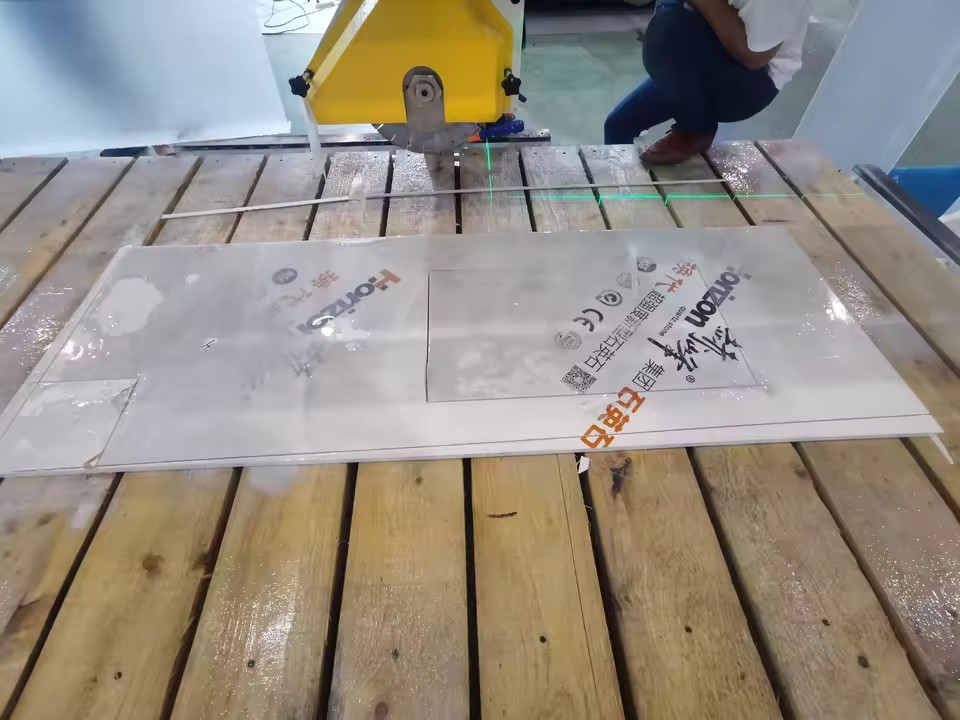

Camera

Can easy edit cutting pattern on the picture directly.

Suction Cups

Auto slab movement to avoid the damaged cutting.

Easy Operation

Can easy edit/Read any drawings/.DXF drawing.

No need professional CNC Experience.

High Processing Speed Machine

Cutting speed Max. can be 60M/Meter

Extra Spindle

With High Speed Spindle: 24000RPM, compare standard Saw motor RPM( 0-6000RPM), Spindle more professional in engraving, polishing etc.

Optional.

Probe/ sensor device

can get the slab thickness, blade size auto.

Rubber table

for ensure that table

doesn't lose its shape due to moisture absorption

Pulley

for feeding slab easily.

Laser measuring Tools

for getting exactly size customized by different customer.

Samples Display

Application.

* Processing for granite, marble, quartz, ceramic tile, sintered stone etc

* Auto all kind of counter tops processing, such as auto 45° miter, sink cut out etc

* Can profile & polishing the edge

* Faucet holes, recessed drainer/drain grooves Processing

* Engraving patterns, carving words

Details

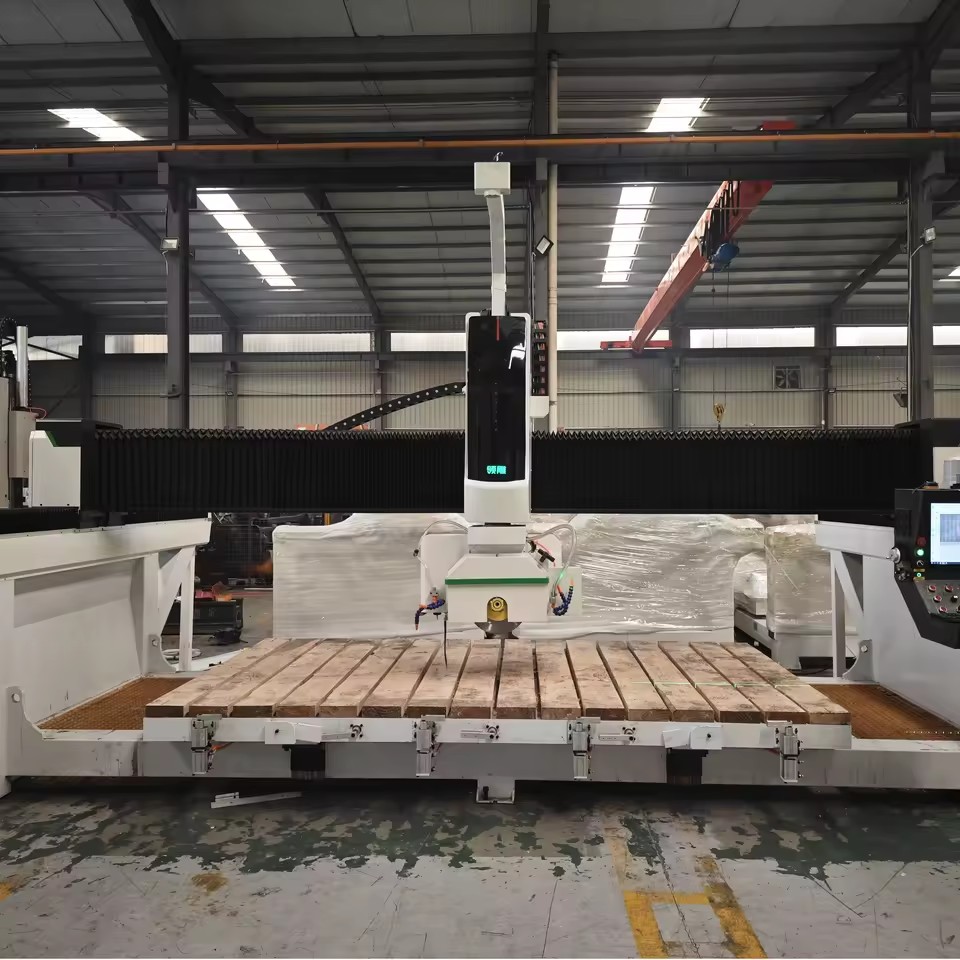

Cast Iron Bridge

* Cast Iron bridge s

ignificantly improve structural stability.

* Avoid

machine

shake.

Ensure accuracy remains unchanged.

Small factory use welded bridge, which will deformed after years working.

Easy Operation System

* LDTech-CutCAM System developed is based on

user experience

CNC Machine, operation simple as PLC.

Devlelop f

unctions

based on customer applications.

* Can Read

.DXF

file, such as AutoCAD.

* Better

hardware

than **NC.

Camera-Vision operating system

* Using

HIKVISION

Camera

Industria

l Camera to avoid the signal interference

High precision

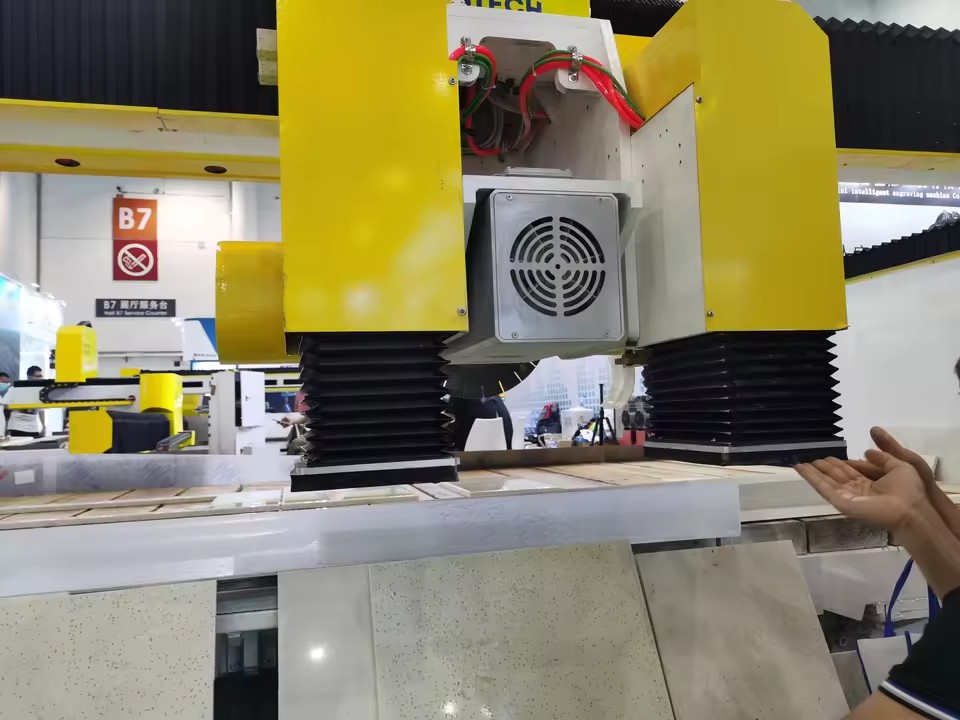

Suction Cups

Double Suction cups

for auto slab movement

* Max load

300 KGS

Slab.

Bus Absolute Value Servo Motor & Driver

Absolute Servo

> Servo>hybrid Servo>Step.

* Higher

accuracy

Powerful, more torque.

* Machine

memory

machine can know the exactly location even when machine power off.

I

ntelligent

Saving Time

machine can working directly, no need mechanical origin.

SAFE.

standard machine need sensor device, avoid machine C Axis no-stop circle to damage machine wire.

Slab Holder

4 sets

of slab holder.

Avoid slab movement

when we need processing

small size & lightweight slab.

Auto Holder

when we need Spindle working.

* Also

can manual control

to holder slab.

Slab Fixer

5 Sets

of slab fixer.

Cutting Direction

To make sure t

he cutting direction is

horizontal

with the edge direction when

we need retain the original edge without cutting.

Manual control.

Industrial Design

All the electric part had covered

by thick sheet metal.

* Three-layer painting technology is used to achieve

rust prevention.

The whole machine is

galvanized ( Optional).

RV Reducer

RV100C manipulator reducer

* More

powerful

than 50C Reducer.

* RPM Max.

20.

Large wire holes

to reduce wear.

High Speed Machine &

Industrial Computer

High-precision industrial grade spare part make sure our machine have high Para.

* Max.

Travel speed

can be 60 Meter / minute.

Quartz Cutting Speed

20 Meter/ Minute.

Industrial

touch-screen

computer.
