Name: 4000bar Water Jet Head Cutting Pump 60KSI-ESL 50 Waterjet Cutter Machine 37KW 60HP Waterjet Machine
SKU: B2B-3631
Price: 28420.0 USD
Availability: PreOrder

Product description

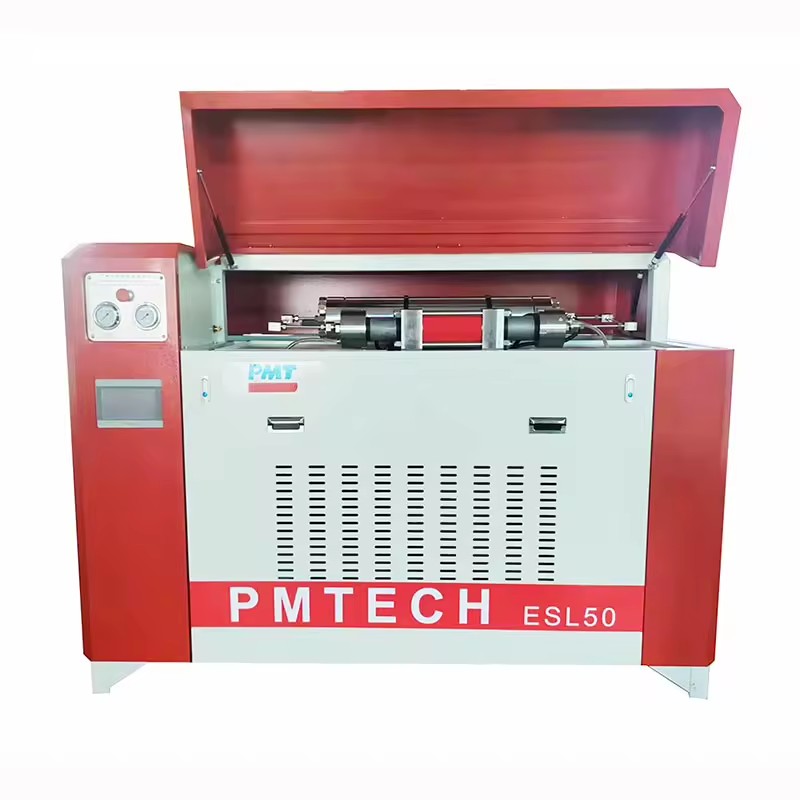

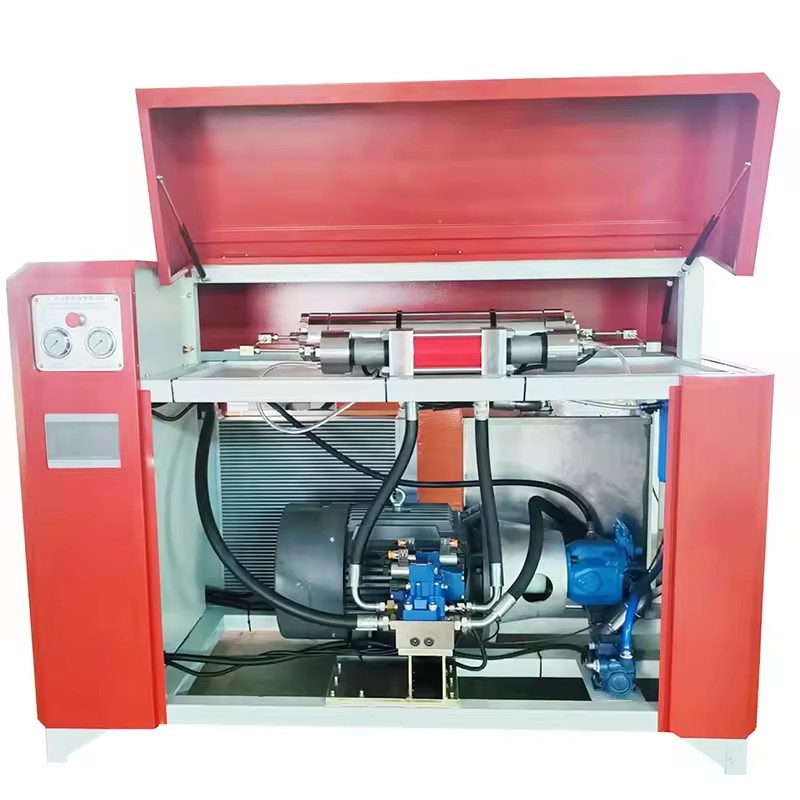

Name: 6 0KSI- ESL 50 -Like FLOW water jet pump

外型尺寸Dimension(L*W*H)

1800*1300*1400mm

重量Weight

1300Kg

电机功率Power rate

37kw/50hp

最大压力Max. pressure

400Mpa /4000bar

工作压力Working pressure

350-400Mpa

最大排油量Max. oil discharge

135L/min

最大流量Max. Flow rate

3.5 L/min

宝石尺寸Φ of orifice

0.30 mm-0.35 mm

电源设备Power supply

380 V 50hz

供水Water supply

≥15.1L/min

电机Main Motor

Siemens Brand

Product Description

00:00

This is FOB price for you.

The platform can only send

Ablibaba

so the freight need to quotation the sales. Our machine can only be installed in the cabinet, so please

Advantage of

60KSI

ESL 50

Like FLOW 60K Waterjet Cutting Machine For

Glass Metal Stone cutting

signed base on CE, ISO9001 standard

2. Motor is

Siemens

3. Pressure control by servo-proportional

4. Setting different pressure for cutting different materials.

5. Stable working pressure and easy maintenance.

Detailed Images

Product Paramenters

Name: 6

0KSI

Like FLOW

water jet pump

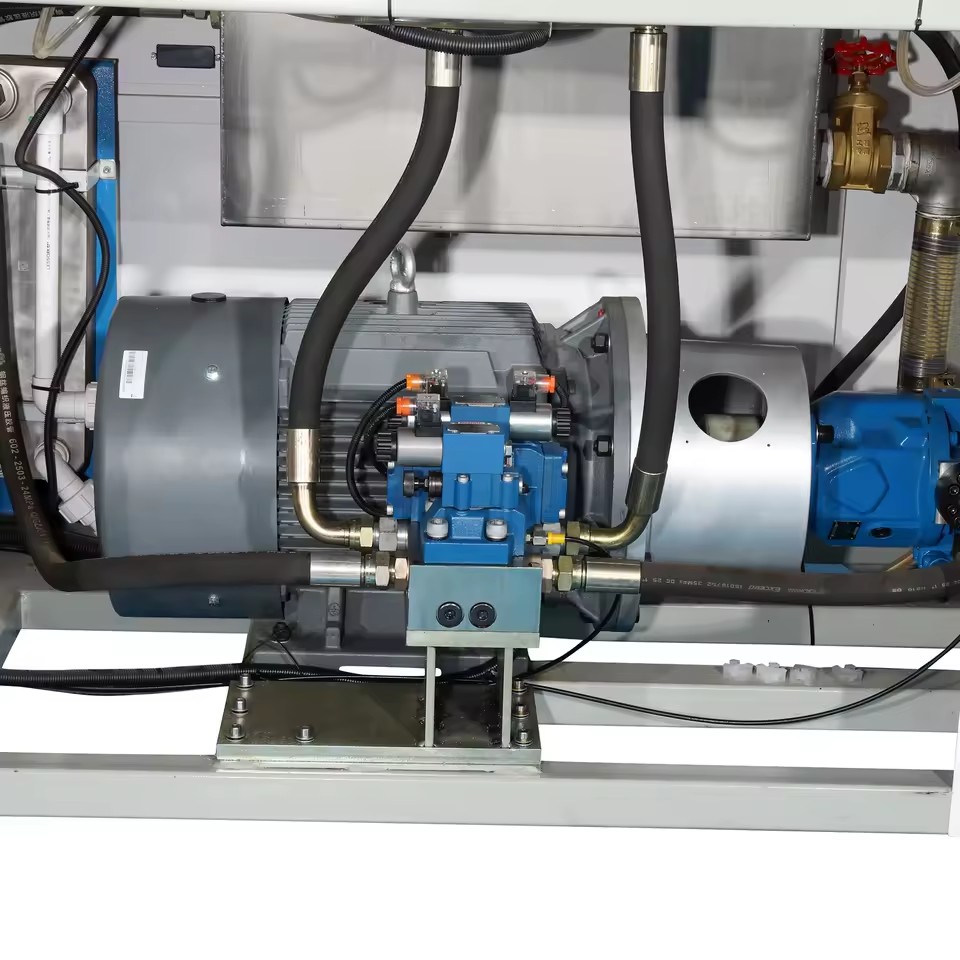

Siemens motor

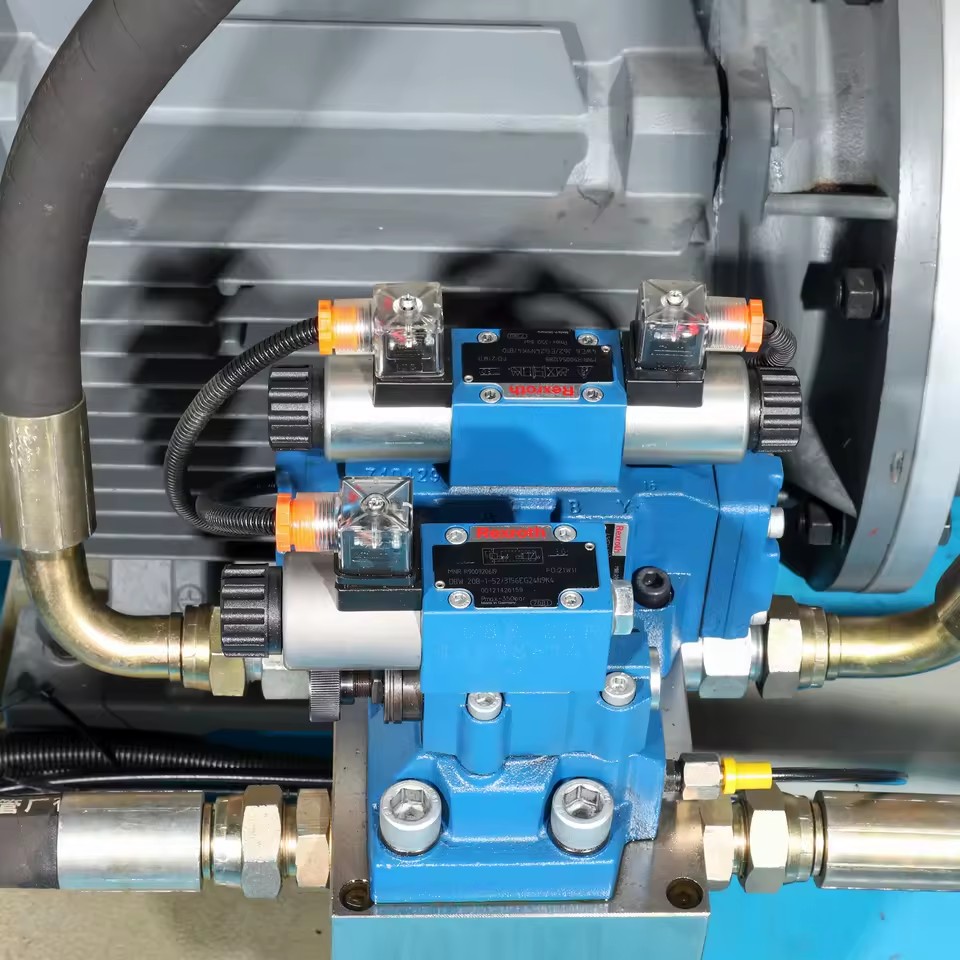

2.valve Stainless steel oil tank

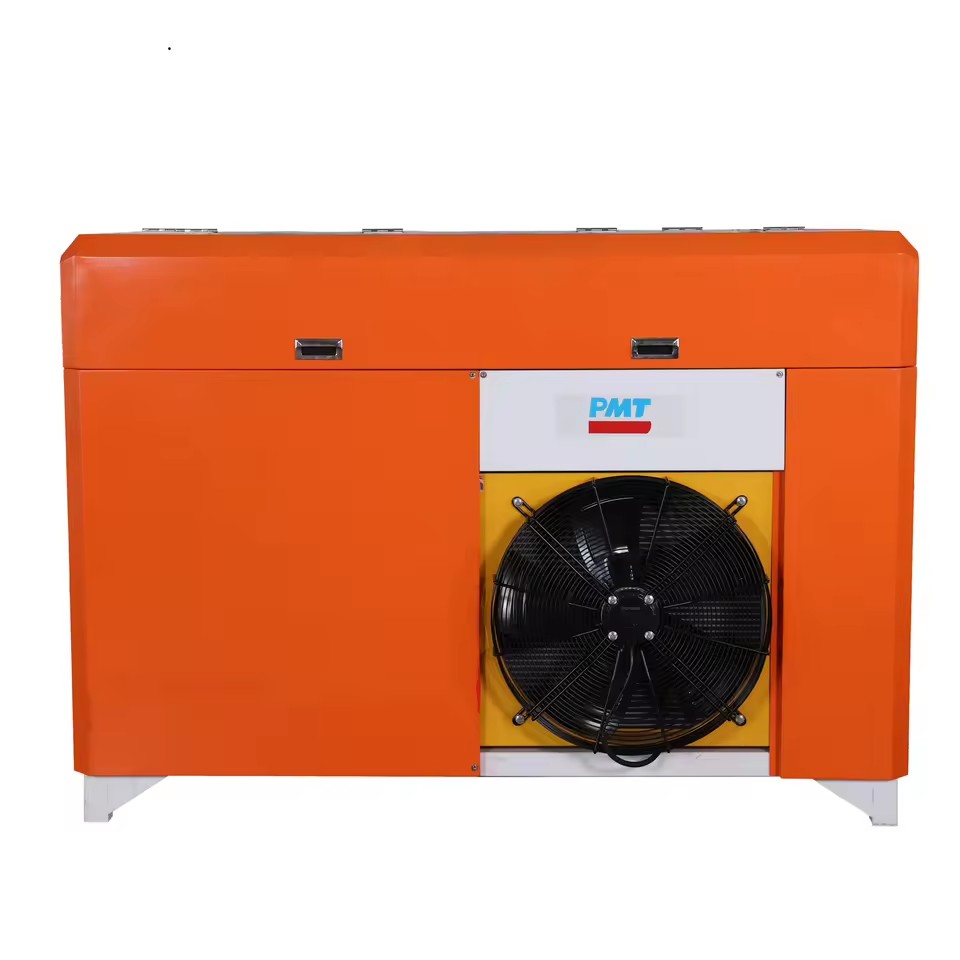

3.Water-cooling system Stainless steel water supply and iltration system

4.Alarm function of water supply

000 psi

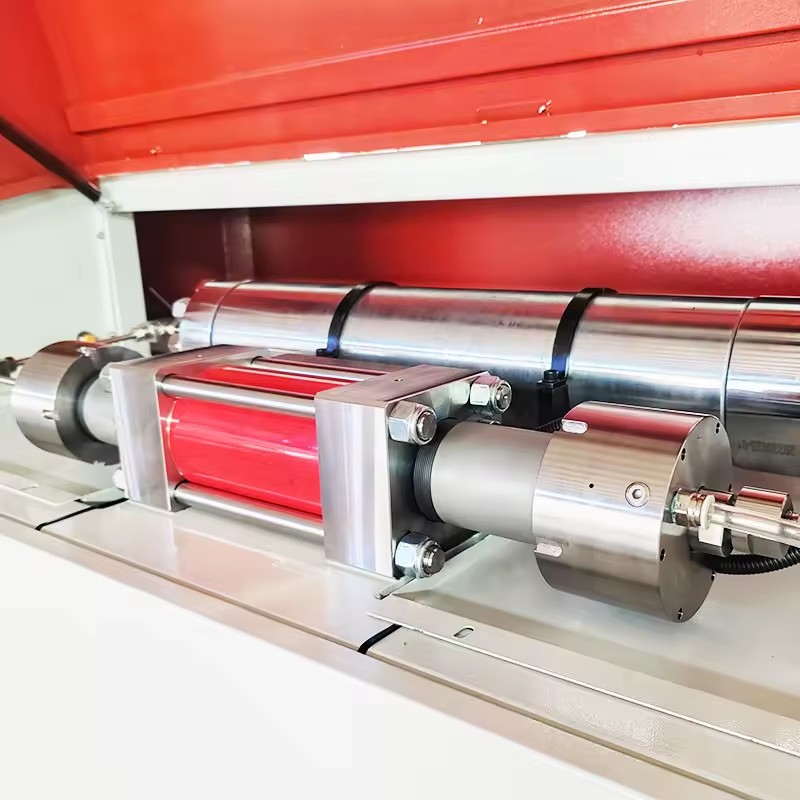

water jet intensifier

2. 45kw/50hp

emens

moter

3. slababe working pressure

4. flow high pressure water jet spare parts

CNC Control

1. Professional IPC offers excellent protection against electronic interference and high-reliability

2. Full Auto CAD DWG format support, automatically control code generation from DWG files.

3.Simulation runs can be used to double check for design flaws.

tomatically lead-in, lead out and corner compensation increase production efficiency and quality. Remote control can provide an easy operation.

Ralevant Products

Our factory not only have all kinds of size of water jet machines, waterjet pumps and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on!!!

The cutting speed of mini waterjet cutting machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for PMT waterjet, you could find the following speed just for your reference.

1, basic working principle of the super-high pressure water jet cutting machine2, working principle of the high-pressure system

and supercharge

3, replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts

4, maintenance of the high-pressure system and judgment and troubleshooting of common failures

5, CNC Programming&operation&operation of the NC cutting platform

6, daily maintenance of the NC cutting platform

7, equipment installation

8, abrasive control and transportation operation and CNC communication

9, operation of the CAD / CAM software and CNC communication

10, working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional parts, high-pressure water switches and abrasive cutting head

1, Free warranty for the whole machine for one year or 2000 high-pressure/hour 2, Training of two personnel for operation and

maintenance of equipment and one computer operator for the user

3, On-line installation and commissioning (the user is responsible for board and lodging)

4, Lifetime maintenance

5, To Guarantee long-term supply of spare parts

6, To enjoy upgrade of special prices when there are new products and technologies

7, Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after receipt notice. For a common failure, direct the user to resume production as soon as possible by way of

Product packaging

Wate jet cutting machine package

wooden package out side, inside soft packages or all of soft film and ensure safety. including hp pump,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm, 4000-6000kgs,whole one set waterjet machine equiment.

Water jet

spare parts

soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.

Delivery time for machines

15-30days Delivery time

waterjet spare parts

1-7days

Company Profile

Certifications

FAQ

Q: What is the advantage of water jet cutting head machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive water jet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Water jet also has the title of universal cutting machine.

glass water jet cutting machine,water jet cutting machine granite,water jet cutting machine stone,water jet cutting machine

mental and so on.

Q: How to choose the cutting table for

cnc water jet cutting machine

A:You need to offer the size of the materials.you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting for waterjet machine?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate for waterjet cutting machine?

A: PMT intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network.

The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Q:What material can cut?

A: Glass waterjet cutting,Aluminium waterjet cutting,stainless steel waterjet cutting,Ceramic waterjet cutting,Marble waterjet cutting,Titanium waterjet cutting,Brozen waterjet cutting,Brass waterjet cutting.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 32 fields

Voltage

380V

Number of axes

Repeatability (x/y/z) (mm)

±0.001

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

4000x2000x150mm

Key selling points

Long Service Life

Rated power

50Hz

Place of origin

China, Guangdong

Weight (kg)

1000 KG

Table travel (x) (mm)

4000

Table travel (y) (mm)

2000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Type

Water Jet Cutters

Name

60KSI-ESL 50 Waterjet Cutting Pump

Cutting material

Stone, Steel, Glass, marble, granite, metal

Power

37KW/50HP

Keyword

Waterjet Cutting Machine

Maxi pressure

4000bar/400mpa/60000psi

Application

Metal

Function

High Pressure

CNC System & Software

WEIHONG CNC

Pump Type

Intensfier Pump

Selling Units

Single item

Single package size

100X100X10 cm

Single gross weight

0.0 kg

Model number

ESL 50

Effective cutting range (mm)

4000×2000, 1000×1000, 1500×1500, 2000×8000, 3000×8000, 3500×2000

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
