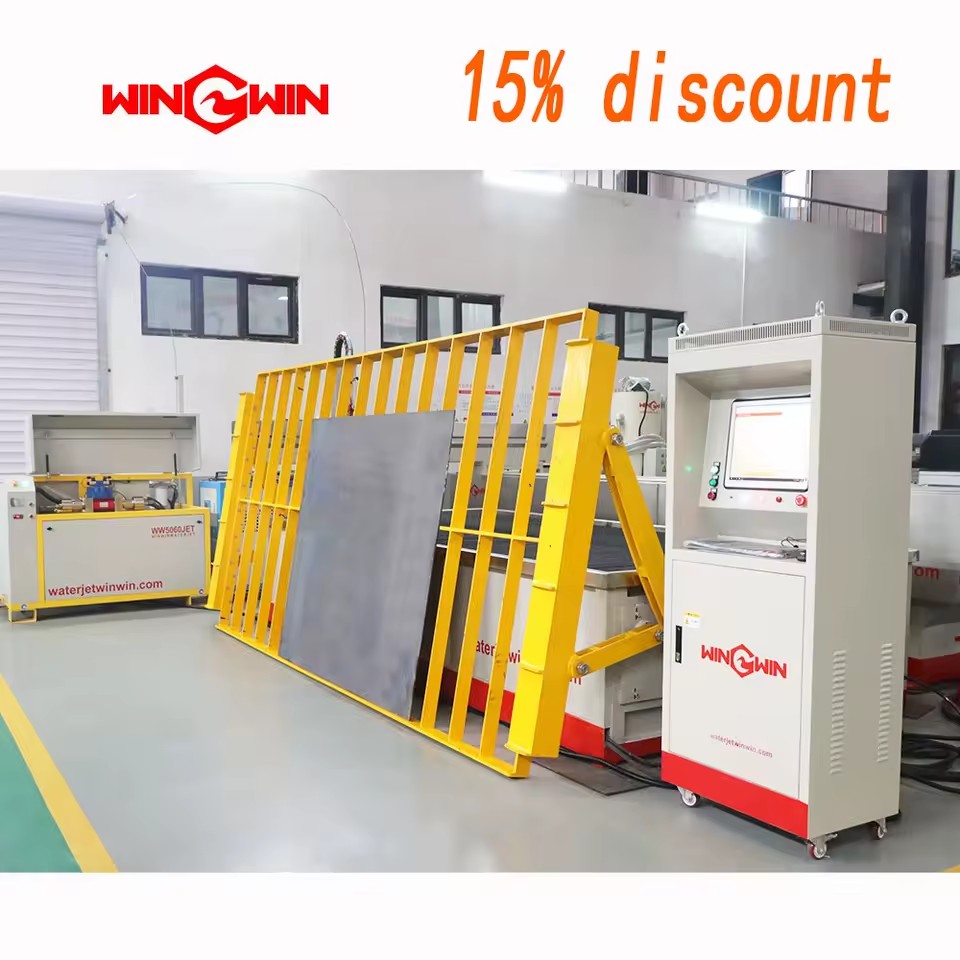

Name: 4000*2000mm Cantilever Type Water Jet Cutter with Flipping Structure 5 Axis Waterjet Cutter Machine Metal Stone Glass Water Jet
SKU: B2B-2705
Price: 470.0 USD
Availability: PreOrder

Product description

3 Axis CNC Waterjet Cutting Machine

3 Axis Waterjet Cutting Table

Type

cantilever

Effective Working Area

X-Axis 4000mm, Y-Aixs 2000mm, Z-Axis 200mm

Swivel Angle Resolution

±0.01°

Cutting Accuracy

0.1mm

Control Accuracy

0.01mm

Repeatability of Positioning

0.025mm

Max. Travel Speed

10000mm/min

WWJET50 Intensifier Pump

Nominal Power Rate

40HP (30 kW)

Max. pressure

420Mpa /4200bar/60,000psi

Working pressure

360-380Mpa

Max. diameter of orifice

0.33mm

Max.Flowrate

3.8L/min

Accumulator capacity

Size

1600mm*1200mm*1100mm

Weight

0.9t

Product Description

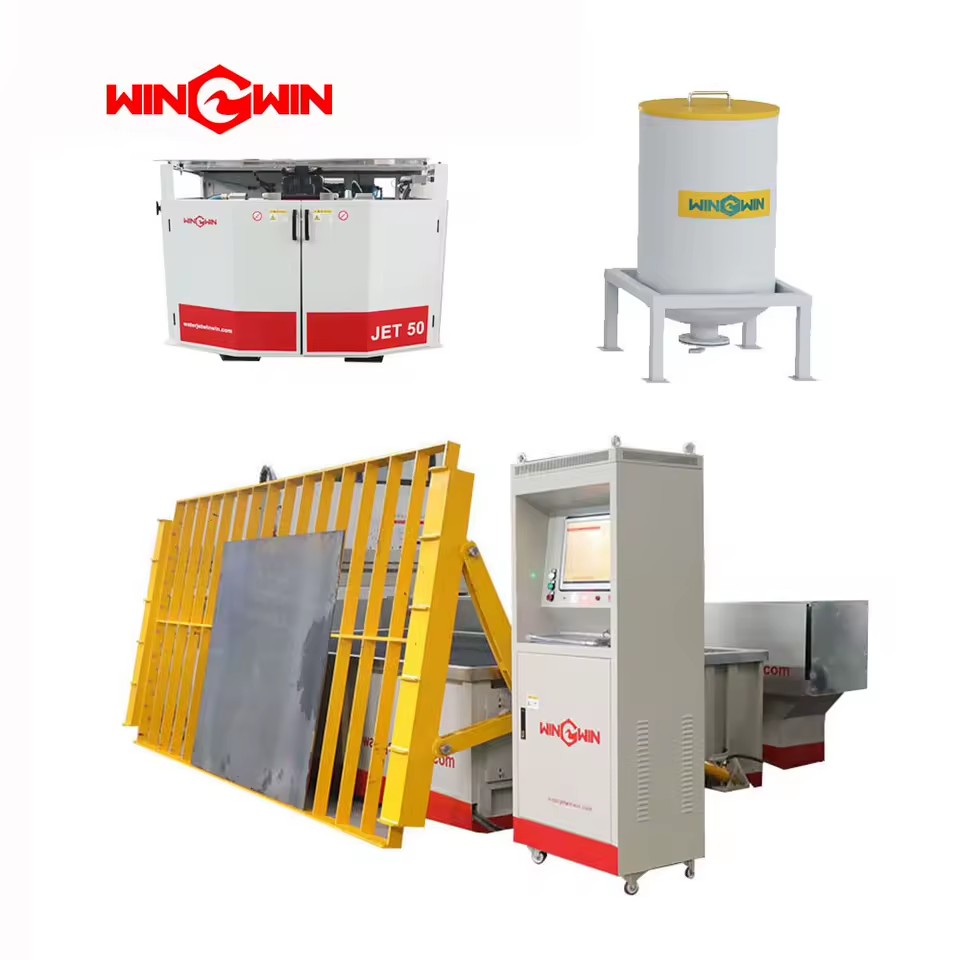

The whole set waterjet cutting machine equipped with 3 axis cutting head, 4000mm x 2000mm cutting table, the WW jet50 intensifier pump, WEIHONG CNC control system, 200KGS abrasive feeder, industrial chiller and also the water soften system.

A. High-Quality Cutting Head

3 axis waterjet cutting head, s

imple structure, easy to maintain and repair, fast travel.

Fully Oil-Immersed Linear Guide

WW3015-3A adopts thick linear guides and large screw balls. The X, Y axis adopts the self-made oil-immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.

C. Integrated Stainless Steel Bath

The table is made of fully stainless steel, anti-rust, anti-corrosion, bright as new for 10 years.

D. The cutting table size can be customize.

High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can purchase the corresponding parts in any waterjet machine market.

B. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked

and prolong the service life of the Intensifier Pump.

C. Double-Level Water-Filtration System

WW5060JET adopts double layers of water filtration in low pressure water transport to remove hard metal elements from industrial water. The waterjet is less likely to produce scale, protecting important high pressure components and extending the service life of the entire Waterjet Cutting Machine.

D. 1L Large Capacity Accumulator

1L capacity accumulator, eliminate the fluctuation of the cutting, integral forging, no rubber seals, maintenance-free.

Brand

WEIHONG

Industrial-grade display, waterjet special software, easy to operate.

* Simulation operation, pause and start at any time, continue to cut from any position and point.

Wall Thickness

4.5mm ( Explosion-proof)

Air Pressure

0.4-0.8Mpa

Reasonable design, make this large-capacity abrasive tank cut 8-10 hours without interruption.

Large diameter flange at the bottom, easy to remove the debris.

The industrial chiller adopts automatic temperature control, which can meet continuous operation 24 hours a day.

Adopts shell-and-tube two-device linkage technology, low vibration, low noise, high-efficiency heat exchange material, and high energy efficiency ratio.

Use a water filtration system to remove calcium and magnesium ions from water to prevent scaling.

Good water quality will not only increase the life of the seal but also prolong the reliability and life of the nozzle, orifice

high pressure seal etc. resulting in more efficient cutting.

Optional Devices

Abrasive Removal System

When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each

other.

The device can be installed within 10m of the waterjet cutting machine.

The flow rate can reach 162L/min.

The abrasive removal rate is more than 90%.

During the entire abrasive removal process, the filtered water continues to be discharged into the water sink, and the water sink

does not need to be replenished after abrasive removal.

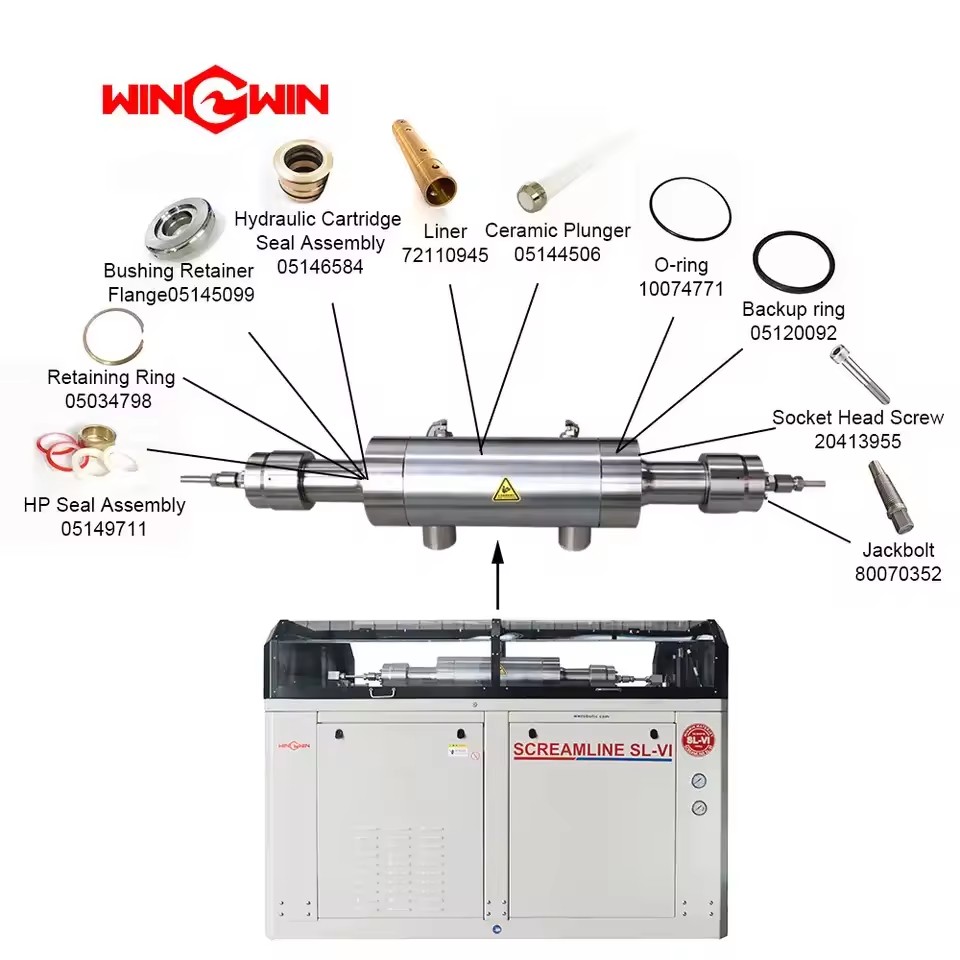

Waterjet Parts Warehouse

About Us

Win-Win Waterjet Company

is specialized in designing, researching, developing, manufacturing and selling of high-pressure water jet cutting system. In the past 20 years, Win-Win have developed a huge sales and a strong technical team. Provide high-quality after-sales and technical services. Manufacture robot water jet cutting system, 3 axis, AB 5-axis and AC 5-axis water jet cutting machine, portable water jet cutter, water jet intensifier pump and water jet spare parts etc. We have got up to 20 patented technologies, also had a high credit line in. With CE, ISO and SGS certifications. Win-Win is the main platform for global customization of water jet cutting business. Provide cutting solutions for 3000 customers around the world.

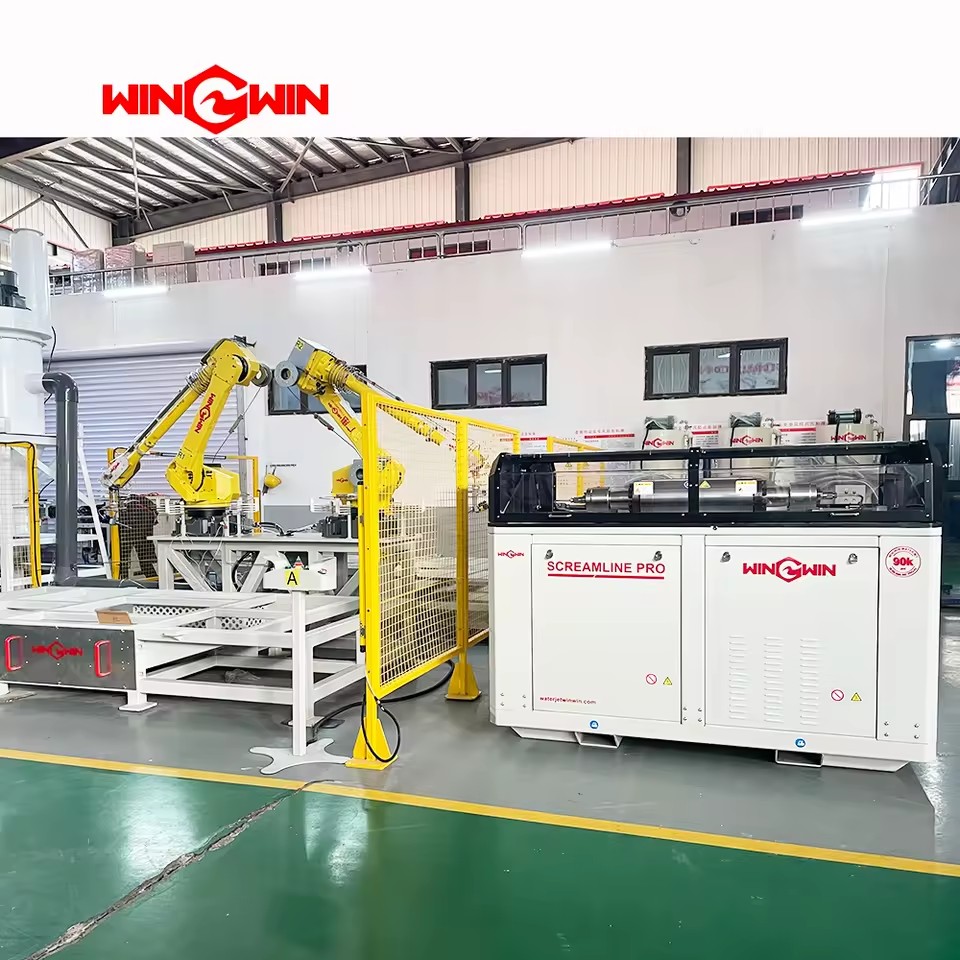

Ceiling Type Robot Waterjet Cutting System

Pedestal Type Robot Waterjet Cutting System

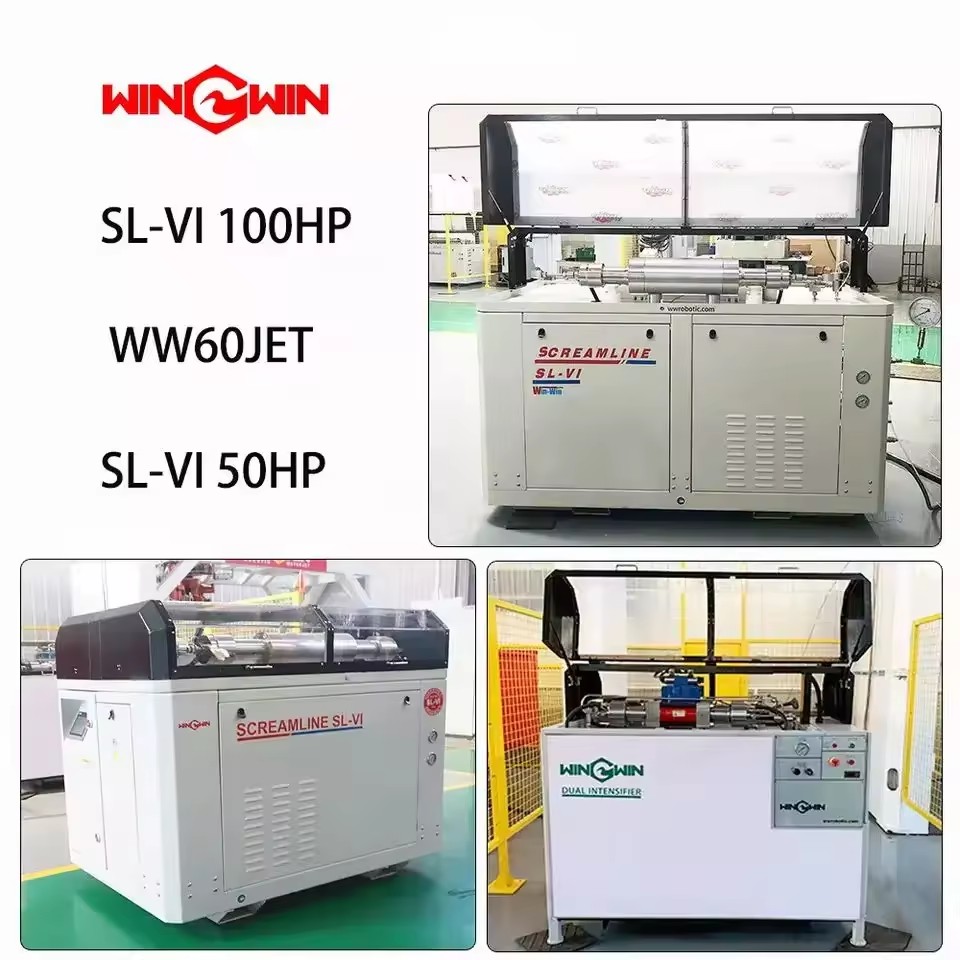

Waterjet Intensifier Pump

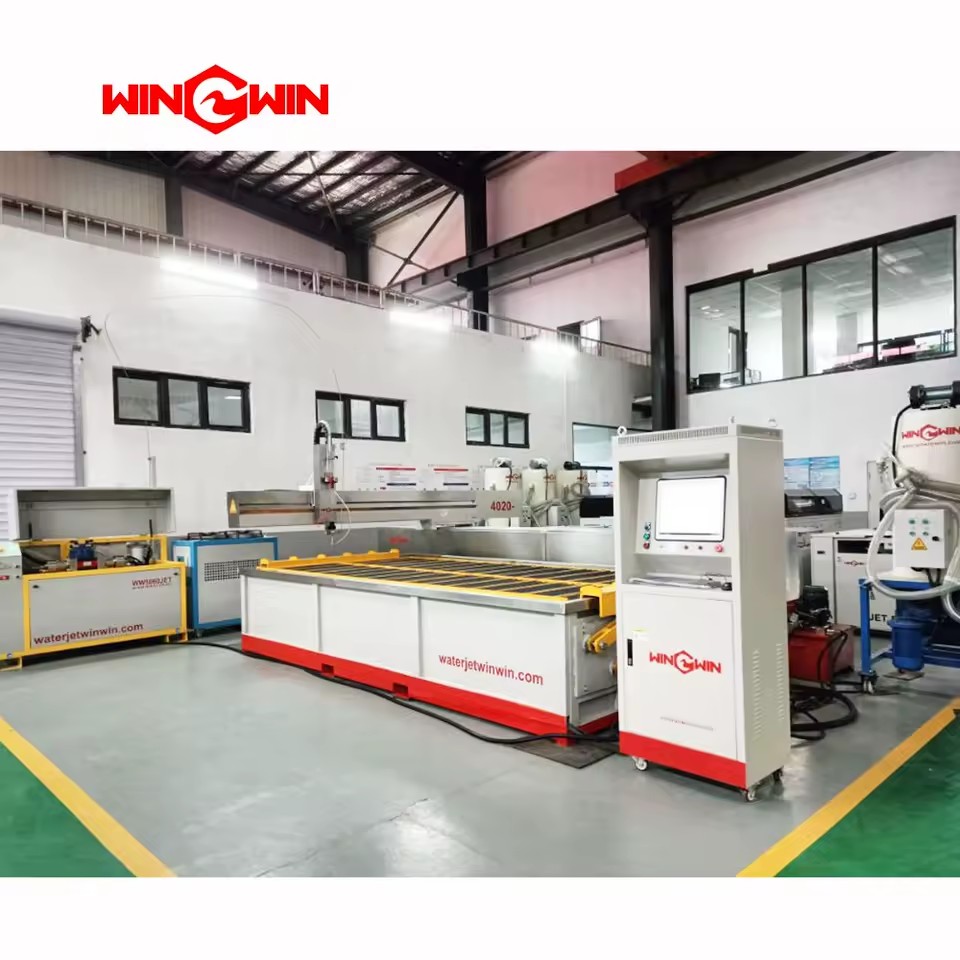

AC 5 Axis Waterjet Cutting Machine & 3 Axis Machine

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

5 days
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 13.22 for 1 set · Estimated delivery: Sep 5–Oct 8 (4–37 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Voltage

380

Number of axes

Repeatability (x/y/z) (mm)

±0.01

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Liaoning

Weight (kg)

4000 KG

Table travel (x) (mm)

4000

Table travel (y) (mm)

2000

Table travel (z) (mm)

200

Application

Industrial Metal stone glass Cutting

Type

cantilever Waterjet Cutting Machine

Control system

WEIHONG CNC Controller

Cutting material

Metal.alloy.aluminum.stone.glass.or Soft Materials

MOQ

1 Piece

After-sales Service Provided

Engineers

Selling Units

Single item

Single package size

20X20X20 cm

Single gross weight

20.0 kg

Model number

WW4020-JET50

Effective cutting range (mm)

4000×2000, Other

Lead time

5 days

Minimum order

1 Units
