Product video
Certifications CE

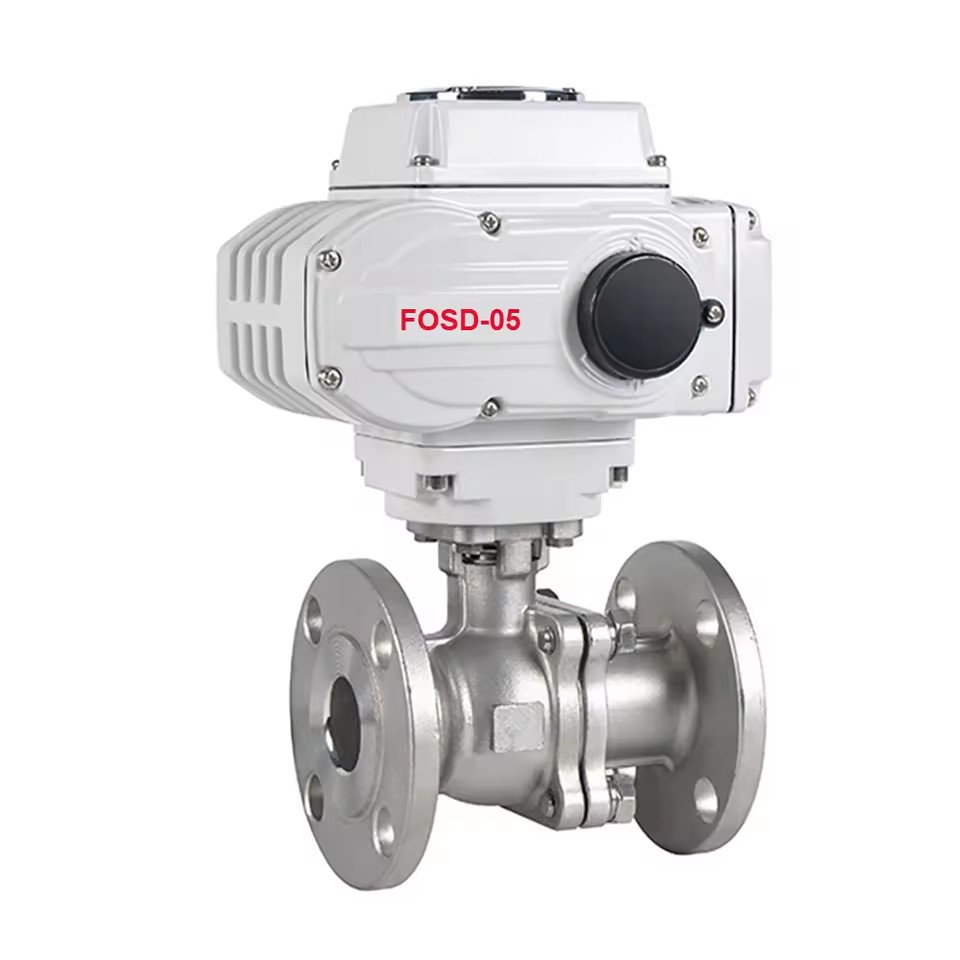

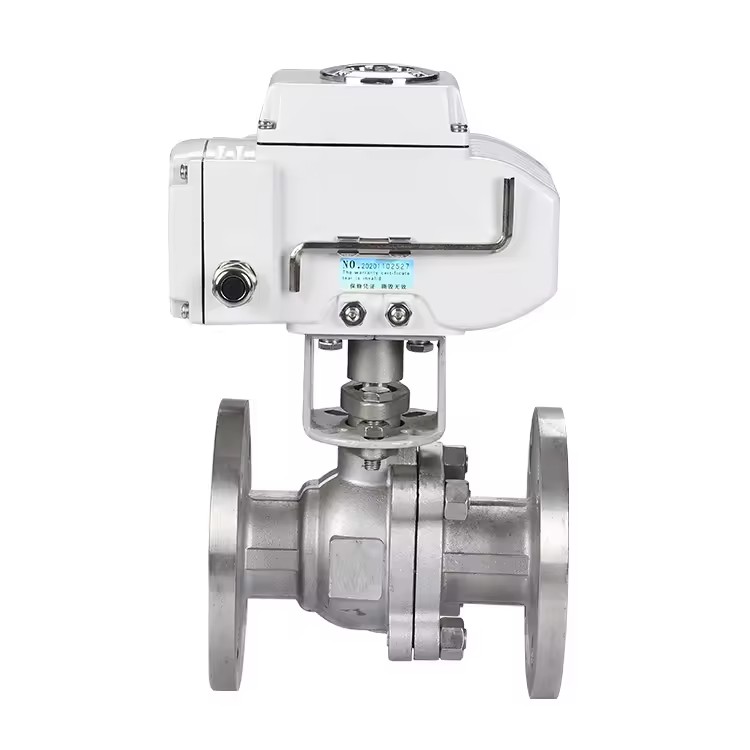

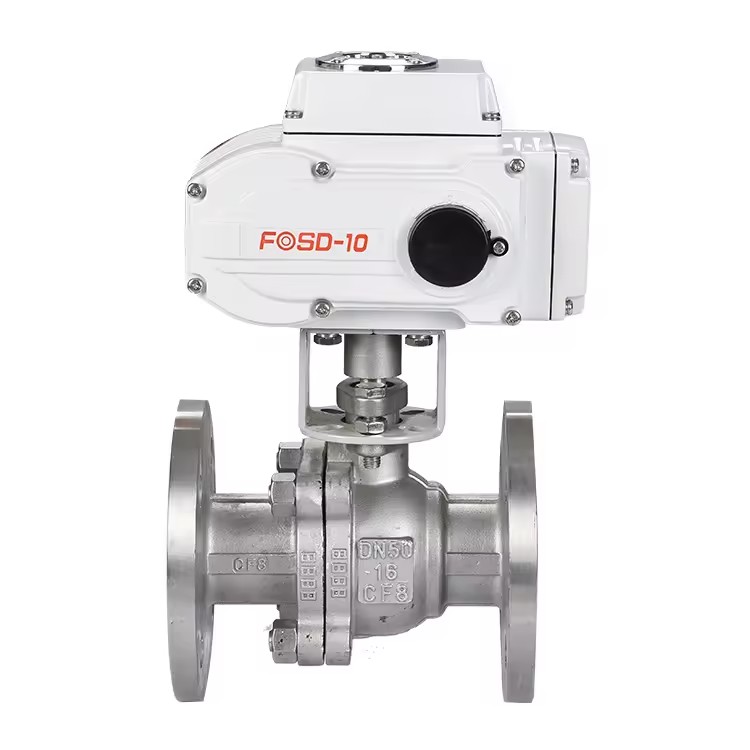

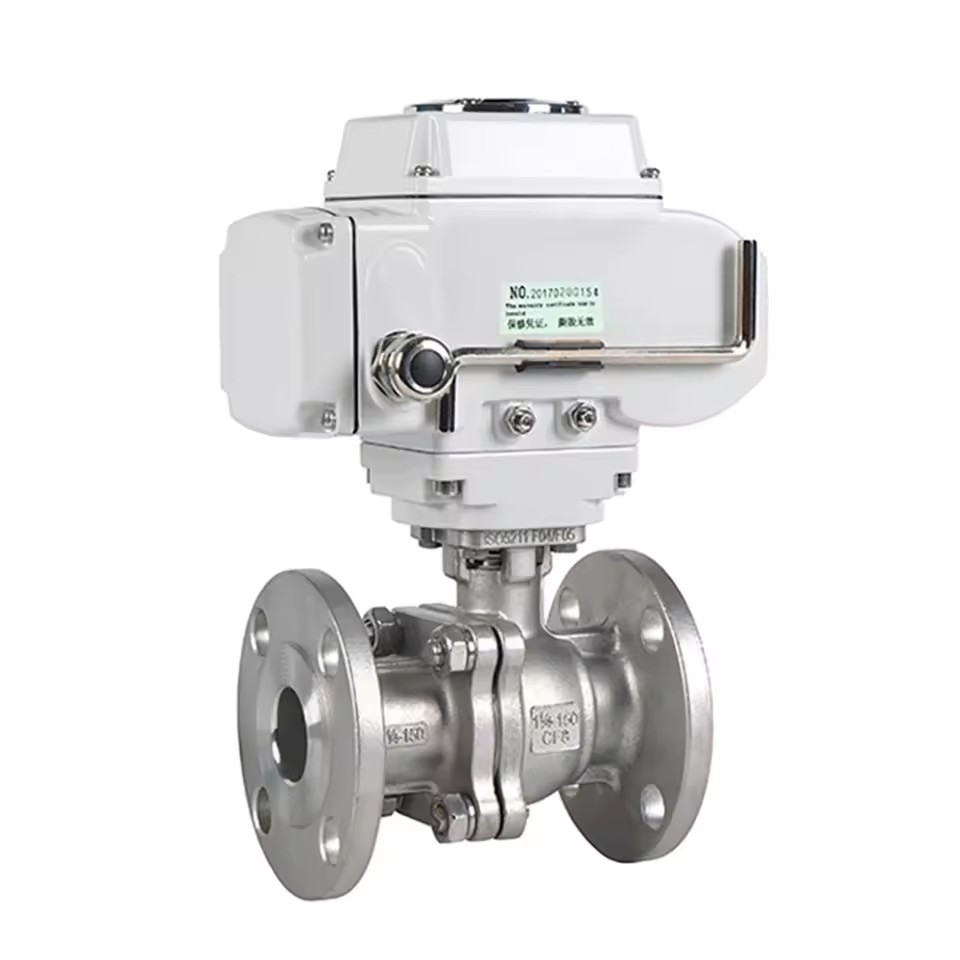

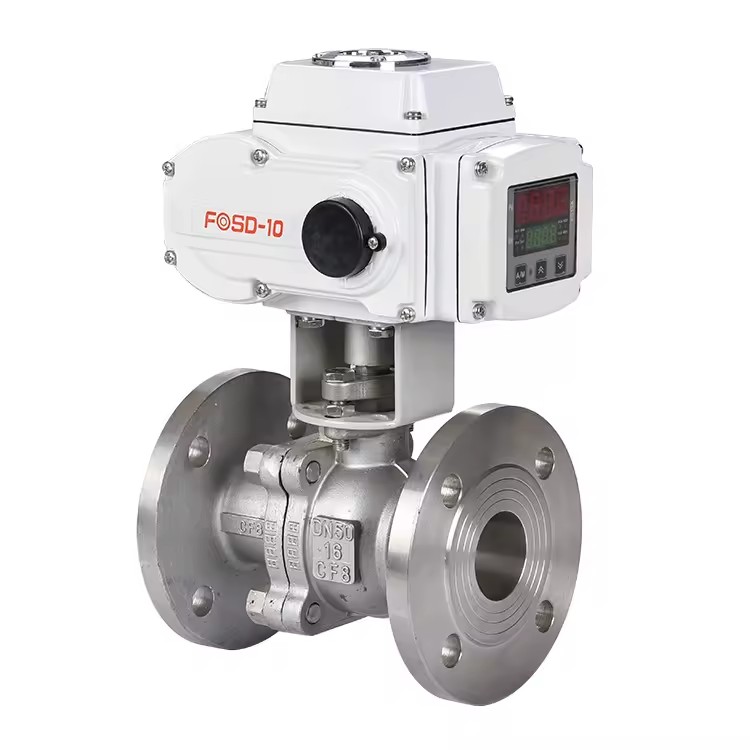

4-20mA 90 Degree Rotary Electric Stainless Steel 304/316 High Pressure Flange Ball Valve for Water Media

Available for enquiry 5.0 · 1 reviews 2 sold
USD

$ 120.00 120.0 USD $ 120.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Media
  • Sealing Material
  • Connection Type
  • Power
  • Ball Material
  • Port Size
  • Application
  • Temperature of media
  • Structure
  • Customized support
  • Warranty
  • Place of origin
  • Model number (Specification)
  • Valve type
  • Color
  • Body Material
  • Certificate
  • Standard
  • Voltage
  • Temperature
  • Medium
  • Packing
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Media
Water
Sealing Material
PTFE
Connection Type
Flanged
Power
electric
Ball Material
Stainless Steel, WCB
Port Size
DN15-200
Product description
ConnectionFlange Type
Operating PressurePN1.6MPa
Control ModeElectric Actuator
Rated Travel Time15/20/30S
Rotation Angle0-90°
Optional VoltageDC12-24V AC12V AC24V AC110V AC220V AC380V
Body MaterialStainless steel/WCB
StructureBall valve
ApplicationSuitable for oxygen-containing corrosive media such as fresh water, live water, seawater, steam, food, medicine, various oils, acids, alkalis, salts, etc
NO.Part NamesMaterial
CPR
1Right valve bodyWCB1Cr18Ni9Ti1Cr18Ni12Mo2Ti
2Nut351Cr18Ni9Ti1Cr18Ni9Ti
3SpacerPTFE, Graphite gaskets with metallic reinforcement
4Bolt351Cr18Ni9Ti1Cr18Ni9Ti
5Left valve bodyWCB1Cr18Ni9Ti1Cr18Ni12Mo2Ti
6Valve seat sealingPTFE, Nylon, PPL, hard alloy
7Ball valve ball1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni12Mo2Ti
8Valve stem1Cr131Cr18Ni9Ti1Cr18Ni12Mo2Ti
9Spacer1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni12Mo2Ti
10PackingPTFE, flexible graphite
11Bonnet bushPTFE, composite bearing
12GlandWCB1Cr18Ni9Ti1Cr18Ni12Mo2Ti
13Bolt351Cr18Ni9Ti1Cr18Ni9Ti
14Bolt351Cr18Ni9Ti1Cr18Ni9Ti
15BracketWCB1Cr18Ni9Ti1Cr18Ni9Ti
16Bolt351Cr18Ni9Ti1Cr18Ni9Ti
17Coupling351Cr18Ni9Ti1Cr18Ni9Ti

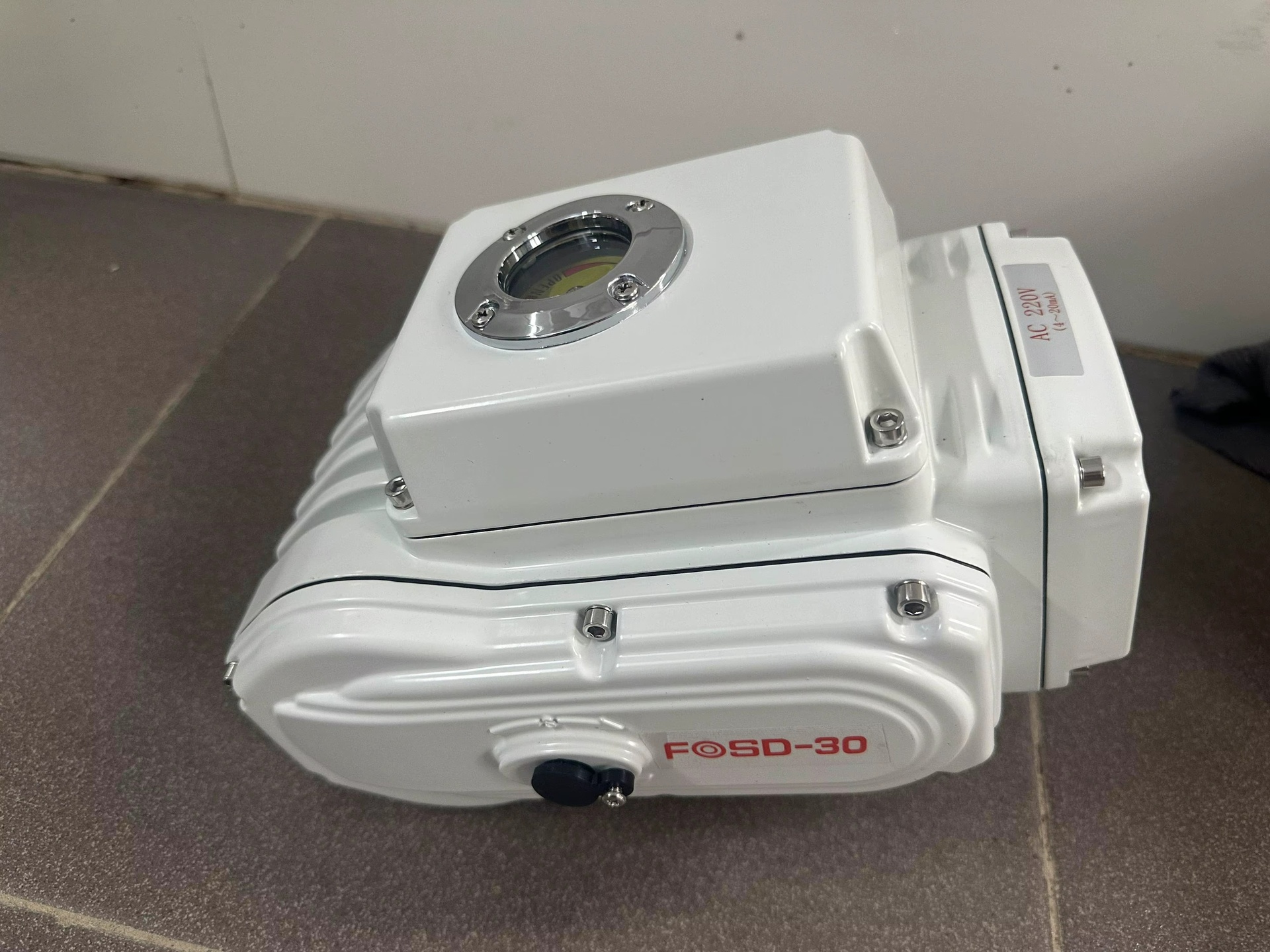

18ActuatorFosd series
Certifications & compliance
CE
Complies with EU standards
Description images

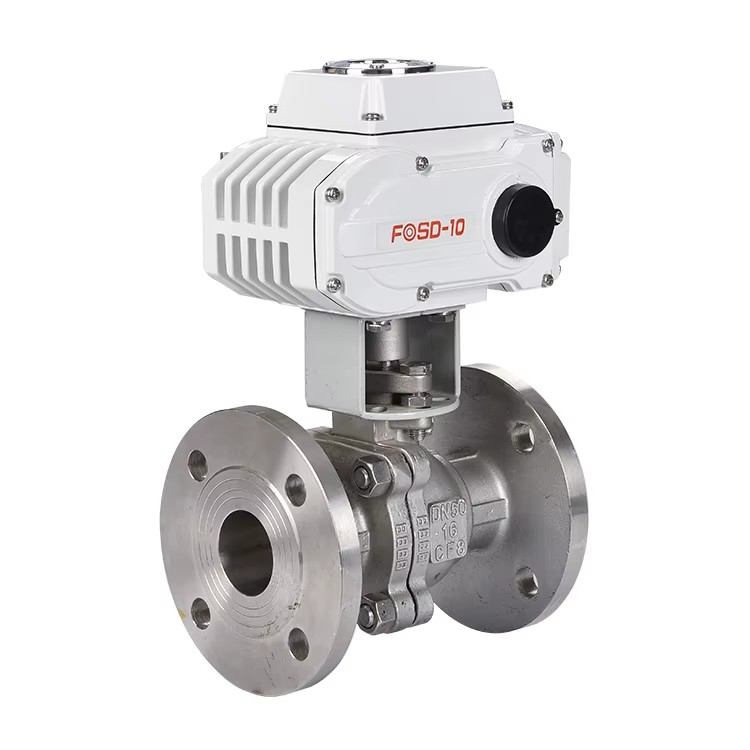

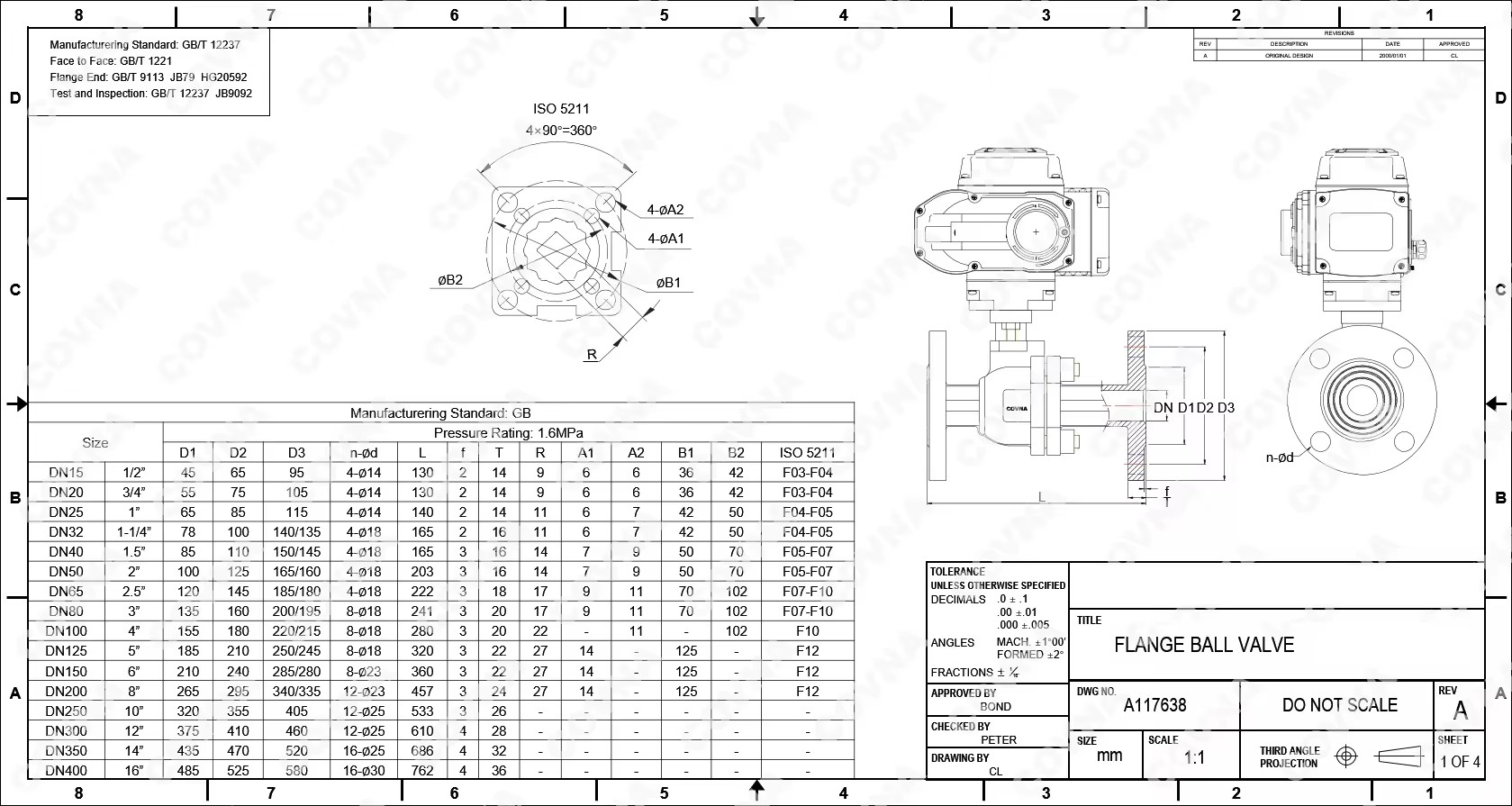

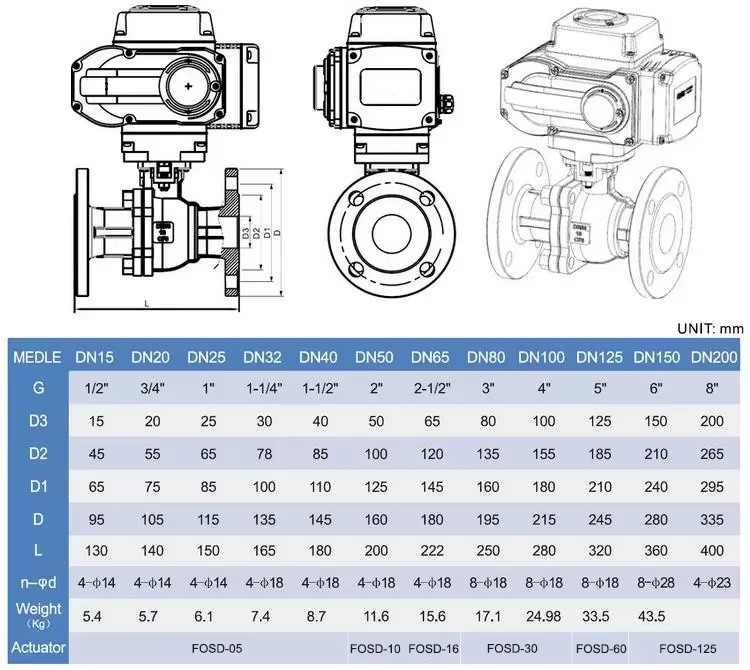

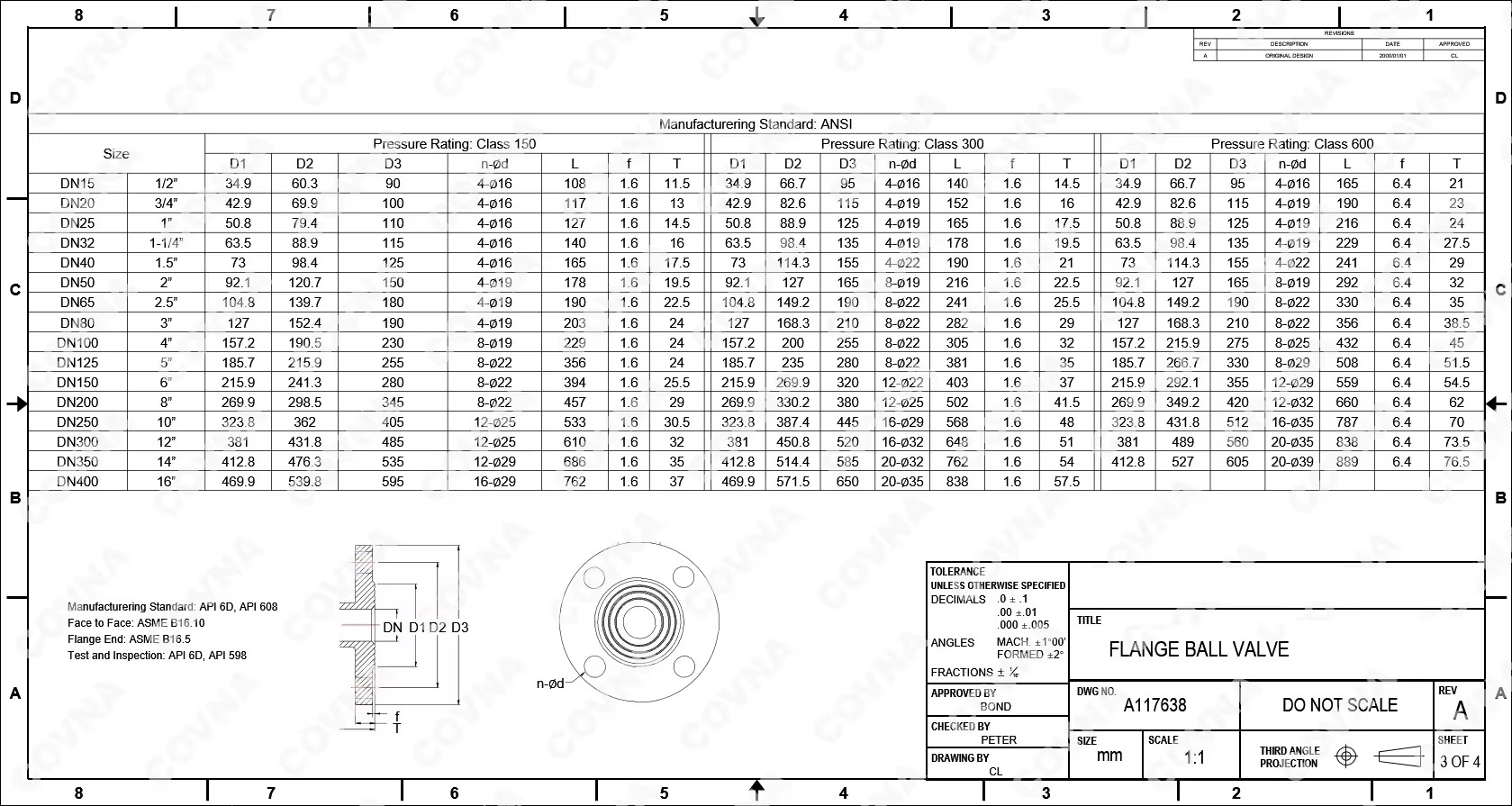

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Media
Water
Sealing Material
PTFE
Connection Type
Flanged
Power
electric
Ball Material
Stainless Steel, WCB
Port Size
DN15-200
Application
General, Water Industrial Usage, Household Usage, Industrial Usage
Temperature of media
Medium Temperature, Normal Temperature
Structure
Ball
Customized support
OEM, ODM, OBM
Warranty
1 Year
Place of origin
China, Guangdong
Model number (Specification)
FLQ941F-16P
Valve type
Ball valve
Color
Customized Color
Body Material
Stainless Steel 304/304L/316/316L WCB
Certificate
ISO9001 CE
Standard
DIN, JIS, ISO, ASME
Voltage
AC220V AC110V DC12V DC24V
Temperature
≤200°C
Medium
Water Oil Gas Steam
Packing
Carton Box/Wooden Box/Customized Packing
Selling Units
Single item
Single package size
50X50X50 cm
Single gross weight
50.0 kg
Material (Product option)
Stainless Steel
Pressure (Product option)
Medium Pressure
Size (Product option)
1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
